Asus Intel Rog Crosshair X870E Hero BTF AM5 WIFI 7 DDR5 Gaming Motherboard

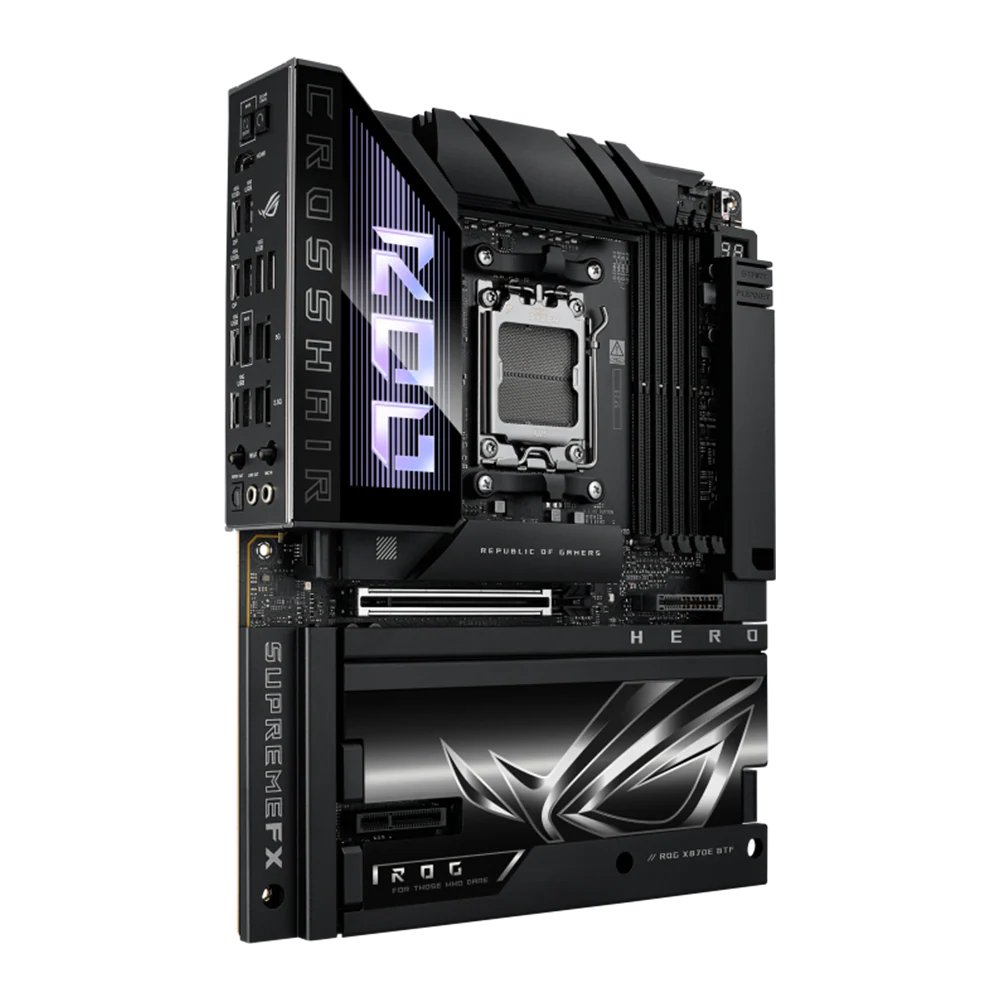

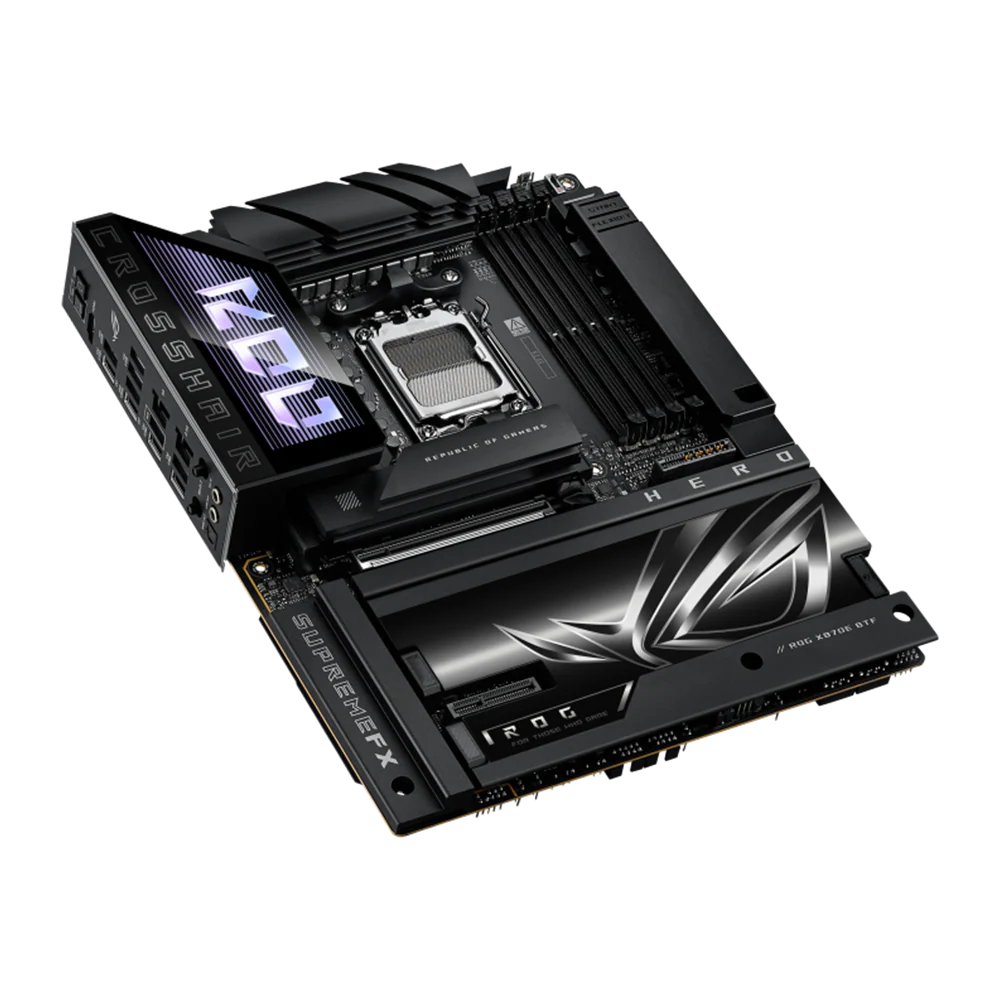

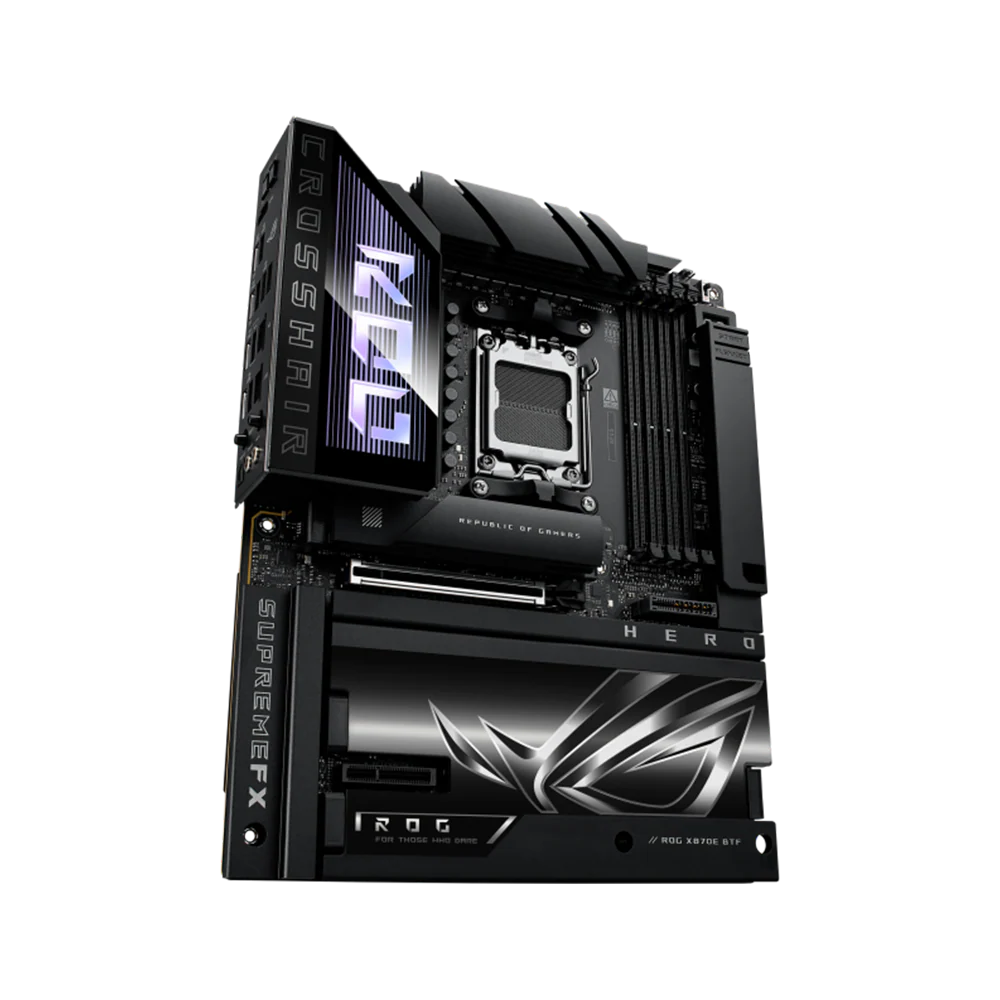

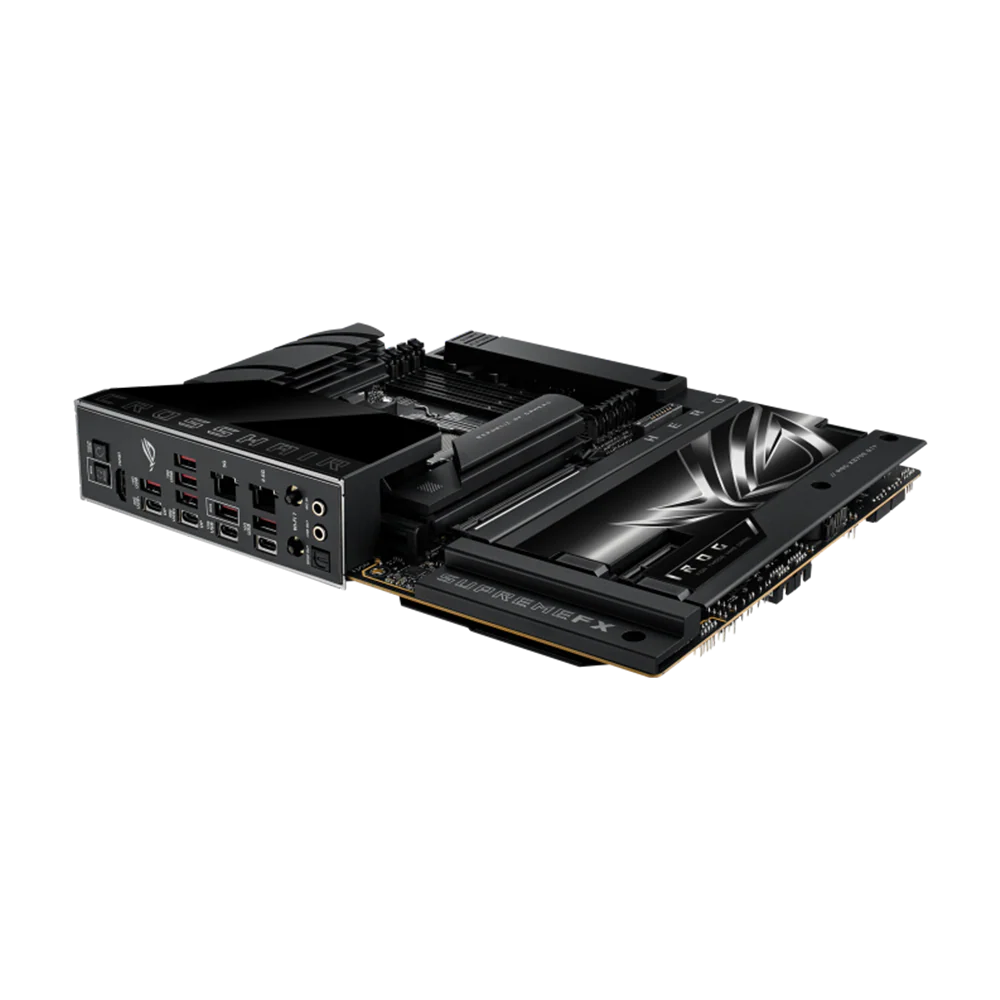

ASUS ROG Crosshair X870E Hero BTF motherboard runs on AMD AM5 platform for Ryzen 9000, 8000, and 7000 processors.
Hidden connector layout moves power, USB, and fan cables behind the board to reduce visible wiring.
Power delivery uses 18+2+2 stages rated at 110A for stable CPU load handling.
DDR5 memory support reaches high frequency with EXPO profiles and memory tuning tools.
PCIe 5.0 slot supports next graphics cards and high bandwidth storage devices.
WiFi 7, 5Gb Ethernet, and 2.5Gb Ethernet support network throughput.
Multiple M.2 slots support fast SSD storage configurations.
Integrated cooling design maintains VRM and chipset temperature control.
Software utilities support performance tuning, monitoring, and system management.

Key Features

• AMD AM5 motherboard platform
• Hidden cable connector board design
• DDR5 memory support
• PCIe 5.0 graphics slot support
• WiFi 7 wireless connectivity
• Dual Ethernet 5Gb and 2.5Gb ports
• Multiple M.2 NVMe storage slots
• Advanced VRM power stage design
• Integrated thermal heatsink design
• BIOS and system tuning software support

Detailed Technical Specification

• Model
  ROG Crosshair X870E Hero BTF

• CPU support
  AMD Ryzen 9000, 8000, 7000 series processors

• Chipset
  AMD X870E chipset

• Memory
  Four DDR5 DIMM slots
  Maximum 256GB memory capacity
  EXPO profile support
  ECC and non ECC memory support

• Graphics output
  HDMI port support up to 4K resolution
  USB4 Type C display output support

• Expansion slots
  PCIe 5.0 x16 slot for graphics cards
  PCIe 4.0 expansion slot support

• Storage
  Five M.2 NVMe SSD slots
  Four SATA 6Gbps ports
  RAID storage support

• Networking
  WiFi 7 wireless module
  Intel 2.5Gb Ethernet
  Realtek 5Gb Ethernet

• USB connectivity
  USB4 Type C ports
  USB 20Gbps front connector
  Multiple USB 10Gbps ports
  Additional USB 5Gbps and USB 2.0 headers

• Audio
  SupremeFX ALC4082 audio codec
  ESS ES9219 Quad DAC support
  Optical S PDIF output support

• Cooling support
  VRM heatsinks
  M.2 heatsink design
  Multiple fan headers

• BIOS
  UEFI BIOS firmware
  BIOS FlashBack support

• Form factor
  ATX motherboard size

• Operating system support
  Windows 11 compatibility

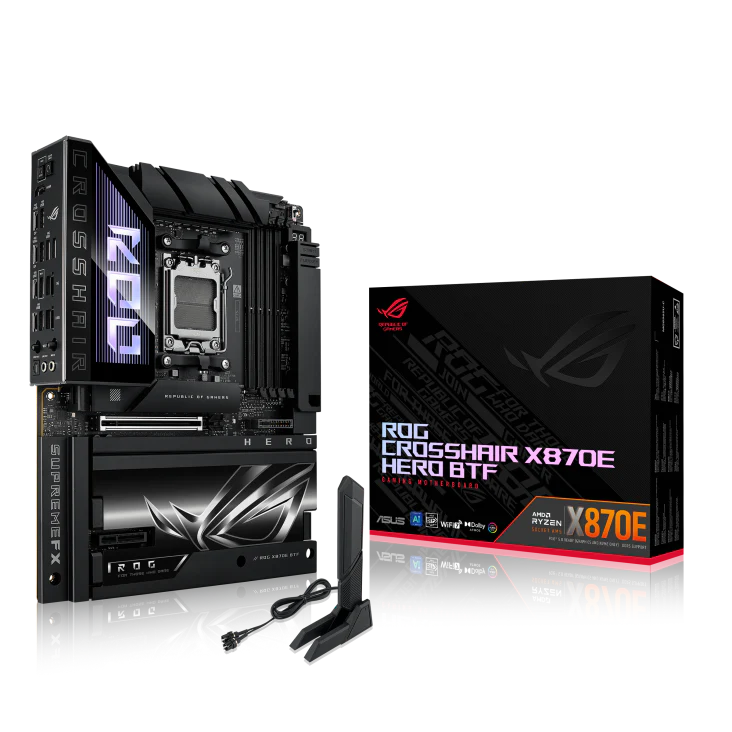

What in the Box

• Motherboard unit

• WiFi antenna

• SATA cables

• M.2 mounting accessories

• Installation USB drive

• Quick start guide

• ROG stickers and accessories
