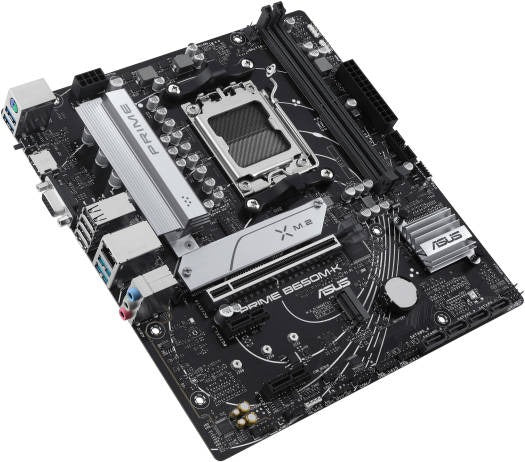

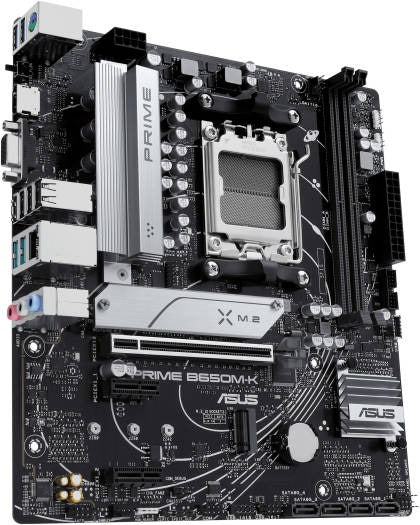

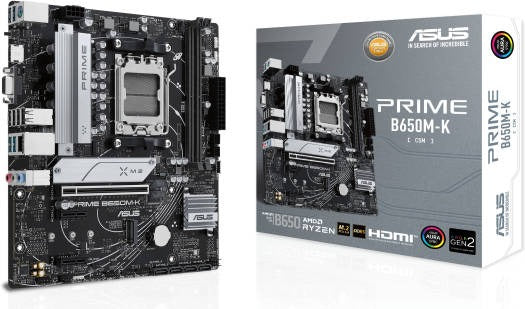

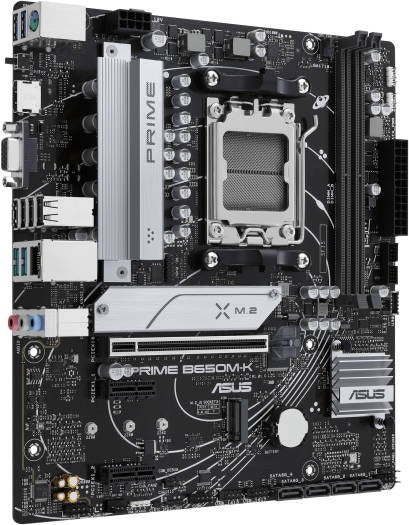

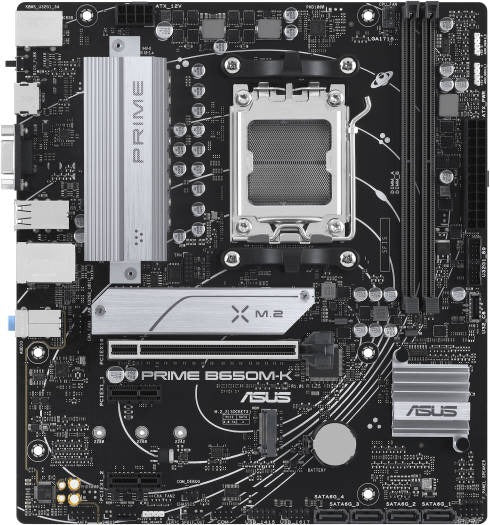

ASUS PRIME B650M-K AM5 Micro-ATX Motherboard

The ASUS PRIME B650M-K is a Micro-ATX motherboard designed for AMD Ryzen 7000 and 9000 series processors with the AM5 socket. It provides stable performance, DDR5 memory support, PCIe 4.0 connectivity, and multiple M.2 slots, making it a reliable choice for gaming and productivity in compact builds.

Key Features

• Supports AMD Ryzen 9000 and 7000 Series processors (AM5)
• Micro-ATX form factor for smaller cases
• Dual-channel DDR5 memory support
• PCIe 4.0 x16 slot for modern GPUs
• Dual M.2 PCIe 4.0 slots for fast NVMe SSDs
• Realtek 2.5Gb Ethernet for high-speed networking
• Multiple USB ports including USB 3.2 Gen 2 Type-C
• ASUS 5X Protection III for durability and reliability
• Fan Xpert 2+ software for advanced cooling management

---

Specifications Table

Feature	Details
Brand	ASUS
Series	PRIME
Model	B650M-K
Form Factor	Micro-ATX
CPU Socket	AMD AM5
Chipset	AMD B650
Memory Support	DDR5, Dual Channel, up to 128GB, speeds up to 6400+ MT/s (OC)
PCIe Support	1 x PCIe 4.0 x16 (GPU), 1 x PCIe 4.0/3.0 slots
Storage	2 x M.2 PCIe 4.0 slots, 4 x SATA 6Gb/s ports
Networking	Realtek 2.5Gb Ethernet
Audio	High-definition 8-channel audio
USB Ports	USB 3.2 Gen 2 Type-C, USB 3.2 Gen 1, USB 2.0
Cooling	VRM & chipset heatsinks, multiple fan headers
Durability	ASUS 5X Protection III, reinforced PCIe slots
RGB Support	Compatible with Aura Sync devices (via headers)
Compatibility	AMD Ryzen 9000 / 7000 Series CPUs

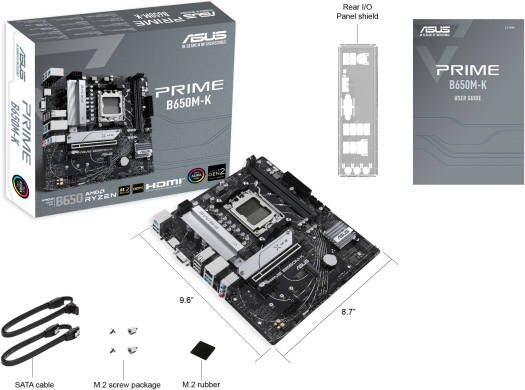

In the Box	Motherboard, SATA cables, M.2 screws, User manual
