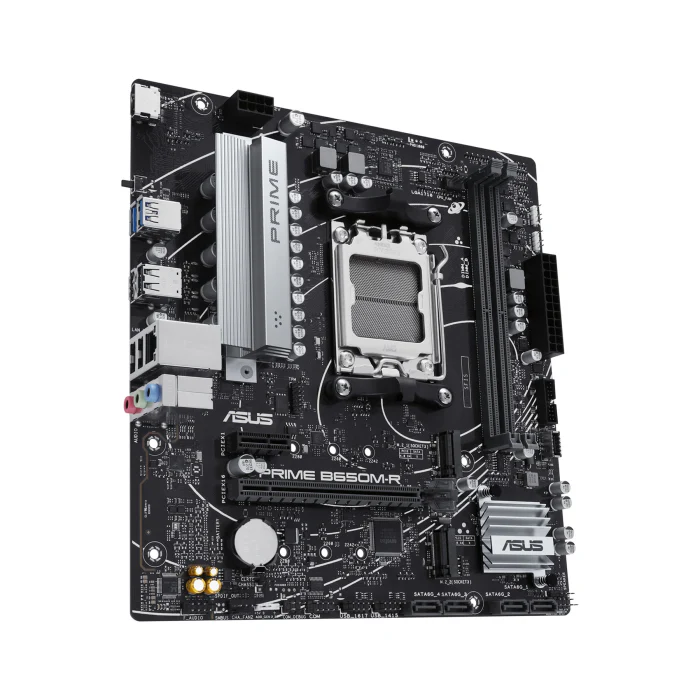

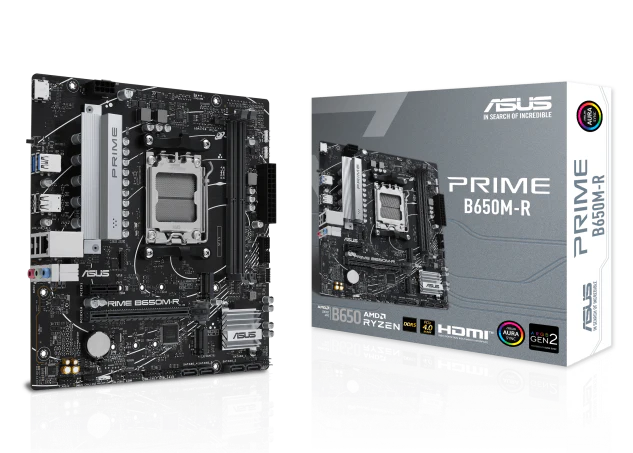

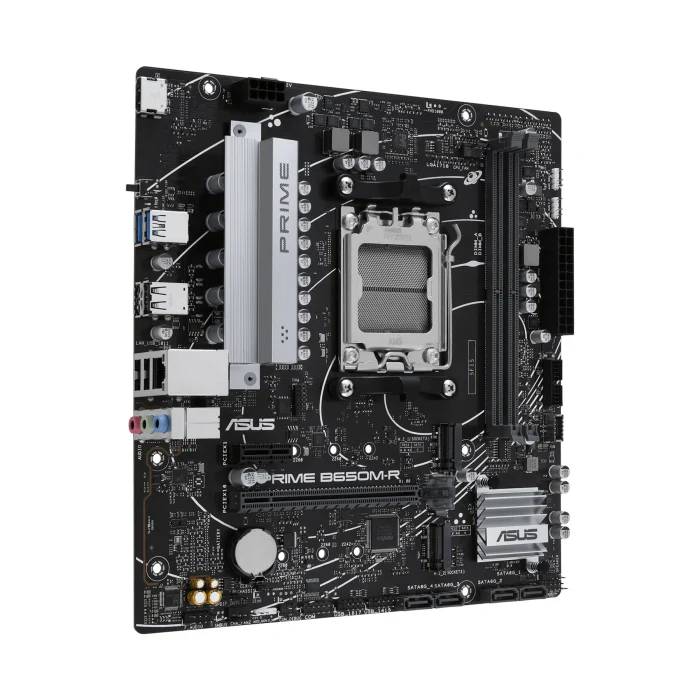

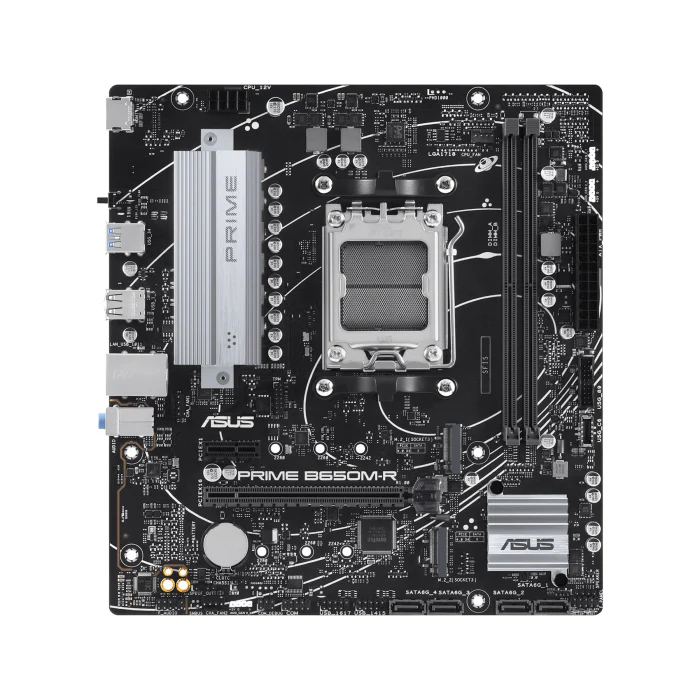

Asus PRIME B650M-R AMD DDR5 M-ATX Gaming Motherboard

ASUS Prime B650M-R uses the AM5 platform with the AMD B650 chipset for Ryzen 7000, 8000, and 9000 processors.
The micro ATX form factor supports compact PC builds while maintaining expansion capability.
DDR5 memory support reaches up to 96GB with speeds up to 7200MHz through OC profiles.
Dual PCIe 4.0 M.2 slots support NVMe storage with faster data transfer speeds.
A PCIe 4.0 x16 slot supports modern graphics cards for gaming and production systems.
Realtek 2.5Gb Ethernet supports stable wired networking for gaming and work tasks.
HDMI 2.1 supports direct 4K output when using integrated graphics processors.
Thermal heatsinks and fan control tools help maintain stable operating temperatures.
UEFI BIOS and FlashBack features support easy configuration and firmware updates.
This motherboard supports gaming systems, productivity builds, and daily desktop use.

Key Features

• AM5 socket supports Ryzen 7000 8000 9000 processors
• Micro ATX motherboard design
• DDR5 memory support up to 96GB
• PCIe 4.0 graphics card slot
• Dual PCIe 4.0 M.2 NVMe storage slots
• Realtek 2.5Gb Ethernet networking
• HDMI 2.1 4K display output
• Thermal heatsink cooling design
• BIOS FlashBack firmware update support

Detailed Technical Specification

• Chipset
  AMD B650 chipset for AM5 desktop platform

• Processor support
  Compatible with AMD Ryzen 7000 8000 9000 desktop processors

• Memory support
  Two DDR5 DIMM slots up to 96GB dual channel speeds up to 7200MHz OC EXPO support

• Storage support
  Two PCIe 4.0 M.2 slots for NVMe SSD
  Four SATA 6Gb ports for HDD or SATA SSD

• Expansion slots
  One PCIe 4.0 x16 graphics slot
  One PCIe 4.0 x1 expansion slot

• Networking
  Realtek 2.5Gb Ethernet wired network controller

• Graphics output
  HDMI 2.1 supports 4K at 60Hz with supported CPU

• Rear USB ports
  Two USB 5Gbps Type A ports
  Four USB 2.0 ports

• Front USB headers
  USB Type C 5Gbps connector
  Additional USB 5Gbps and USB 2.0 headers

• Audio system
  Realtek 7.1 HD audio codec with shielding and capacitor filtering

• Cooling support
  VRM heatsink design CPU fan header chassis fan headers

• Power connectors
  24 pin motherboard connector 8 pin CPU power connector

• Form factor
  Micro ATX size 23.6cm by 22.1cm

• BIOS
  UEFI AMI BIOS with FlashBack support

• Special features
  ASUS hardware protection system thermal control RGB header support

• Accessories included
  SATA cables I O shield M.2 anchors quick start guide

• Warranty
  Manufacturer warranty based on regional policy
