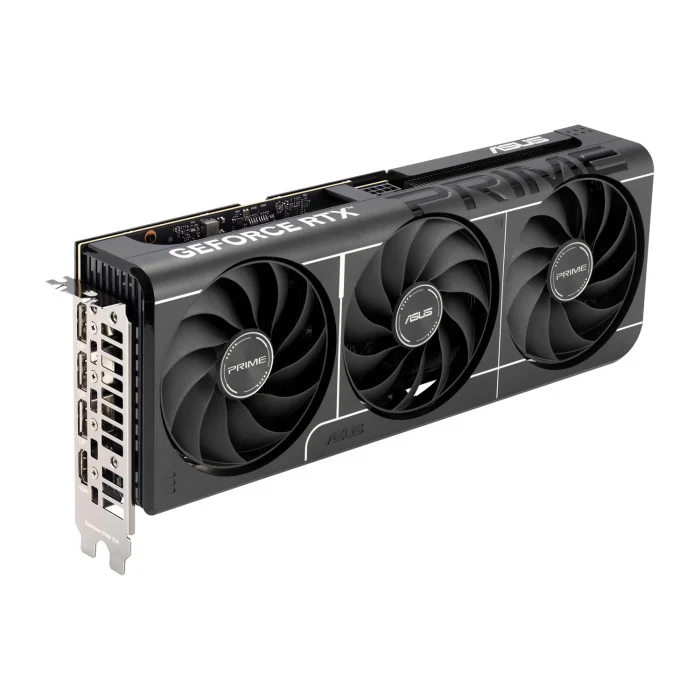

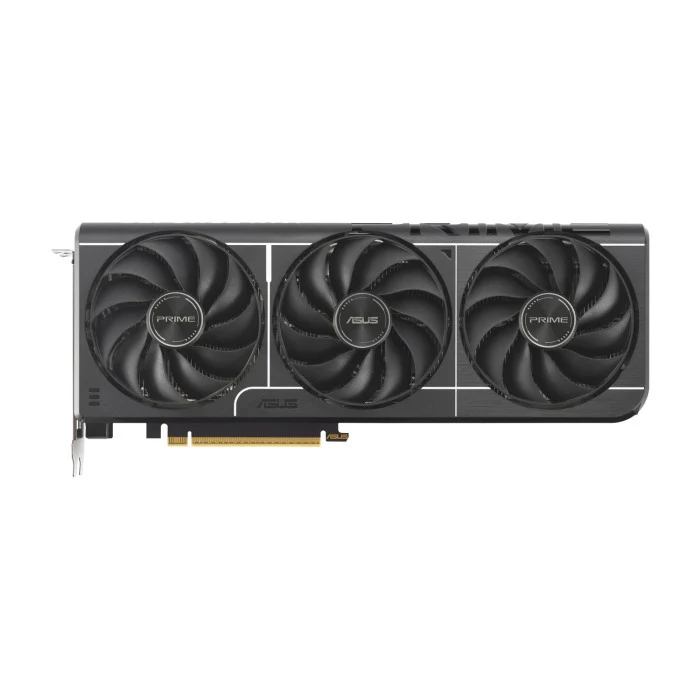

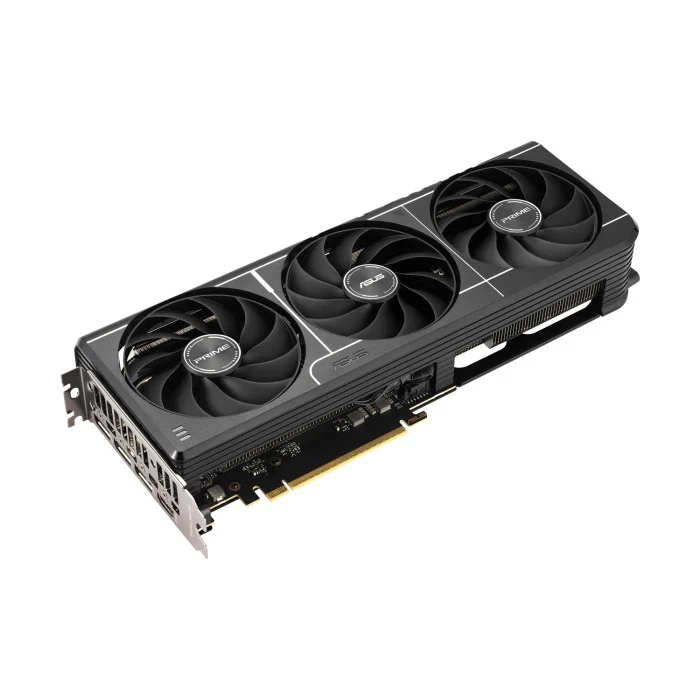

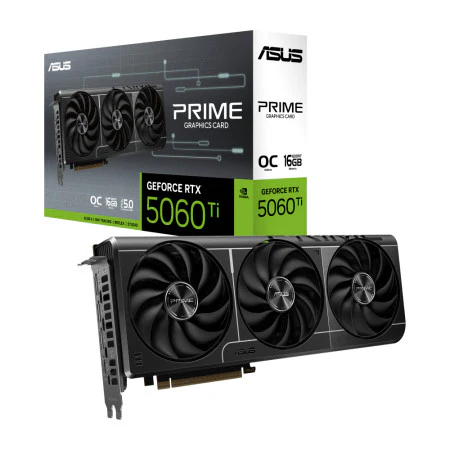

Asus Prime GeForce RTX 5060 Ti OC 16GB GDDR7 Triple Fan PCle 5.0 Graphics Card

The ASUS Prime GeForce RTX 5060 Ti OC Edition is a powerful mid-range graphics card based on NVIDIA's Blackwell architecture. Featuring 16 GB of ultra-fast GDDR7 memory and PCIe 5.0 support, this GPU is designed for high-resolution gaming, AI-accelerated workflows, and future-ready builds. Its compact 2.5-slot form factor fits small to medium chassis, while a triple Axial‑Tech fan setup ensures optimal cooling under heavy load.

---

 Key Features

• 16 GB GDDR7 VRAM on a 128‑bit memory interface (~28 Gbps, ~448 GB/s bandwidth)
• PCI Express 5.0 interface for maximum data throughput
• OC Edition — Boost clock up to ~2647 MHz for enhanced performance
• 4608 CUDA cores enable efficient rendering and compute tasks
• Supports DLSS 4 and advanced ray tracing features for realistic visuals

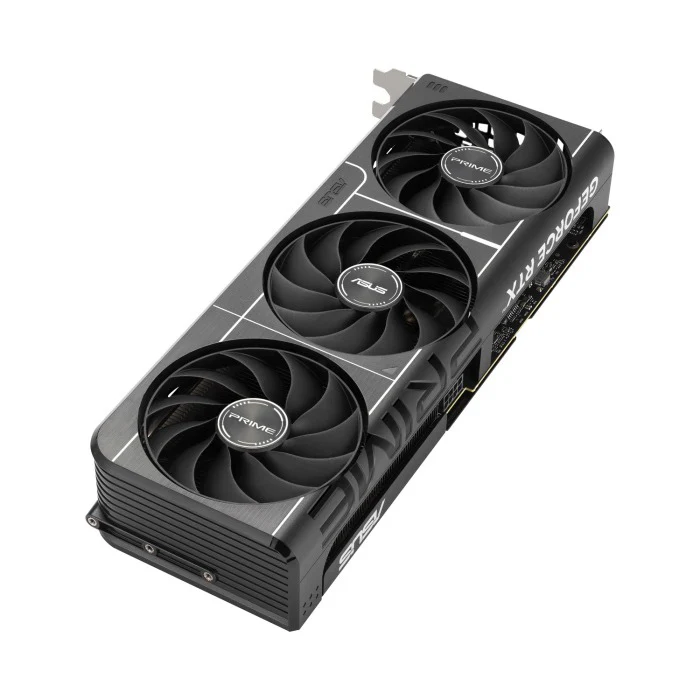

• Triple Axial‑Tech fans with dual‑ball bearings for efficient cooling and longevity
• Dual BIOS switch between Performance and Quiet profiles
• SFF‑Ready (2.5-slot) design for wide case compatibility and compact builds

---

 Specifications

Feature	Specification
Architecture	NVIDIA Blackwell
CUDA Cores	4608
VRAM	16 GB GDDR7
Memory Bus	128-bit
Memory Speed	~28 Gbps (~448 GB/s bandwidth)
Boost Clock (OC)	Up to ~2647 MHz
Default Boost Clock	~2617 MHz
Bus Interface	PCIe 5.0 x16 (x8 mode)

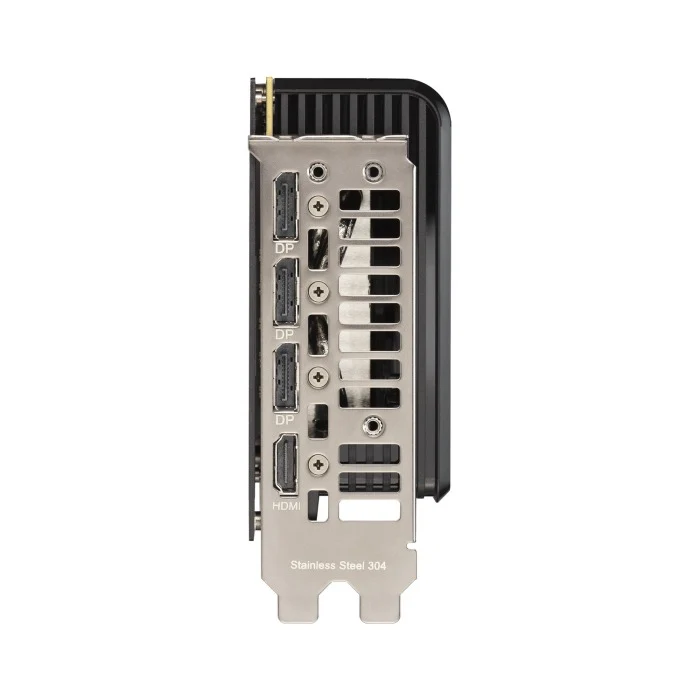

Display Outputs	3× DisplayPort 2.1b, 1× HDMI 2.1b
Max Resolution	Up to 7680 × 4320 (8K)
Slot Width	2.5-slot design
Cooling System	Triple Axial‑Tech fans
Idle Fan Mode	Yes, 0 dB mode under ~50 °C
Fan Bearing	Dual ball bearings
Power Connector	1× 8-pin PCIe
TDP / Board Power	~180 W
Recommended PSU	550 W
Supported Displays	Up to 4 simultaneous monitors
