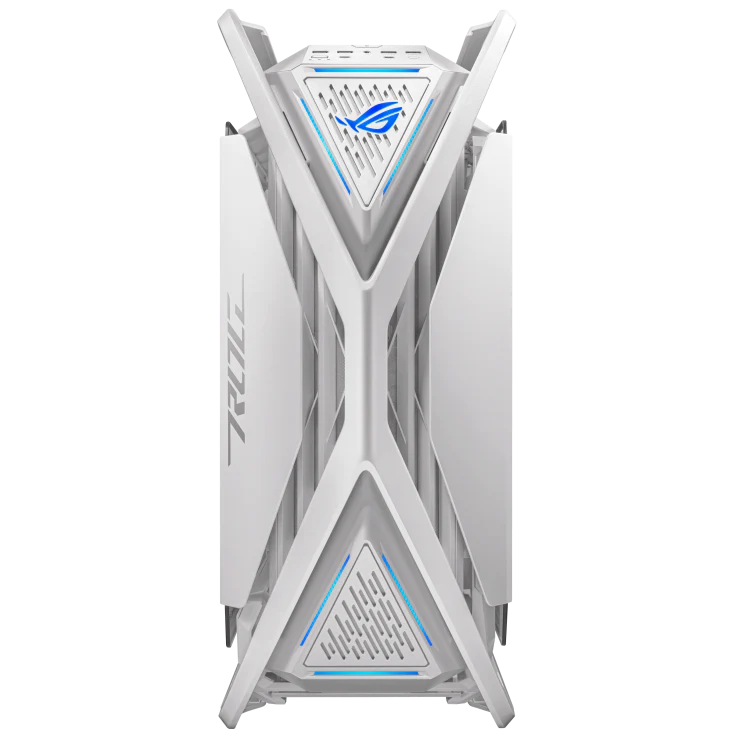

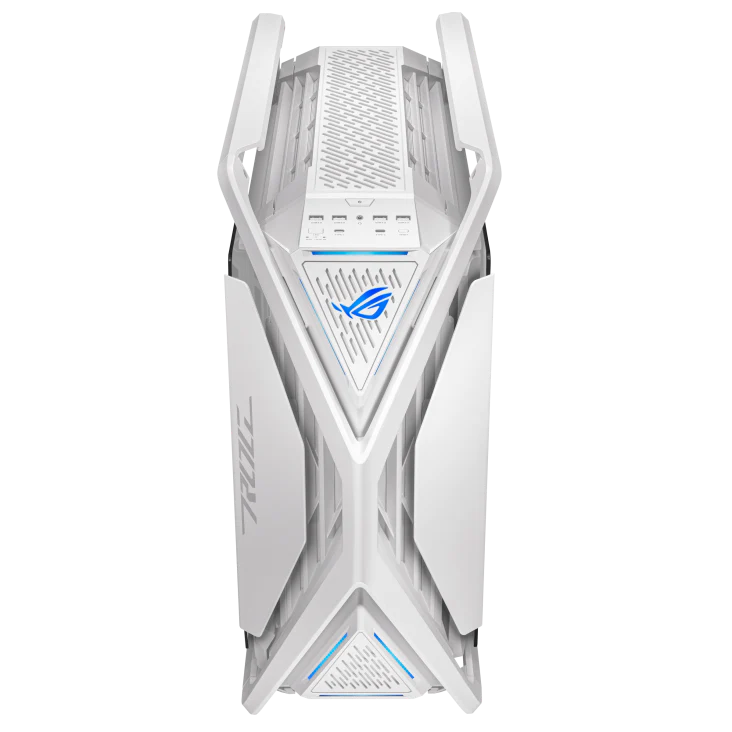

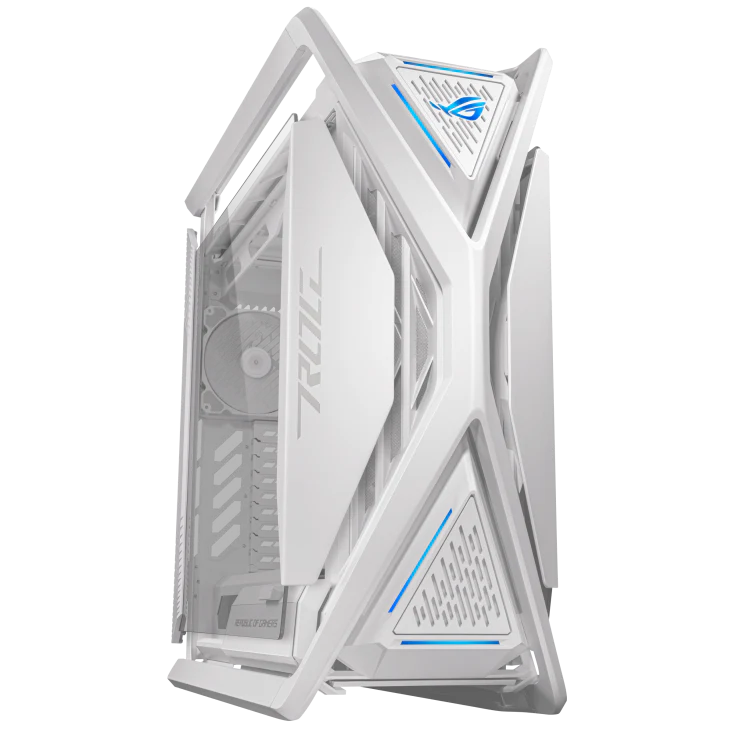

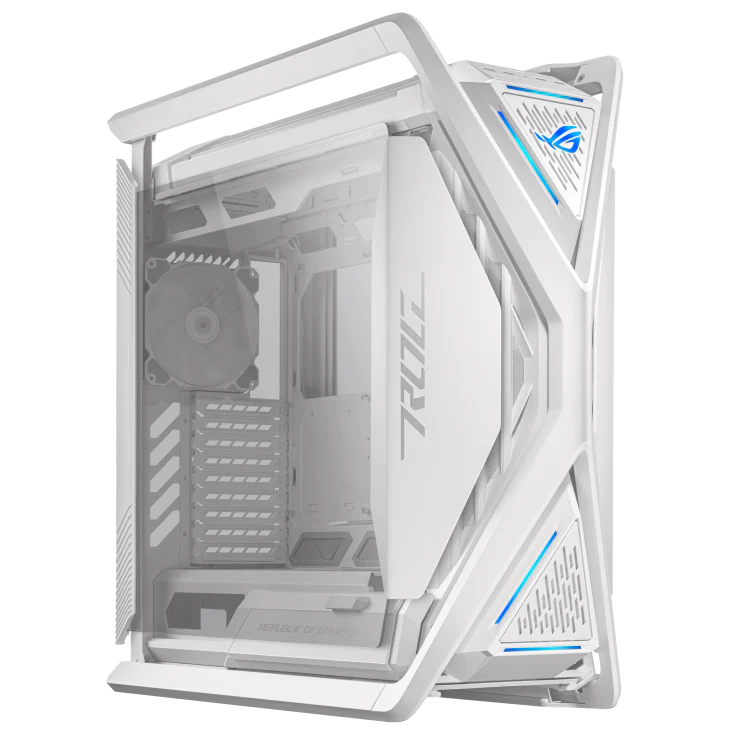

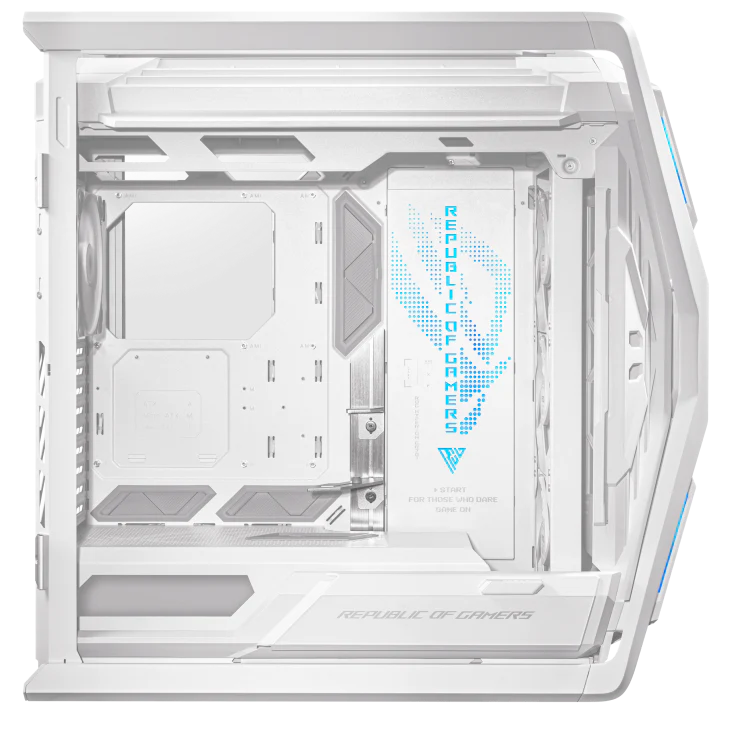

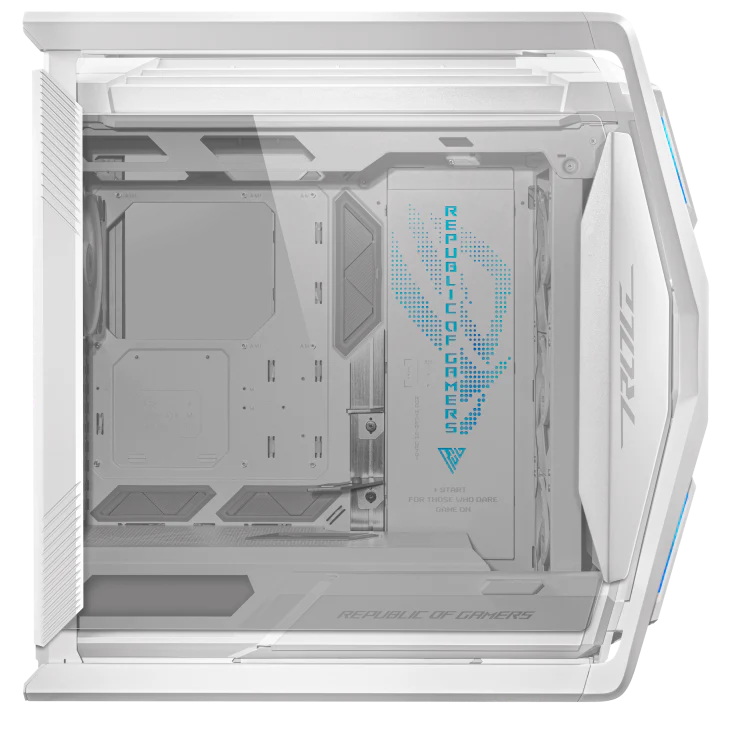

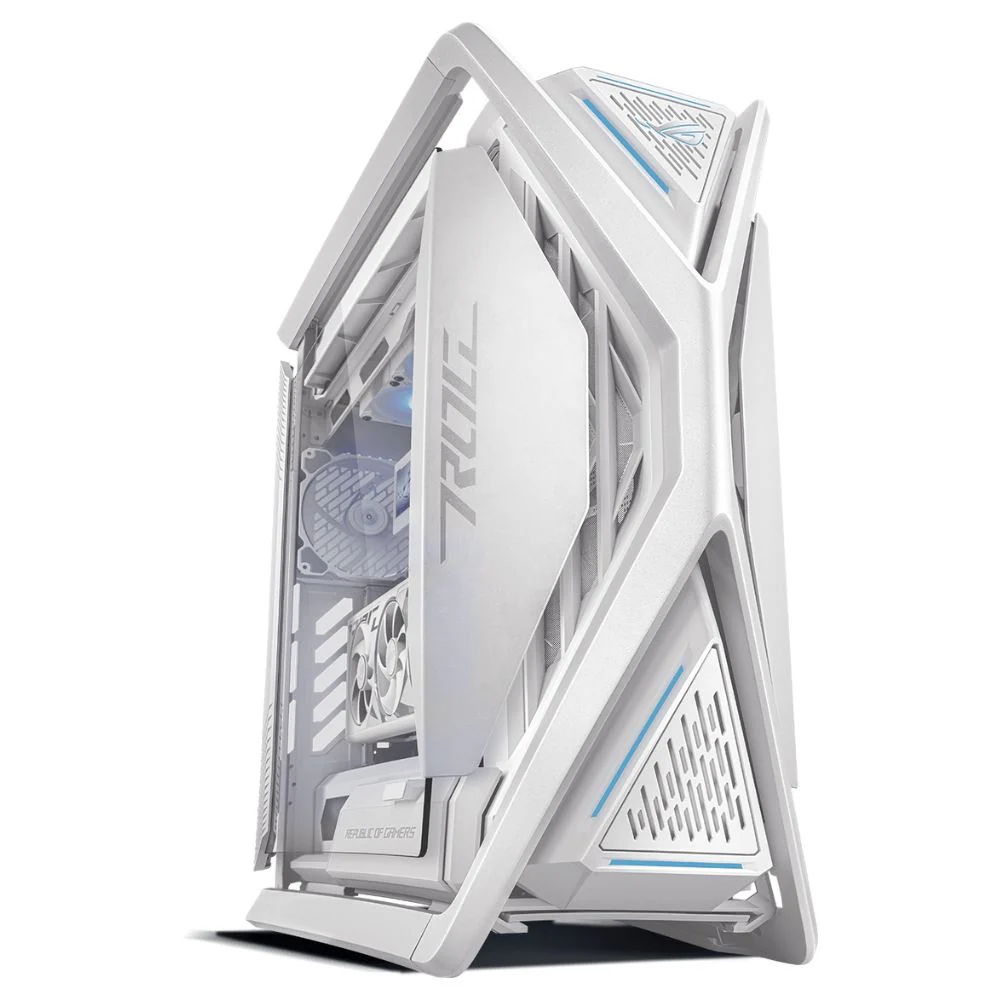

Asus ROG HYPERION GR701 PC Gaming Case - White

The Asus ROG Hyperion GR701 is a full-size gaming PC case designed for high-end builds and advanced cooling setups. It supports large motherboards, extensive radiator configurations, and long graphics cards, with a premium dual tempered glass design and integrated ARGB lighting.

Key Features

• Supports EATX, ATX, Micro-ATX, and Mini-ITX motherboards.

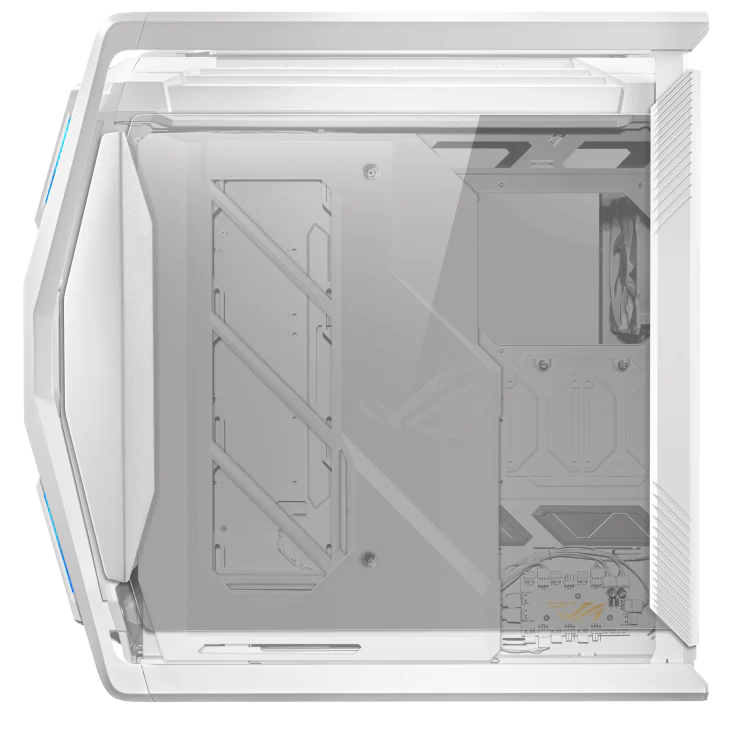

• Dual tempered glass panels on left and right sides.
• Extensive radiator support up to 420 mm on front and top.
• Pre-installed PWM fans for strong airflow.
• Spacious interior for large GPUs, tall CPU coolers, and long PSUs.
• Advanced cable management with wide routing space.
• AURA Sync ARGB lighting support.
• BTF motherboard compatibility on GR701 BTF Edition only.

Technical Specs

Motherboard Support

• EATX up to 12 x 10.9 inches
• ATX
• Micro-ATX
• Mini-ITX

Drive Bays

• 5 x 2.5 inch bays
• 2 x 2.5 inch / 3.5 inch combo bays

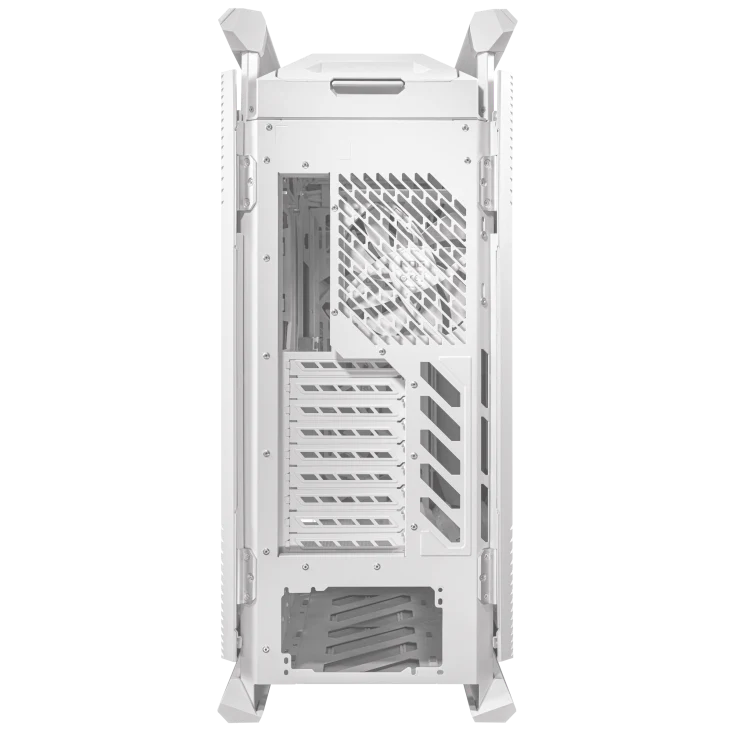

Expansion Slots

• 9 horizontal slots
• 3 additional vertical slots

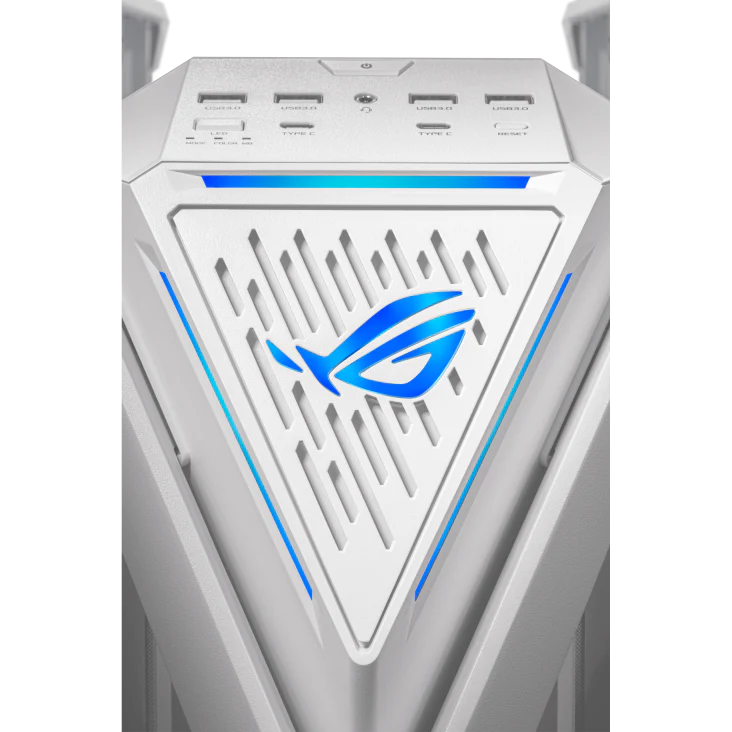

Front I/O Ports

• 1 x Headphone / Microphone combo
• 4 x USB 3.2 Gen 1
• 1 x USB 3.2 Gen 2 Type-C
• 1 x USB 4.0 Type-C or 1 x USB 3.2 Gen 2x2 Type-C
• LED control button
• Reset button
• Port configuration may vary by region

Cooling and Radiator Support

Front Radiator Support

• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm
• 420 mm

Top Radiator Support

• 120 mm
• 140 mm
• 240 mm
• 280 mm
• 360 mm
• 420 mm

Rear Radiator Support

• 120 mm
• 140 mm

Fan Support

• Front: 3 x 120 mm or 3 x 140 mm
• Top: 3 x 120 mm or 3 x 140 mm
• Rear: 1 x 120 mm or 1 x 140 mm

Pre-installed Fans

• Front: 3 x 140 mm PWM
• Rear: 1 x 140 mm

Clearance

• Maximum CPU Cooler Height: 190 mm
• Maximum GPU Length: 460 mm
• Maximum PSU Length: 240 mm
• Maximum Cable Management Space: 34 mm

Dust Filters

• Front
• Top
• Bottom

Physical Specifications

• Dimensions: 268 x 639 x 659 mm
• Weight:
• 20.8 kg
• 21.3 kg for GR701 BTF Edition

Lighting and Compatibility

• AURA Sync: ARGB supported
• BTF Motherboard Support: GR701 BTF Edition only
