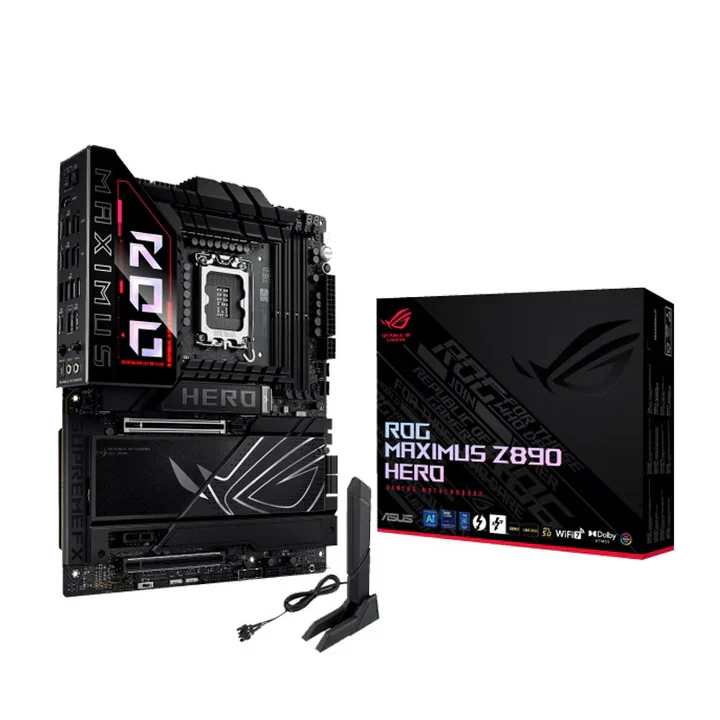

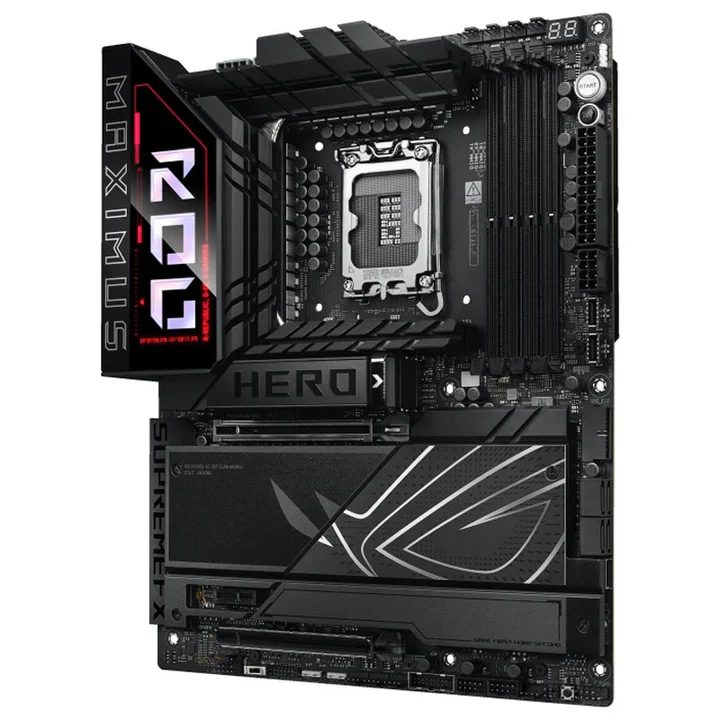

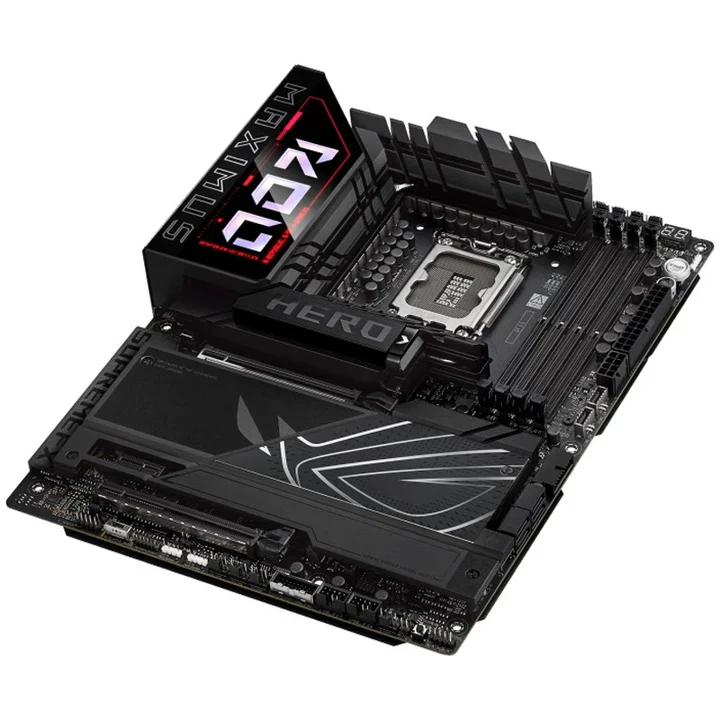

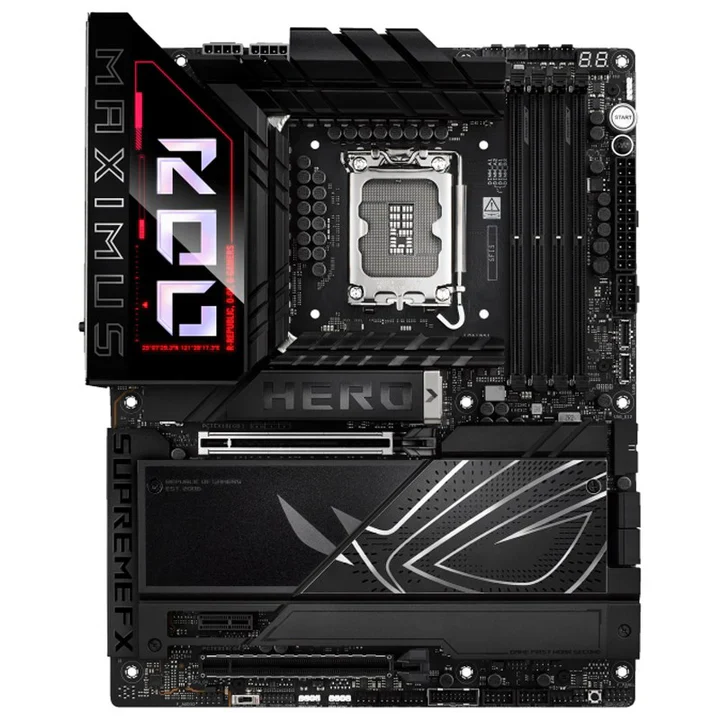

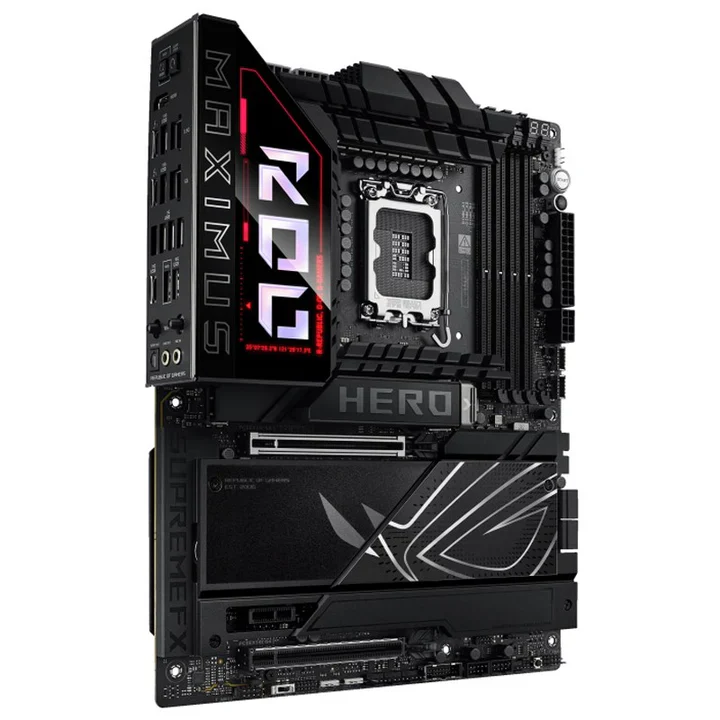

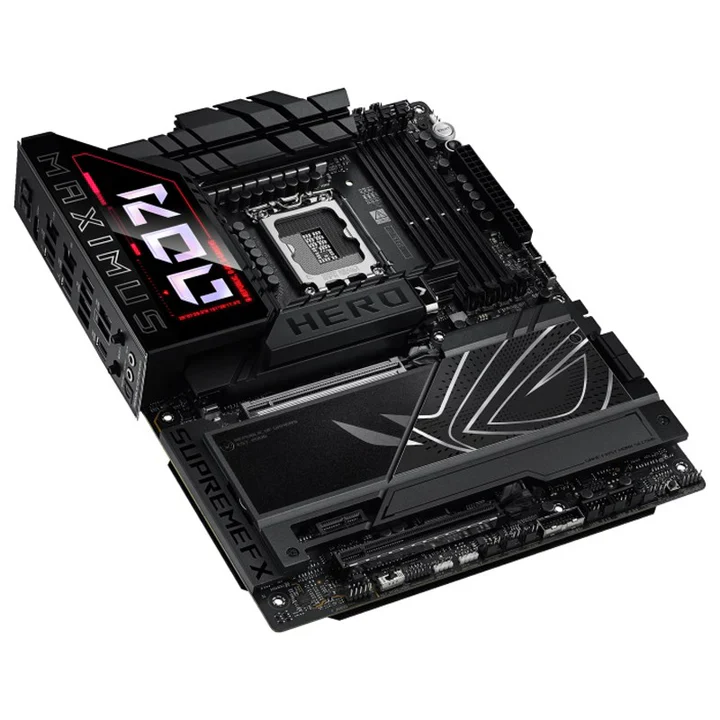

Asus ROG MAXIMUS Z890 HERO WIFI 7, DDR5 ATX Gaming Motherboard

General

• Chipset: Intel® Z890

• Socket: LGA 1851

• Form Factor: ATX

• CPU Support: Intel® Core™ Ultra (Series 2)

• AI Features: AI Overclocking, Cooling II, Networking II, AI Advisor

---

Power & Performance

• Power Stages: 22+1+2+2 (110A)

• Memory:

  • 4× DDR5 DIMM slots, up to 192GB

  • Up to 8800+ MT/s OC

  • Supports AEMP III, DIMM Flex, NitroPath

• Storage:

  • 6× M.2 slots (3× PCIe 5.0, 3× PCIe 4.0)

  • 4× SATA 6Gb/s

  • SlimSAS (PCIe 4.0 x4 or 4× SATA)

---

Cooling

• VRM & IO Heatsinks with Heatpipe

• M.2 Heatsinks with Backplates (4/6 slots)

• AIO Pump Header + 6 Fan Headers

• Thermal Sensors + Fan Xpert 4

---

Connectivity

• WiFi: WiFi 7 (2x2), Bluetooth 5.4

• LAN: Intel® 2.5Gb + Realtek 5Gb

• USB Ports:

  • Rear: 2× TB4, 5× USB 10Gbps, 4× USB 5Gbps

  • Front: USB-C 20Gbps (60W QC4+), USB-C 10Gbps, 4× USB 5Gbps, 4× USB 2.0

• Display: 1× HDMI 2.1, 2× DisplayPort via TB4

• Expansion:

  • 1× PCIe 5.0 x16

  • 1× PCIe 4.0 x16 (x4 mode)

  • 1× PCIe 4.0 x1

---

Audio

• Codec: ALC4082 + ESS® ES9219 DAC

• Features: 7.1 Surround, S/PDIF, 32-bit/384kHz playback

---

Special Features

• ASUS Q-Design: Q-Release, Q-Latch, Q-Slot

• Aura Sync: Gen 2 ARGB headers

• BIOS: 256Mb UEFI, Q-Dashboard, Flashback, EZ Mode

• Software: Armoury Crate, GlideX, AIDA64 (1-year), TurboV Core, Dolby Atmos
