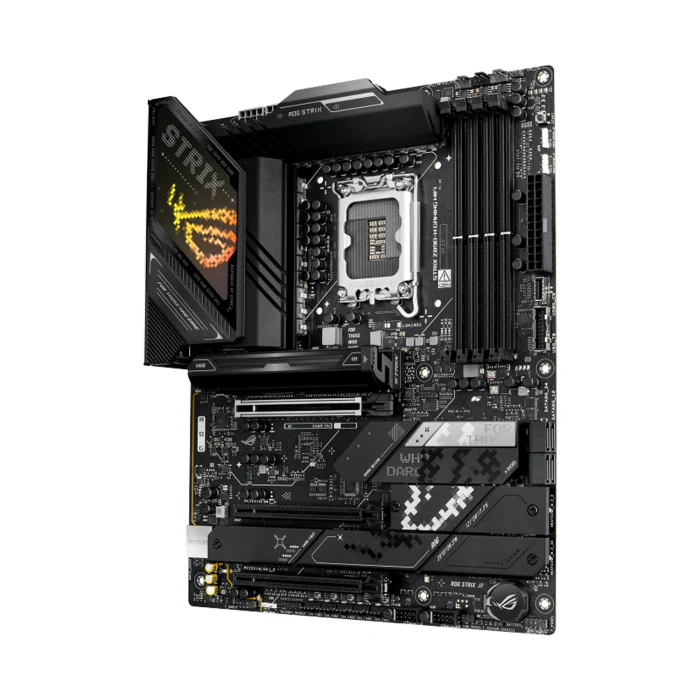

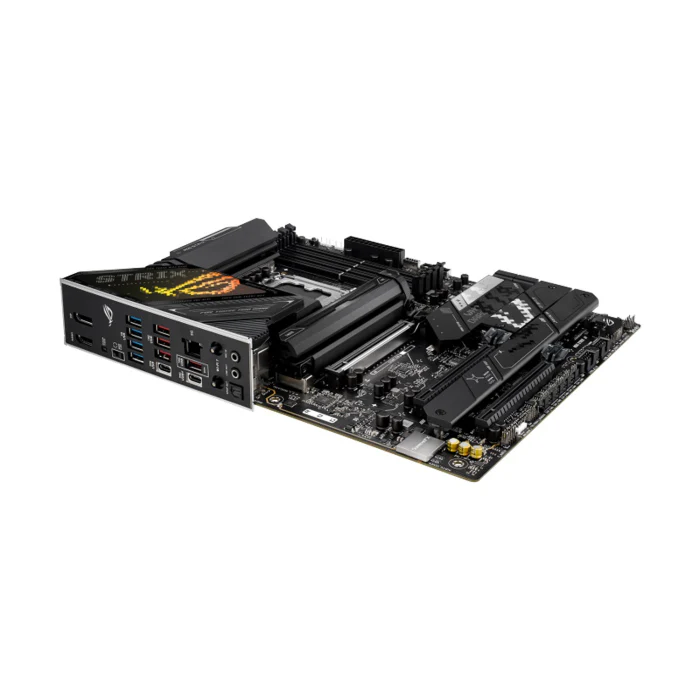

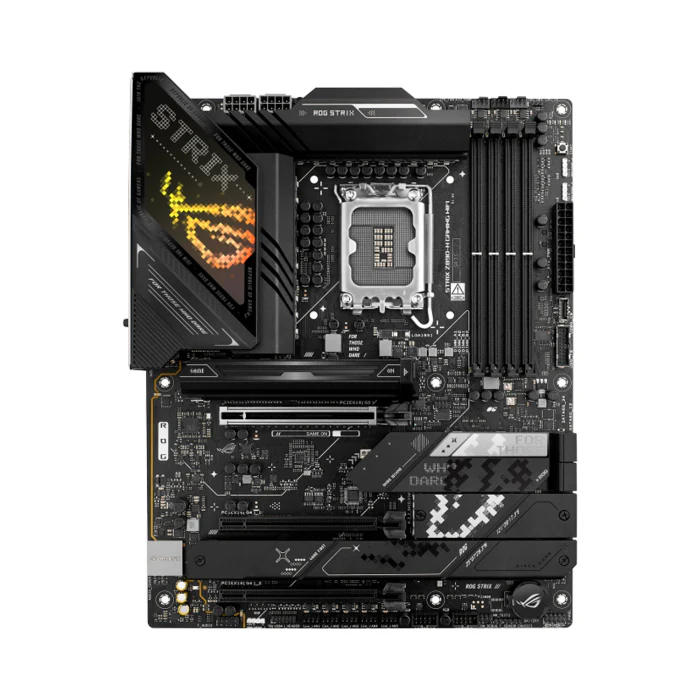

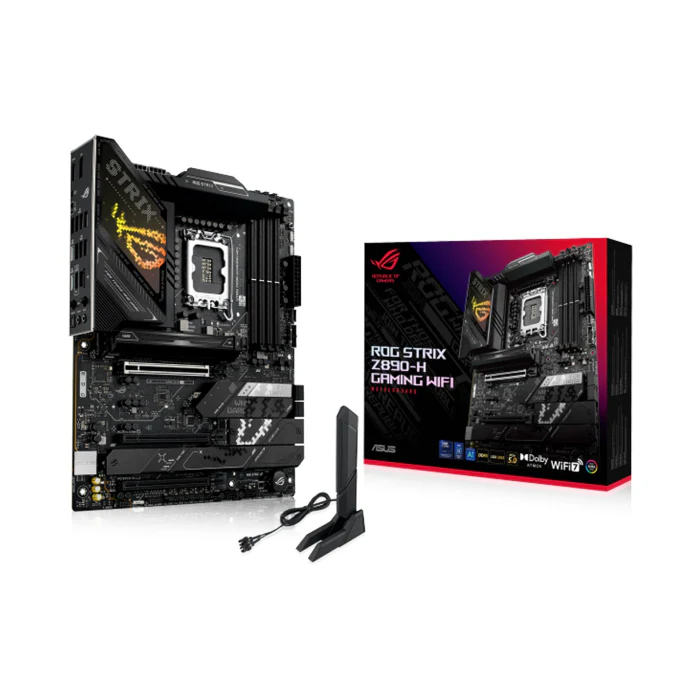

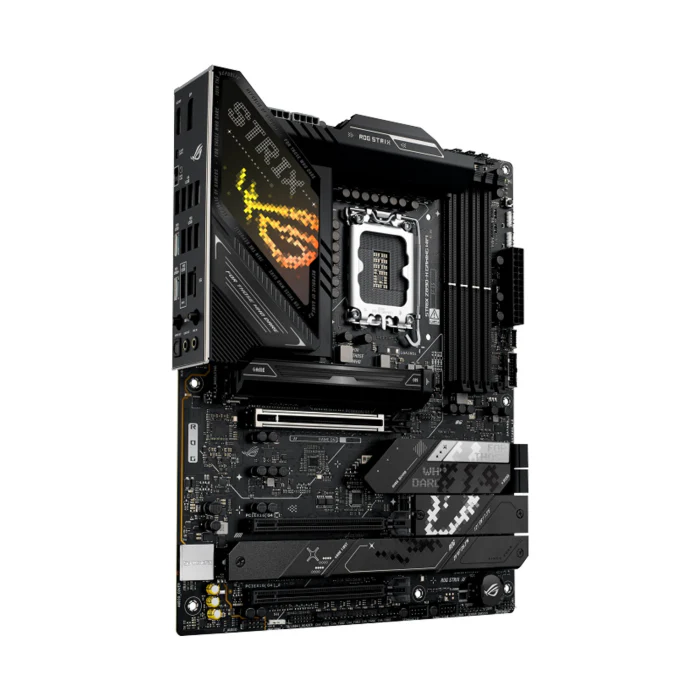

Asus Rog Strix Intel Core Ultra Z890-H Wifi 7, Ai Ready, PCIe 5.0 DDR5 Gaming MotherBoard

The ROG Strix Z890-H Gaming WiFi is built for advanced AI PCs. It supports Intel® Core™ Ultra Series 2 processors and is designed to deliver high performance, fast connectivity, and stable overclocking. It includes AI tuning features, next-generation networking, and support for PCIe 5.0 and DDR5 memory, making it ideal for gaming and demanding workloads.

---

Key Features

• AI Advisor, AI Overclocking, AI Cooling II, and AI Networking II
• PCIe 5.0 GPU slot with SafeSlot reinforcement and PCIe 5.0 M.2 storage
• USB 20 Gbps Type-C with 30 W Power Delivery and USB Wattage Watcher
• Wi-Fi 7 with Q-Antenna and 5 Gb Ethernet LAN
• 16 + 1 + 2 + 2 power stage design with 80 A stages and ProCool II connectors
• DDR5 memory support up to 256 GB and OC speeds beyond 9066 MT/s
• DIY-friendly tools: M.2 Q-Latch, PCIe Q-Release Slim, Q-LED, Clear CMOS, BIOS FlashBack
• Aura Sync RGB with Gen2 ARGB headers

---

Specifications

Category	Details
CPU Socket	LGA 1851 – Intel® Core™ Ultra Series 2
Chipset	Intel® Z890
Memory	4 × DDR5 DIMM slots, up to 256 GB, OC 9066+ MT/s, dual-channel
Graphics Output	1 × DisplayPort (8K@60 Hz), 1 × HDMI (4K@60 Hz)
PCIe Slots	1 × PCIe 5.0 x16, 2 × PCIe 4.0 x16 (x4 mode)
Storage	4 × M.2 slots (PCIe 5.0 + PCIe 4.0), plus SATA
Networking	Wi-Fi 7 with Q-Antenna, Realtek 5 GbE LAN
USB Ports	Rear USB-C 20 Gbps with 30 W PD, multiple Type-C and Type-A
Power Delivery	16+1+2+2 power stages, 80 A each, 8-layer PCB
Cooling	VRM and M.2 heatsinks, U-shaped heat pipe, multiple fan and AIO pump headers
DIY Tools	Q-Release, M.2 Q-Latch, Q-LED, Clear CMOS, BIOS FlashBack, Q-Antenna
Software	Q-Dashboard, TurboV Core, GlideX, HWiNFO integration
Accessories	SATA cables, thermal pad for M.2, WiFi antenna, cable ties, ROG keychain and stickers
Form Factor	ATX – 30.5 × 24.4 cm
OS Support	Windows 11 (22H2 and later)
