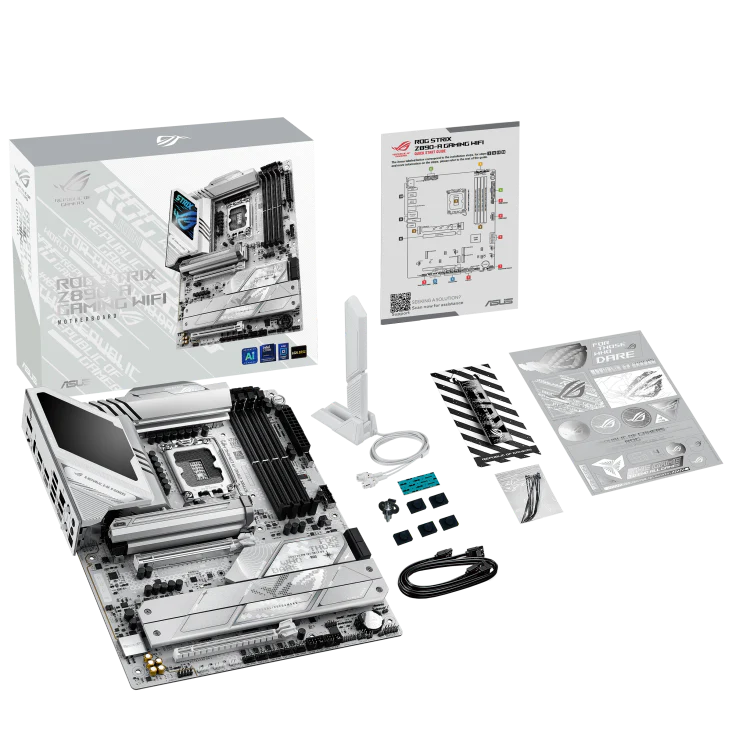

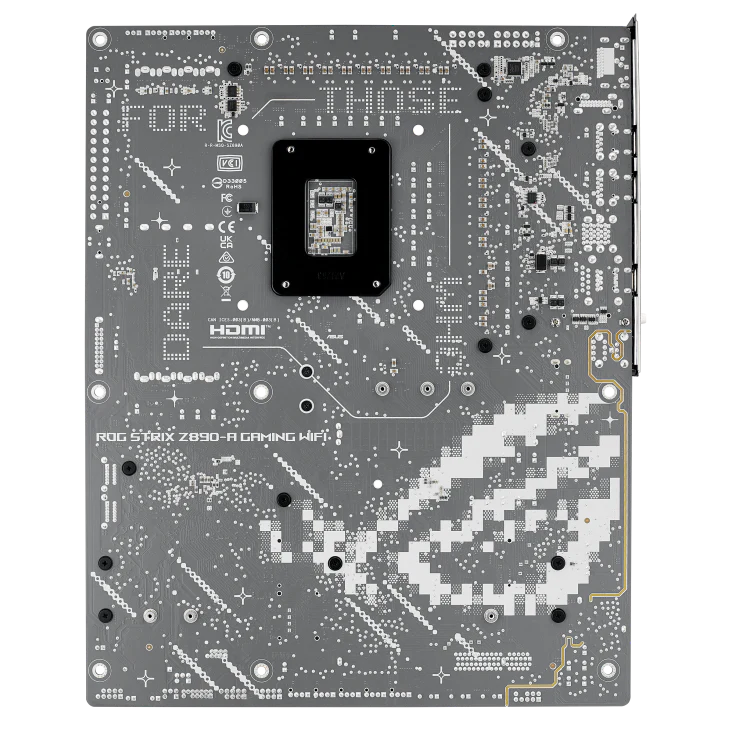

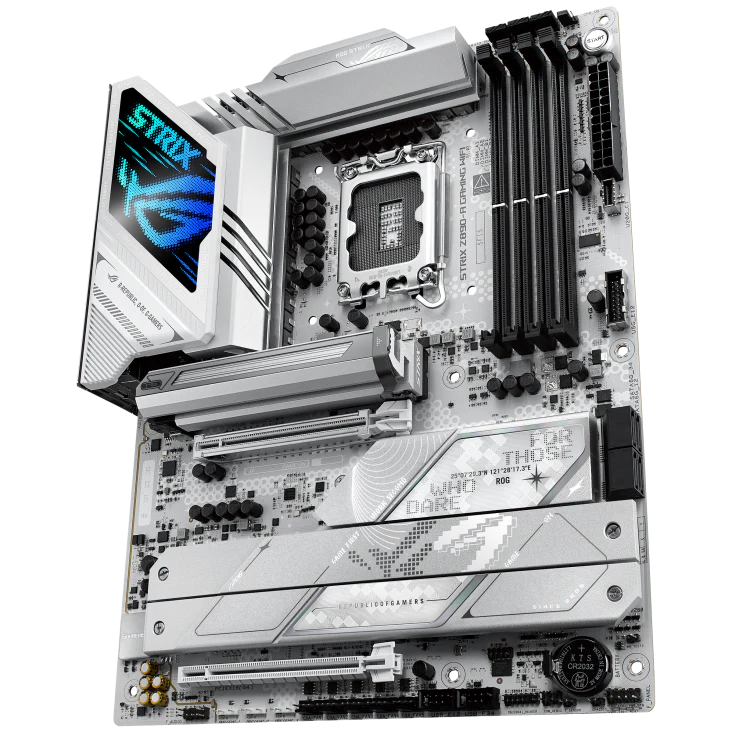

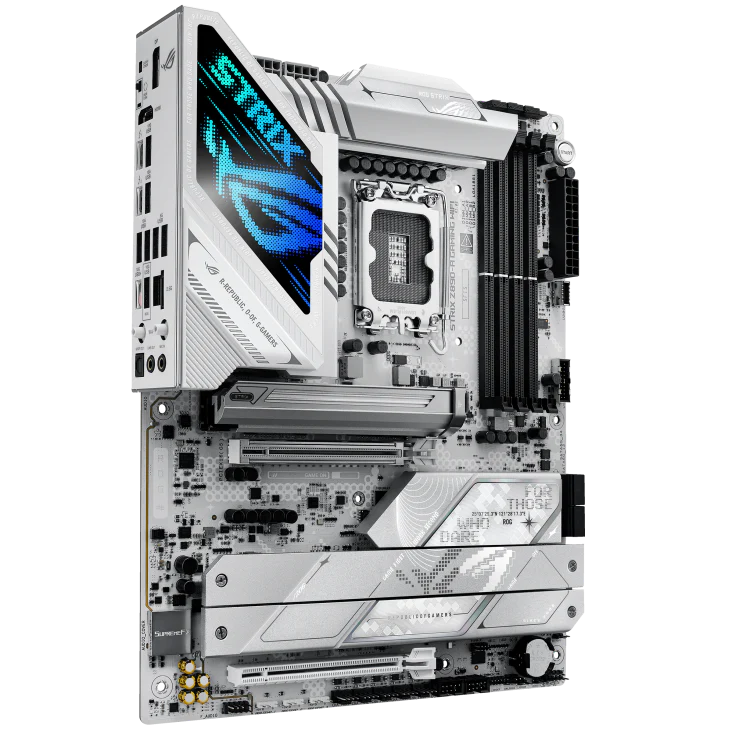

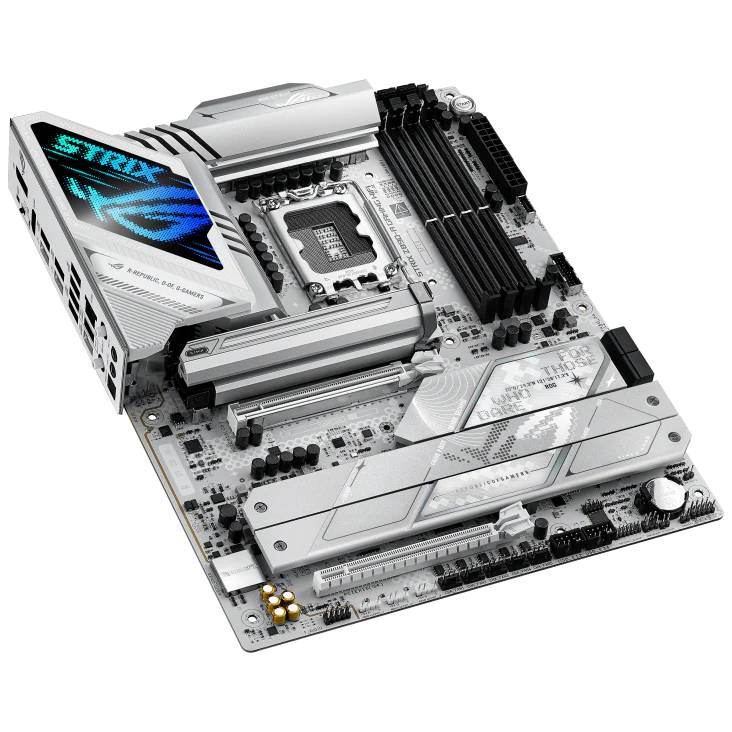

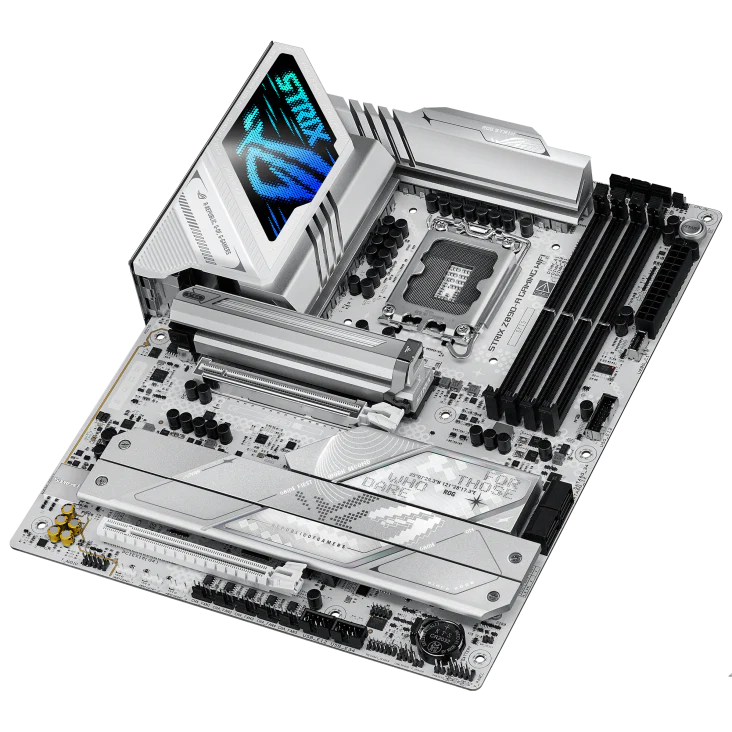

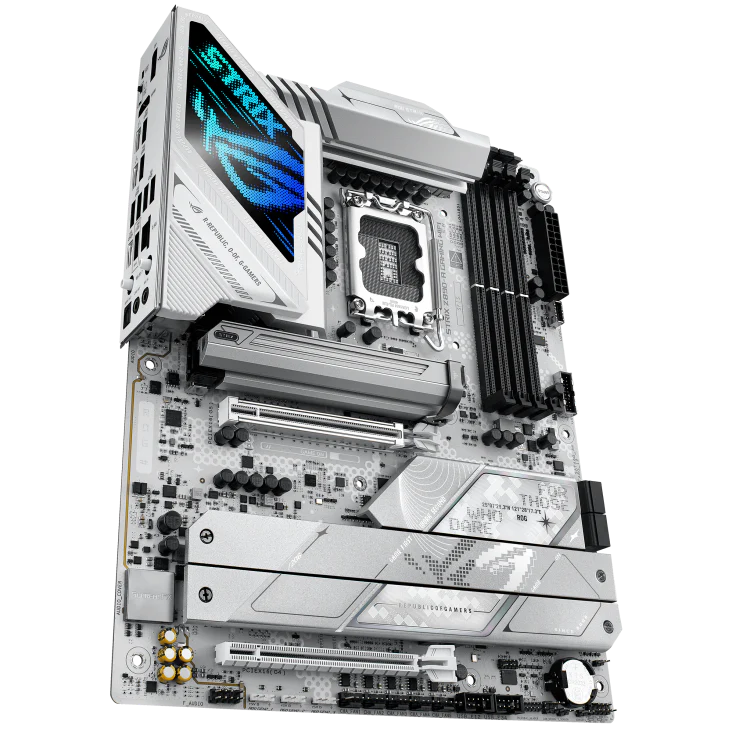

ASUS ROG STRIX Z890-A GAMING WIFI - MOTHERBOARD

The ROG STRIX Z890-A GAMING WIFI is a high-performance ATX motherboard built for Intel Core Ultra Series 2 processors. With full support for DDR5 9066+ MT/s, PCIe 5.0, Wi-Fi 7, and dual Thunderbolt 4, it's engineered for gamers and creators needing reliable performance and future-ready features. It includes extensive cooling support, robust power delivery, premium audio, and smart installation tools.

Key Features

• Intel® LGA1851 socket for Core™ Ultra Series 2 CPUs
• DDR5 memory support up to 256GB at 9066+ MT/s (OC)
• 1× PCIe 5.0 x16 slot, 5× M.2 slots (PCIe 5.0/4.0)
• Dual Thunderbolt™ 4 ports and HDMI/DisplayPort outputs
• Wi-Fi 7 (802.11be) and Intel® 2.5Gb LAN
• SupremeFX 7.1 audio with ALC4080 codec and premium amp
• Q-Design features for tool-less building and upgrades
• AURA Sync with Gen2 ARGB headers

Technical Specifications

Feature	Details
CPU Support	Intel® Core™ Ultra (Series 2), LGA1851
Chipset	Intel® Z890
Memory	4× DDR5 DIMM slots, up to 256GB, 9066+ MT/s OC, XMP, AEMP III, DIMM Flex
Expansion Slots	1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode)
Storage	5× M.2 (1× PCIe 5.0, 3× PCIe 4.0, 1× PCIe 4.0 + SATA), 4× SATA 6Gb/s
Integrated Graphics	1× HDMI 2.1, 1× DisplayPort 1.4, 2× Thunderbolt 4 (DisplayPort via Type-C)
LAN	Intel® 2.5Gb Ethernet with ASUS LANGuard
Wireless	Wi-Fi 7 (2×2, 2.4/5/6GHz, 320MHz), Bluetooth 5.4

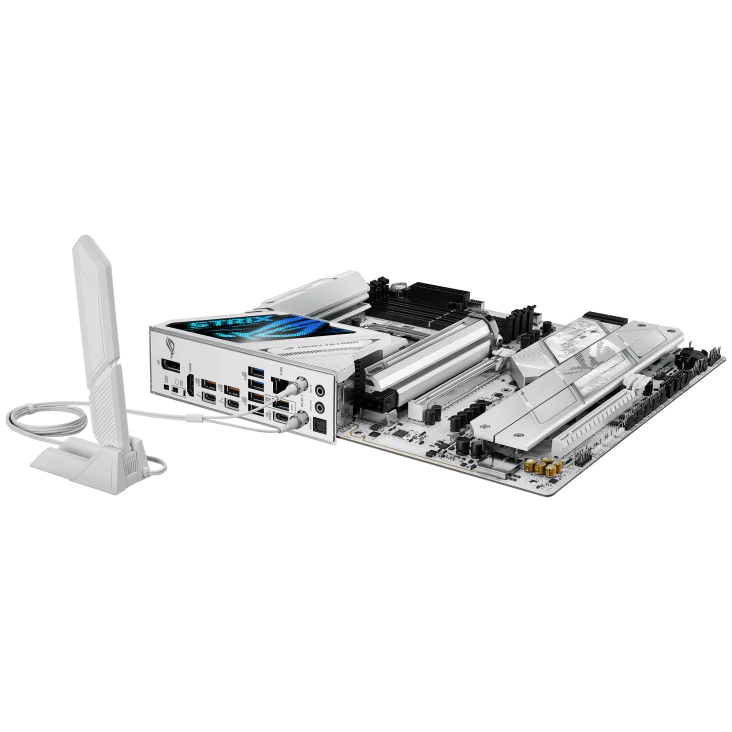

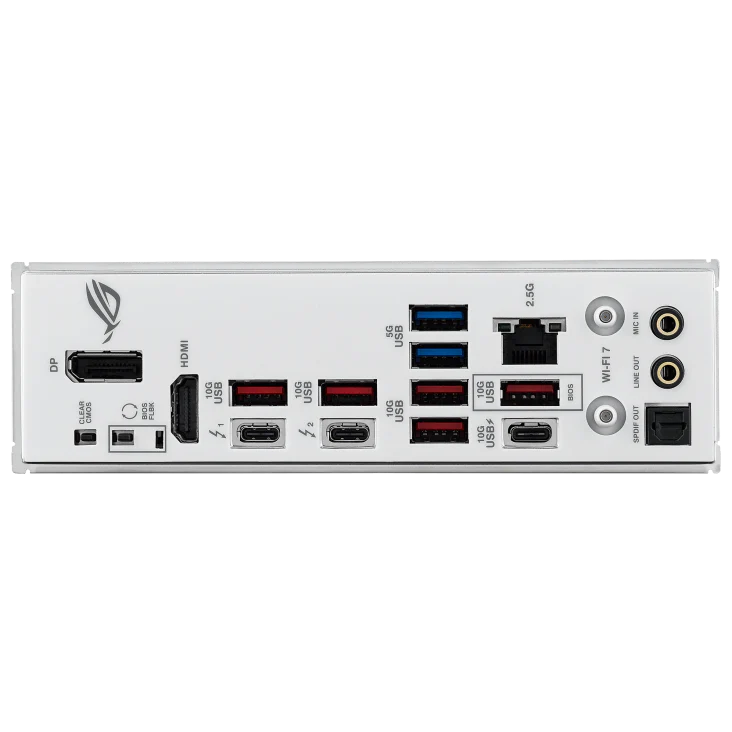

Rear USB	2× TB4 (Type-C), 6× USB 10Gbps (5× A + 1× C w/ 30W PD), 2× USB 5Gbps (A)
Front USB	1× USB 20Gbps (C), 2× USB 5Gbps (via header), 4× USB 2.0 (via headers)
Audio	ROG SupremeFX ALC4080, 7.1ch, 120 dB SNR, Savitech AMP, S/PDIF
Cooling Headers	1× CPU, 1× CPU OPT, 1× AIO, 5× Chassis Fan (4-pin)
Power Connectors	24-pin ATX, 2× 8-pin CPU 12V
RGB Headers	3× Addressable Gen2 ARGB
Special Features	Q-Latch, Q-DIMM, BIOS FlashBack™, Clear CMOS, FlexKey, AI Cooling II
Form Factor	ATX (30.5 × 24.4 cm)
