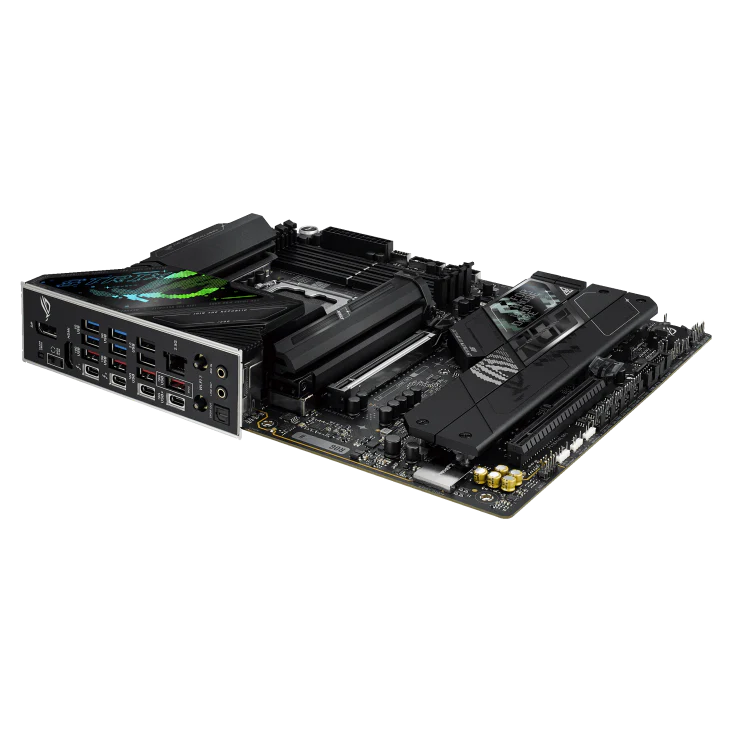

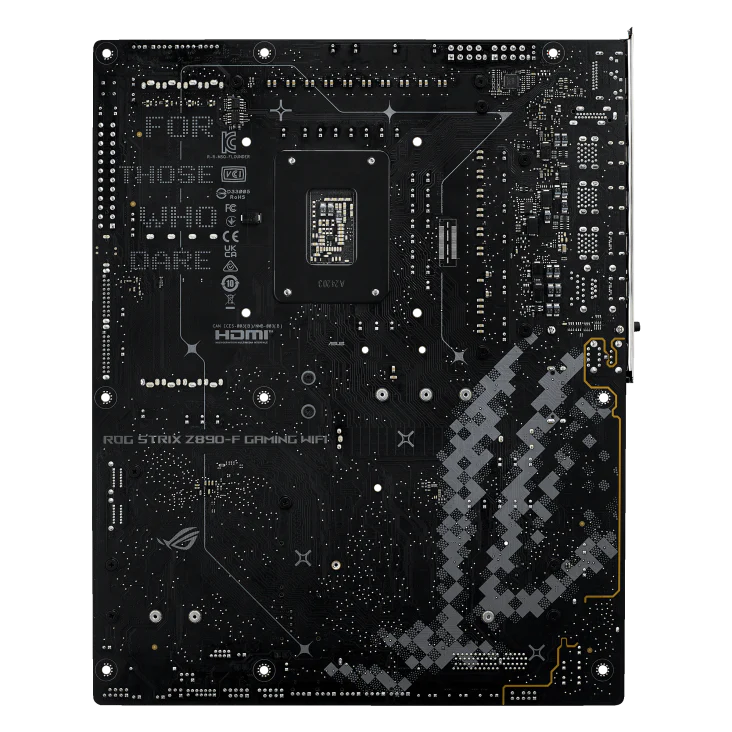

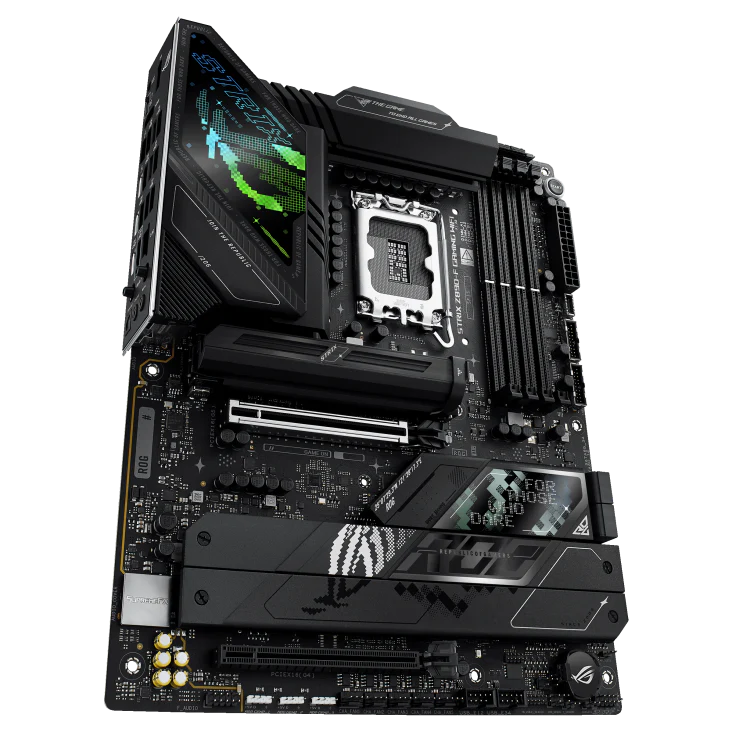

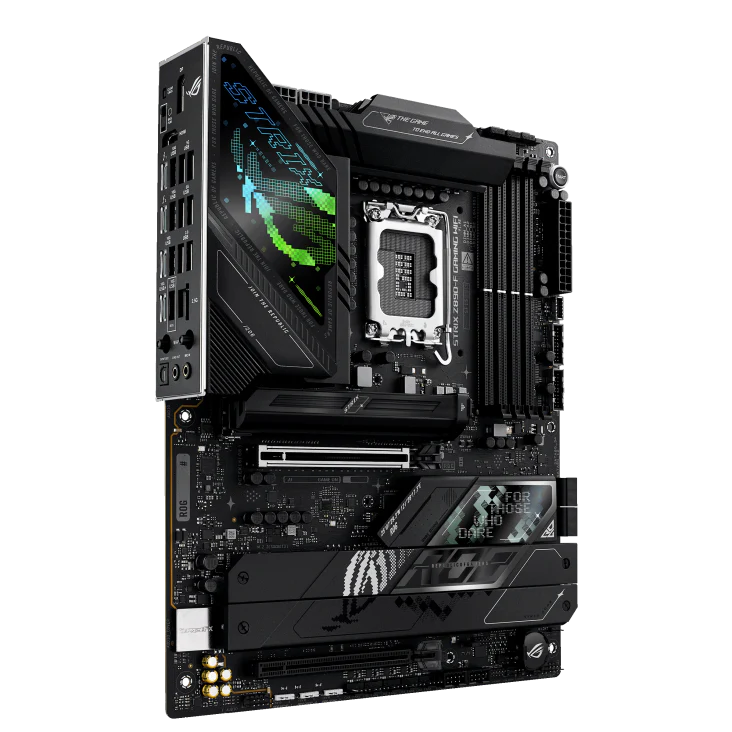

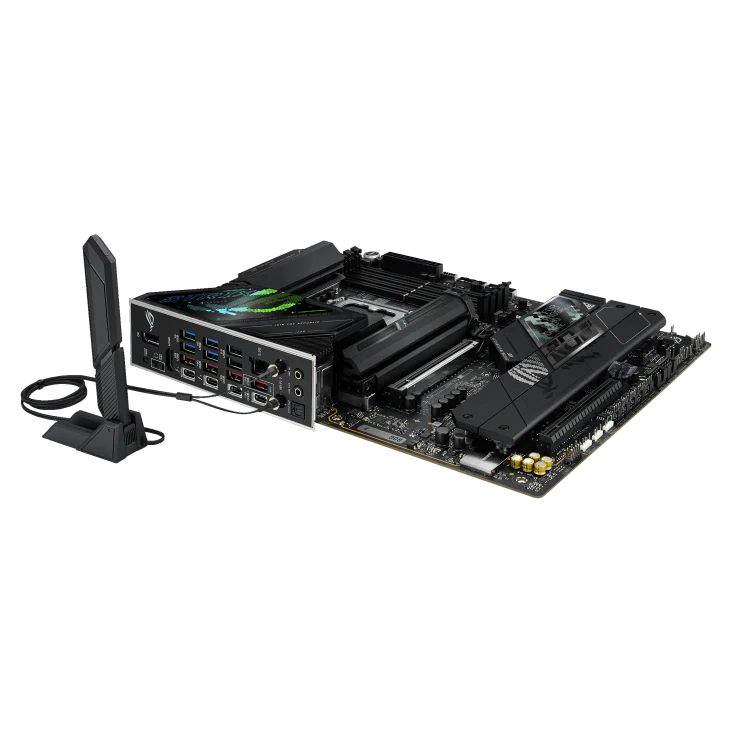

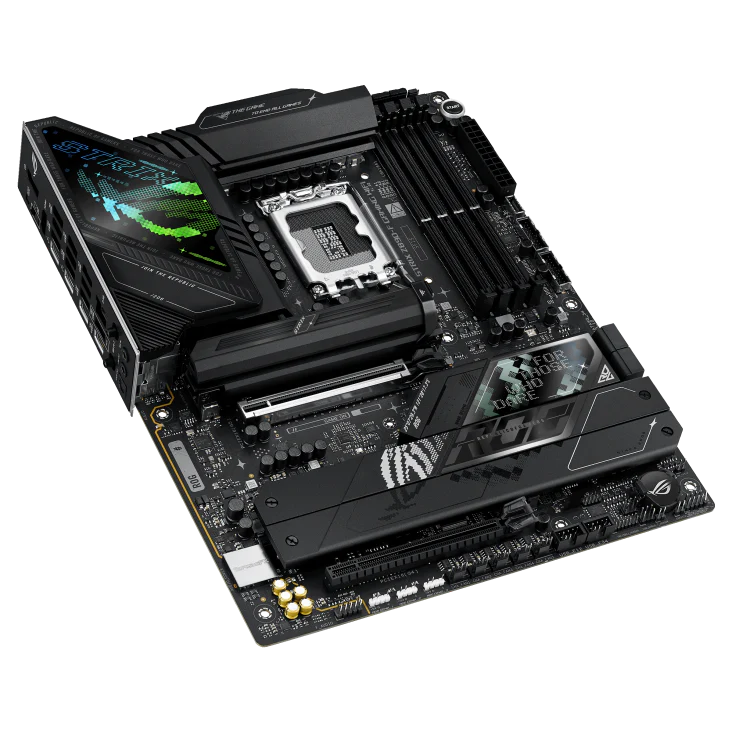

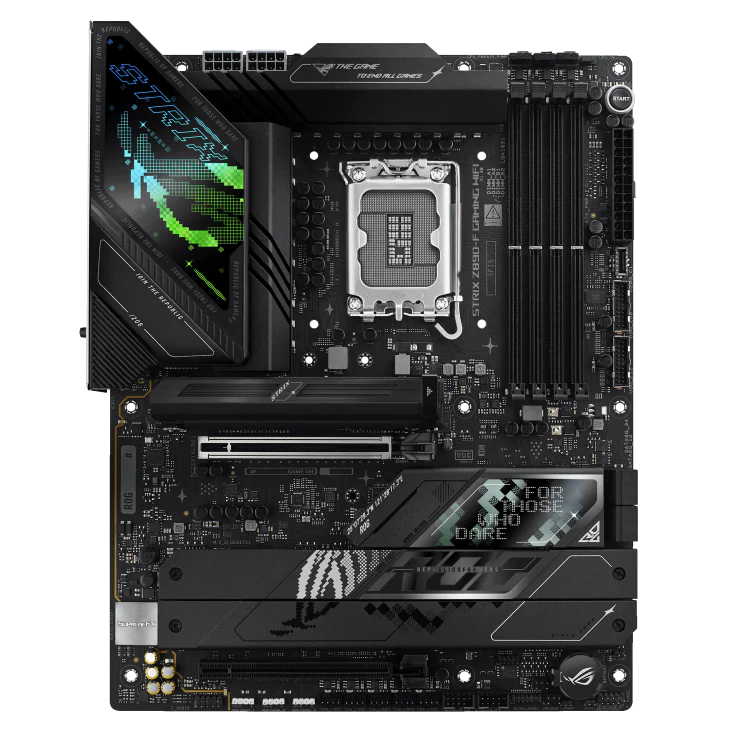

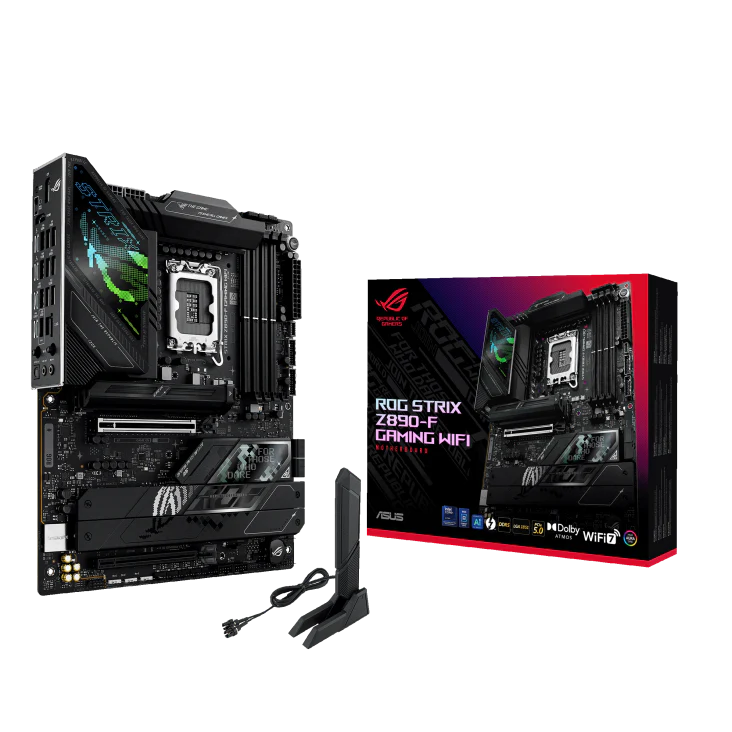

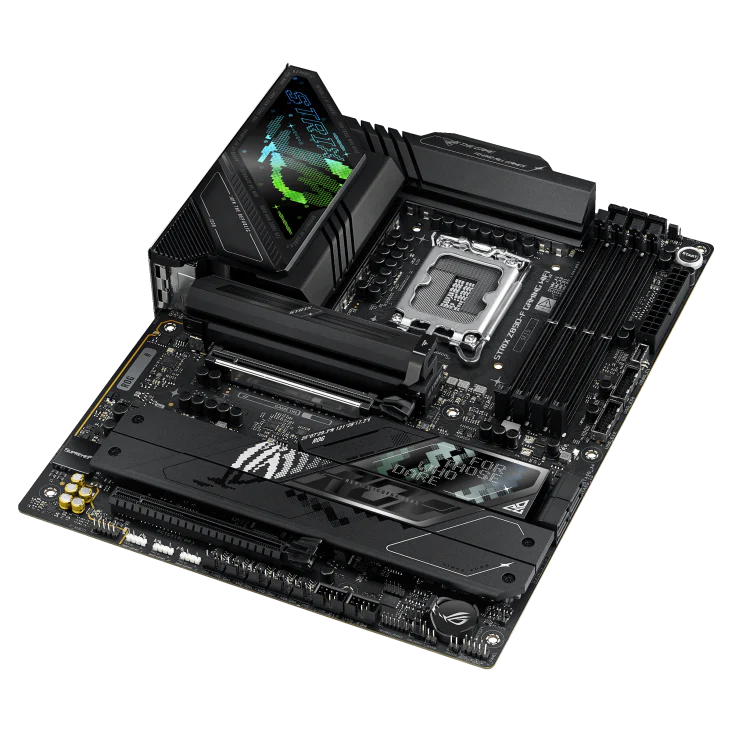

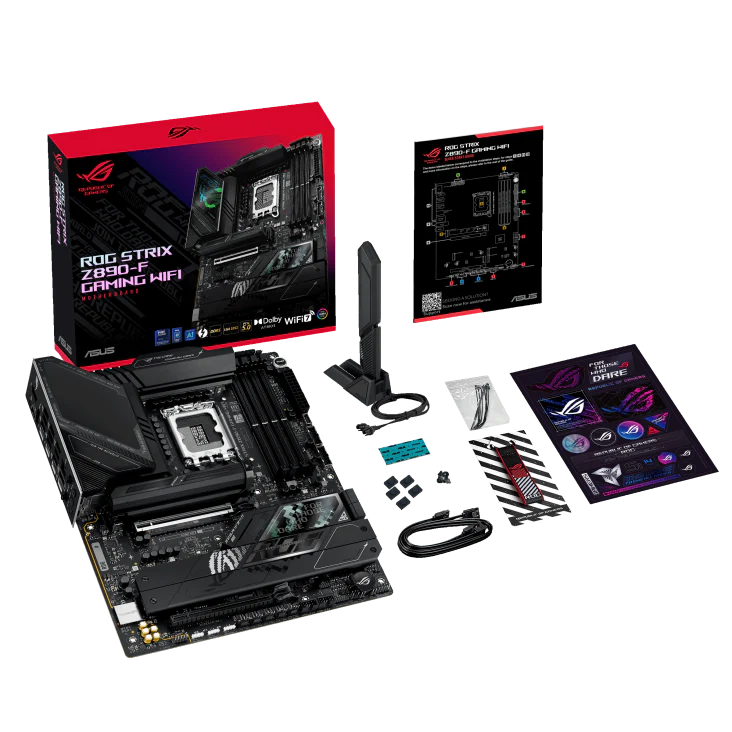

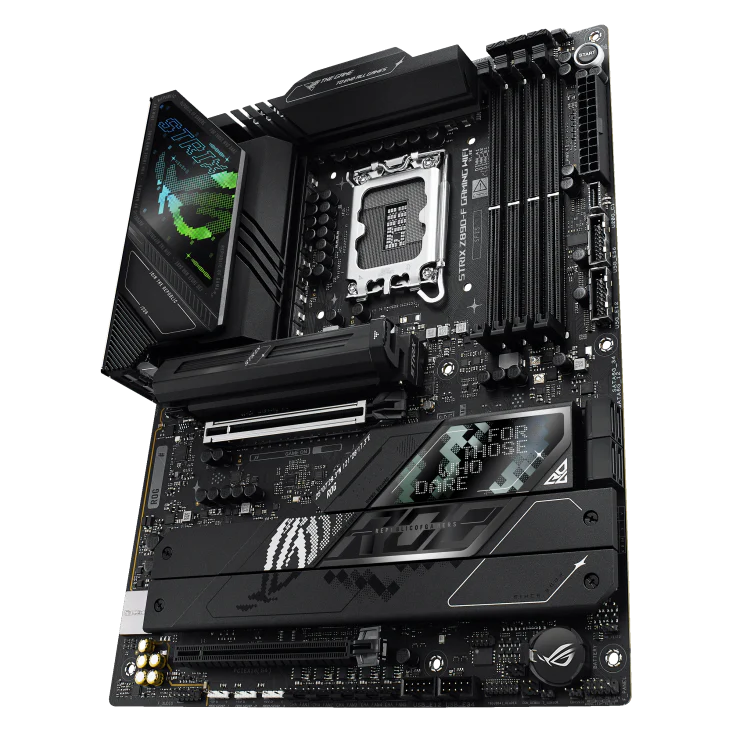

ASUS ROG STRIX Z890-F GAMING WIFI - MOTHERBOARD

The ROG STRIX Z890-F GAMING WIFI is a performance-ready ATX motherboard designed for Intel Core Ultra Series 2 processors. It features DDR5 memory support up to 256GB, PCIe 5.0, Wi-Fi 7, and dual Thunderbolt 4 ports. This board targets high-end gaming and overclocking builds with extensive cooling support, advanced connectivity, and premium audio.

Key Features

• Compatible with Intel® Core™ Ultra (Series 2) on LGA1851 socket
• Supports DDR5 up to 256GB @ 9066+ MT/s (OC)
• PCIe 5.0 x16 GPU slot and 5× M.2 slots for ultra-fast storage
• Dual Thunderbolt™ 4 ports and HDMI/DisplayPort for video output
• Wi-Fi 7 and Intel® 2.5Gb LAN for modern networking
• SupremeFX 7.1 audio with ALC4080 codec and premium components
• ASUS Q-Design features for tool-less installation
• AURA Sync RGB and Gen2 ARGB headers

Technical Specifications

Feature	Details
CPU Support	Intel® Core™ Ultra (Series 2), LGA1851
Chipset	Intel® Z890
Memory Support	4× DDR5 DIMM slots, up to 256GB, 9066+MT/s (OC), XMP, AEMP III, DIMM Flex
Expansion Slots	1× PCIe 5.0 x16, 1× PCIe 4.0 x16 (x4 mode)
Storage	5× M.2 (1× PCIe 5.0, 3× PCIe 4.0, 1× PCIe 4.0 + SATA), 4× SATA 6Gb/s
Integrated Graphics	1× HDMI 2.1, 1× DisplayPort 1.4, 2× Thunderbolt 4 (DisplayPort via Type-C)
LAN	Intel® 2.5Gb Ethernet with LANGuard
Wireless & BT	Wi-Fi 7 (2×2, 2.4/5/6GHz, 320MHz) & Bluetooth 5.4

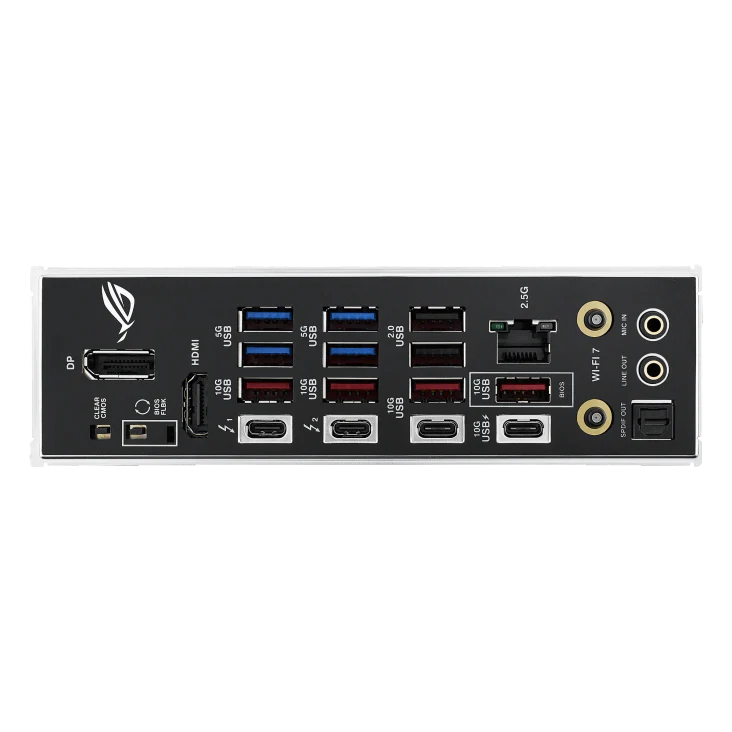

Rear USB	2× TB4 (Type-C), 6× USB 10Gbps (4× A + 2× C), 4× USB 5Gbps (A), 2× USB 2.0
Front USB	1× USB 20Gbps (C), 4× USB 5Gbps, 4× USB 2.0
Audio	SupremeFX ALC4080, 7.1ch, 120 dB SNR, Savitech AMP, S/PDIF, gold-plated jacks
Cooling Headers	1× CPU, 1× CPU OPT, 1× AIO, 5× Chassis Fan (4-pin)
Power Connectors	24-pin ATX, 2× 8-pin CPU 12V
RGB Headers	3× Addressable Gen2 ARGB
Special Features	BIOS FlashBack™, Clear CMOS, Q-LED, Q-Latch, Q-DIMM, Start Button, FlexKey
Form Factor	ATX (30.5 × 24.4 cm)
