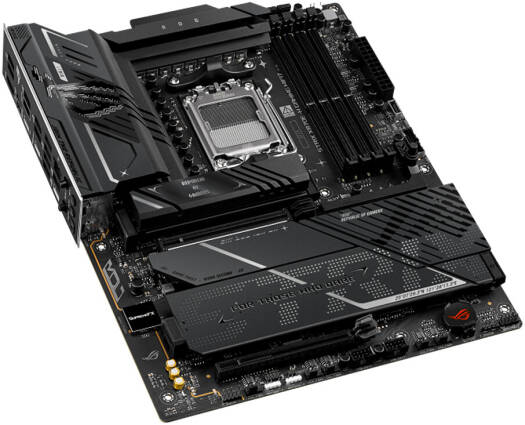

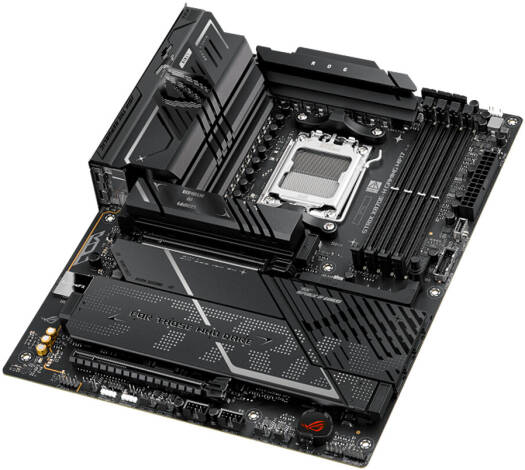

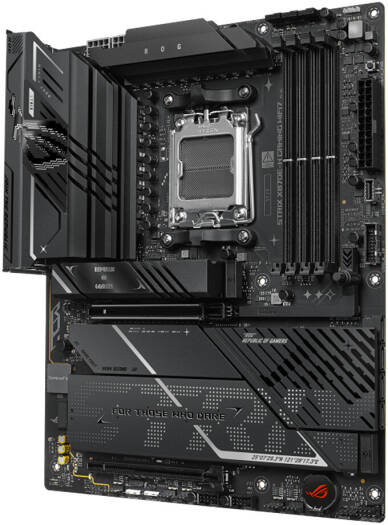

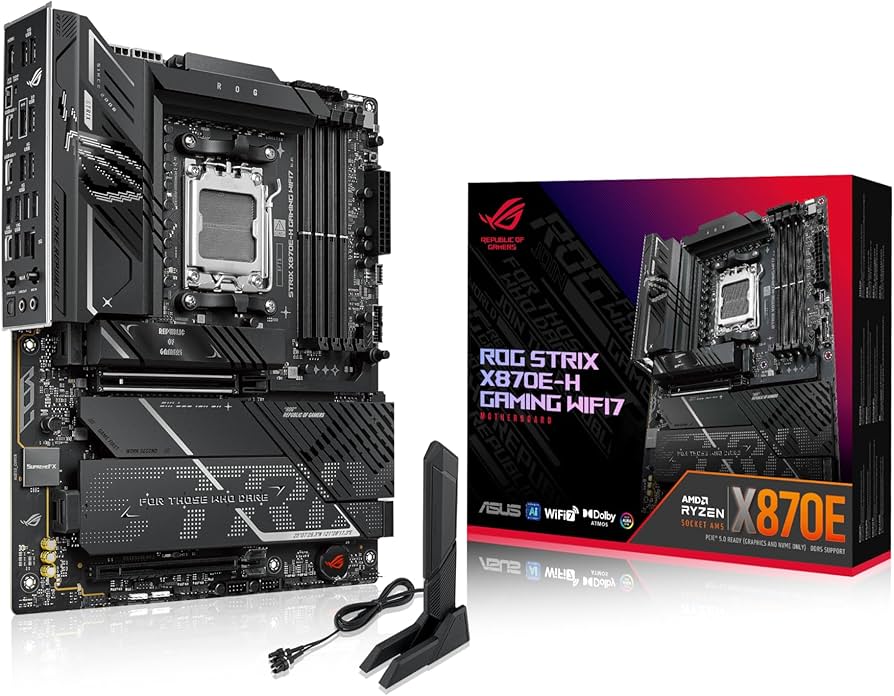

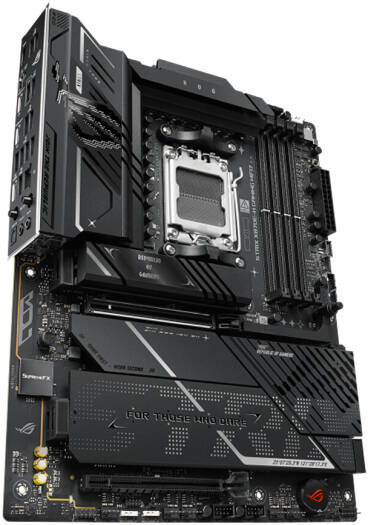

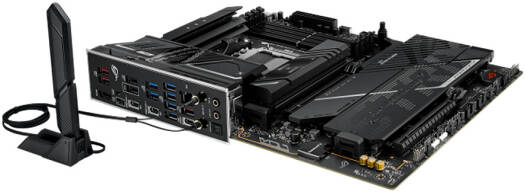

Asus RUG STRIX X870E-H Wifi 7 AM5 AI Pcle 5.0 Gaming Motherboard - Black

ASUS ROG Strix X870E-H Gaming WiFi 7 motherboard uses the AM5 socket with the AMD X870E chipset for Ryzen 7000, 8000, and 9000 processors.
The ATX board format supports full desktop builds with multiple expansion options.
DDR5 memory support reaches up to 256GB with EXPO profiles for higher memory tuning.
PCIe 5.0 x16 slot supports modern graphics cards with higher data bandwidth.
Four M.2 slots include two PCIe 5.0 and two PCIe 4.0 interfaces for NVMe storage.
WiFi 7 and 5Gb Ethernet support stable wired and wireless networking.
Dual USB4 Type-C ports support fast data transfer and display output.
Thermal heatsinks help maintain VRM and storage temperature stability.
AI based system control tools support performance tuning and thermal management.
This motherboard supports gaming systems, workstation builds, and desktop productivity use.

---

Key Features

• AMD AM5 socket for Ryzen 7000 8000 9000 processors
• AMD X870E chipset motherboard
• DDR5 memory support up to 256GB
• PCIe 5.0 x16 graphics slot
• Four NVMe M.2 storage slots
• WiFi 7 and 5Gb Ethernet networking
• Dual USB4 Type-C connectivity
• AI system tuning support
• Advanced VRM thermal design

Detailed Technical Specification

• CPU support
  AMD AM5 socket supports Ryzen 7000 8000 9000 desktop processors

• Chipset
  AMD X870E chipset platform

• Memory support
  Four DDR5 DIMM slots up to 256GB dual channel with EXPO memory profile support

• Graphics output
  HDMI supports up to 4K at 60Hz depending on CPU
  USB4 Type-C display output support

• Expansion slots
  One PCIe 5.0 x16 slot
  Additional PCIe 4.0 x16 slot operating at x4 depending on CPU

• Storage support
  Two PCIe 5.0 M.2 NVMe slots
  Two PCIe 4.0 M.2 NVMe slots
  Four SATA 6Gb ports

• Networking
  Realtek 5Gb Ethernet LAN controller
  WiFi 7 wireless connectivity with Bluetooth 5.4

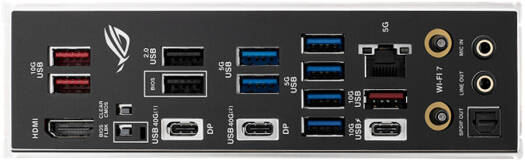

• USB connectivity
  Two USB4 Type-C 40Gbps ports
  Multiple USB 10Gbps and USB 5Gbps ports
  Front USB Type-C 20Gbps header support

• Audio
  Realtek ALC1220P 7.1 channel HD audio codec with amplifier support

• Cooling support
  VRM heatsink design M.2 heatsinks fan headers and AIO pump header

• Power connectors
  24 pin motherboard connector
  Dual 8 pin CPU power connectors

• BIOS features
  UEFI BIOS with FlashBack support and AI tuning tools

• Operating system support
  Windows 11 platform support

• Form factor
  ATX motherboard size 30.5cm by 24.4cm
