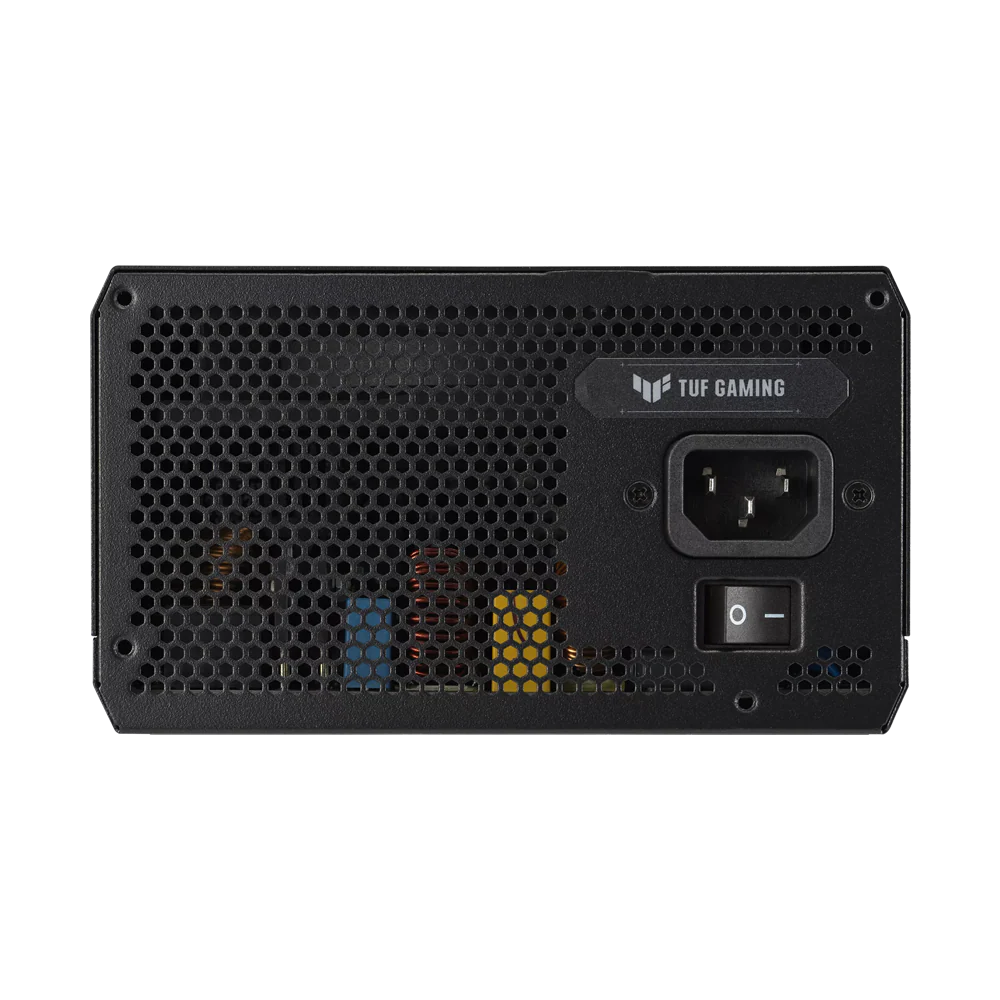

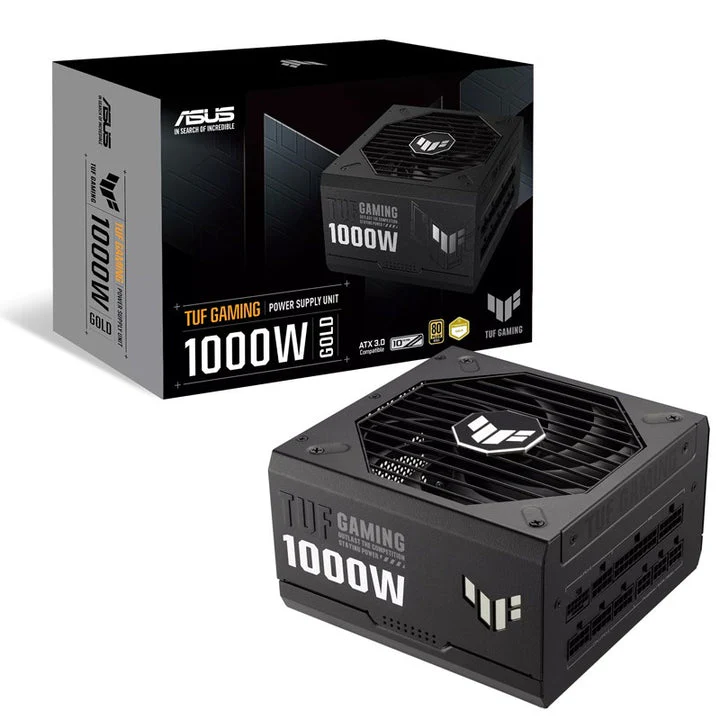

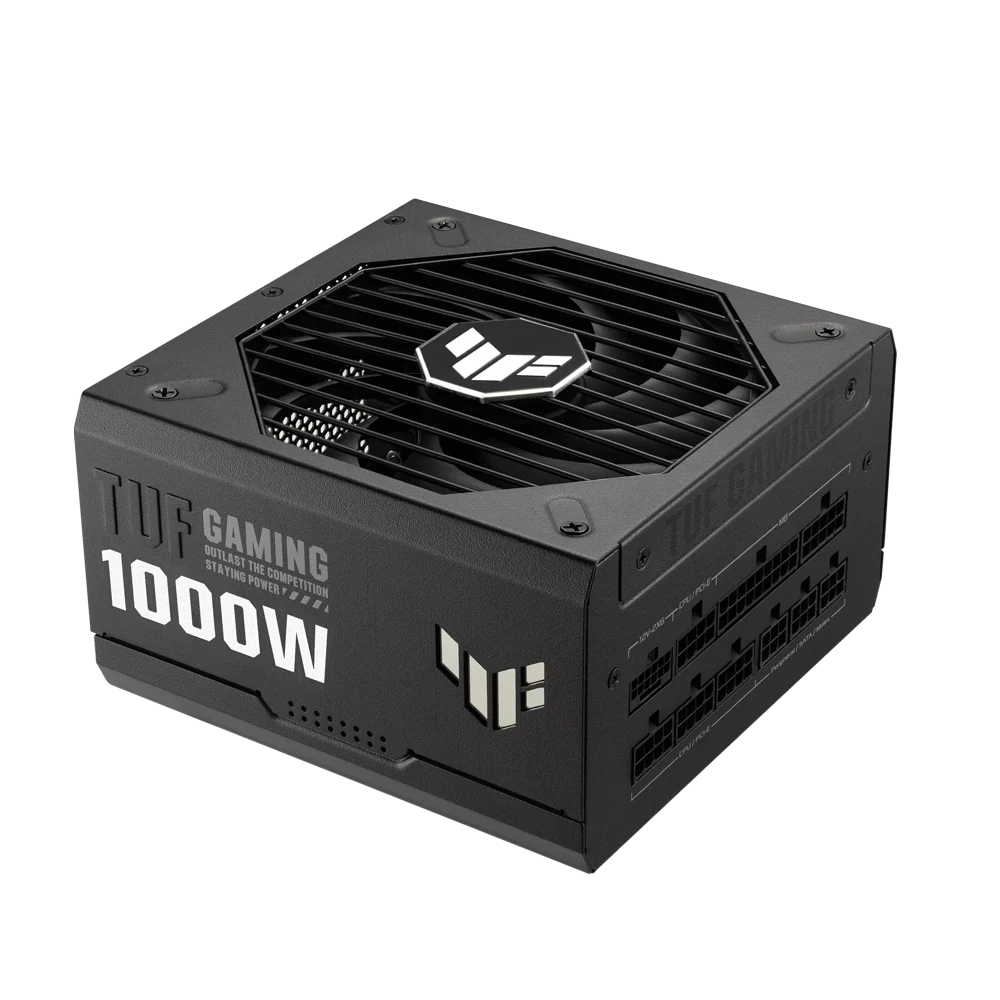

Asus TUF Gaming 1000W 80 Plus Gold Fully Modular Gaming Power Supply - Black

The ASUS TUF Gaming 1000W Gold power supply is engineered to deliver stable electrical output for high-performance gaming systems and demanding workstation builds.
It uses military-grade capacitors rated for 105°C operation combined with advanced PCB protective coating to reduce risks from moisture, dust, and electrical interference.
Its ATX 3.0 compliance ensures compatibility with next-generation graphics cards and modern hardware requiring higher transient power stability.
The fully modular cable system improves airflow efficiency inside the chassis while simplifying installation and cable routing.
An axial-tech cooling fan with dual ball bearings supports long operational lifespan with controlled acoustic output.
This design supports consistent voltage regulation, efficient thermal behavior, and long-term operational reliability.

Key Features

• 1000W output capacity
• 80 Plus Gold efficiency rating
• Fully modular cable design
• Military-grade components
• ATX 3.0 compatibility
• PCIe Gen 5 ready 16-pin cable
• Axial-tech fan cooling system
• Protective PCB coating
• Dual ball bearing fan
• Japanese capacitors rated 105°C

Detailed Technical Specifications

• Form Factor
  ATX12V with ATX 3.0 compliance

• Efficiency Certification
  80 Plus Gold
  Up to 92 percent power efficiency

• Total Output Power
  1000 watts

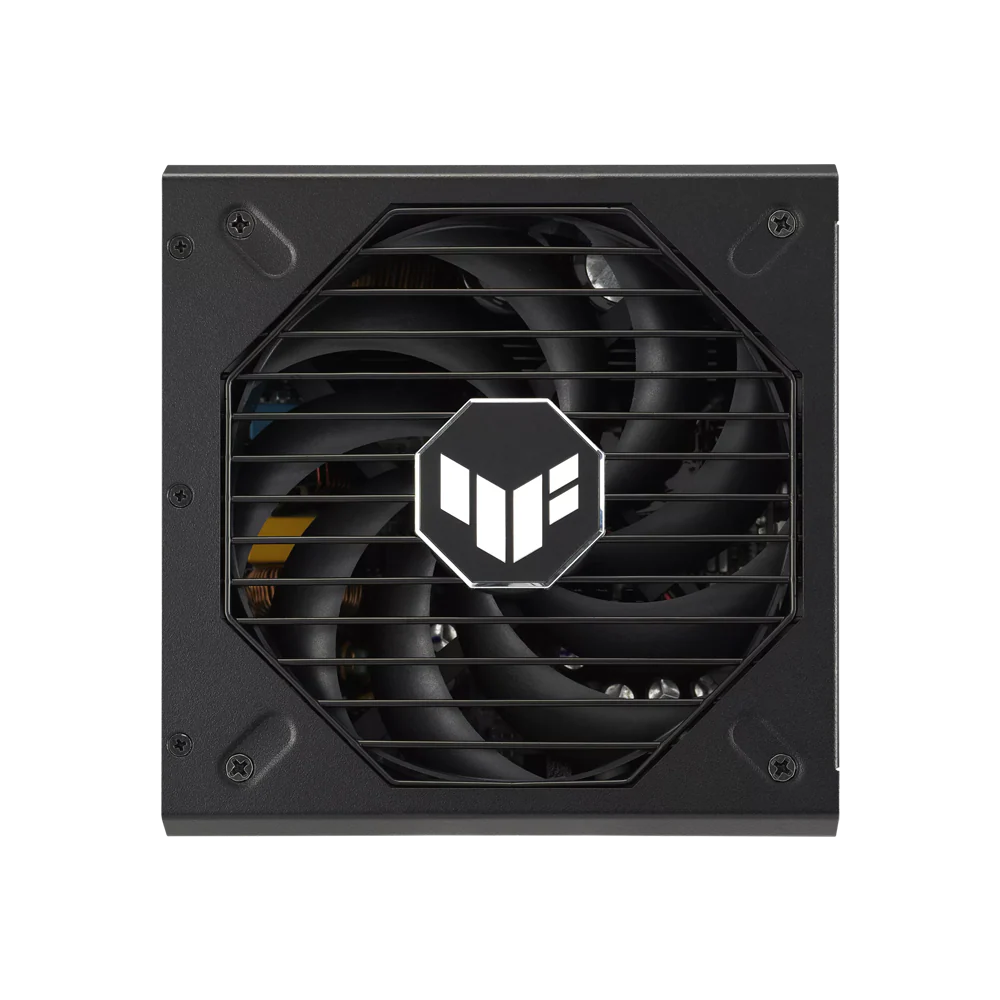

• Cooling System
  135 mm axial-tech fan
  Dual ball bearing design for extended lifespan

• Input Voltage Range
  100 to 240 Vac

• Output Voltage Rails
  +3.3V, +5V, +12V, −12V, +5V standby

• Maximum Load Distribution
  +3.3V 25A
  +5V 25A
  +12V 83.3A

• Protection Features
  OPP over power protection
  OVP over voltage protection
  UVP under voltage protection
  SCP short circuit protection
  OCP over current protection
  OTP over temperature protection

• PCB Protection
  Conformal coating against dust, moisture, debris

• Capacitors
  Japanese capacitors rated up to 105°C

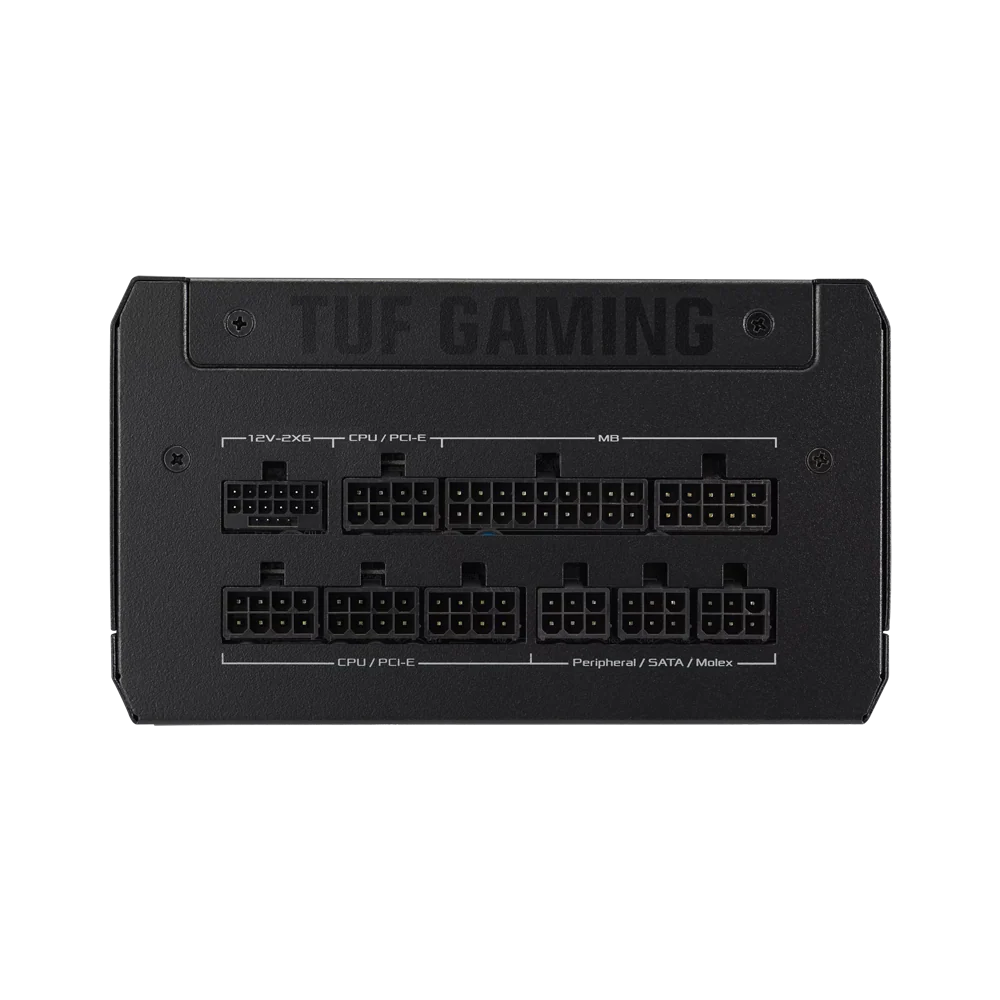

• Cable System
  Fully modular etched cables
  Improved airflow and flexible routing

• GPU Support
  16-pin PCIe Gen 5 cable supports up to 600W GPU load

• Dimensions
  150 × 150 × 86 mm

• Weight
  2.48 kg

What’s in the Box

• Power cord
• Motherboard power cable
• Two CPU power cables
• PCIe Gen 5 16-pin cable
• PCIe cables
• SATA cables
• Peripheral cables
• Cable ties
• User manual
