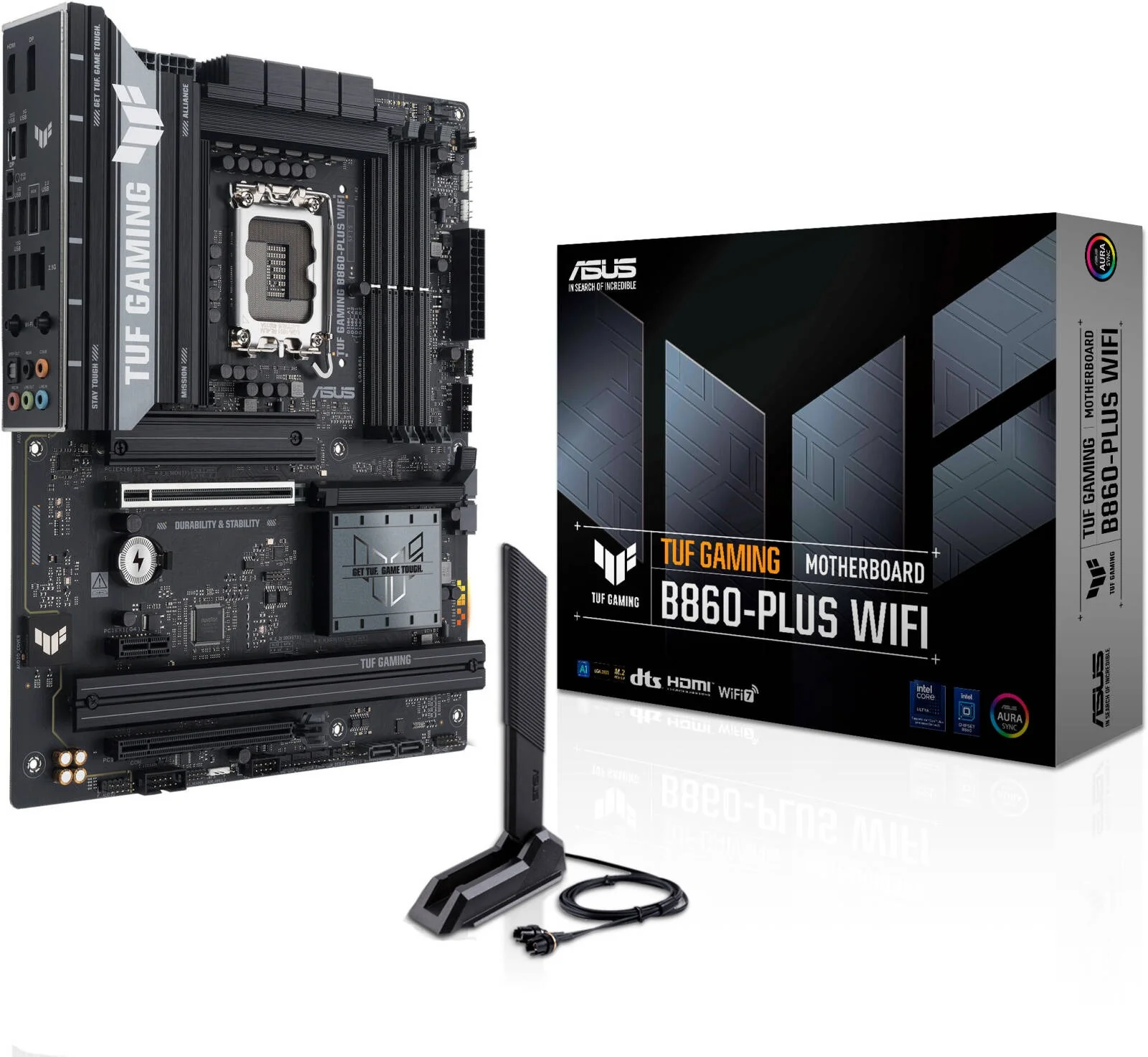

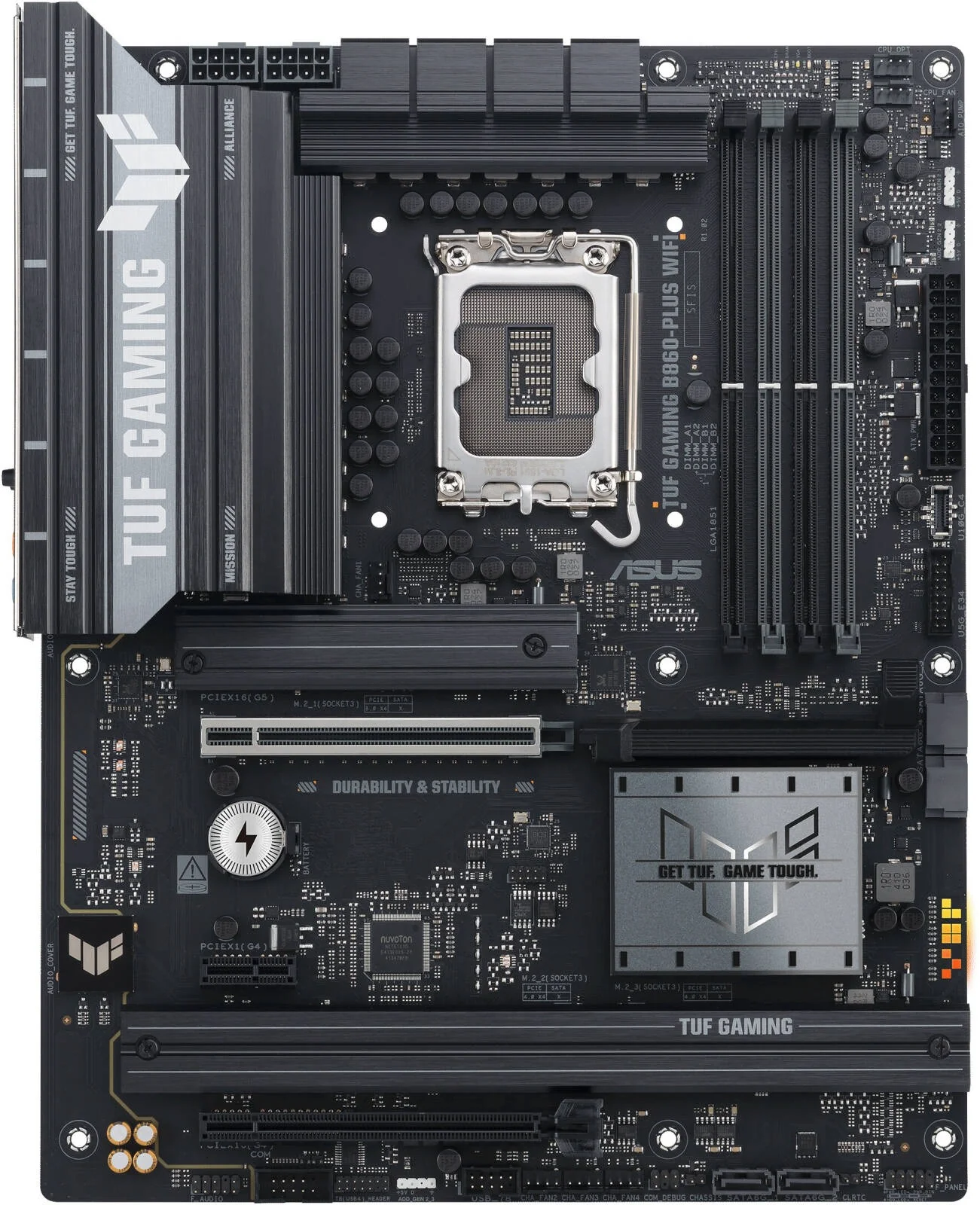

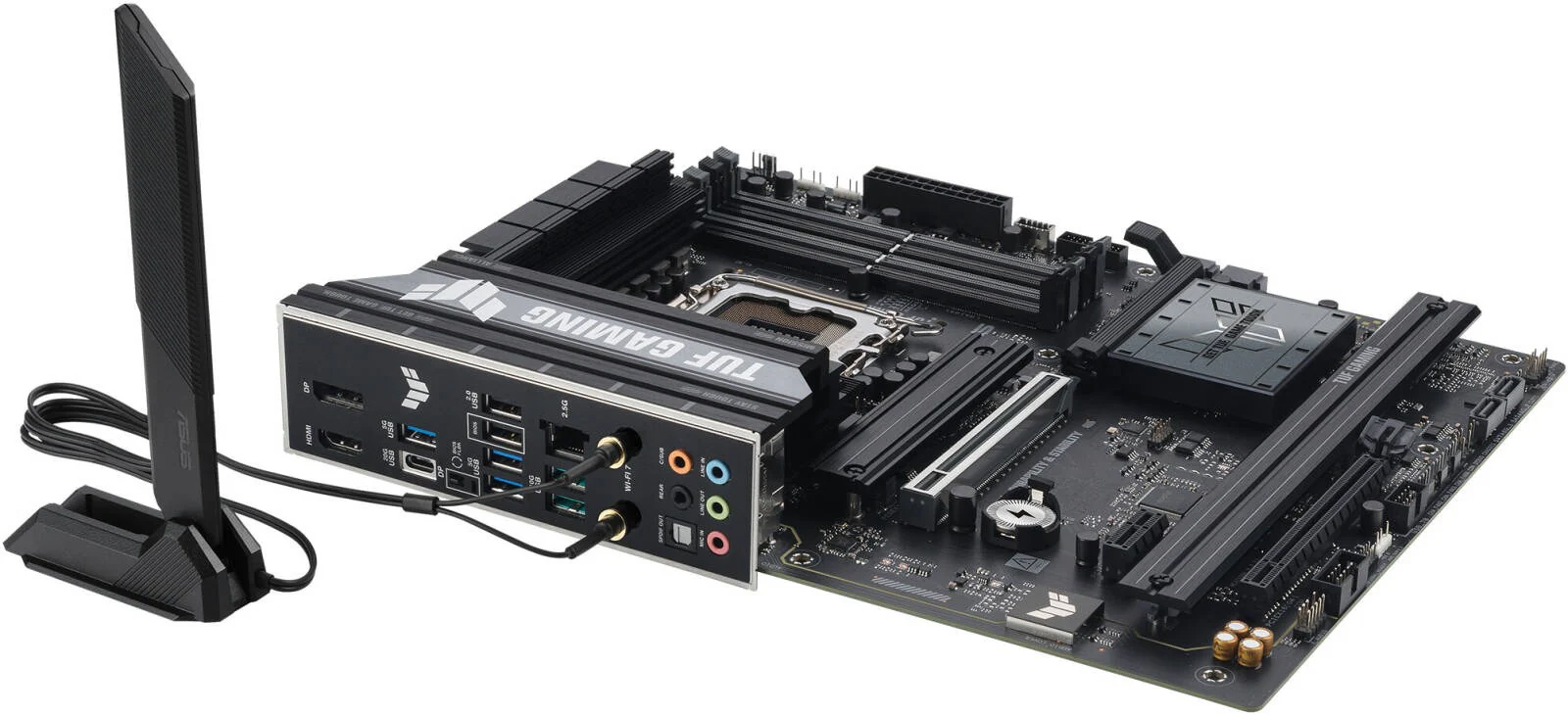

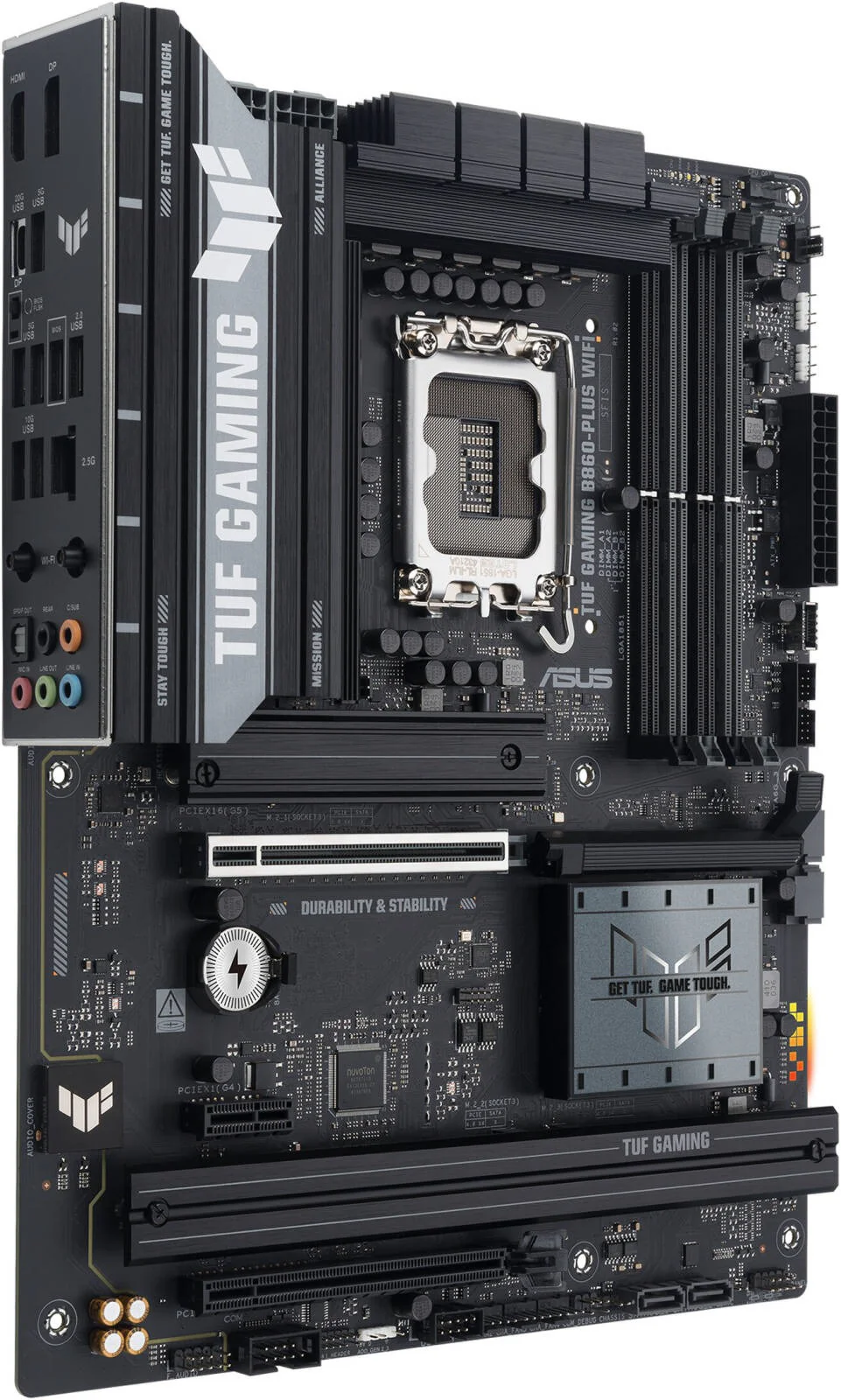

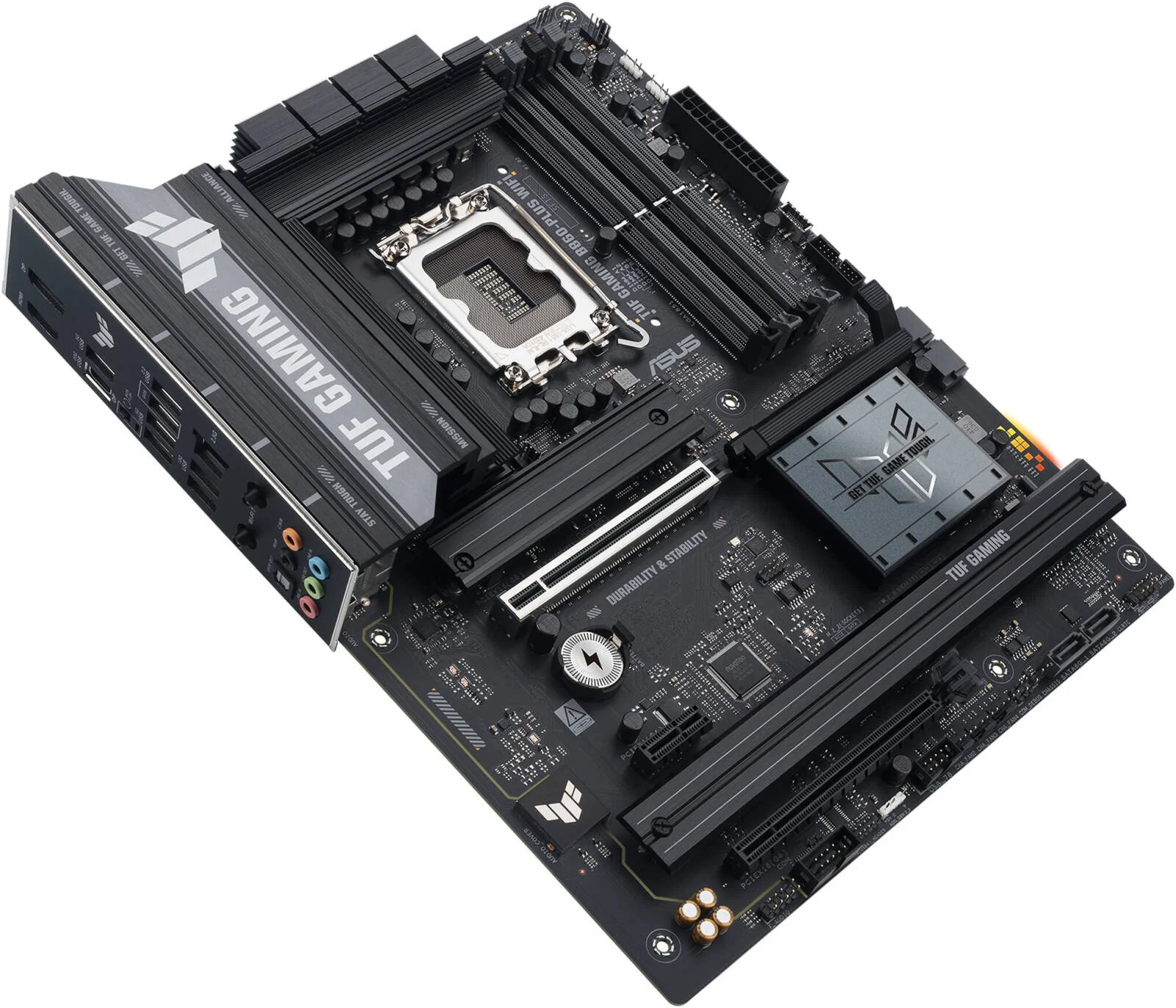

ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard
The ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard is engineered to support the latest Intel Core Ultra Processors (Series 2) while delivering strong stability, reliable performance, and extensive connectivity for modern gaming systems. Designed as part of the TUF Gaming series, this motherboard combines durable components, upgraded power delivery, and advanced cooling solutions to ensure consistent performance during demanding workloads and long gaming sessions.
At the core of the ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard is a robust power architecture featuring a 12+1+2+1 phase design with 80A DrMOS power stages. This configuration ensures stable voltage delivery to high-core-count processors and improves overall efficiency and system reliability.
The motherboard supports high-speed DDR5 memory with advanced tuning technologies such as AEMP III and DIMM Fit. These features help optimize memory performance and stability, allowing users to unlock higher speeds and better system responsiveness.
Storage and expansion capabilities are also upgraded with PCIe 5.0 support for next-generation graphics cards and high-speed NVMe storage. The board includes multiple M.2 slots with dedicated heatsinks to maintain optimal temperatures and performance for modern SSDs.
Connectivity features include WiFi 7 wireless networking and Realtek 2.5Gb Ethernet, enabling faster and more stable network performance for online gaming, streaming, and large file transfers.
Additional gaming-focused features include enhanced cooling solutions, AI-based optimization tools, RGB lighting customization through Aura Sync, and convenient DIY features such as BIOS FlashBack, Q-Release PCIe slot, and tool-free M.2 installation.
Key Features
• Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
• 12+1+2+1 phase DrMOS power design for stable power delivery
• DDR5 memory support with AEMP III and DIMM Fit optimization
• PCIe 5.0 x16 slot for next-generation graphics cards
• Three M.2 slots with PCIe 5.0 and PCIe 4.0 support
• Dedicated heatsinks for VRM and M.2 storage cooling
• WiFi 7 wireless networking with ASUS Q-Antenna
• Realtek 2.5Gb Ethernet for high-speed wired networking
• Rear USB 20Gbps Type-C with DisplayPort Alt Mode
• Front USB 10Gbps Type-C connectivity
• Aura Sync RGB lighting control
• DIY-friendly features including PCIe Q-Release, M.2 Q-Latch, and BIOS FlashBack
• DTS audio processing with Realtek 7.1 channel audio
Technical Specifications
General
| Specification | Details |
|---|---|
| Model | ASUS TUF Gaming B860-Plus WiFi |
| Form Factor | ATX |
| Socket | LGA 1851 |
| Chipset | Intel B860 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
Power Design
| Specification | Details |
|---|---|
| Power Stages | 12 + 1 + 2 + 1 phases |
| Power Stage Rating | 80A DrMOS |
| VRM Cooling | Enlarged VRM Heatsinks |
This power design ensures stable and efficient voltage delivery to modern high-performance processors.
Memory
| Specification | Details |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Channel Support | Dual Channel |
| Memory Optimization | AEMP III, DIMM Fit |
AEMP III automatically optimizes memory parameters to improve performance while maintaining system stability.
Expansion Slots
| Specification | Details |
|---|---|
| PCIe Slot 1 | 1 × PCIe 5.0 x16 SafeSlot |
| PCIe Slot 2 | 1 × PCIe 4.0 x16 (x4 mode) |
| PCIe Slot 3 | 1 × PCIe 4.0 x1 |
PCIe 5.0 provides double the bandwidth of PCIe 4.0, allowing higher data throughput for modern GPUs.
Storage
| Specification | Details |
|---|---|
| M.2 Slots | 3 |
| PCIe 5.0 M.2 | 1 × PCIe 5.0 x4 |
| PCIe 4.0 M.2 | 2 × PCIe 4.0 x4 |
The PCIe 5.0 M.2 slot can deliver up to 128 Gbps bandwidth for ultra-fast SSD performance.
Networking
| Specification | Details |
|---|---|
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless | WiFi 7 |
WiFi 7 provides improved bandwidth, lower latency, and more stable connections for gaming and streaming.

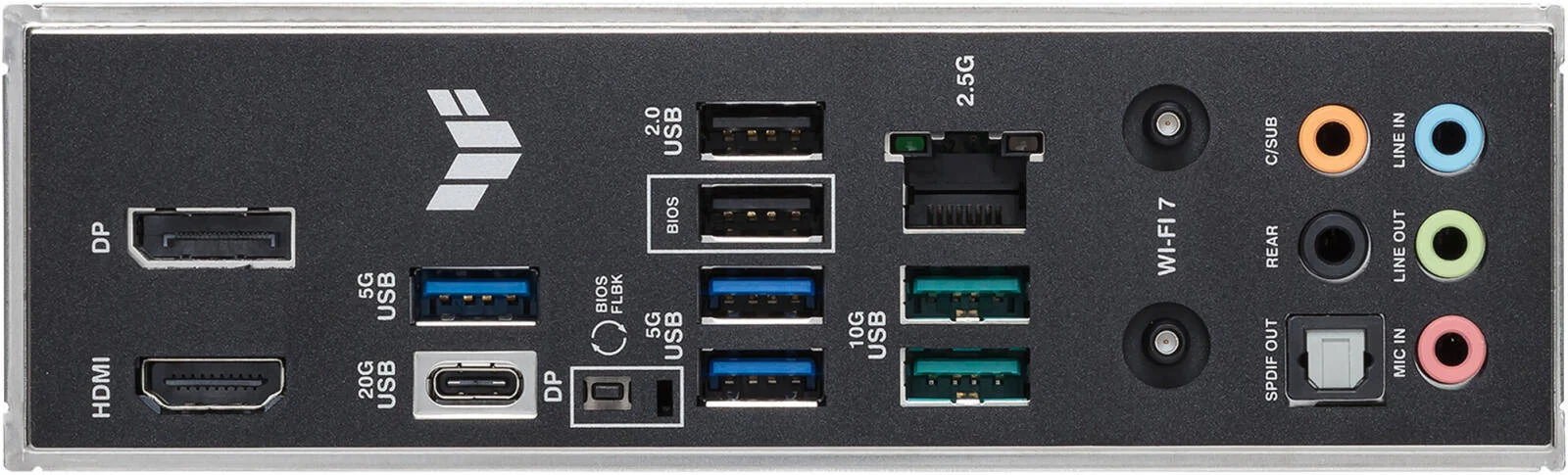

Rear Connectivity
| Specification | Details |
|---|---|
| USB Type-C | 1 × USB 20Gbps Type-C with DisplayPort Alt Mode |
| USB Type-A | Multiple USB 10Gbps and 5Gbps ports |
| Video Outputs | HDMI, DisplayPort |
| Audio | 7.1 Channel Audio, Optical S/PDIF |
Cooling and Fan Headers
| Specification | Details |
|---|---|
| VRM Cooling | Enlarged VRM Heatsinks |
| Chipset Cooling | Dedicated chipset heatsink |
| Fan Headers | CPU, CPU_OPT, AIO Pump, 4 × Chassis Fans |
Lighting
| Specification | Details |
|---|---|
| RGB Support | Aura Sync |
| RGB Headers | 3 × Addressable Gen2 RGB Headers |
User Experience
The ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard provides strong stability and performance for gaming PCs and high-performance workstations.
Gamers benefit from fast networking, improved system responsiveness, and efficient cooling during long gaming sessions.
The motherboard’s reinforced design and military-grade components increase durability and reliability under demanding conditions.
DIY-friendly features simplify installation and upgrades, making the board suitable for both experienced builders and first-time PC builders.
Included Items
• ASUS TUF Gaming B860-Plus WiFi Motherboard
• WiFi Q-Antenna
• SATA cables
• M.2 mounting accessories
• I/O shield
• User manual and documentation
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard is engineered to support the latest Intel Core Ultra Processors (Series 2) while delivering strong stability, reliable performance, and extensive connectivity for modern gaming systems. Designed as part of the TUF Gaming series, this motherboard combines durable components, upgraded power delivery, and advanced cooling solutions to ensure consistent performance during demanding workloads and long gaming sessions.
At the core of the ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard is a robust power architecture featuring a 12+1+2+1 phase design with 80A DrMOS power stages. This configuration ensures stable voltage delivery to high-core-count processors and improves overall efficiency and system reliability.
The motherboard supports high-speed DDR5 memory with advanced tuning technologies such as AEMP III and DIMM Fit. These features help optimize memory performance and stability, allowing users to unlock higher speeds and better system responsiveness.
Storage and expansion capabilities are also upgraded with PCIe 5.0 support for next-generation graphics cards and high-speed NVMe storage. The board includes multiple M.2 slots with dedicated heatsinks to maintain optimal temperatures and performance for modern SSDs.
Connectivity features include WiFi 7 wireless networking and Realtek 2.5Gb Ethernet, enabling faster and more stable network performance for online gaming, streaming, and large file transfers.
Additional gaming-focused features include enhanced cooling solutions, AI-based optimization tools, RGB lighting customization through Aura Sync, and convenient DIY features such as BIOS FlashBack, Q-Release PCIe slot, and tool-free M.2 installation.
Key Features
• Supports Intel Core Ultra Processors (Series 2) with LGA 1851 socket
• 12+1+2+1 phase DrMOS power design for stable power delivery
• DDR5 memory support with AEMP III and DIMM Fit optimization
• PCIe 5.0 x16 slot for next-generation graphics cards
• Three M.2 slots with PCIe 5.0 and PCIe 4.0 support
• Dedicated heatsinks for VRM and M.2 storage cooling
• WiFi 7 wireless networking with ASUS Q-Antenna
• Realtek 2.5Gb Ethernet for high-speed wired networking
• Rear USB 20Gbps Type-C with DisplayPort Alt Mode
• Front USB 10Gbps Type-C connectivity
• Aura Sync RGB lighting control
• DIY-friendly features including PCIe Q-Release, M.2 Q-Latch, and BIOS FlashBack
• DTS audio processing with Realtek 7.1 channel audio
Technical Specifications
General
| Specification | Details |
|---|---|
| Model | ASUS TUF Gaming B860-Plus WiFi |
| Form Factor | ATX |
| Socket | LGA 1851 |
| Chipset | Intel B860 |
| Processor Support | Intel Core Ultra Processors (Series 2) |
Power Design
| Specification | Details |
|---|---|
| Power Stages | 12 + 1 + 2 + 1 phases |
| Power Stage Rating | 80A DrMOS |
| VRM Cooling | Enlarged VRM Heatsinks |
This power design ensures stable and efficient voltage delivery to modern high-performance processors.
Memory
| Specification | Details |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 × DIMM |
| Channel Support | Dual Channel |
| Memory Optimization | AEMP III, DIMM Fit |
AEMP III automatically optimizes memory parameters to improve performance while maintaining system stability.
Expansion Slots
| Specification | Details |
|---|---|
| PCIe Slot 1 | 1 × PCIe 5.0 x16 SafeSlot |
| PCIe Slot 2 | 1 × PCIe 4.0 x16 (x4 mode) |
| PCIe Slot 3 | 1 × PCIe 4.0 x1 |
PCIe 5.0 provides double the bandwidth of PCIe 4.0, allowing higher data throughput for modern GPUs.
Storage
| Specification | Details |
|---|---|
| M.2 Slots | 3 |
| PCIe 5.0 M.2 | 1 × PCIe 5.0 x4 |
| PCIe 4.0 M.2 | 2 × PCIe 4.0 x4 |
The PCIe 5.0 M.2 slot can deliver up to 128 Gbps bandwidth for ultra-fast SSD performance.
Networking
| Specification | Details |
|---|---|
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless | WiFi 7 |
WiFi 7 provides improved bandwidth, lower latency, and more stable connections for gaming and streaming.
Rear Connectivity
| Specification | Details |
|---|---|
| USB Type-C | 1 × USB 20Gbps Type-C with DisplayPort Alt Mode |
| USB Type-A | Multiple USB 10Gbps and 5Gbps ports |
| Video Outputs | HDMI, DisplayPort |
| Audio | 7.1 Channel Audio, Optical S/PDIF |
Cooling and Fan Headers
| Specification | Details |
|---|---|
| VRM Cooling | Enlarged VRM Heatsinks |
| Chipset Cooling | Dedicated chipset heatsink |
| Fan Headers | CPU, CPU_OPT, AIO Pump, 4 × Chassis Fans |
Lighting
| Specification | Details |
|---|---|
| RGB Support | Aura Sync |
| RGB Headers | 3 × Addressable Gen2 RGB Headers |
User Experience
The ASUS TUF Gaming B860-Plus WiFi, LGA 1851, ATX Motherboard provides strong stability and performance for gaming PCs and high-performance workstations.
Gamers benefit from fast networking, improved system responsiveness, and efficient cooling during long gaming sessions.
The motherboard’s reinforced design and military-grade components increase durability and reliability under demanding conditions.
DIY-friendly features simplify installation and upgrades, making the board suitable for both experienced builders and first-time PC builders.
Included Items
• ASUS TUF Gaming B860-Plus WiFi Motherboard
• WiFi Q-Antenna
• SATA cables
• M.2 mounting accessories
• I/O shield
• User manual and documentation
