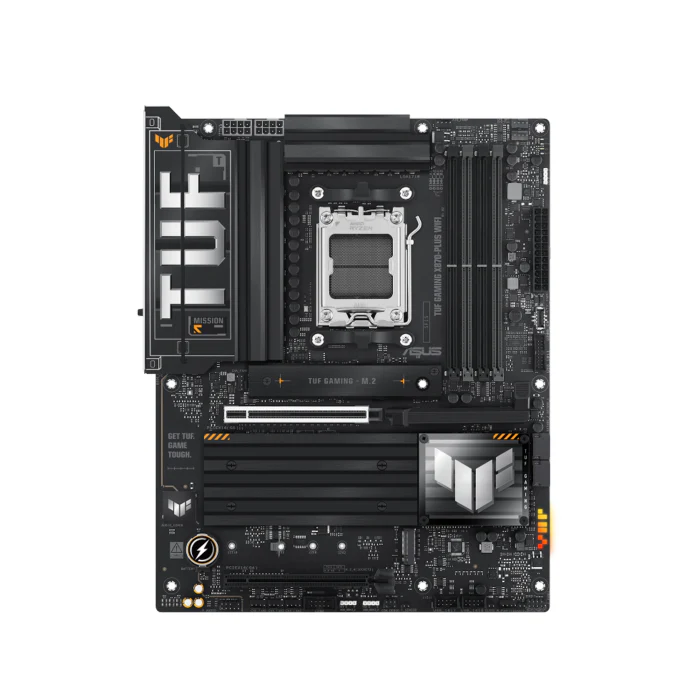

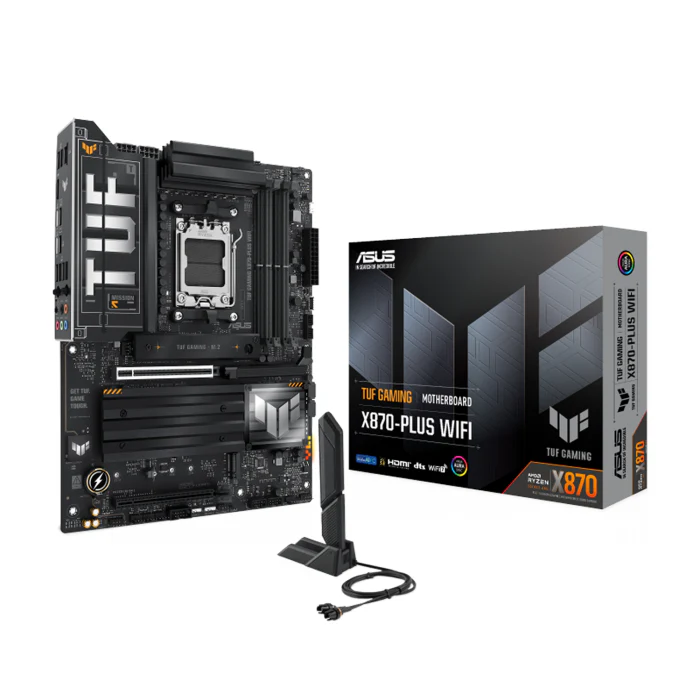

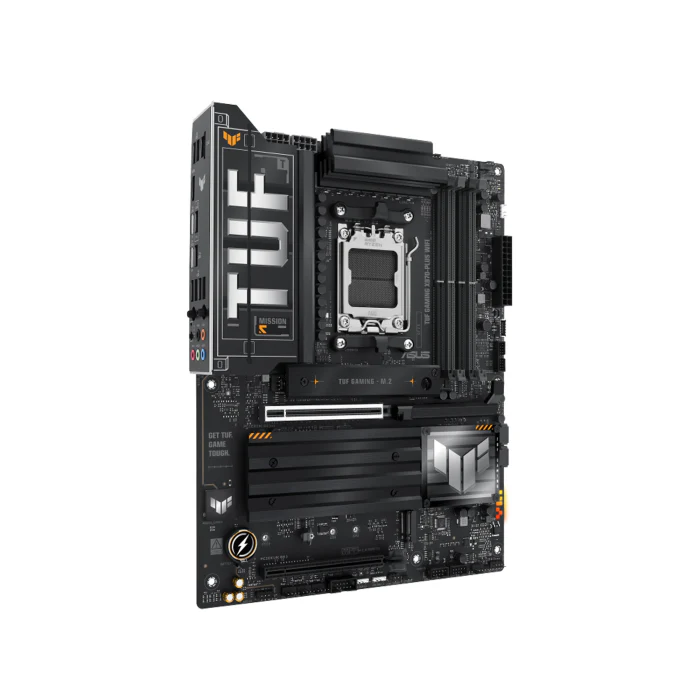

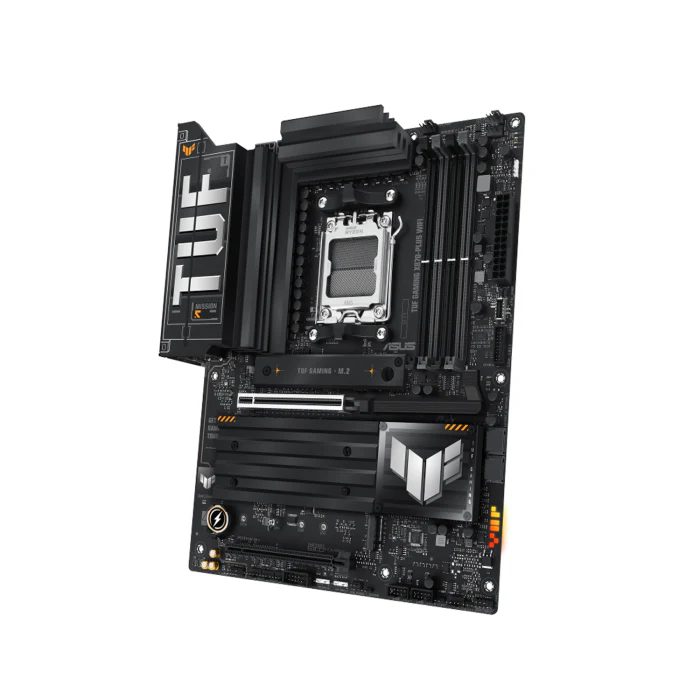

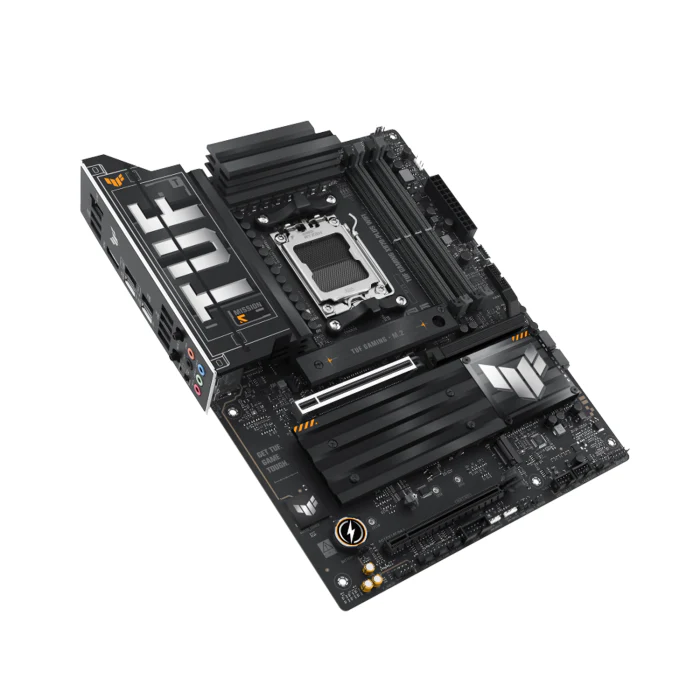

ASUS TUF GAMING X870-PLUS WIFI AM5 DDR5 ATX Motherboard - Black

The ASUS TUF GAMING X870-PLUS WIFI is a durable AM5 motherboard built for AMD Ryzen 7000, 8000, and 9000 series processors.
It supports PCIe 5.0, DDR5 memory, Wi-Fi 7, and advanced connectivity for high-performance gaming and heavy workloads.
TUF components, reinforced power delivery, and AI tuning tools provide stability and reliability for long-term use.

---

Key Features

• AM5 socket, compatible with Ryzen 7000, 8000, and 9000 series CPUs
• PCIe 5.0 support for GPUs and SSDs
• DDR5 support up to 192–256 GB at 8000+ MT/s (OC)
• 16+2+1 power stages with 80 A DrMOS for stable overclocking

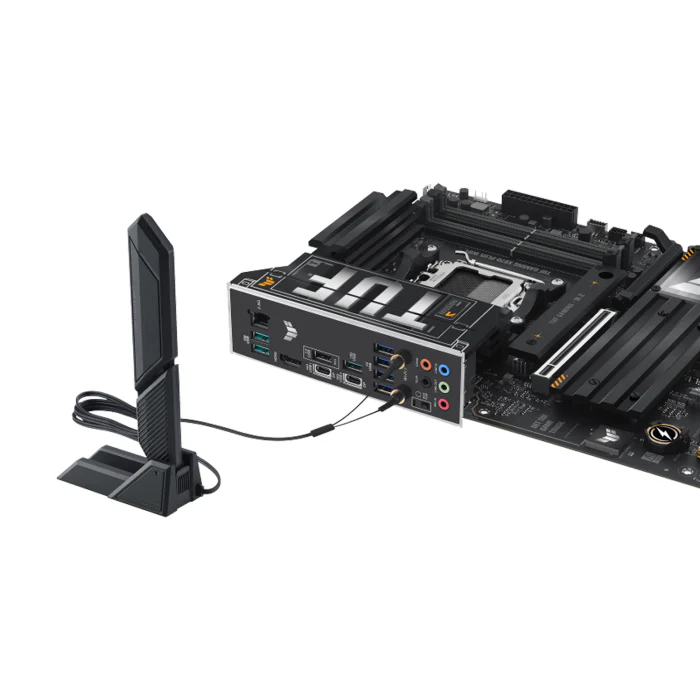

• Built-in Wi-Fi 7 and Bluetooth 5.4
• 2.5 Gb Ethernet port for high-speed networking
• 4x M.2 slots (2x PCIe 5.0, 2x PCIe 4.0)
• USB4 rear Type-C and front 20 Gbps USB-C with fast charge
• Realtek ALC1220P audio with DTS support
• Heavy-duty VRM and M.2 heatsinks with multiple fan headers
• ASUS AI Suite with AI Overclocking, AI Cooling II, and AI Networking II

---

Specifications

Category	Details
Form Factor	ATX
CPU Socket	AMD AM5
Chipset	AMD X870
Supported CPUs	Ryzen 7000 / 8000 / 9000 Series
Memory	4x DDR5 DIMMs, up to 192–256 GB, 8000+ MT/s OC, ECC/Non-ECC
Power Delivery	16+2+1 power stages, 80 A DrMOS
Expansion Slots	1x PCIe 5.0 x16 (SafeSlot), 1x PCIe 4.0 x16 (x4 mode)
Storage	4x M.2 slots (2x PCIe 5.0, 2x PCIe 4.0), 4x SATA 6 Gb/s
USB Ports	USB4 Type-C (rear), USB 20 Gbps Type-C (front), multiple USB 3.x/2.0
Networking	Intel 2.5 Gb Ethernet, Wi-Fi 7, Bluetooth 5.4
Audio	Realtek ALC1220P 7.1 HD audio, DTS
Cooling	VRM heatsinks, M.2 heatsinks, multiple fan headers, pump headers
RGB Lighting	Aura Sync RGB headers
Other Features	AI Overclocking, AI Cooling II, AI Networking II, BIOS FlashBack, Debug LED
Dimensions	ATX Standard
Color	Black
