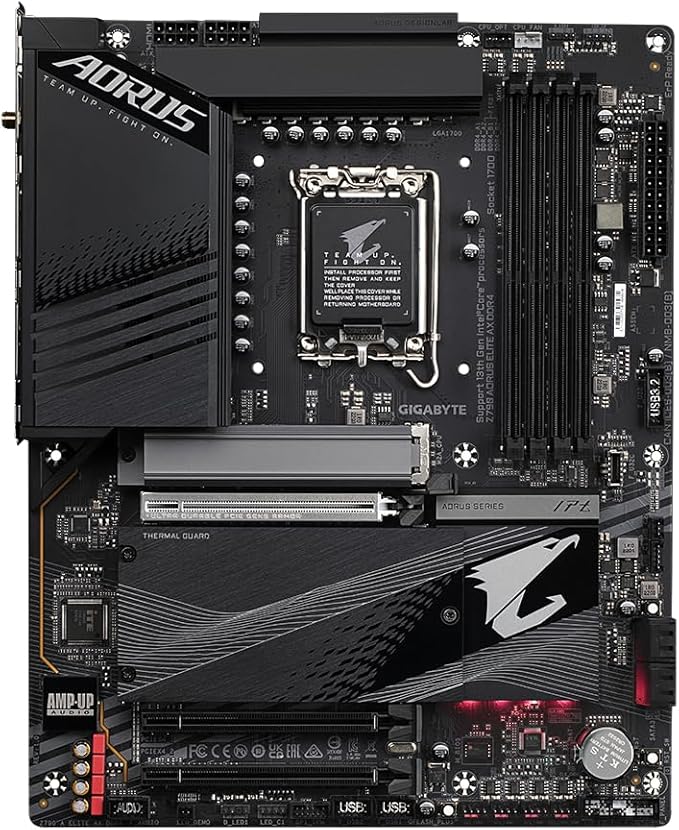

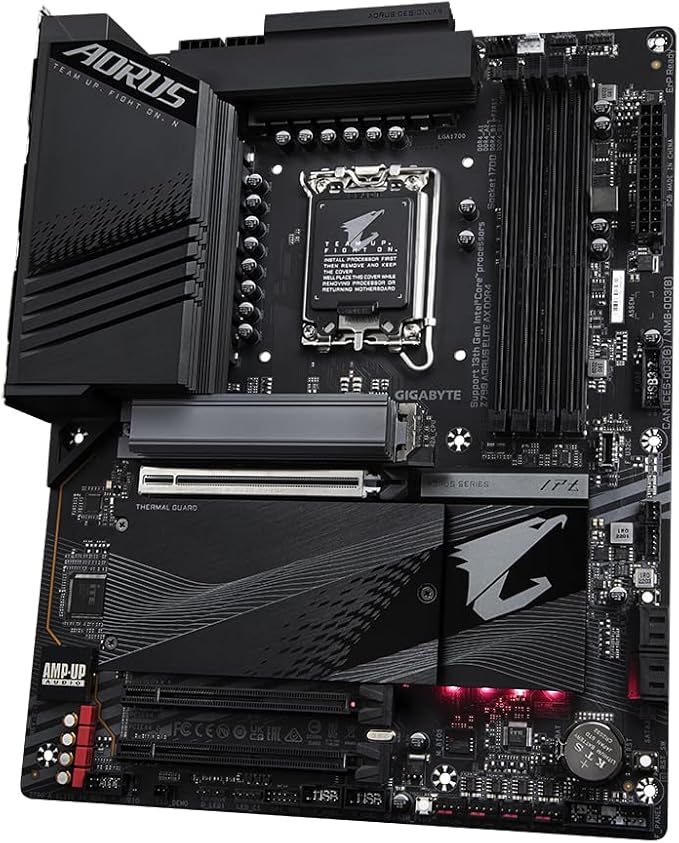

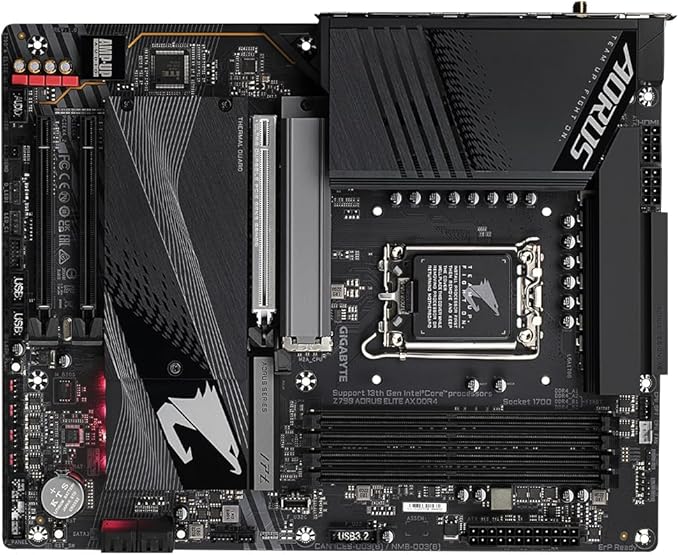

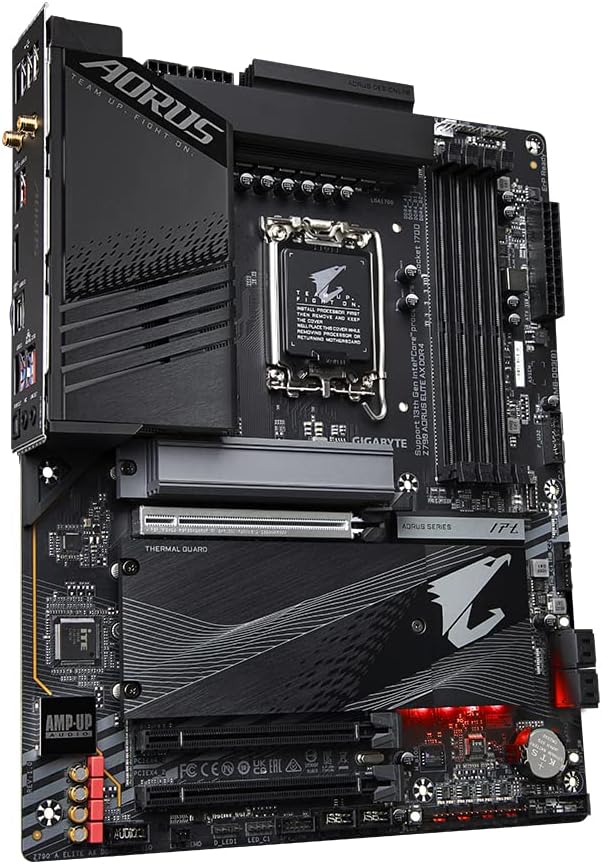

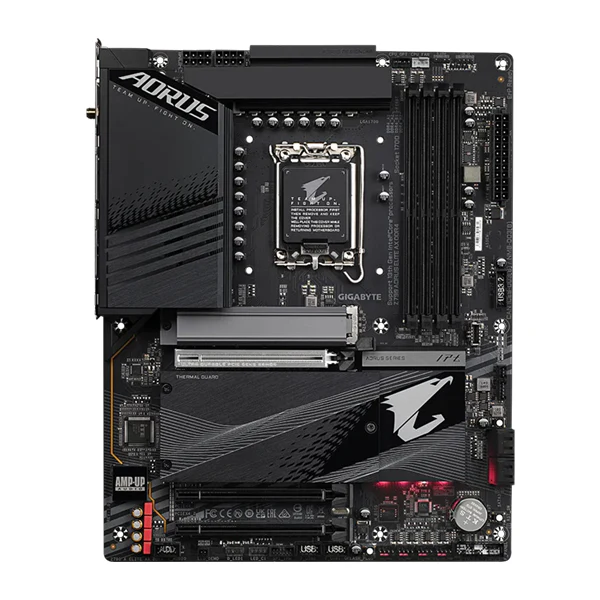

GIGABYTE Z790 A ELITE AX DDR4 1.0 Motherboard

The GIGABYTE Z790 A ELITE AX DDR4 (Rev. 1.0) motherboard is built for users who want high-end features, strong performance, and DDR4 memory compatibility. Designed for Intel 12th and 13th Gen Core processors, it supports PCIe 5.0, Wi-Fi 6E, advanced cooling, and a powerful digital VRM design. Ideal for gaming and productivity-focused builds, this ATX board offers modern connectivity and future-ready expansion.

---

Technical Specifications

• Socket: Intel LGA 1700

• Chipset: Intel Z790

• Form Factor: ATX

• Memory Support:

  • 4× DDR4 DIMM slots (up to 128GB)

  • Supports up to 5333MHz (OC)

• Storage Support:

  • 3× M.2 PCIe 4.0 x4 slots

  • 6× SATA 6Gb/s ports

• Expansion Slots:

  • 1× PCIe 5.0 x16

  • 2× PCIe 3.0 x16

• Networking:

  • Wi-Fi 6E + Bluetooth 5.3

  • 2.5GbE LAN (Realtek)

• Audio: Realtek ALC1220 HD Audio

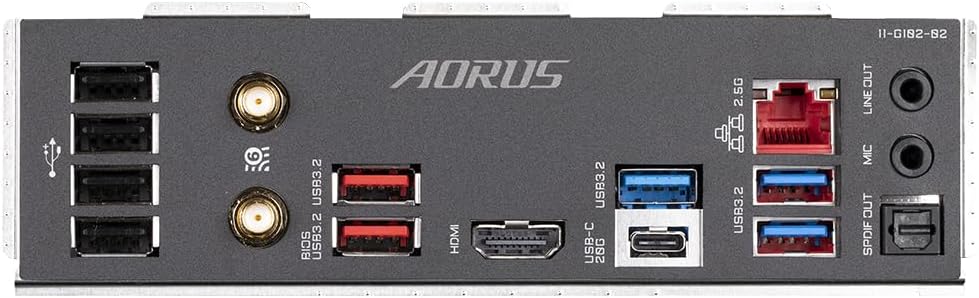

• USB Ports:

  • USB 3.2 Gen 2x2 Type-C

  • USB 3.2 Gen 2

  • USB 3.2 Gen 1

  • USB 2.0

• RGB Lighting: RGB Fusion 2.0 with ARGB and RGB headers

• BIOS: Q-Flash Plus

• Cooling: Smart Fan 6

• Power Design: 16+1+2 phase digital VRM with DrMOS

---

Key Features

• Supports Intel 12th & 13th Gen CPUs (LGA 1700 socket)

• DDR4 Memory Support up to 128GB and 5333MHz OC

• PCIe 5.0 x16 Slot for next-gen GPUs

• Wi-Fi 6E & Bluetooth 5.3 for fast wireless connectivity

• 3× M.2 NVMe Slots with thermal guards

• Q-Flash Plus for BIOS updates without CPU/RAM

---

User Benefits

• Strong Performance for gaming and multitasking

• Fast Storage & Connectivity with M.2, Wi-Fi 6E, and USB-C

• Efficient Cooling using Smart Fan 6 and advanced thermal design

• Expandable System with PCIe 5.0 and multiple storage options

• RGB Control for personalized lighting effects

---

Compatibility

• Compatible with Intel 12th & 13th Gen Core processors

• Supports DDR4 memory only

• Fits ATX PC cases

• Works with PCIe 5.0 GPUs and Gen4 M.2 SSDs

---

Included Items

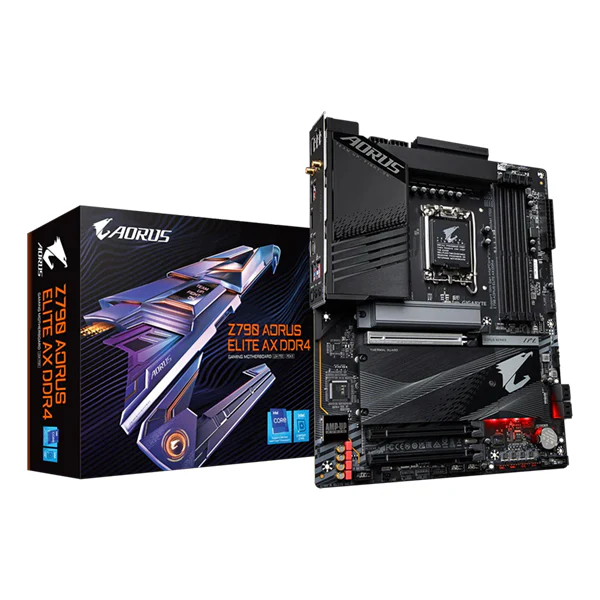

• GIGABYTE Z790 A ELITE AX DDR4 Motherboard

• Wi-Fi Antenna

• SATA Cables

• M.2 Screws

• User Manual

• Quick Installation Guide
