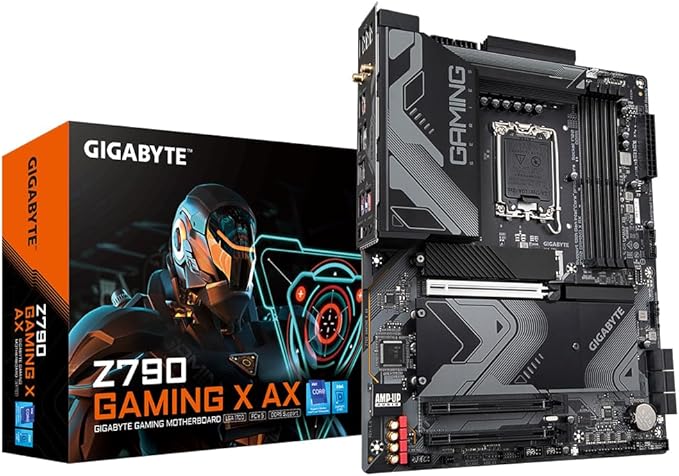

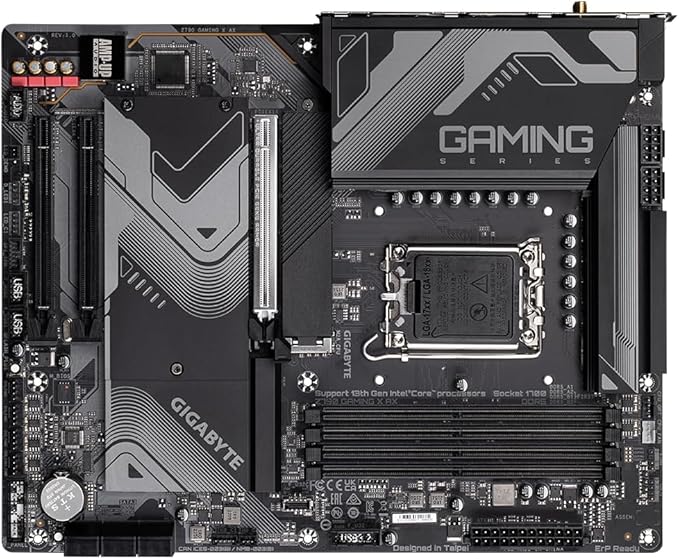

GIGABYTE Z790 GAMING X AX 1.0 Motherboard

The GIGABYTE Z790 GAMING X AX (Rev. 1.0) is a performance-driven ATX motherboard built for Intel’s 12th and 13th Gen Core processors. It supports DDR5 memory, PCIe 5.0, and features integrated Wi-Fi 6E, making it ideal for gamers and creators looking for speed, reliability, and future-ready connectivity. With a robust power design, advanced cooling features, and multiple high-speed M.2 slots, this board offers a stable platform for demanding builds.

---

Technical Specifications

• Socket: Intel LGA 1700

• Chipset: Intel Z790

• Form Factor: ATX

• Memory Support:

  • 4× DDR5 DIMM slots (up to 128GB)

  • Supports up to 7600MHz (OC)

• Storage Support:

  • 3× M.2 PCIe 4.0 x4 slots

  • 6× SATA 6Gb/s ports

• Expansion Slots:

  • 1× PCIe 5.0 x16

  • 2× PCIe 3.0 x16

• Networking:

  • Wi-Fi 6E + Bluetooth 5.3

  • 2.5GbE LAN (Realtek)

• Audio: Realtek ALC897 HD Audio

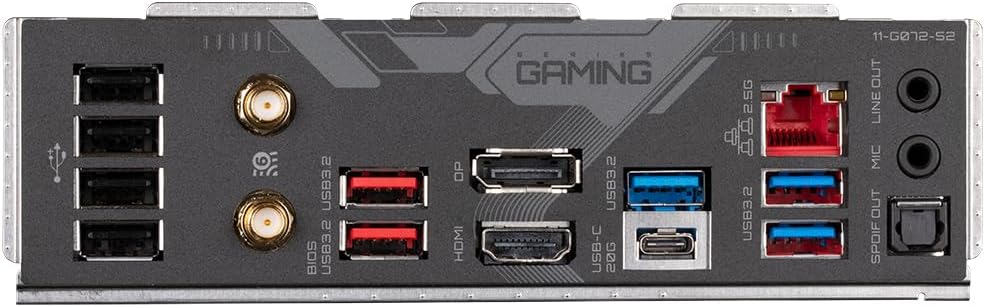

• USB Ports:

  • USB 3.2 Gen 2×2 Type-C

  • USB 3.2 Gen 2 / Gen 1

  • USB 2.0

• BIOS: Q-Flash Plus

• RGB: RGB Fusion 2.0 with ARGB/RGB headers

• Cooling: Smart Fan 6

• Power Design: 16+1+2 Twin Digital VRM with DrMOS

---

Key Features

• Support for DDR5 up to 7600MHz OC

• PCIe 5.0 x16 slot for latest GPUs

• Wi-Fi 6E & 2.5GbE LAN for high-speed connectivity

• Triple M.2 PCIe 4.0 slots for fast storage options

• Q-Flash Plus for BIOS update without CPU or RAM

---

User Benefits

• Optimized for high-performance gaming and workloads

• Fast memory and storage support ensures smooth operation

• Reliable thermal performance with Smart Fan 6

• Expandable with multiple PCIe and M.2 slots

• Modern connectivity with Wi-Fi 6E, Bluetooth 5.3, and USB-C

---

Compatibility

• Supports Intel 12th and 13th Gen Core processors

• Compatible with DDR5 memory

• Fits standard ATX cases

• Supports PCIe 5.0 GPUs and Gen4 NVMe SSDs

---

Included Items

• GIGABYTE Z790 GAMING X AX Motherboard

• Wi-Fi Antenna

• SATA Cables

• M.2 Screws

• User Manual

• Quick Installation Guide
