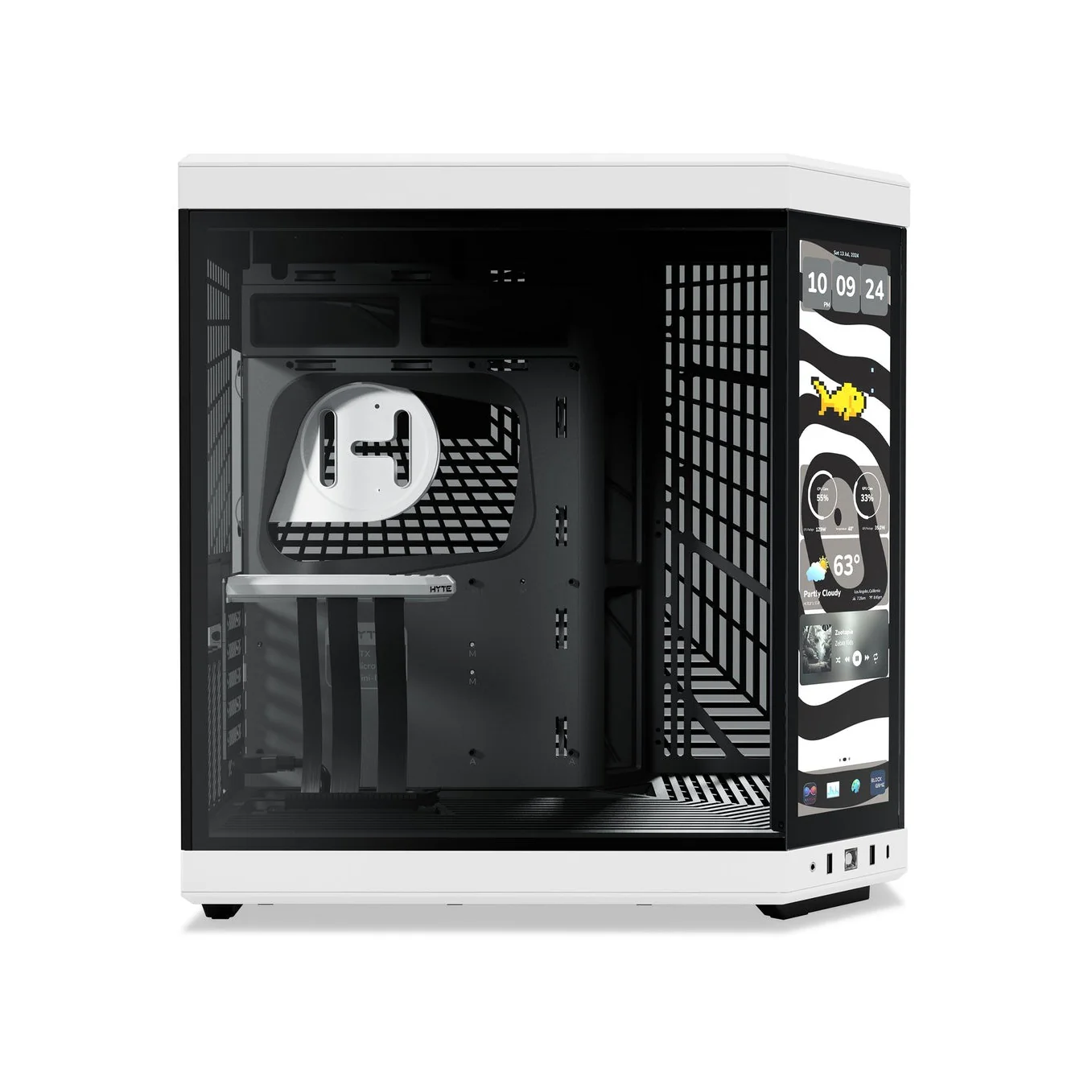

The HYTE Y70 Touch Infinite 14.5-Inch Integrated IPS Touchscreen ATX Case, Panda is designed for high-end PC builds that focus on visual presentation, strong airflow, and advanced hardware support. The case features a panoramic tempered glass design that provides a wide view of internal components, allowing users to showcase their graphics card, cooling system, and lighting setup from multiple angles.
A standout feature of the HYTE Y70 Touch Infinite 14.5-Inch Integrated IPS Touchscreen ATX Case, Panda is the integrated 14.5-inch capacitive touchscreen mounted on the front corner of the case. The display offers a sharp 2.5K resolution of 688 × 2560 pixels with a 60Hz refresh rate, providing clear visuals for system monitoring, media display, or custom interface controls. With support for multi-touch input, users can interact directly with system applications through the screen.
The case is engineered for strong airflow through a bottom air intake system known as cold floor cooling. Fresh air is drawn from the bottom of the chassis and directed toward high-temperature components such as the CPU and graphics card. Multiple fan mounting locations across the top, side, rear, and bottom allow users to create an efficient airflow path for high-performance systems.
The HYTE Y70 Touch Infinite 14.5-Inch Integrated IPS Touchscreen ATX Case, Panda also supports vertical graphics card installation using the included PCIe 4.0 riser cable. This allows users to display high-end GPUs through the large tempered glass panel. The case supports large graphics cards up to 390 mm and CPU air coolers up to 180 mm, making it suitable for modern gaming hardware.
Cooling flexibility is another key advantage. The case supports both air cooling and liquid cooling systems, with radiator mounting positions available on the side, top, and rear of the chassis. With support for large radiators and multiple fans, the case can maintain stable temperatures even during heavy gaming or content creation workloads.
Key Features
• Integrated 14.5-inch IPS touchscreen with multi-touch support
• 2.5K display resolution with 60Hz refresh rate
• Panoramic tempered glass design for full hardware visibility
• Vertical graphics card mounting with included PCIe 4.0 riser cable
• Supports graphics cards up to 390 mm length
• Supports CPU air coolers up to 180 mm height
• Advanced airflow design with bottom air intake system
• Supports multiple radiators for liquid cooling setups
• Supports up to 10 cooling fans across the case
• Front I/O panel with USB Type-A, USB Type-C, and audio jack
Technical Specifications
| Category | Specification | Details |
|---|---|---|
| Model | Product Name | HYTE Y70 Touch Infinite |
| Case Type | Chassis Type | Mid Tower |
| Motherboard Support | Compatible Formats | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Dimensions | Case Size | 320 × 470 × 470 mm |
| Weight | Product Weight | 11.05 kg |
| Material | Construction | Steel, ABS plastic, Tempered Glass |
| Display | Screen Type | Integrated IPS Touchscreen |
| Display Size | Screen Size | 14.5 inch |
| Display Resolution | Resolution | 688 × 2560 pixels (2.5K) |
| Display Refresh Rate | Refresh Rate | 60 Hz |
| GPU Clearance | Maximum GPU Length | 390 mm |
| CPU Cooler Clearance | Maximum Cooler Height | 180 mm |
| Power Supply Support | PSU Type | Standard ATX up to 235 mm |
| Expansion Slots | Total Slots | 7 horizontal + 4 vertical |
| Drive Bays | Storage Support | 2 × 3.5 inch or 4 × 2.5 inch |
| Fan Support Bottom | Cooling | 3 × 120 mm or 2 × 140 mm |
| Fan Support Top | Cooling | 3 × 120 mm or 2 × 140 mm |
| Fan Support Side | Cooling | 3 × 120 mm or 2 × 140 mm |
| Fan Support Rear | Cooling | 1 × 120 mm or 1 × 140 mm |
| Radiator Support | Liquid Cooling | Up to 360 mm (side and top) |
| Dust Filters | Filter Locations | Bottom, side, and top removable filters |
| Front I/O | Ports | 2 × USB 3.0 Type-A, 1 × USB Type-C, Audio/Microphone combo |
User Benefits
• Provides a premium showcase design for gaming builds
• Allows direct interaction with system monitoring through the touchscreen
• Improves cooling through bottom air intake airflow design
• Supports large high-performance graphics cards
• Flexible cooling options for both air and liquid cooling systems
• Panoramic glass layout highlights RGB and internal components
Included Items
• HYTE Y70 Touch Infinite ATX Case, Panda
• PCIe 4.0 riser cable
• Installation accessories
• User documentation
