IP Intercom device consist of Indoor Screen & Outdoor Station Model SKY-IP-M72T + SKY-IP-P4 with Dimensions: 122*48*20 mm

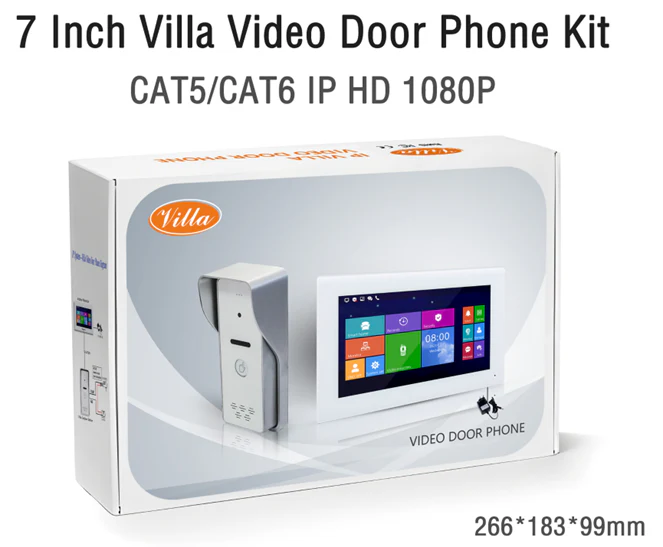

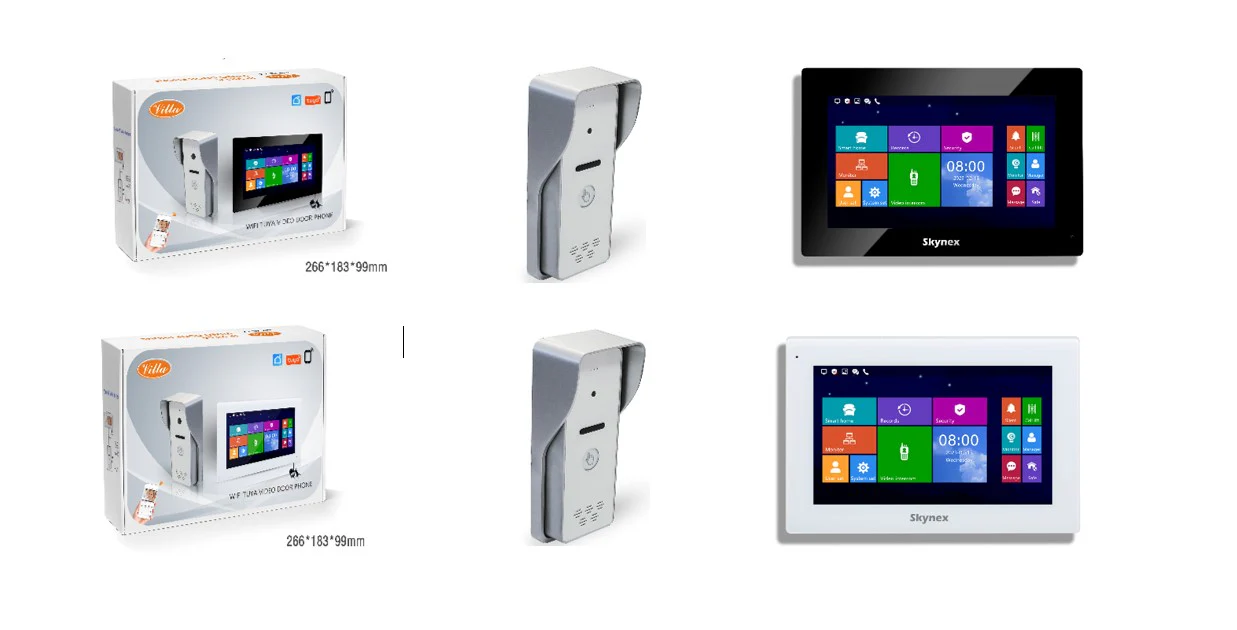

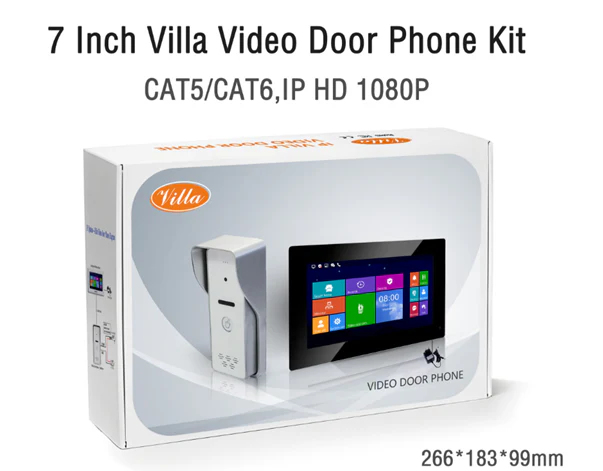

The SKY-IP-M72T + SKY-IP-P4 is a home IP video intercom system that includes a 7-inch indoor touchscreen monitor and an outdoor door station with a built-in camera.
The system allows users to communicate with visitors at the entrance through clear video and audio.
The outdoor unit features a 2MP camera for monitoring visitors, while the indoor monitor provides a high-resolution LCD display for viewing and control.
The system operates using TCP/IP network communication through CAT5 or CAT6 cables, providing a stable wired connection between devices.
It is suitable for residential homes, apartments, offices, and gated entry points.
Key Features
Video Door Communication
- Two-way audio and video communication.
- Live monitoring of visitors.
- Hands-free communication through the indoor monitor.
7-inch Touchscreen Indoor Monitor
- Large LCD touchscreen display.
- Easy control interface.
- Clear video viewing for visitor identification.
Outdoor Camera Door Station
- Built-in 2MP camera.
- Designed for entrance monitoring.
- Compact and durable outdoor unit.
Stable IP Network System
- TCP/IP communication protocol.
- Wired connection using CAT5 / CAT6 network cables.
- Reliable and stable signal transmission.
Durable Installation Design
- Wall mounted installation.
- Built with ABS plastic and acrylic panel.
- Suitable for indoor and outdoor environments.
Technical Specifications
| Specification | Details |
|---|---|
| Product Type | IP Video Intercom System |
| Models | SKY-IP-M72T + SKY-IP-P4 |
| Indoor Screen Size | 7 inches |
| Screen Type | LCD Touch Screen |
| Resolution | 600 × 1024 |
| Outdoor Camera | 2MP |
| Network | TCP/IP |
| Network Cable | CAT5 / CAT6 |
| System | Linux |
| Material | ABS Plastic + Acrylic Panel |
| Operation Voltage | DC 12–24V |
| Operation Current | ≤500mA |
| Net Weight | 1.7 kg |
| Installation | Wall Mounted |
| Connection Type | Wired |
Dimensions
| Component | Size |
|---|---|
| Indoor Monitor | 190 × 122 × 17 mm |
| Outdoor Station | 122 × 48 × 20 mm |
Â
Applications
- Residential houses and villas
- Apartment buildings
- Office entrances
- Access control systems
The SKY-IP-M72T + SKY-IP-P4 offers a reliable wired IP intercom solution for clear video communication and secure entrance monitoring.
