Lian Li UNI FAN TL LCD 120mm ARGB (3-Pack) – Black – With 1.6" LCD Display
The Lian Li UNI FAN TL LCD is the first 120mm PC case fan with a built-in 1.6" LCD screen, combining high-performance cooling, custom visuals, and smart hardware monitoring. Designed for advanced setups, the fans deliver strong airflow, quiet operation, and a clean daisy-chained configuration.
Key Features
- 1.6" IPS LCD screen with 400×400 resolution
- Display CPU/GPU temps, fan speed, or upload GIF/MP4/PNG/JPG
- Brightness: 500 nits (typical)
- SRGB 24-bit color depth
- Supports real-time monitoring via L-Connect 3
- Personalized display and lighting effects per fan side
- Interlocking design with slide-in daisy-chain setup
- Single cable connection per fan cluster
- Compatible with up to 9 TL LCD fans per controller
- Anti-vibration rubber pads for noise reduction
- Pre-installed GPU anti-sag support
- Infinity mirror effect (30% larger than SL-INF series)
- 26 ARGB LEDs per fan with side lighting
Cooling Performance
- Speed: 0, 350 – 1900 RPM
- Max Air Pressure: 2.9 mmH₂O
- Max Airflow: 62 CFM
- Max Noise: 27 dB(A)
- Bearing Type: Fluid Dynamic Bearing (FDB)
- Frame Thickness: 28 mm
- Input Power: 7.08W
- Voltage: 12V (fan) / 5V (LED)
- Connector: UNI FAN controller cable (P-7P)
Build Quality and Design
- Materials: PA66 / PBT
- Fan Dimensions: 124 x 120 x 28 mm
- Magnetic rubber rings and metal bearing shell for durability
- Thick frame design for better airflow and static pressure
- Removable interlocking key for compatibility
- Smooth, screw-hidden finish with anti-vibration pads
Software Control
- Controlled through L-Connect 3
- Custom fan speed per cluster
- Independent RGB and screen settings
- Sync lighting across all TL fans
- Controller supports up to 16 fans (TL + TL LCD)
- Each controller port supports:
- 3 TL LCD fans or
- 10 TL fans
- First port does not support TL LCD
Included Items
- 3 × UNI FAN TL LCD 120mm – Black

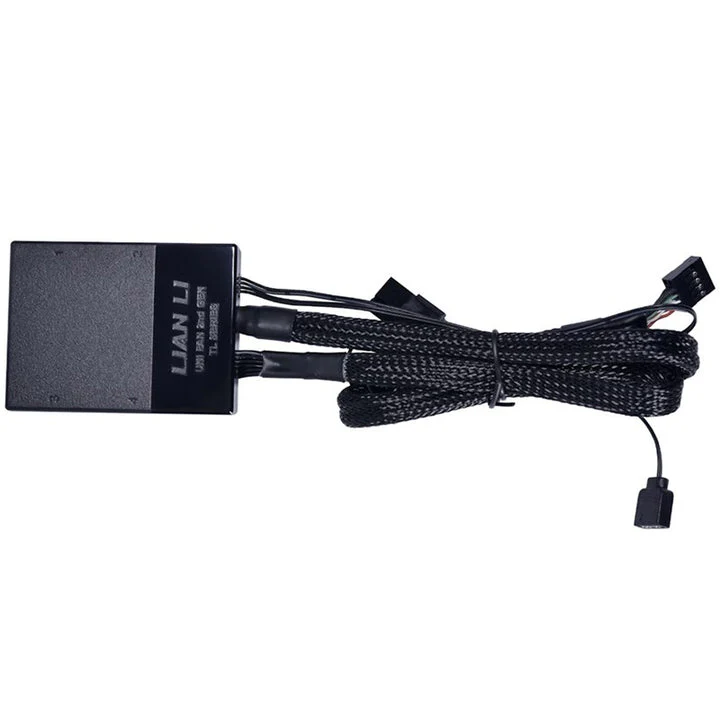

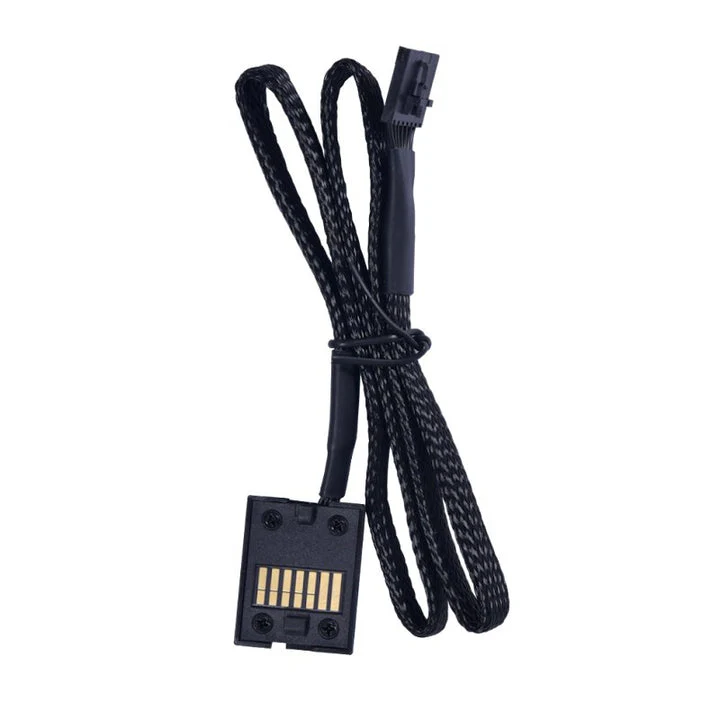

- 1 × UNI FAN Controller Cable (P-7P)
- Mounting screws
- User guide
