MSI Gaming GeForce RTX 5060 8GB GDDR7 Shadow 2X OC Graphics Card - Black

The MSI Gaming GeForce RTX 5060 Shadow 2X OC is a dual-fan graphics card designed for modern gaming and creative workloads. It uses NVIDIA GeForce RTX 5060 architecture with GDDR7 memory, PCI Express Gen 5 support, and factory overclocking through MSI Center for stable performance and efficient cooling.

Key Features

• NVIDIA GeForce RTX 5060 GPU with factory OC profile.

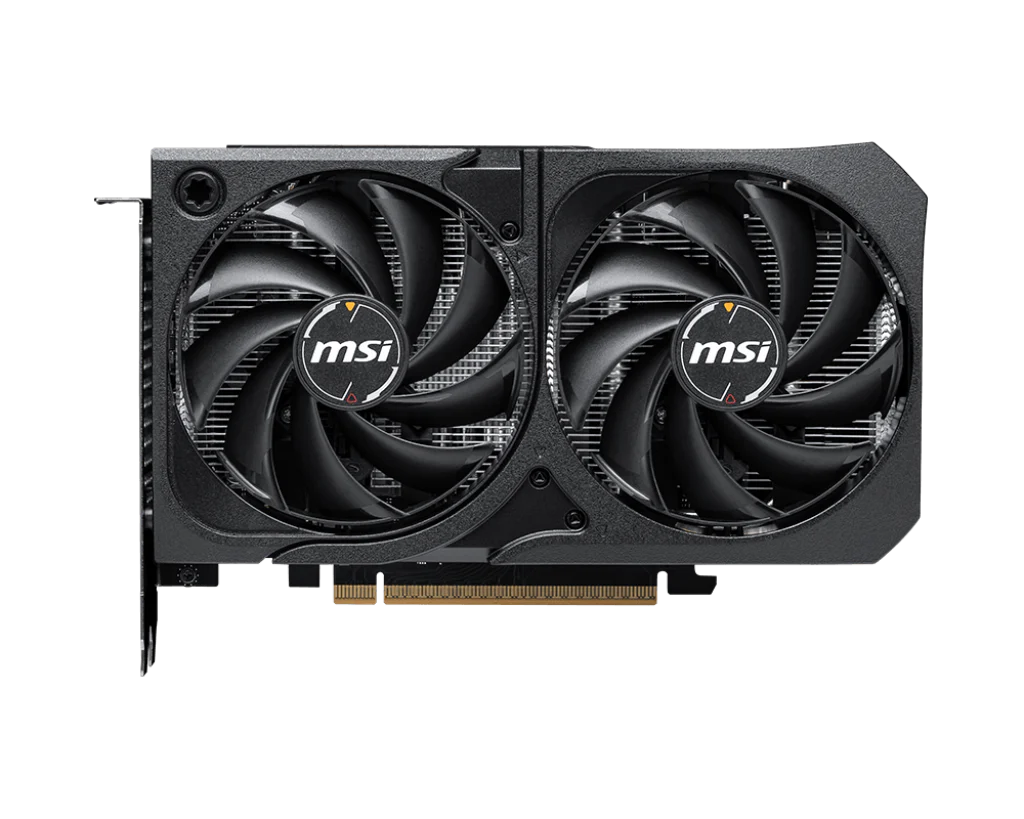

• Dual-fan Shadow 2X cooling design.
• 8GB GDDR7 memory on a 128-bit bus.
• PCI Express Gen 5 interface for new platforms.
• Support for high-refresh 4K and 8K displays.
• G-SYNC support for smooth gameplay.

Technical Specs

General

• Marketing Name: GeForce RTX 5060 8G Shadow 2X OC
• Model Name: G5060-8S2C

GPU

• Graphics Processing Unit: NVIDIA GeForce RTX 5060
• Interface: PCI Express Gen 5 x16 (operates at x8)
• CUDA Cores: 3840
• Core Clocks:
• Extreme Performance: 2535 MHz (MSI Center)
• Boost Clock: 2527 MHz

Memory

• Memory Size: 8GB
• Memory Type: GDDR7
• Memory Speed: 28 Gbps
• Memory Bus: 128-bit

Display and Output

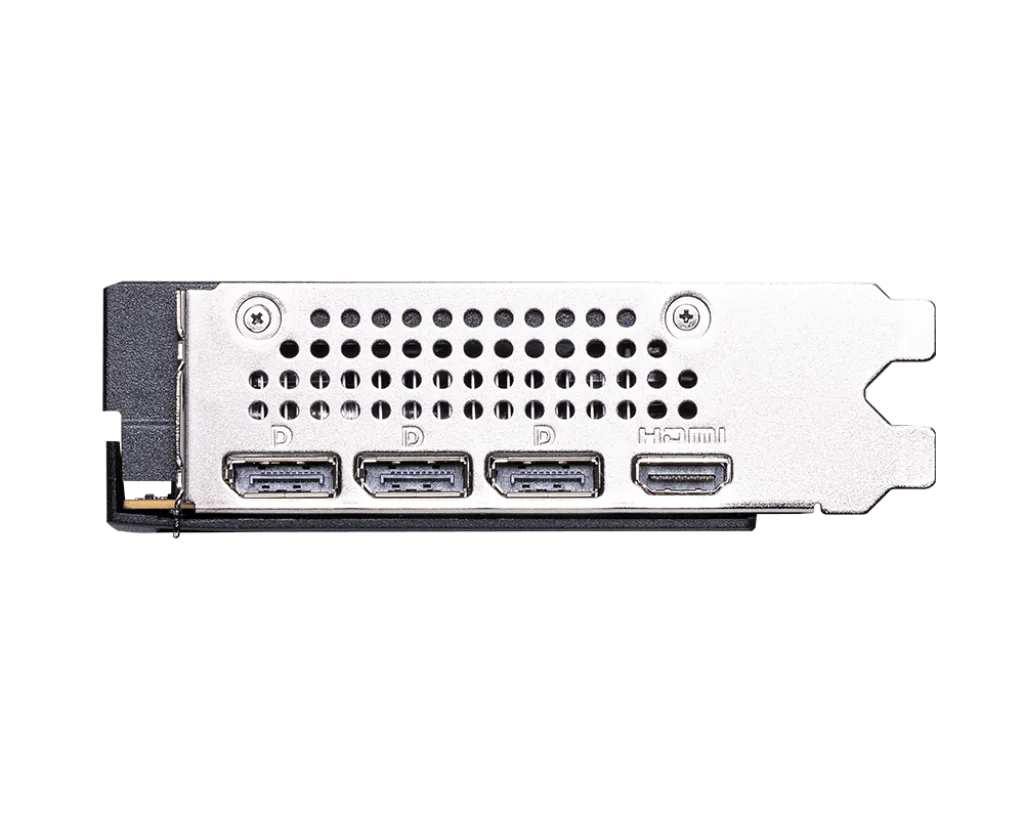

• Display Outputs:
• 3 x DisplayPort 2.1b
• 1 x HDMI 2.1b
• HDMI Support: Up to 4K at 480Hz or 8K at 120Hz with DSC, VRR, HDR
• HDCP Support: Yes
• Maximum Displays: 4
• Digital Maximum Resolution: 7680 x 4320
• G-SYNC Technology: Supported

Power and Requirements

• Power Consumption: 145W
• Power Connector: 1 x 8-pin
• Recommended Power Supply: 550W

Physical

• Card Dimensions: 197 x 120 x 40 mm
• Weight: 493 g (card) / 814 g (package)

API Support

• DirectX: 12 Ultimate
• OpenGL: 4.6
