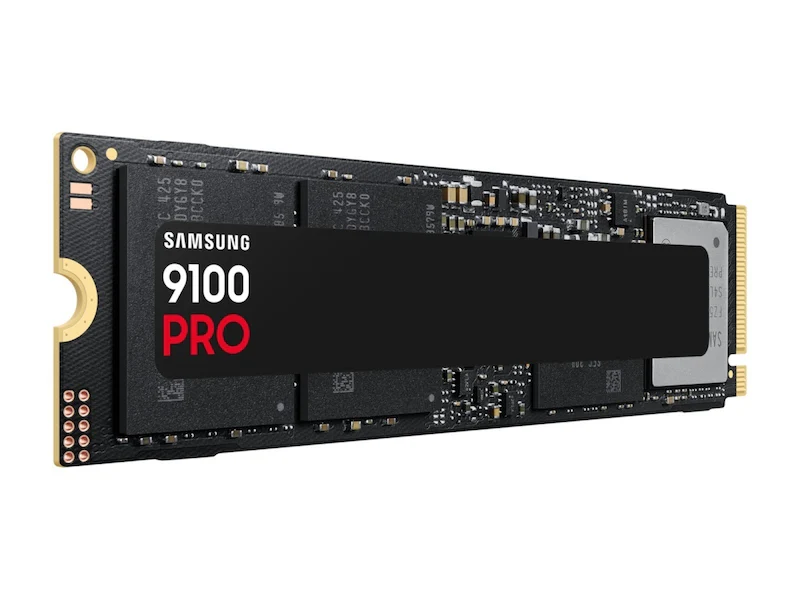

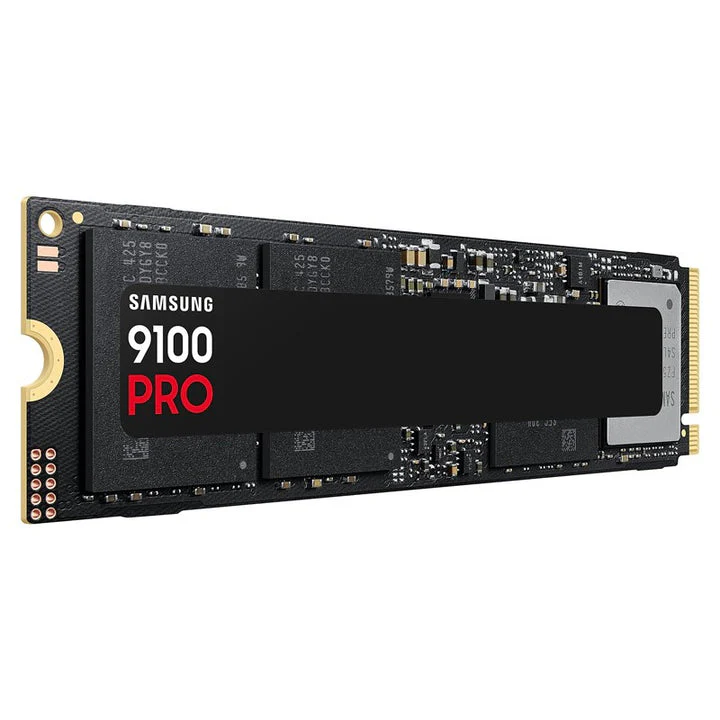

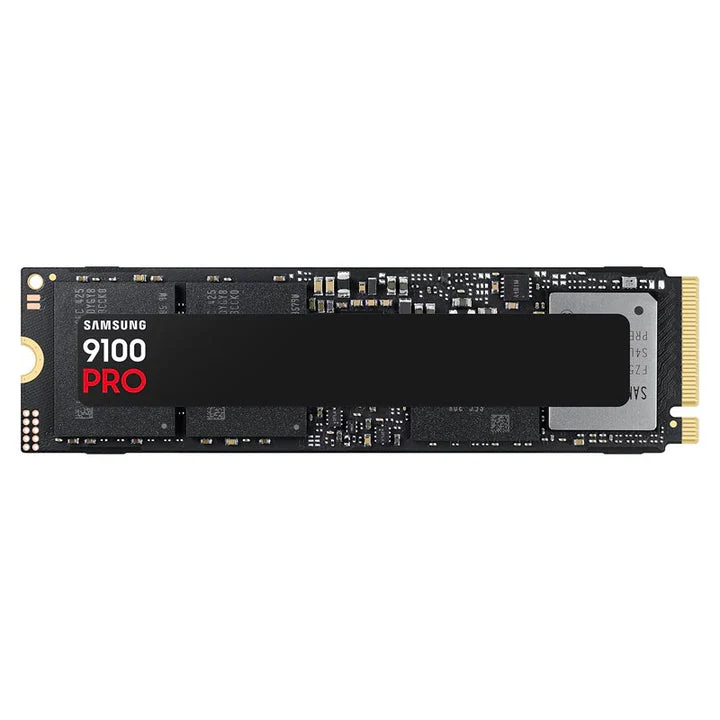

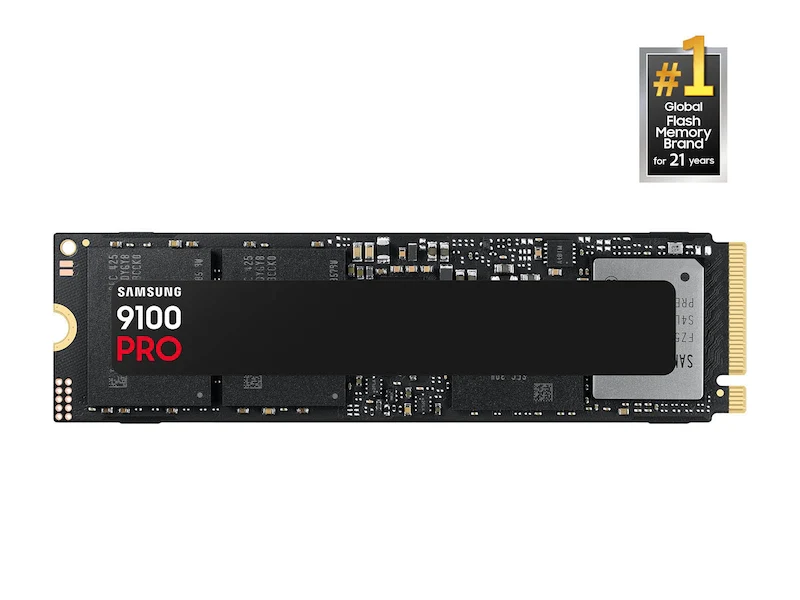

Samsung, 9100 PRO, 1TB NVMe M.2, 14,700 MB/s Internal SSD
Technical Specifications
| Specification | Details |
|---|---|
| Application | Client PCs and Gaming Platforms |
| Form Factor | M.2 (2280) |
| Interface | PCIe 5.0 x4, NVMe 2.0 |
| Storage Memory | Samsung V-NAND TLC |
| Controller | Samsung In-house Controller |
| Cache Memory | 1GB LPDDR4X SDRAM |
| Capacity | 1TB (usable capacity may vary after formatting) |
| Sequential Read | Up to 14,700 MB/s |
| Sequential Write | Up to 13,300 MB/s |
| Random Read | Up to 1,850,000 IOPS |
| Random Write | Up to 2,600,000 IOPS |
| Dimensions | 80.15 × 22.15 × 2.38 mm (Max) |
| Weight | Up to 9g |
| Active Read Power | 7.6W (Typical) |
| Active Write Power | 7.2W (Typical) |
| Idle Power | 4mW (Typical) |
| Device Sleep | 3.3mW (Typical) |
| Voltage | 3.3V ±5% |
| MTBF | 1.5 Million Hours |
| Operating Temperature | 0°C to 70°C |
| Shock Resistance | 1500G, 0.5ms |
| Encryption | AES 256-bit (Class 0), TCG/Opal, IEEE1667 |
| Software | Samsung Magician SSD Management Software |
| Accessories | No installation toolkit included |
Key Features
-
PCIe 5.0 NVMe 2.0 high-speed interface
-
Sequential read up to 14,700 MB/s
-
Sequential write up to 13,300 MB/s
-
Random performance up to 2.6M IOPS
-
Samsung V-NAND TLC with in-house controller
-
AES 256-bit hardware encryption support
-
TRIM, SMART, and automatic garbage collection
-
Low idle and sleep power consumption
-
Samsung Magician monitoring and management support
User Benefits
-
Faster system boot and game loading times
-
Quick large file transfers for video editing and design
-
Stable performance under heavy workloads
-
Secure data protection with hardware encryption
-
Efficient power usage during active and idle states
-
Long operational lifespan rated at 1.5 million hours MTBF
Included Items
-

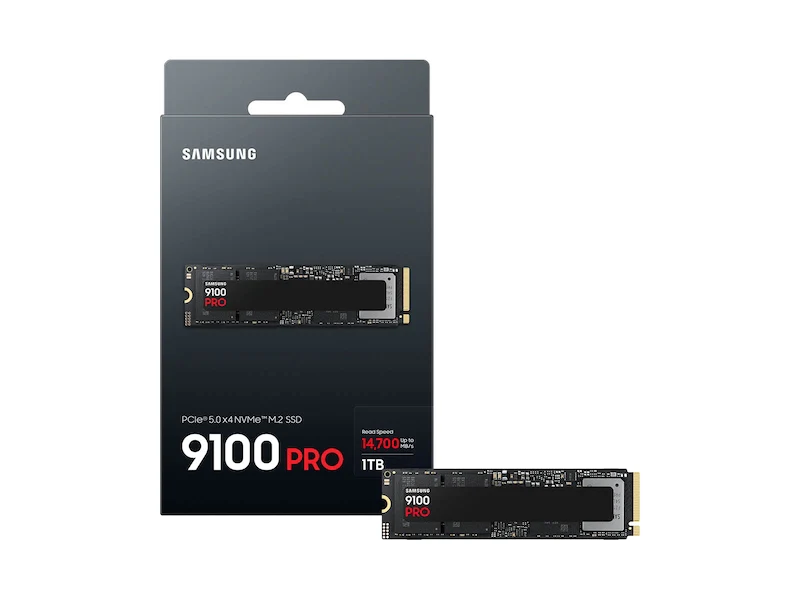

Samsung 9100 PRO 1TB NVMe M.2 Internal SSD
This SSD provides extreme PCIe 5.0 performance, strong reliability standards, and secure storage features for advanced gaming systems and high-performance desktop builds.
