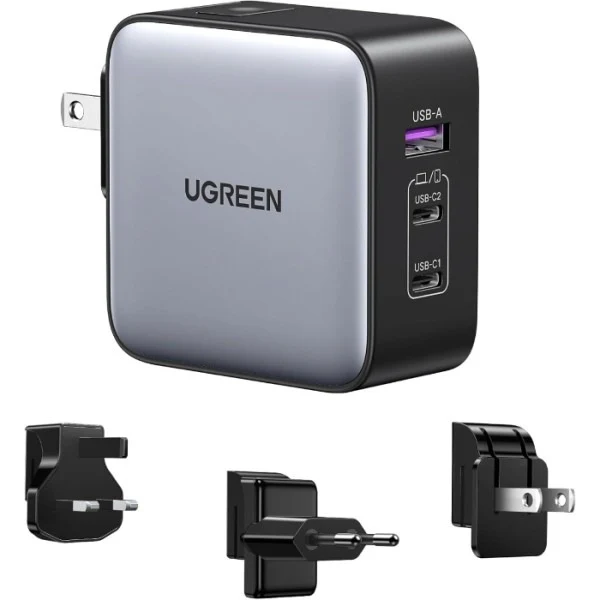

UGREEN GaN 65W Fast Charger (3-Port) CD296 CD296-90409
The UGREEN CD296-90409 is a 65W GaN (Gallium Nitride) fast charger with three output ports (2 × USB-C and 1 × USB-A). It’s travel-friendly thanks to interchangeable plug heads (US / UK / EU) and a wide input voltage range. Designed to charge devices like laptops, phones, tablets, and accessories simultaneously, it offers efficient power distribution, compact design, and safety protections.
Key Features
- Maximum 65W output via USB-C when a single high-power port is in use.
- Dual USB-C + USB-A configuration allows charging up to three devices at once.
- GaN technology for higher efficiency, better thermal control, and more compact size.
- Interchangeable plug adapters (US / UK / EU) for global travel usage.
- Support for multiple fast-charging protocols (PD 3.0 / PD 2.0, QC (Quick Charge), PPS, etc.).
- Smart power distribution between ports when more than one device is connected.
- Safety features: over-current, over-voltage, over-temperature, short-circuit protection.
Specifications
| Specification | Value |
|---|---|
| Model | CD296-90409 |
| Input Voltage | 100-240 V AC, 50-60 Hz, ~1.8 A max |
| Ports | 2 × USB-C, 1 × USB-A |
| USB-C1 / USB-C2 Output | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W max) |
| USB-A Output | Several modes; up to about 22.5W max (depends on voltage/current) |
| Total Output Power | 65W max (shared among ports when multiple devices connected) |
| Supported Protocols | PD 3.0 / PD 2.0; QC (various versions); PPS; others such as AFC / SCP depending on device |
| Interchangeable Plug Types | US, UK, EU |
| Technology | GaN fast-charging chip |
| Safety Protections | Over-current, over-voltage, over-temperature, short-circuit protections |
| Design Aspects | Compact for a 3-port charger; travel-ready with plug adapters; good heat management |
Original: $51.84
-70%$51.84
$15.55Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
The UGREEN CD296-90409 is a 65W GaN (Gallium Nitride) fast charger with three output ports (2 × USB-C and 1 × USB-A). It’s travel-friendly thanks to interchangeable plug heads (US / UK / EU) and a wide input voltage range. Designed to charge devices like laptops, phones, tablets, and accessories simultaneously, it offers efficient power distribution, compact design, and safety protections.
Key Features
- Maximum 65W output via USB-C when a single high-power port is in use.
- Dual USB-C + USB-A configuration allows charging up to three devices at once.
- GaN technology for higher efficiency, better thermal control, and more compact size.
- Interchangeable plug adapters (US / UK / EU) for global travel usage.
- Support for multiple fast-charging protocols (PD 3.0 / PD 2.0, QC (Quick Charge), PPS, etc.).
- Smart power distribution between ports when more than one device is connected.
- Safety features: over-current, over-voltage, over-temperature, short-circuit protection.
Specifications
| Specification | Value |
|---|---|
| Model | CD296-90409 |
| Input Voltage | 100-240 V AC, 50-60 Hz, ~1.8 A max |
| Ports | 2 × USB-C, 1 × USB-A |
| USB-C1 / USB-C2 Output | 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W max) |
| USB-A Output | Several modes; up to about 22.5W max (depends on voltage/current) |
| Total Output Power | 65W max (shared among ports when multiple devices connected) |
| Supported Protocols | PD 3.0 / PD 2.0; QC (various versions); PPS; others such as AFC / SCP depending on device |
| Interchangeable Plug Types | US, UK, EU |
| Technology | GaN fast-charging chip |
| Safety Protections | Over-current, over-voltage, over-temperature, short-circuit protections |
| Design Aspects | Compact for a 3-port charger; travel-ready with plug adapters; good heat management |
