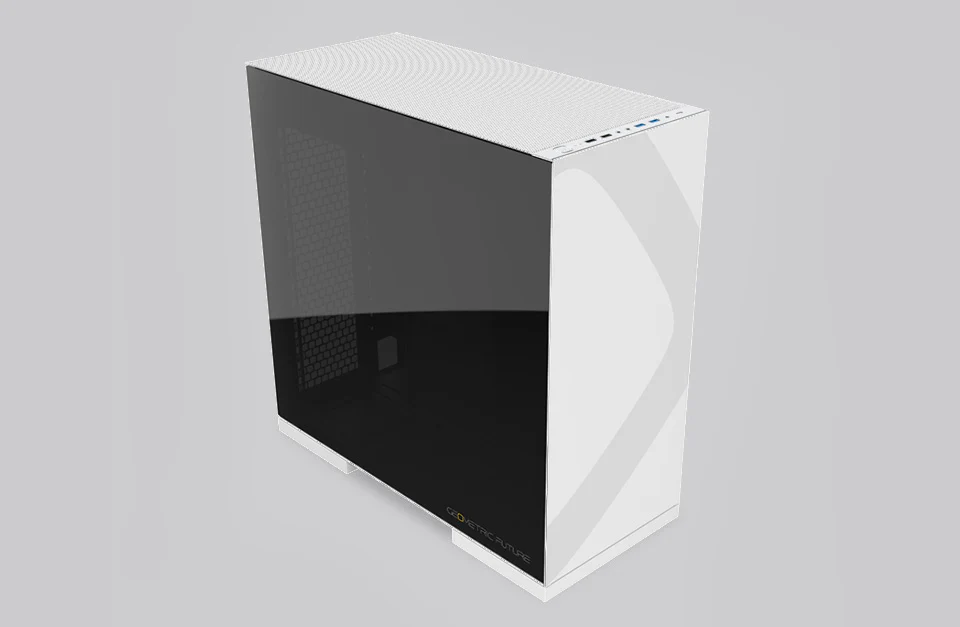

Geometric Future Model 8 Lohan Mid Tower Glass Case - White

The Geometric Future Model 8 Lohan is a premium mid-tower PC case designed for high-performance builds that demand both functionality and visual appeal.
Built with 1.0mm steel and 4.0mm tempered glass, it provides durability, clean aesthetics, and a spacious internal layout to accommodate powerful components.
It supports E-ATX motherboards, multiple GPUs, and advanced cooling systems including up to 420mm radiators, ensuring top-tier airflow and thermal efficiency for gaming and workstation setups.

---

Key Features

• Premium Construction: 1.0mm steel chassis with 4.0mm tempered glass for durability and modern design.

• Wide Compatibility: Supports E-ATX, ATX, Micro-ATX, and Mini-ITX motherboards.

• Spacious Interior: Fits large GPUs up to 412mm and power supplies up to 220mm.

• Superior Cooling Support: Accommodates 360mm, 280mm, and 420mm radiators for advanced liquid cooling.

• Multiple Drive Options: Holds up to 3×3.5" and 6×2.5" drives for flexible storage configurations.

• Advanced I/O Panel: Includes USB 3.0 ×2, USB 2.0 ×2, and HD Audio (CTIA standard) for full connectivity.

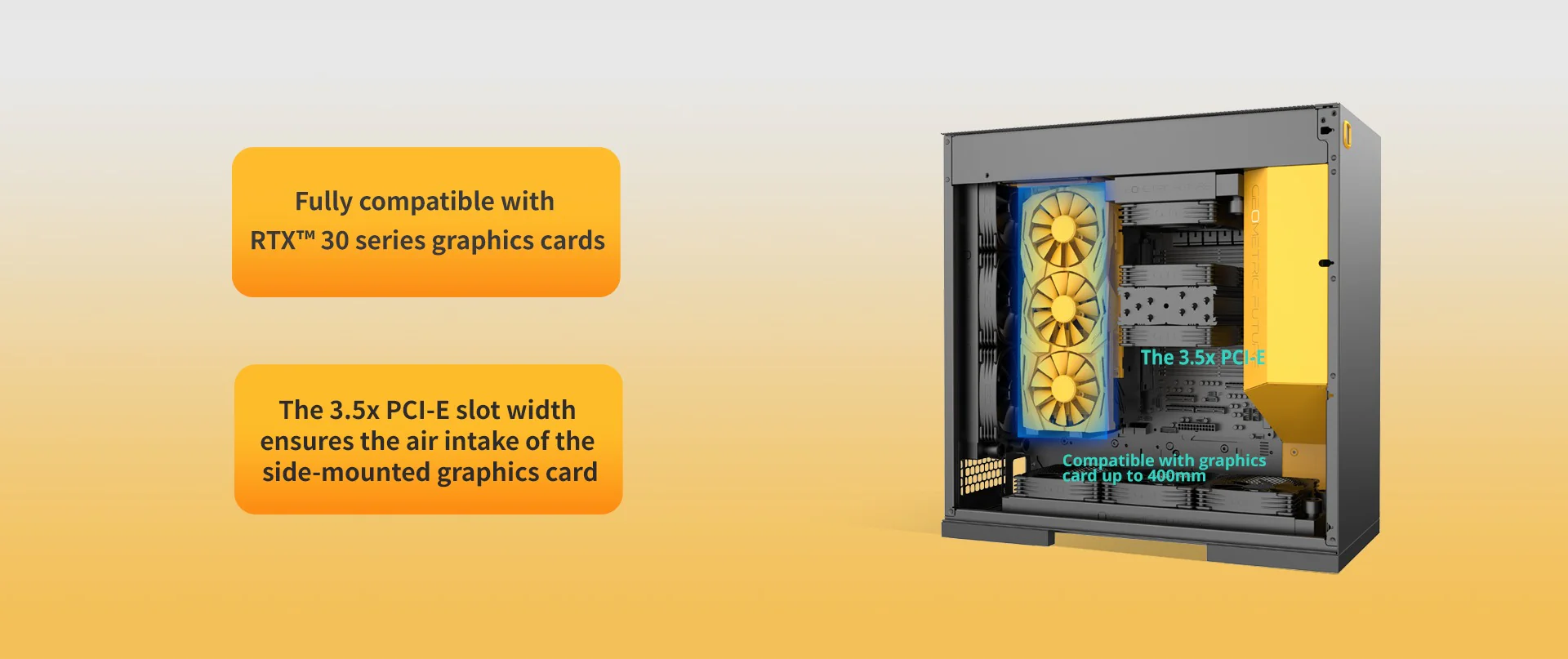

• Flexible GPU Mounting: Vertical and horizontal GPU installation options with support for triple-slot GPUs.

• Efficient Airflow Design: Space for up to 9 fans ensures balanced airflow and optimal cooling.

---

Technical Details

• Case Type: Mid Tower

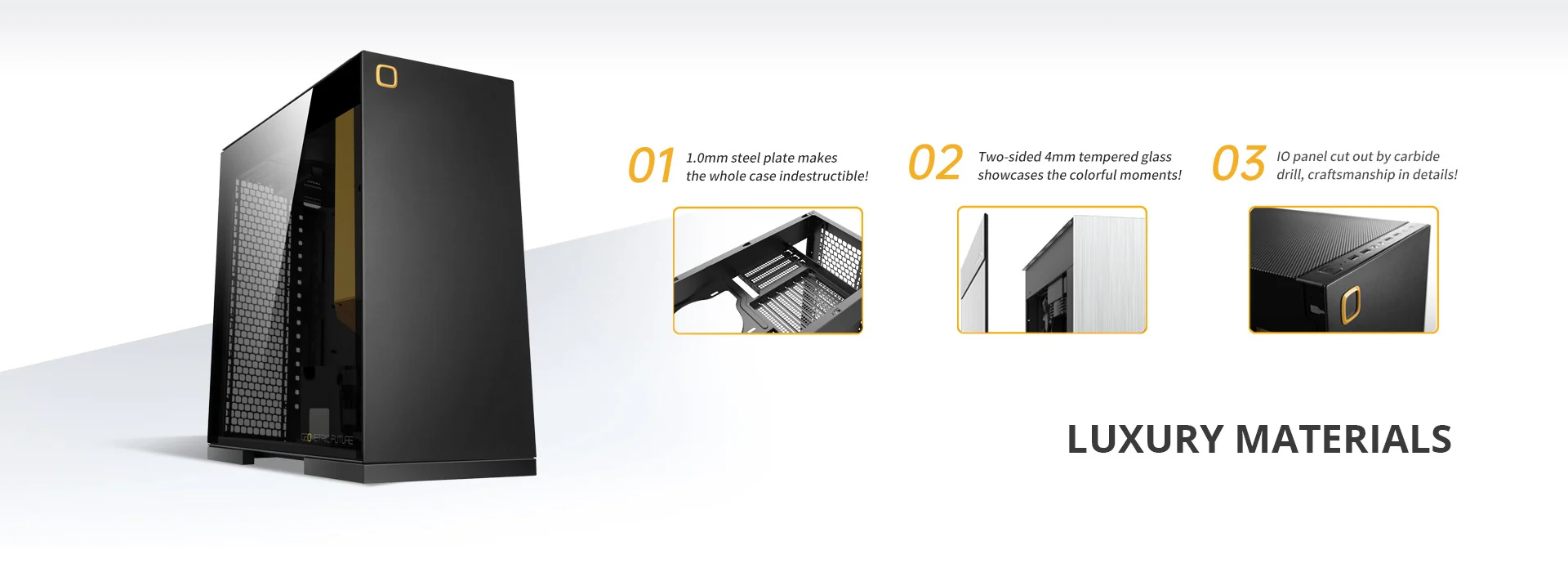

• Material: Steel (1.0mm), Tempered Glass (4.0mm)
• Color: White
• Dimensions (H × W × D): 500 × 230 × 500 mm (19.7" × 9.1" × 19.7")
• Motherboard Compatibility: E-ATX (12"×13"), ATX, Micro-ATX, Mini-ITX
• Drive Bays:
  • Max: 3×3.5" + 3×2.5" / 6×2.5" tray
  • Power Supply: ATX 12V (Length < 220mm)
• Expansion Slots:
  • Horizontal: PCI-E ×7 (Length < 400mm, Width < 175mm)
  • Vertical: PCI-E ×3 (Length < 412mm, Width < 150mm, Height < 65mm, CPU Heatsink < 105mm)

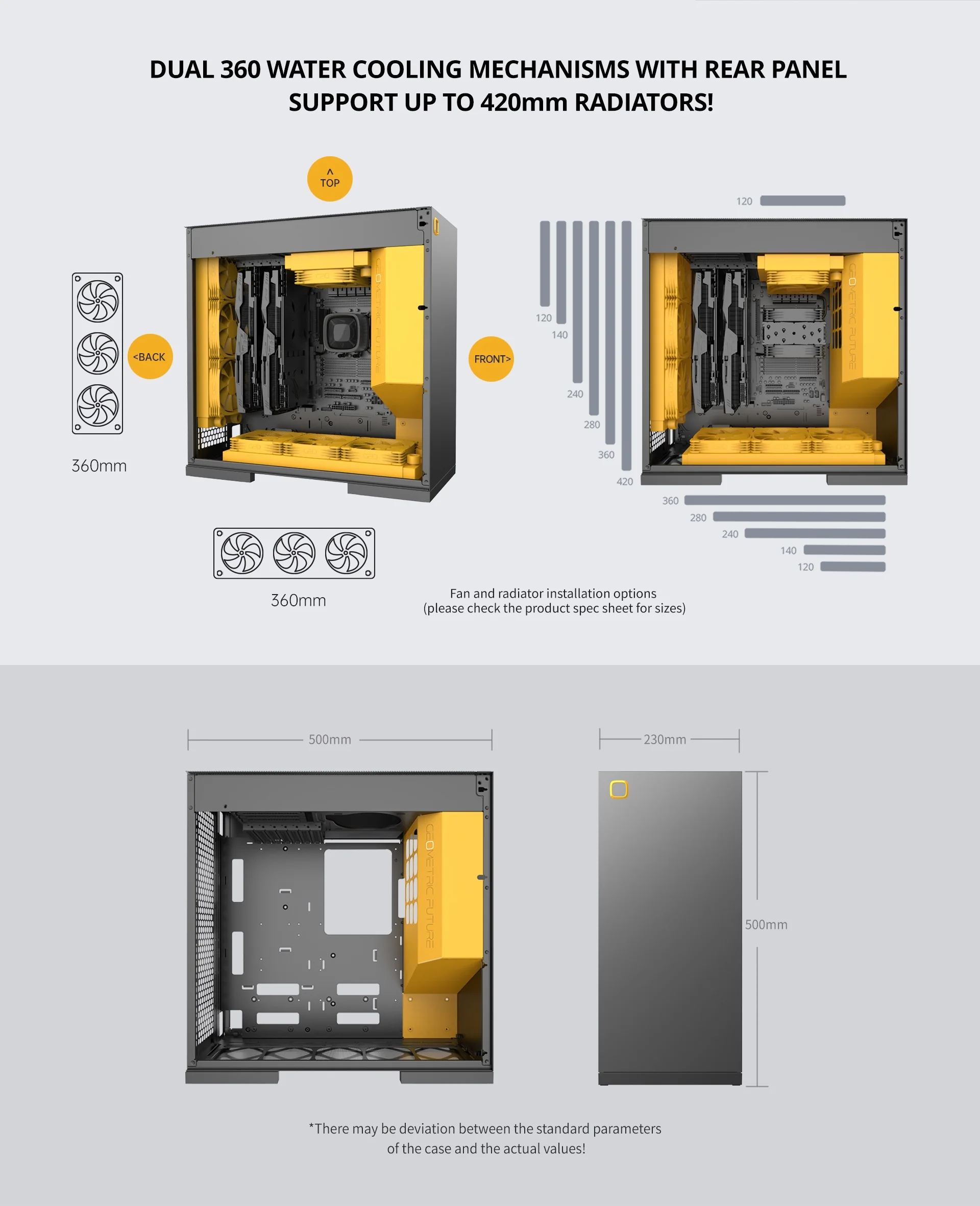

• Cooling Support:
• Top: 120mm Fan ×1 / 120mm Radiator (optional)
• Rear: 120mm or 140mm Fan ×3 / 420mm Radiator (Length < 470mm, Thickness < 55mm)
• Front: 360mm or 280mm Radiator (Length < 400mm, Thickness < 65mm)
• Bottom: 120mm or 140mm Fan ×3 / 360mm or 280mm Radiator (Length < 485mm)

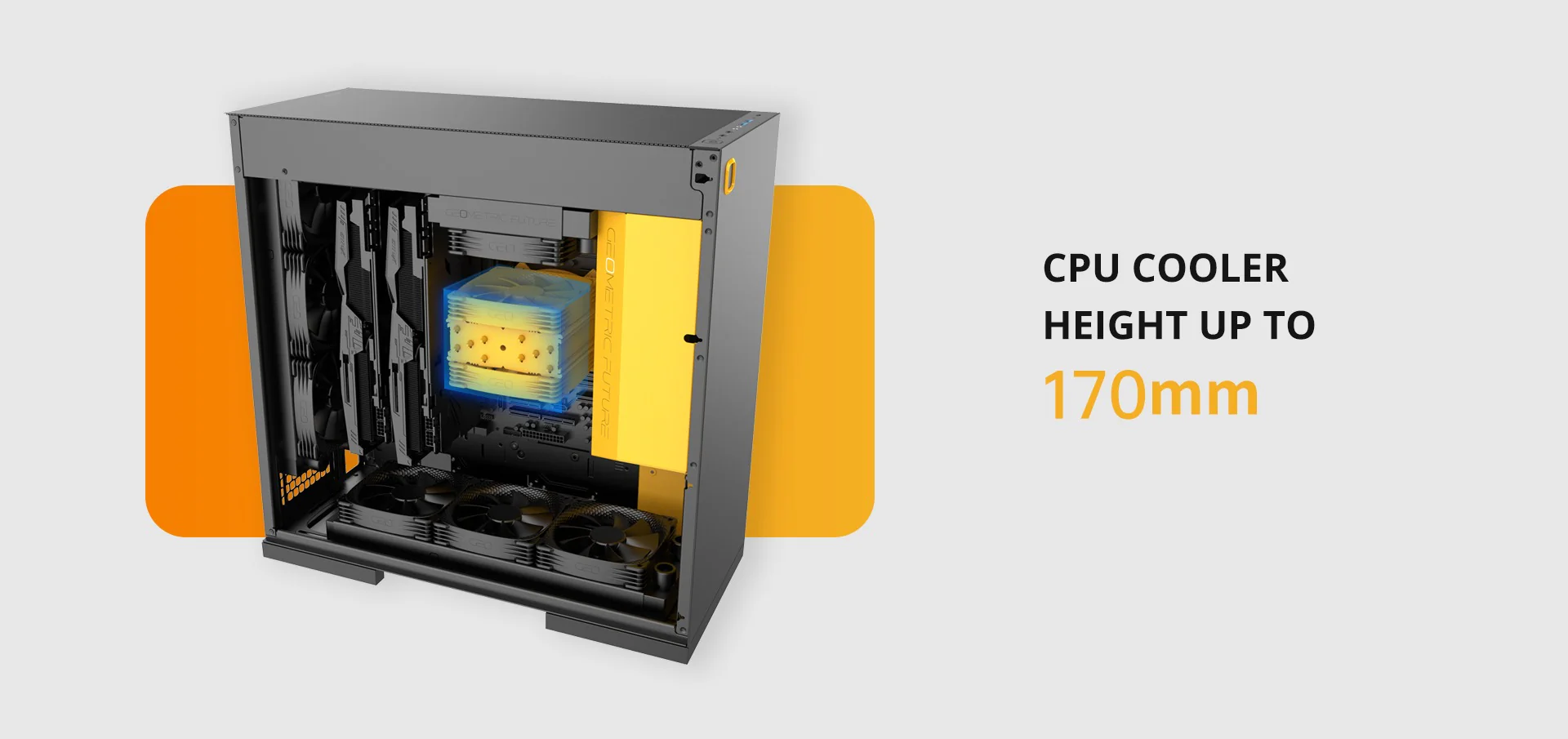

• CPU Heatsink Clearance: Up to 170mm

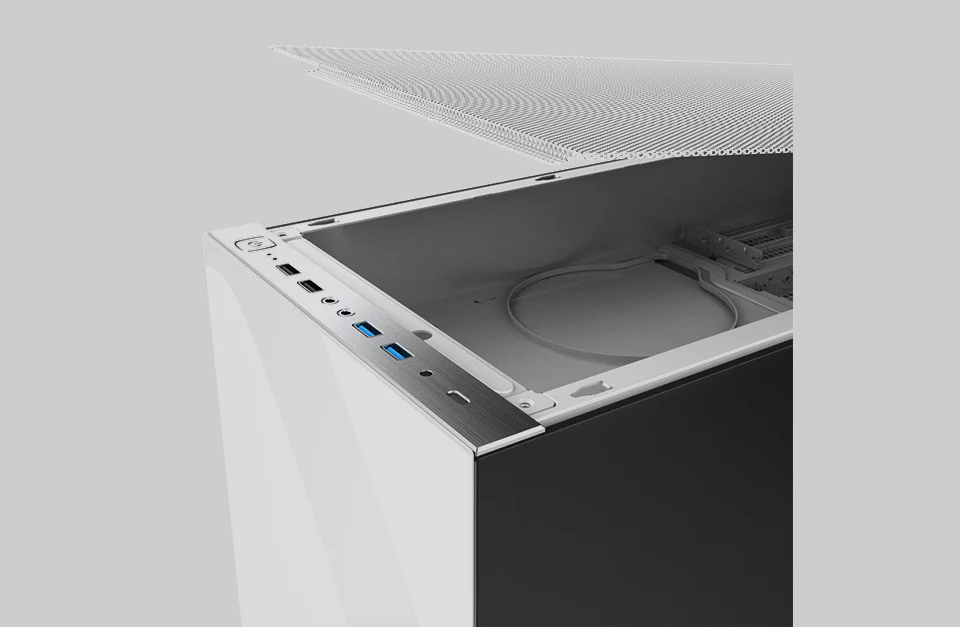

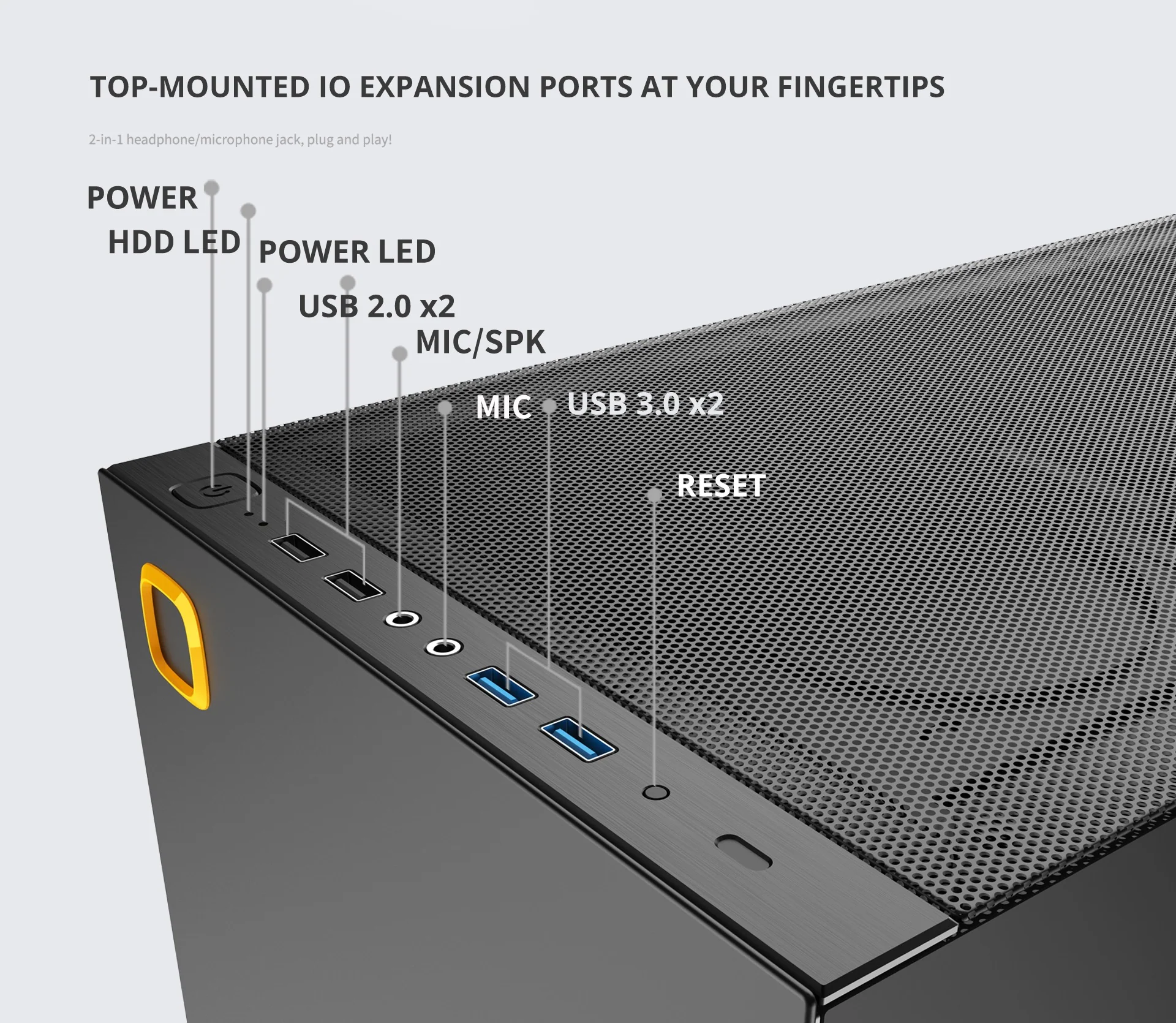

• I/O Ports:
  • 2× USB 3.0
  • 2× USB 2.0
  • 1× HD Audio (CTIA-SPK/MIC)

---

User Benefits

• Built for Power Builds: Supports large GPUs, liquid cooling, and multiple drives for a high-end system.
• Thermal Efficiency: Multiple fan and radiator placements allow optimized airflow for demanding tasks.
• Modern Appearance: Full tempered glass panel highlights RGB components and internal layout.

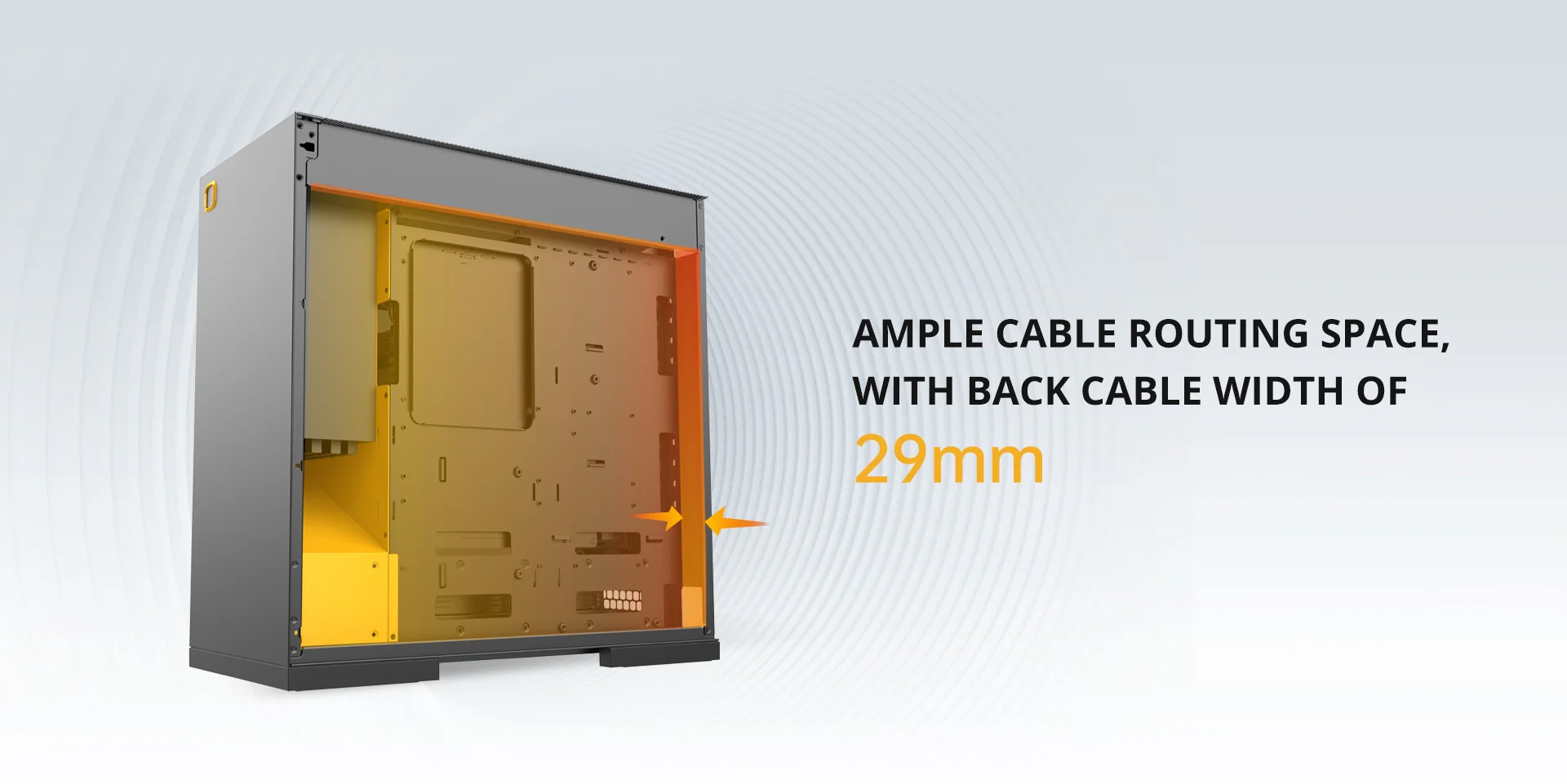

• Easy Customization: Modular structure allows flexible GPU orientation and cable management.
• Durability and Style: Premium steel frame and glass panel deliver a solid, elegant look for any setup.

---

Included Items

• Geometric Future Model 8 Lohan Case – White
• Mounting Screws & Accessories
• Pre-installed Dust Filters
• Quick Installation Manual
