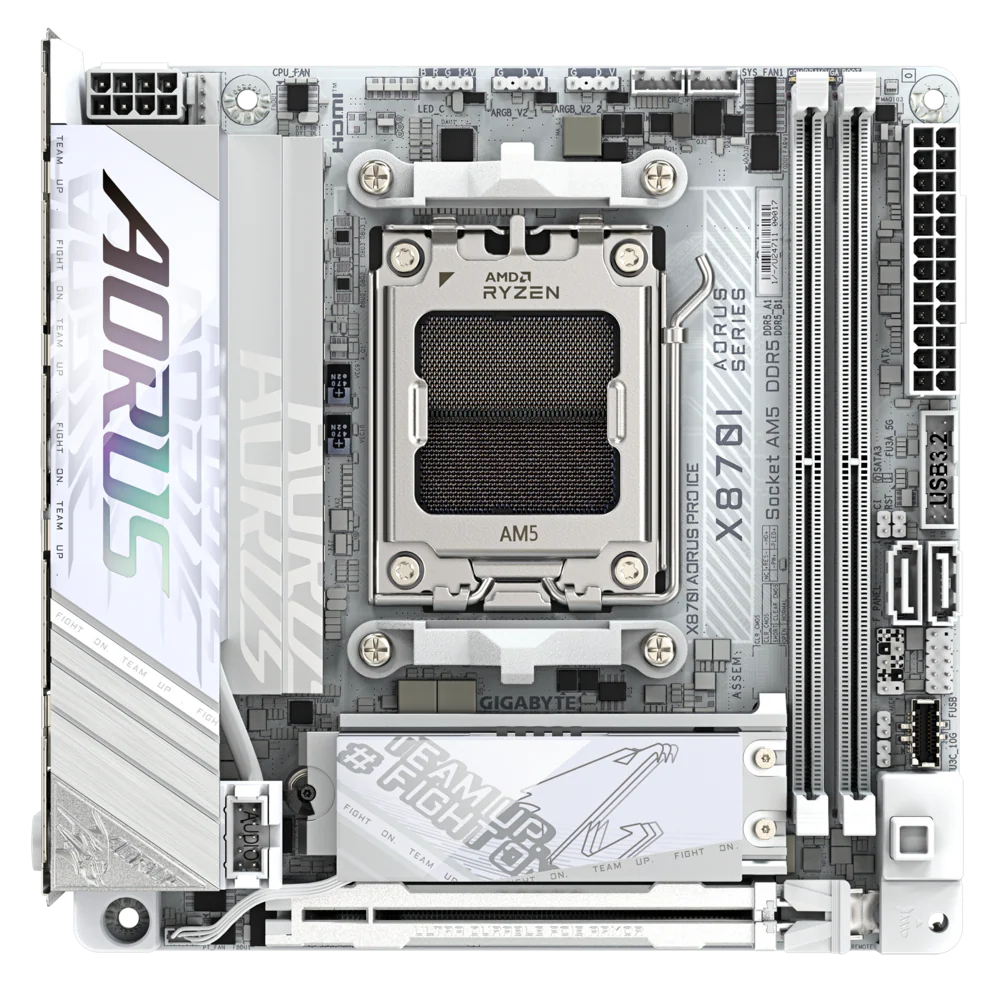

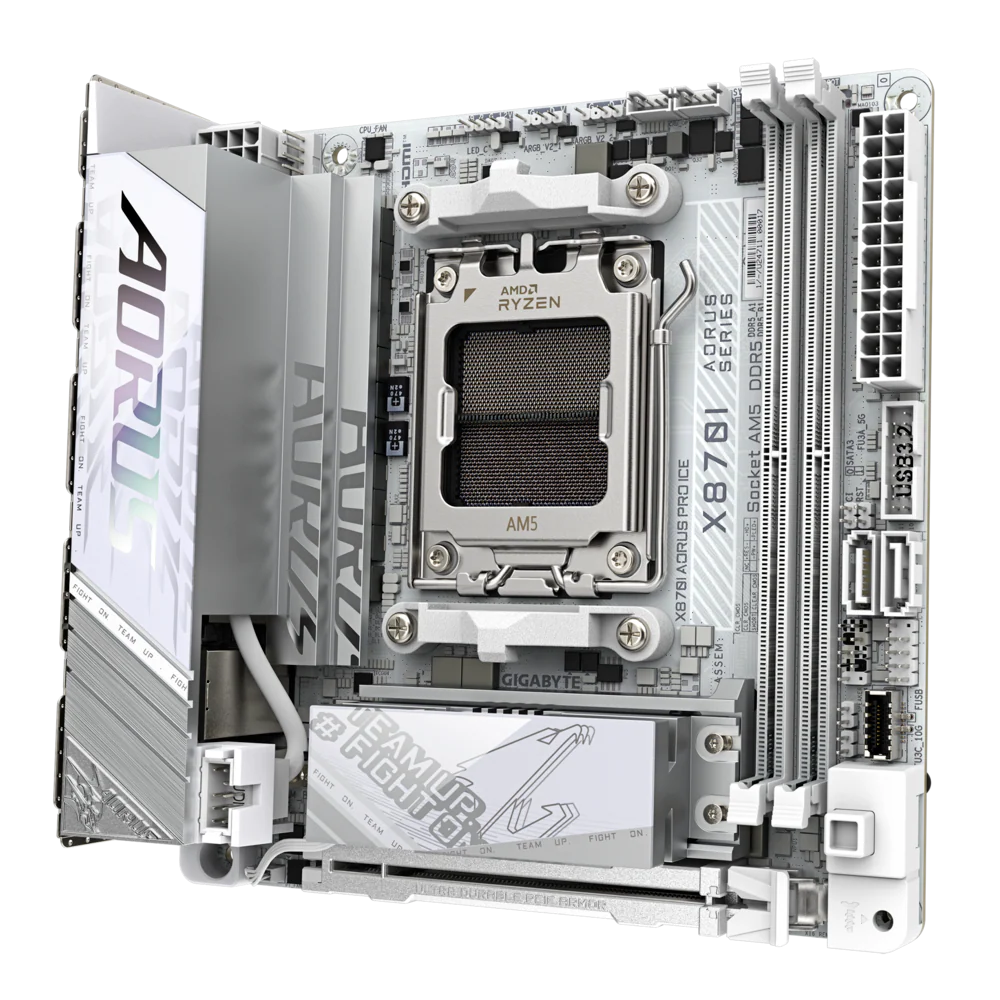

GIGABYTE AORUS X870I PRO ICE DDR5 AM5 Mini-ITX Motherboard - White

A compact powerhouse for high-performance AM5 builds, the AORUS X870I PRO ICE delivers flagship features in Mini‑ITX form. With full Ryzen 7000/8000/9000 support, DDR5, PCIe 5.0, Wi‑Fi 7, and premium cooling, it's engineered for enthusiasts seeking top-tier performance in a small package.

---

Key Features

• AM5 Socket & X870 Chipset: Compatible with Ryzen 7000/8000/9000 series processors.
• Digital 8+2+1 VRM (110A Smart Power Stages): 10-layer PCB ensures robust power delivery to high-core CPUs.
• Dual DDR5 Slots: Supports up to 128 GB DDR5, OC to 8800 MT/s, EXPO ready.
• Storage Expansion: One PCIe 5.0 NVMe and one PCIe 4.0 NVMe slot with screwless EZ‑Latch design, plus 2× SATA 6 Gb/s.
• PCIe 5.0 x16 Slot (UD Slot X): Reinforced for large graphics cards.

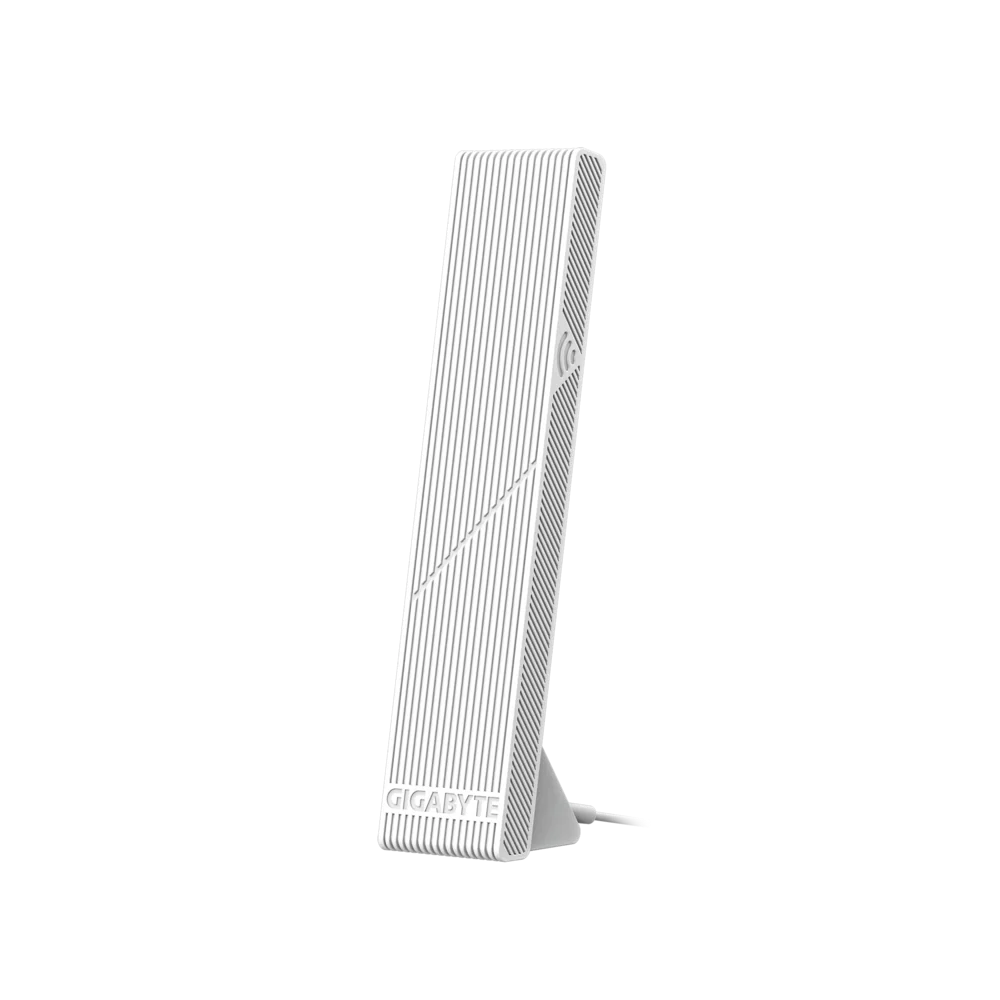

• High‑speed Networking: Wi‑Fi 7 (RTL8922AE) and Realtek 2.5 Gb Ethernet.
• USB4 & USB C Front: USB4 Type‑C on rear I/O (DP‑Alt), plus front panel USB 3.2 Gen 2 Type‑C header.
• Advanced Cooling: VRM Armor, M.2 Thermal Guard, and Smart Fan 6 headers support custom fan curves.
• DIY‑Friendly EZ‑Latch Features: Tool‑less installation for PCIe, M.2, Wi‑Fi antenna, and EZ‑Debug LED zone.
• Premium Audio: Realtek ALC4080 codec with audiophile-grade capacitors.
• High‑res BIOS & Monitoring: 256 Mb UEFI ROM, HWinfo power-phase monitoring.
• AORUS AI Snatch: One-click DDR5 boost and AI-driven tuning engine.

Specifications

Component	Specification
CPU Support	AMD Ryzen 7000/8000/9000 (AM5)
Chipset	AMD X870
Memory	2× DDR5 DIMM, up to 128 GB, OC to 8800 MT/s
VRM Design	Digital 8+2+1 phases, 110 A Smart Stages
M.2 Slots	1× PCIe 5.0; 1× PCIe 4.0 (2280, EZ‑Latch)
SATA Ports	2× SATA 6 Gb/s
PCIe Slot	1× PCIe 5.0 x16 UD Slot X
Networking	Wi‑Fi 7, Realtek 2.5 GbE
Rear I/O	USB4–C, USB 3.2 Gen 2×2, USB 3.2 Gen 1×2, USB 2.0×2, HDMI 2.1, 2× Wi‑Fi antenna, RJ‑45, audio jacks
Internal Headers	USB-C Gen2, USB-A Gen1×1, USB2.0, CPU/pump/fan headers, 3× ARGB/RGB Gen2
Audio Codec	Realtek ALC4080
Form Factor	Mini‑ITX (170×170 mm)
BIOS ROM	256 Mb UEFI
