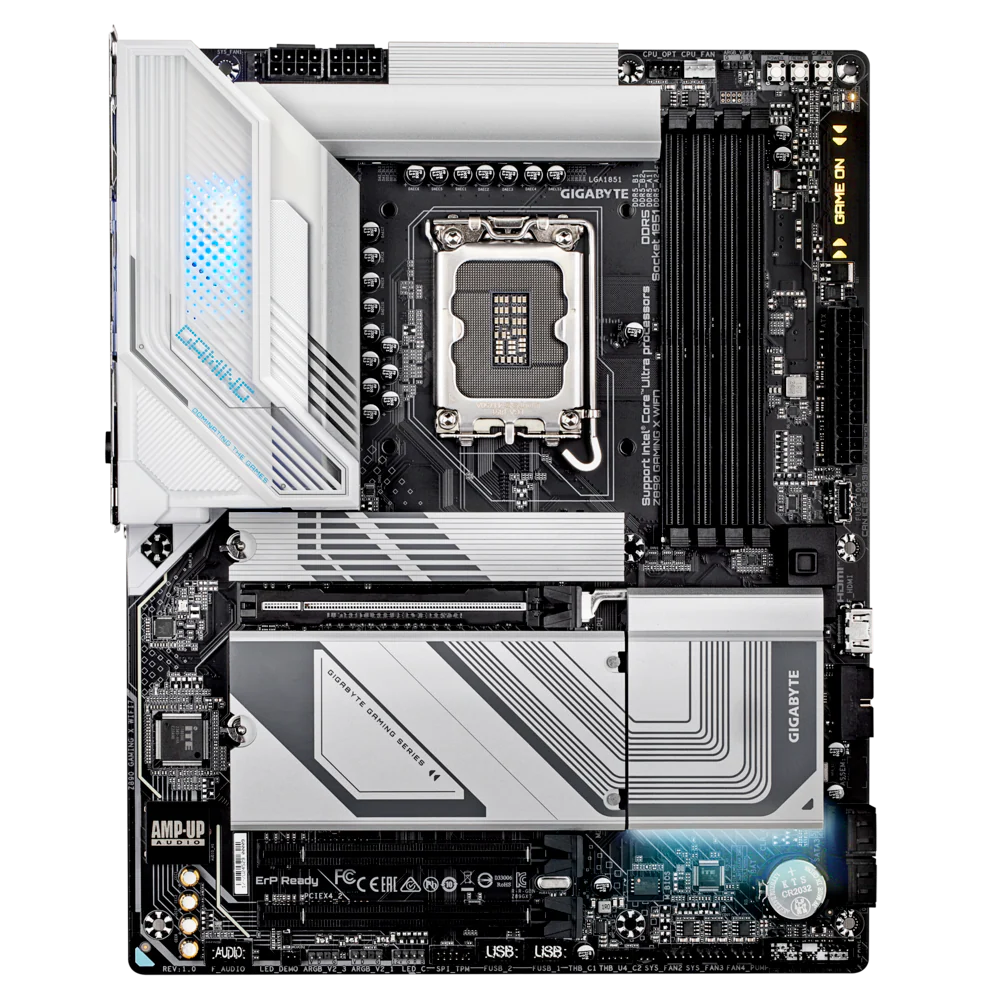

GIGABYTE Z890 GAMING X WIFI7 1.0 DDR5 Motherboard - Black

High-performance ATX motherboard built for Intel Core Ultra Series 2 processors with DDR5, PCIe 5.0, Wi‑Fi 7, USB4, and enhanced cooling. Ideal for gamers and power users.

---

Key Features

• Supports Intel Core Ultra Series 2 processors on LGA 1851 socket.
• 4× DDR5 DIMM slots with XMP profile and enhanced tuning.
• 14+1+2-phase digital VRM for stable power delivery.
• 1× PCIe 5.0 x16 slot and 4× M.2 slots (1× Gen5, 3× Gen4).
• Integrated Wi‑Fi 7 and 2.5GbE LAN.

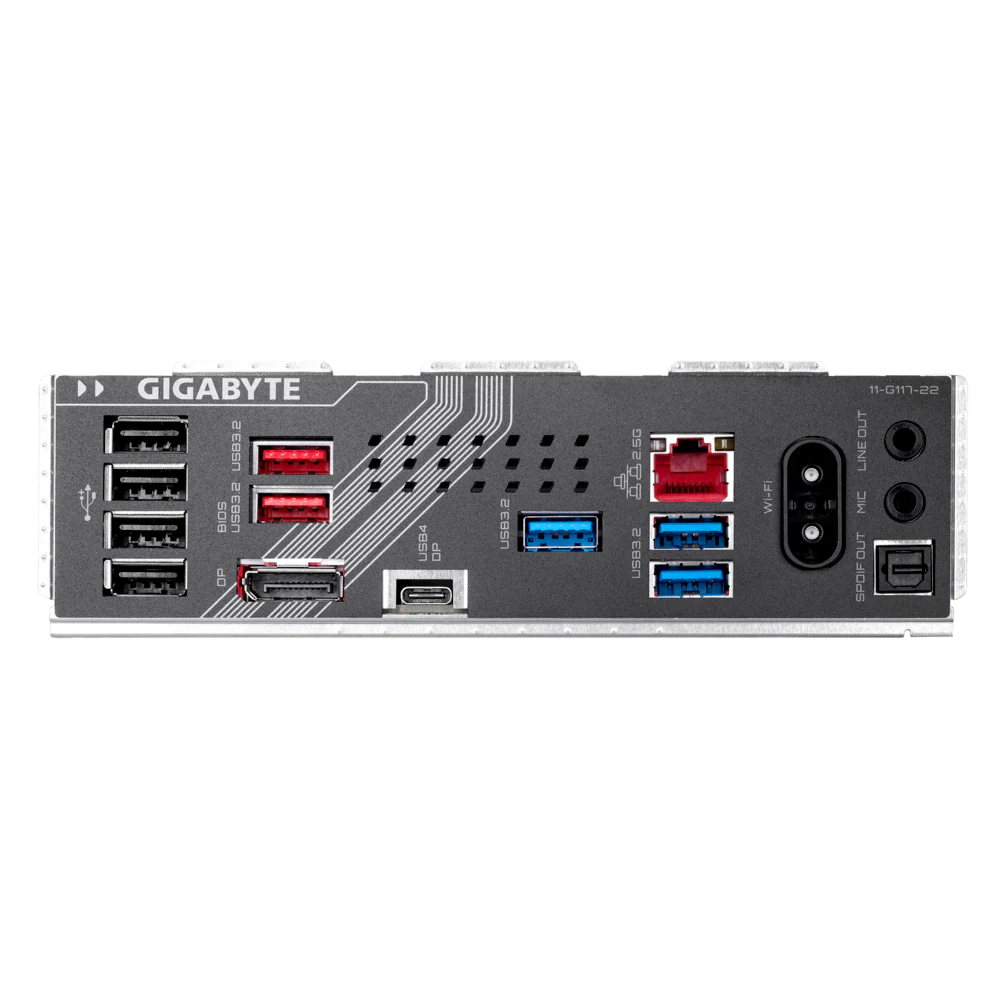

• USB4 Type‑C, HDMI, DisplayPort, and USB 3.2/2.0 ports.
• VRM armor and full M.2 heatsinks for thermal control.
• EZ-Latch Plus, debug LEDs, onboard power/reset, Q-Flash Plus.
• 8-channel HD audio with premium capacitors.
• 1× RGB header and 3× ARGB headers.

---

Technical Specifications

Category	Specification
CPU Socket	LGA 1851
Chipset	Intel Z890
Memory Support	4× DDR5 DIMM, XMP
Power Phases	14+1+2 Digital VRM
PCIe Slots	1× PCIe 5.0 x16
M.2 Slots	4× (1× Gen5, 3× Gen4)
SATA Ports	4× SATA 6Gb/s
LAN	2.5GbE
Wireless	Wi‑Fi 7
USB Ports	USB4-C, USB 3.2, USB 2.0
Video Outputs	HDMI, DisplayPort
Audio	8-channel HD
RGB Headers	1× RGB, 3× ARGB
Form Factor	ATX
