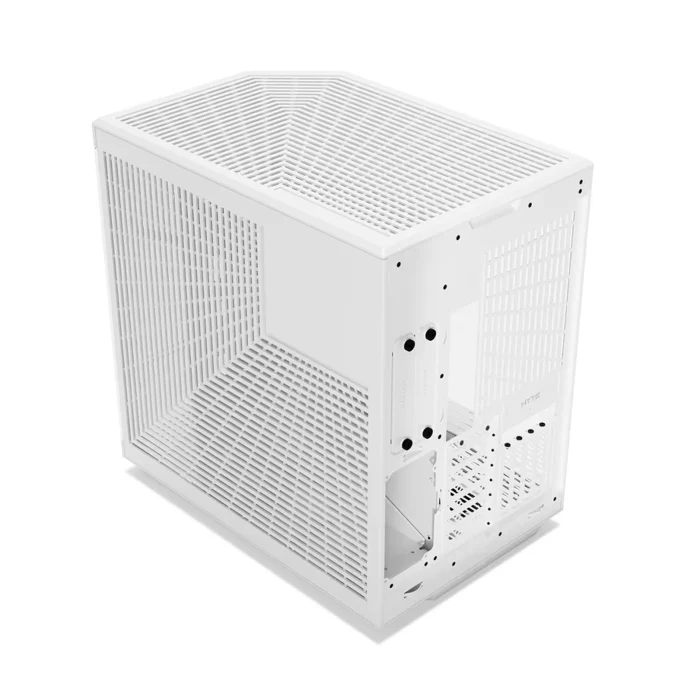

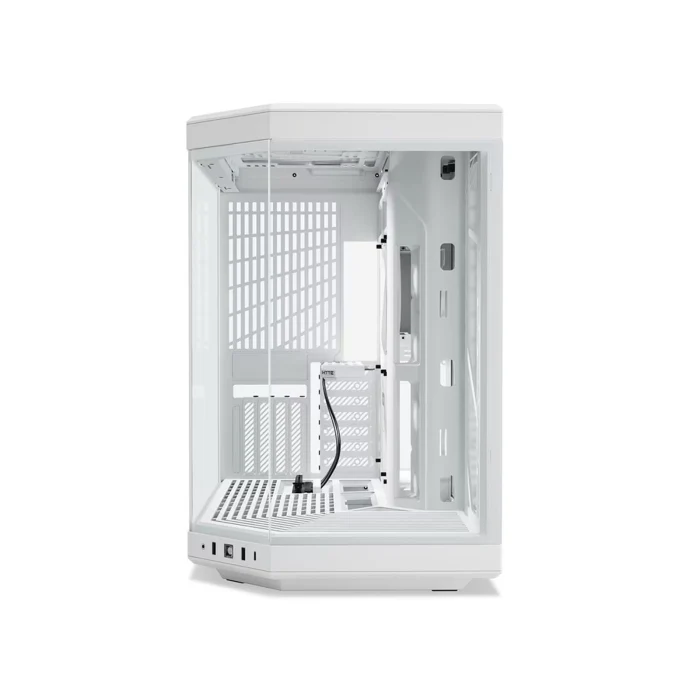

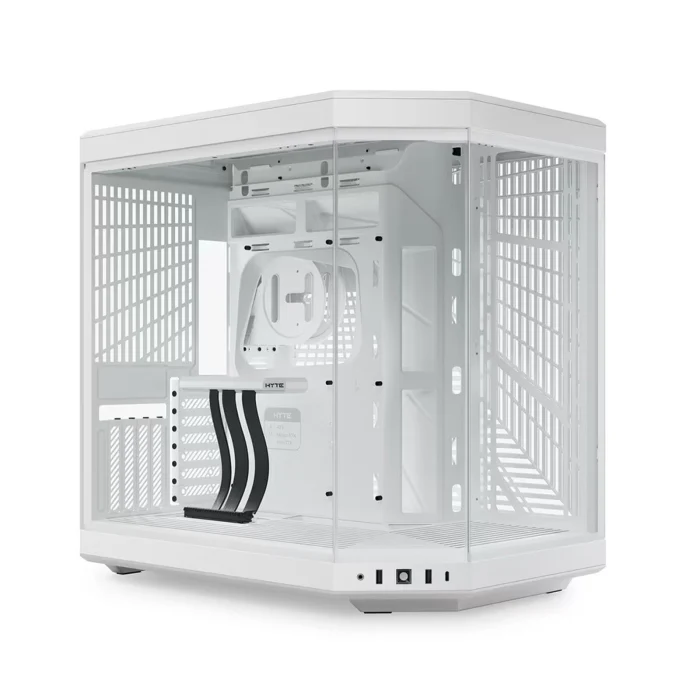

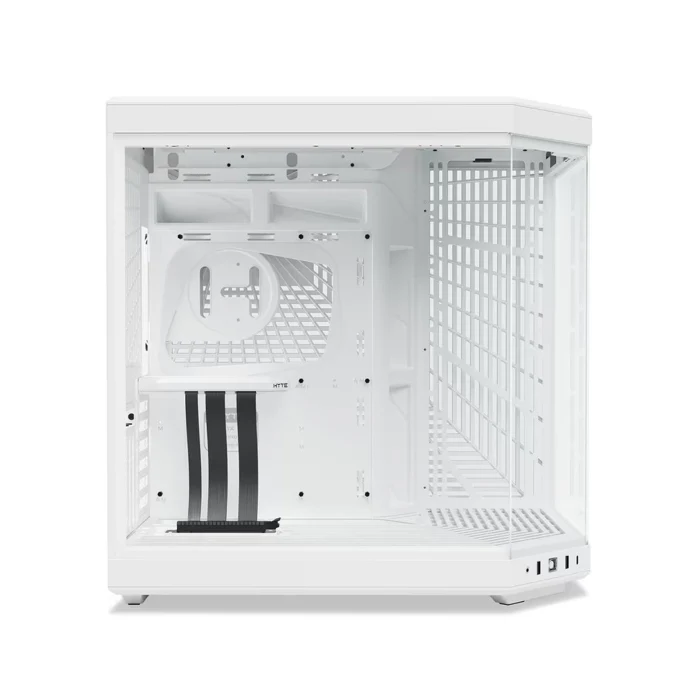

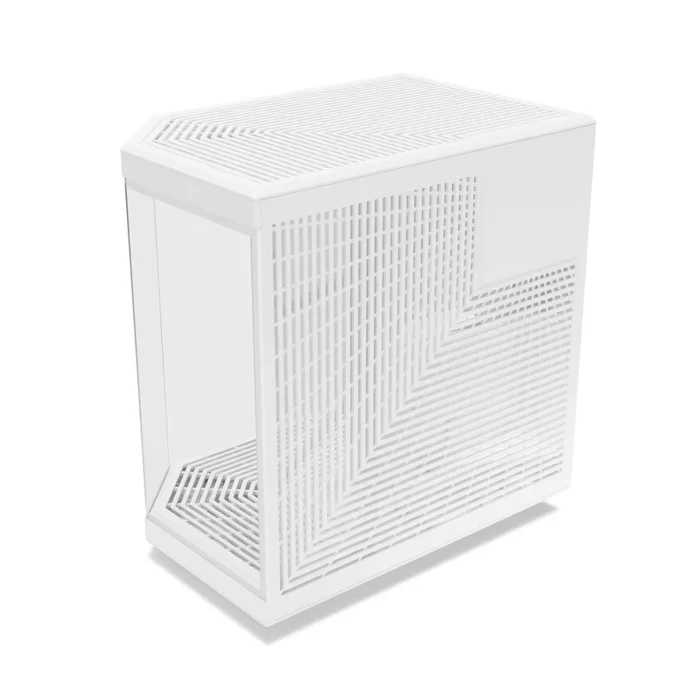

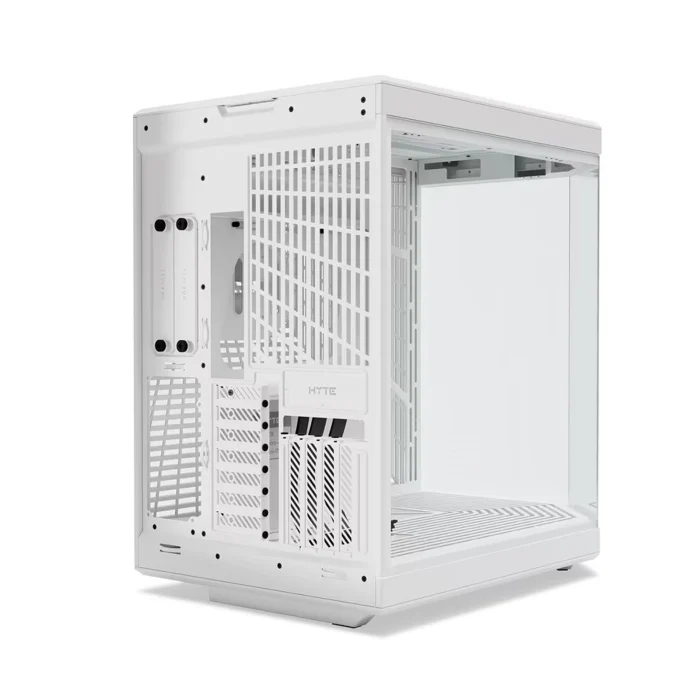

The HYTE Y70 Standard Edition Case, Without Fans, Snow White is a modern dual-chamber mid-tower case designed for gaming PCs and high-performance desktop builds. The chassis features a panoramic three-panel tempered glass design that clearly showcases internal hardware, allowing graphics cards and other components to be displayed in a clean and premium presentation.
The case provides a spacious interior that supports large graphics cards with vertical GPU mounting up to four expansion slots, while leaving extra clearance between the graphics card and the side glass panel to improve airflow. The chassis also includes a PCIe 4.0 riser cable, allowing vertical GPU installation while maintaining a clean and visually balanced build.
The internal layout is optimized for high cooling capacity. The chassis supports multiple cooling configurations with fan mounting locations at the top, side, bottom, and rear sections. The case can support up to ten cooling fans, allowing strong airflow to maintain stable component temperatures.
The HYTE Y70 Standard Edition Case, Without Fans, Snow White uses a dual-chamber internal layout that separates the component display area from the cable management section. This design keeps the main chamber visually clean while providing additional space behind the motherboard tray for cable routing. Built-in cable channels, tie-down points, and reusable cable straps simplify cable management during system assembly.
The chassis also includes removable dust filters on the top, side, and bottom panels to help maintain clean airflow and protect internal components from dust accumulation.
Key Features
• Dual-chamber mid-tower case design
• Three-panel panoramic tempered glass display
• Supports vertical graphics cards up to four slots
• PCIe 4.0 GPU riser cable included
• Spacious interior for large graphics cards
• Supports installation of up to ten cooling fans
• Compatible with liquid cooling radiators up to 360 mm
• Advanced cable management system
• Removable dust filters on top, side, and bottom panels
• Snow White color design for modern PC builds
Technical Specifications
General Specifications
| Specification | Details |
|---|---|
| Case Type | Dual-Chamber Mid-Tower ATX Case |
| External Dimensions | 470 × 320 × 470 mm |
| Internal Volume | 70.7 Liters |
| Motherboard Support | ITX, mATX, ATX, EATX |
The large internal volume provides flexible space for powerful components and advanced cooling systems.
Expansion Slots
| Specification | Details |
|---|---|
| Expansion Slots | 7 Half-Height + 4 Full-Height |
| GPU Riser Cable | Included PCIe 4.0 Riser Cable |
This configuration allows vertical GPU installation while maintaining airflow clearance.
Front I/O Ports
| Specification | Details |
|---|---|
| USB Type-C | 1 × USB-C 3.2 Gen 2 |
| USB Type-A | 2 × USB-A 3.2 Gen 1 |
| Audio | 1 × 3.5 mm Headset Combo Jack |
These front ports allow convenient connection for external devices and peripherals.
Fan Support
| Specification | Details |
|---|---|
| Top | 3 × 120 mm or 2 × 140 mm |
| Side | 3 × 120 mm or 2 × 140 mm |
| Bottom | 3 × 120 mm or 2 × 140 mm |
| Rear | 1 × 120 mm or 140 mm |
The case supports up to 10 total cooling fans for strong airflow.
Radiator Support
| Specification | Details |
|---|---|
| Top Radiator | Up to 360 mm |
| Side Radiator | Up to 360 mm |
| Rear Radiator | Up to 140 mm |
This allows installation of powerful liquid cooling systems.
Component Clearance
| Specification | Details |
|---|---|
| Maximum GPU Length | 422 mm |
| Maximum GPU Thickness | 105 mm |
| Maximum CPU Cooler Height | 180 mm |
| Maximum Power Supply Length | 235 mm |
These clearances support most modern high-performance hardware components.
Storage Support
| Specification | Details |
|---|---|
| 3.5" Drives | Up to 2 HDD |
| 2.5" Drives | Up to 4 SSD |
This storage configuration allows multiple drive installations.
User Experience
The HYTE Y70 Standard Edition Case, Without Fans, Snow White offers a spacious and builder-friendly chassis designed for advanced PC builds.
The panoramic glass panels highlight internal components, while the dual-chamber layout keeps cables hidden and organized. The large cooling capacity and radiator support allow builders to install powerful air or liquid cooling systems.
Tool-less removable panels make installation and maintenance easier, making the case suitable for both experienced PC builders and enthusiasts.
Included Items
• HYTE Y70 Standard Edition Case, Without Fans, Snow White
• PCIe 4.0 GPU Riser Cable
• Removable Dust Filters
• Mounting Screws and Installation Accessories
• Cable Management Straps
• User Manual and Product Documentation
