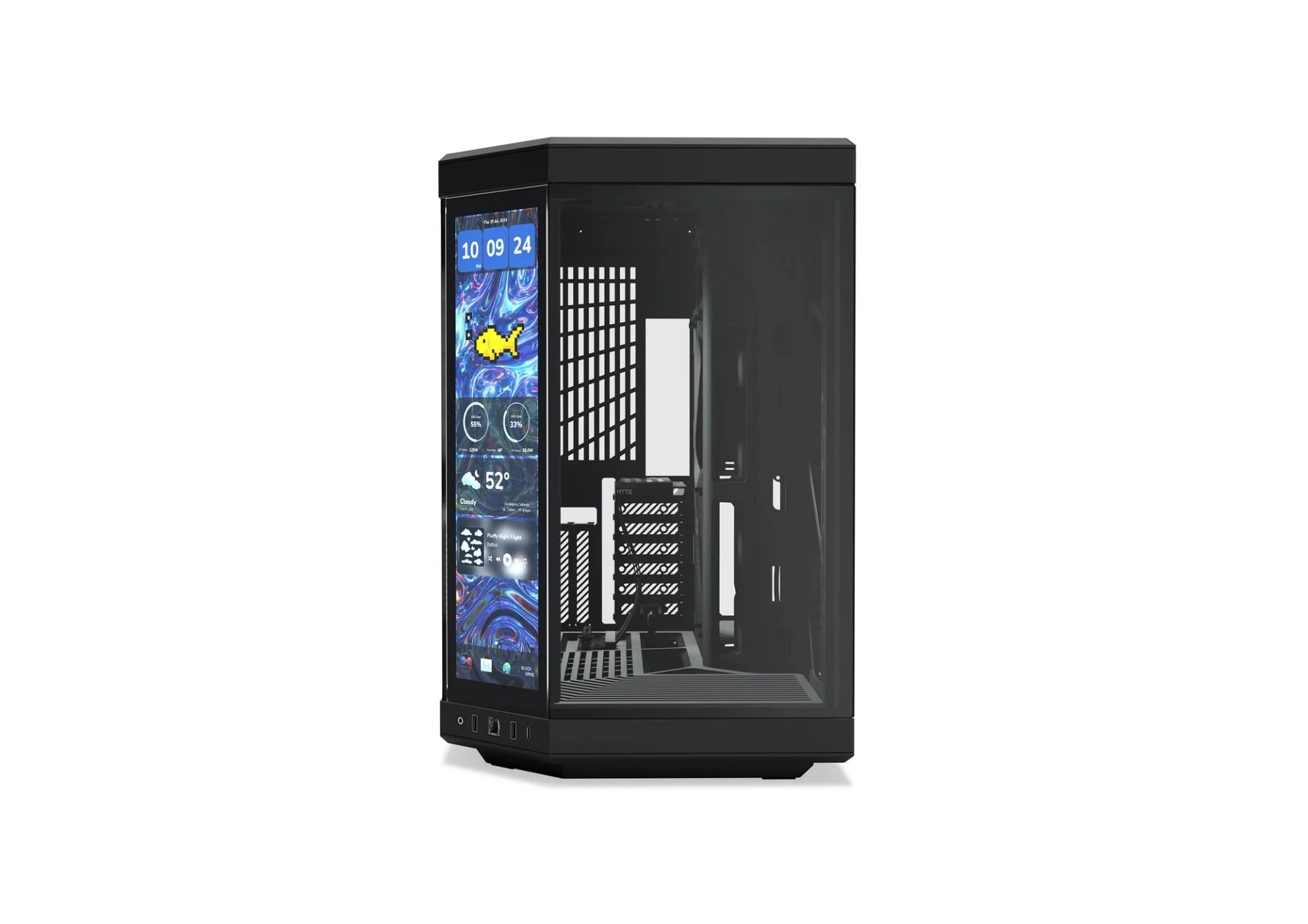

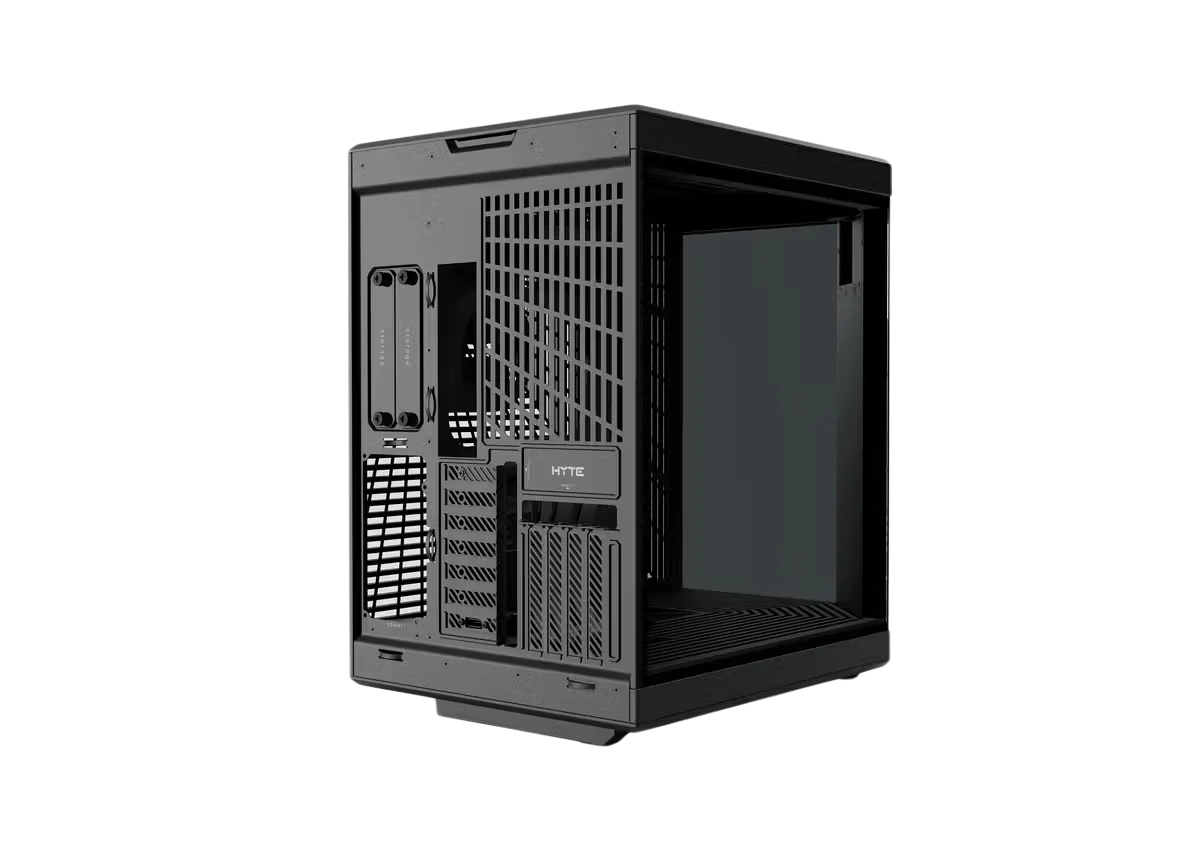

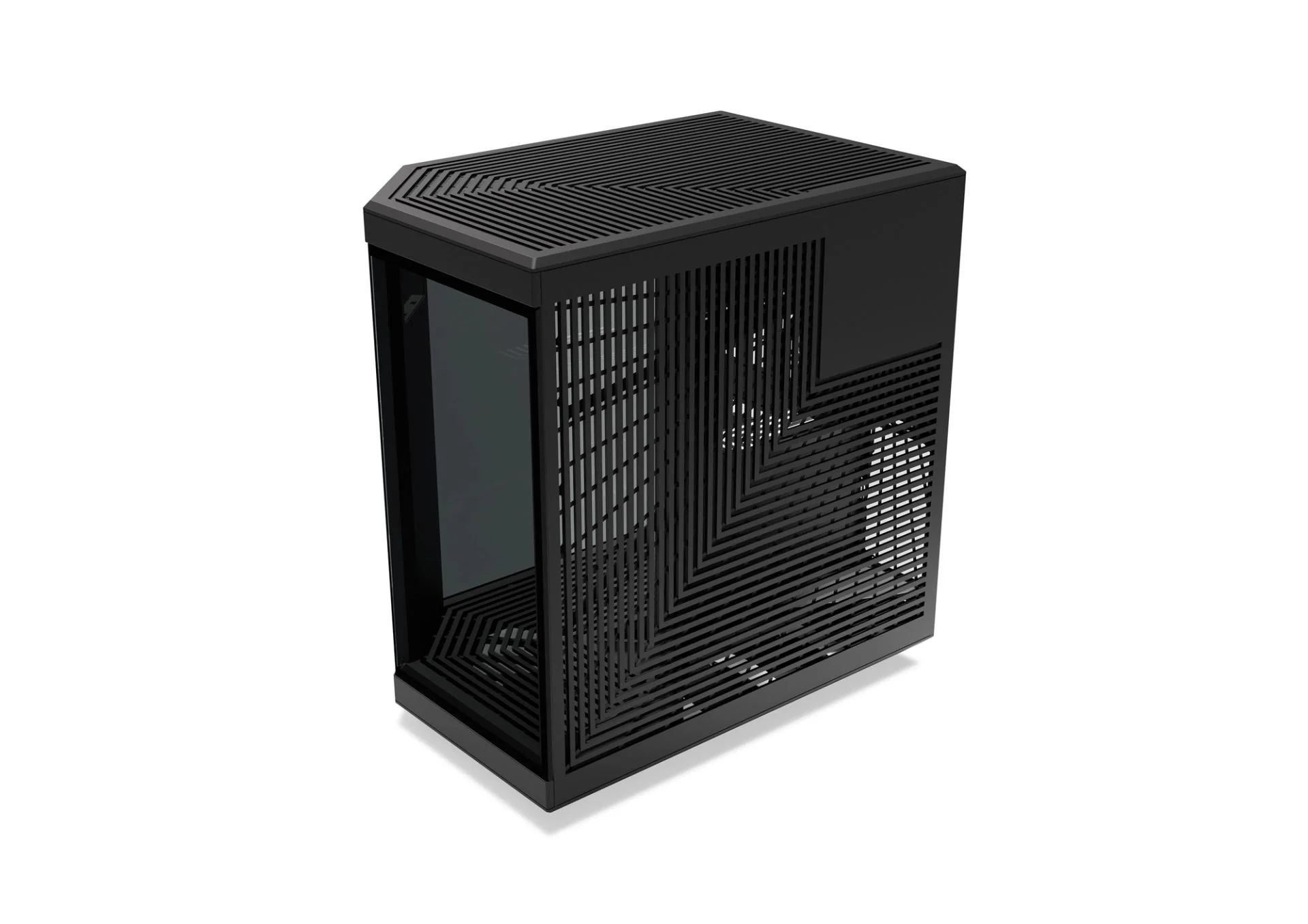

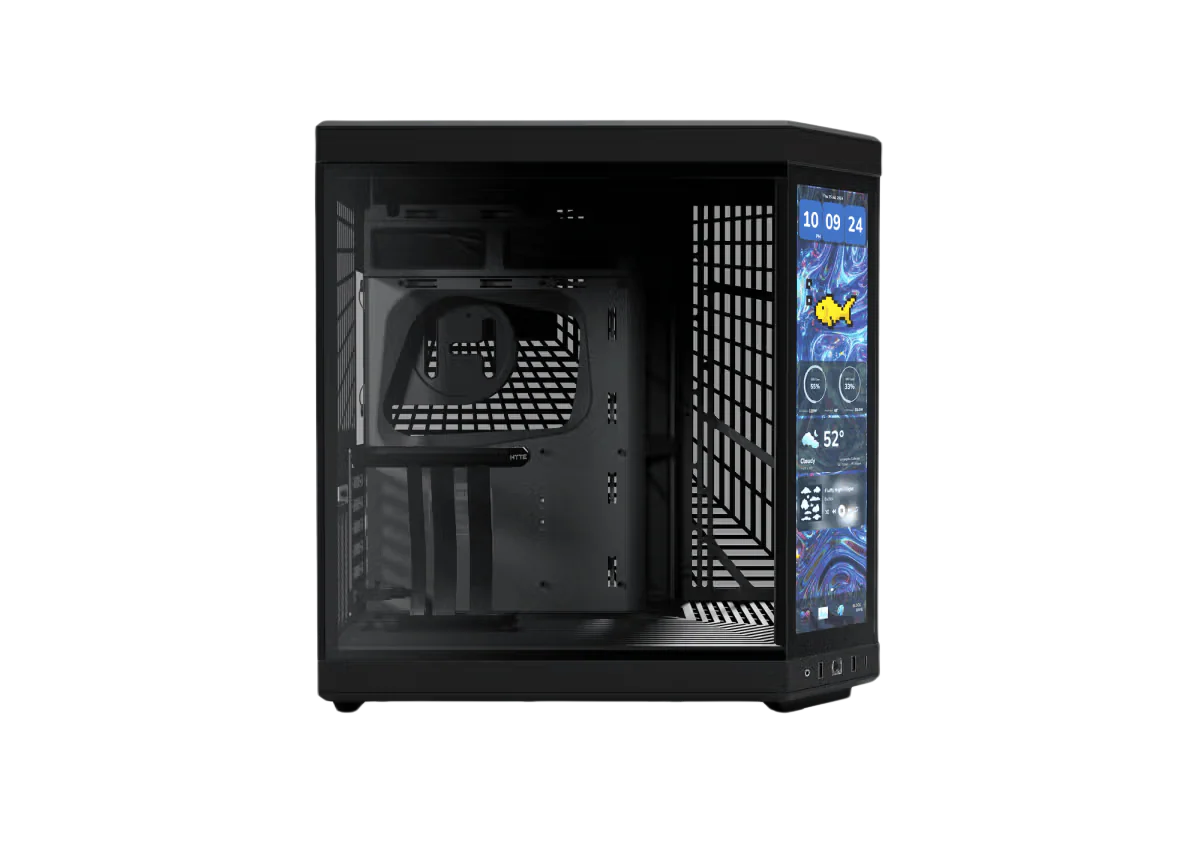

HYTE Y70 Touch Infinite, Mid Tower, Gaming Case, Black
The HYTE Y70 Touch Infinite Mid Tower Gaming Case, Black is a premium PC chassis designed for high-end gaming builds, advanced cooling setups, and modern visual customization. It features an integrated 14.9-inch IPS touchscreen built directly into the case structure, enabling system monitoring, personalization, and interactive display functions through dedicated control software.
This case supports large vertical graphics cards up to four slots wide and includes a PCIe 4.0 riser cable for vertical GPU mounting. Its dual-chamber layout improves airflow and cable management while maintaining a clean front aesthetic with panoramic tempered glass panels.
With extensive cooling support, multiple radiator mounting positions, and compatibility with large hardware components, this chassis is designed for performance-focused gaming PCs and visually striking showcase builds.
Key Features
-
Integrated 14.9-inch IPS touchscreen display
-
2.5K resolution with multi-touch capability
-
Supports vertical 4-slot graphics cards
-
Includes PCIe 4.0 riser cable
-
Dual-chamber airflow design
-
Extensive radiator and fan support
-
Panoramic tempered glass panels
-
Advanced cable management system
Technical Specifications
| Specification | Details |
|---|---|
| Brand | HYTE |
| Model | Y70 Touch Infinite |
| Case Type | Mid Tower Gaming Case |
| Color | Black |
| Motherboard Support | ITX, Micro ATX, ATX, Extended ATX |
| Dimensions | 470 × 320 × 470 mm |
| Volume | 70.7 Liters |
| Expansion Slots | 7 Half Height + 4 Full Height |
| GPU Support | Up to 422 mm length |
| GPU Thickness | Up to 105 mm |
| CPU Cooler Clearance | Up to 180 mm |
| PSU Clearance | Up to 235 mm |
| Storage Support | 2 HDD or 4 SSD |
| Included Riser Cable | PCIe 4.0 x16 |
| USB Ports | USB-C 20Gbps, USB-A ports, Audio Combo |
| Cooling Capacity | Up to 10 fans |
| Radiator Support | Up to 360 mm multiple positions |
| Dust Filters | Top, side, bottom |
| Warranty | 4 Years |
Touchscreen Specifications
| Specification | Details |
|---|---|
| Panel Type | IPS Touchscreen |
| Screen Size | 14.9 Inches |
| Resolution | 682 × 2560 |
| Brightness | 500 nits |
| Contrast Ratio | 1000:1 |
| Refresh Rate | 60 Hz |
| Touch Support | 10-Point Multi-Touch |
| Viewing Angle | 80° |
| Connections | USB header, SATA power, DisplayPort |
User Benefits
-
Interactive case display for monitoring and customization
-
Strong airflow and cooling flexibility
-
Clean cable management and aesthetic design
-
Support for large high-end graphics cards
-
Suitable for showcase gaming builds
Included Items
-
HYTE Y70 Touch Infinite case
-
PCIe 4.0 riser cable
-
Storage mounting accessories
-
Documentation and installation kit
