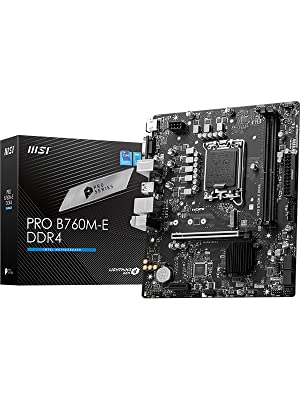

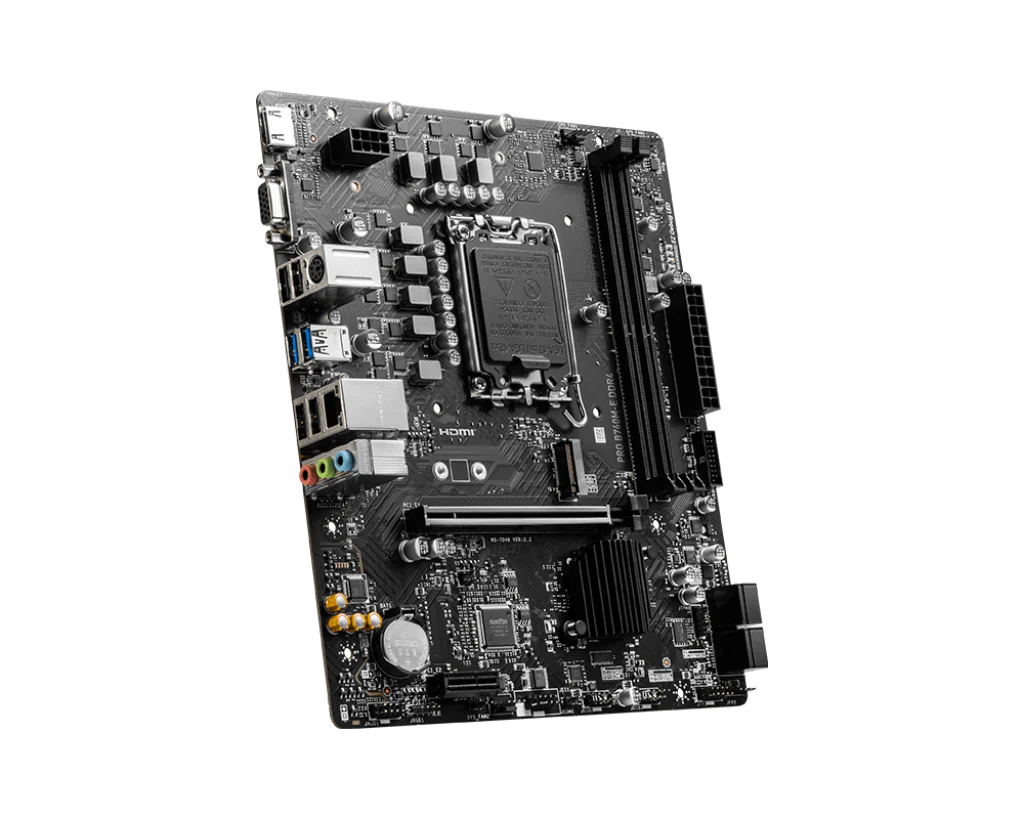

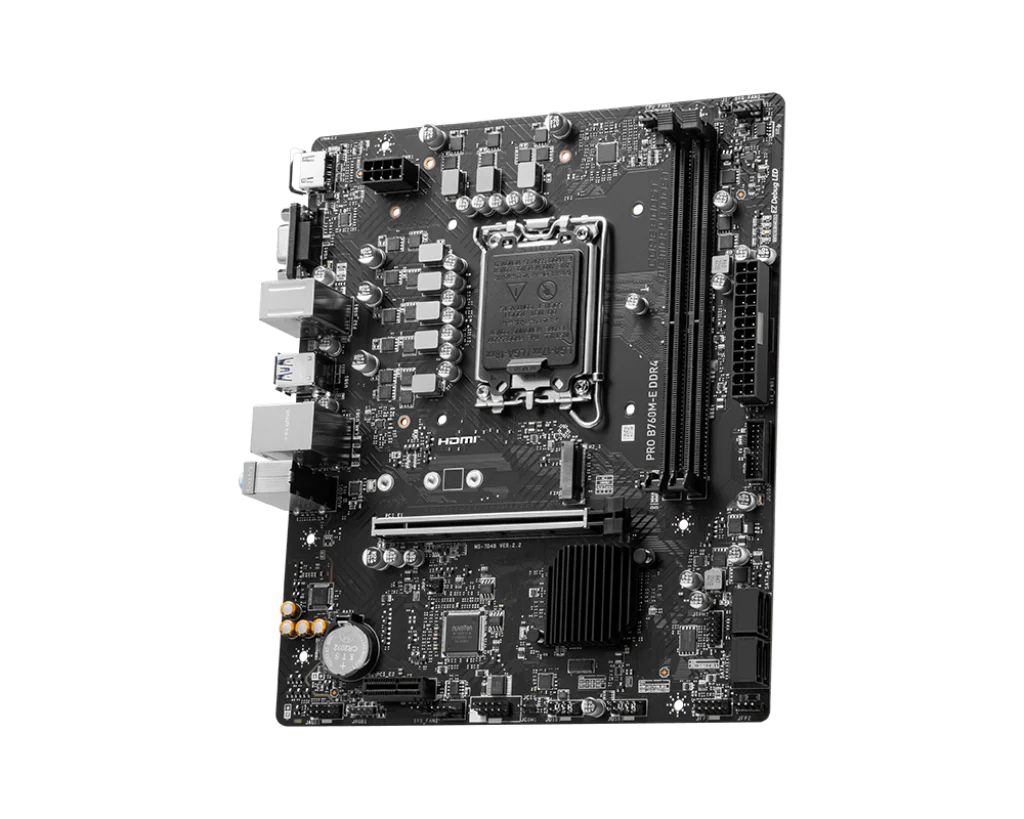

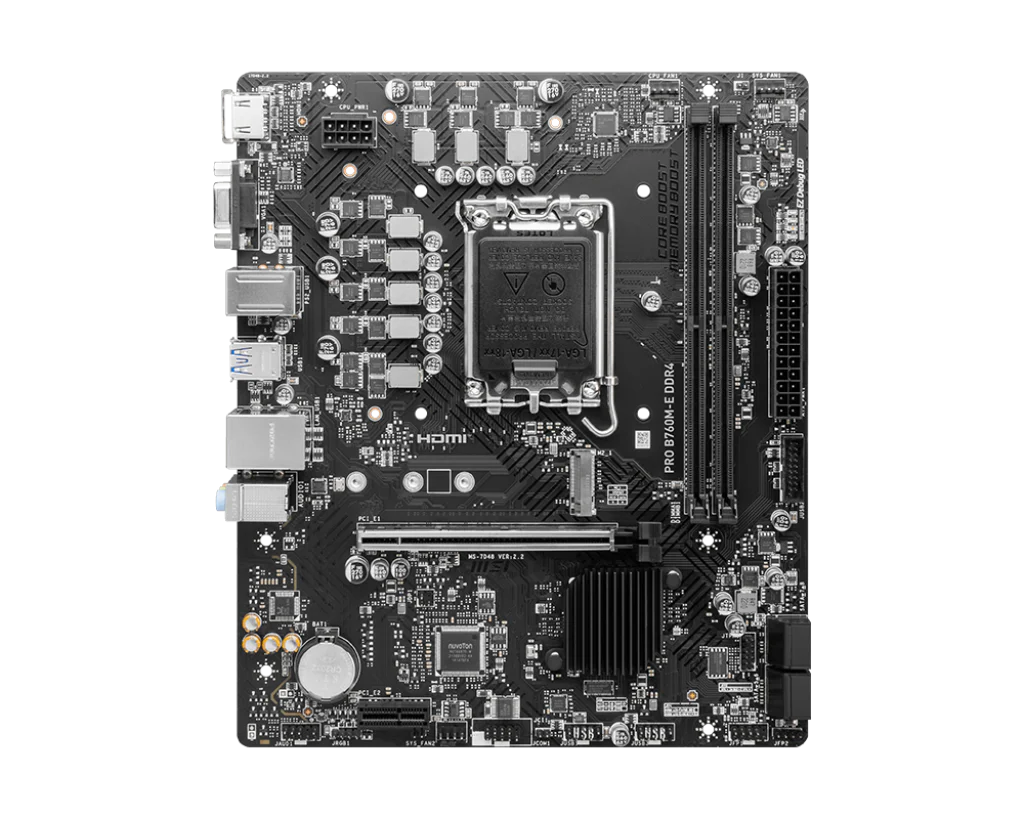

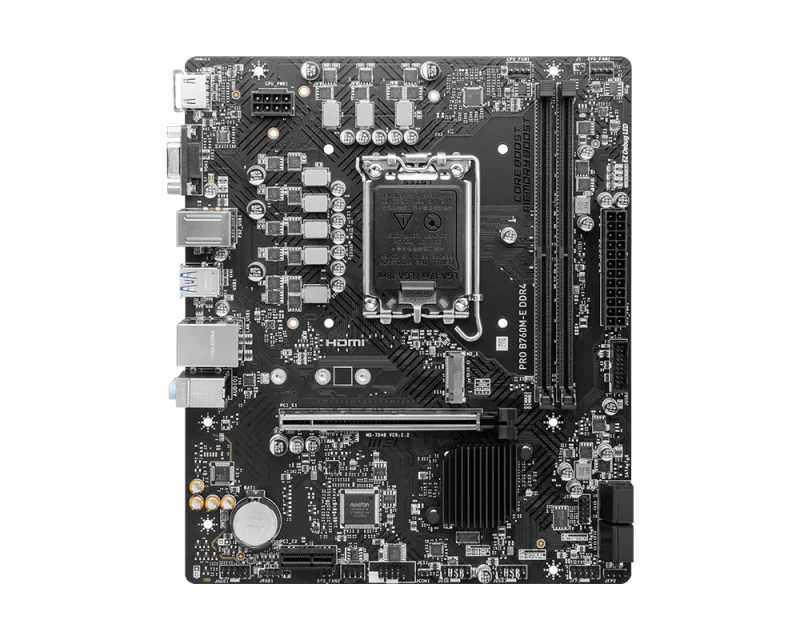

MB MSI PRO B760M-E - DDR4

The MSI PRO B760M-E DDR4 is a Micro-ATX motherboard designed for Intel 12th and 13th Gen processors, offering a balance of performance, reliability, and affordability. It supports DDR4 memory, PCIe 4.0, and multiple storage options, making it ideal for office, productivity, or budget gaming builds.

---

Key Features

• Intel LGA1700 socket for 12th and 13th Gen Core processors
• DDR4 memory support up to 128GB
• PCIe 4.0 slot for modern graphics cards
• Two M.2 slots for NVMe SSD storage
• High-speed connectivity with USB 3.2 ports
• Core Boost and DDR4 Boost technology for stability
• Micro-ATX form factor for compact builds
• Extended heatsink design for improved cooling

---

Specifications

Specification	Details
Model	MSI PRO B760M-E DDR4
Form Factor	Micro-ATX
CPU Socket	LGA1700
Chipset	Intel B760
Memory Support	DDR4, up to 128GB, speeds up to 5333+ MHz (OC)
Expansion Slots	1× PCIe 4.0 x16, 1× PCIe 3.0 x1
Storage Support	2× M.2 NVMe (PCIe 4.0), 4× SATA 6Gb/s

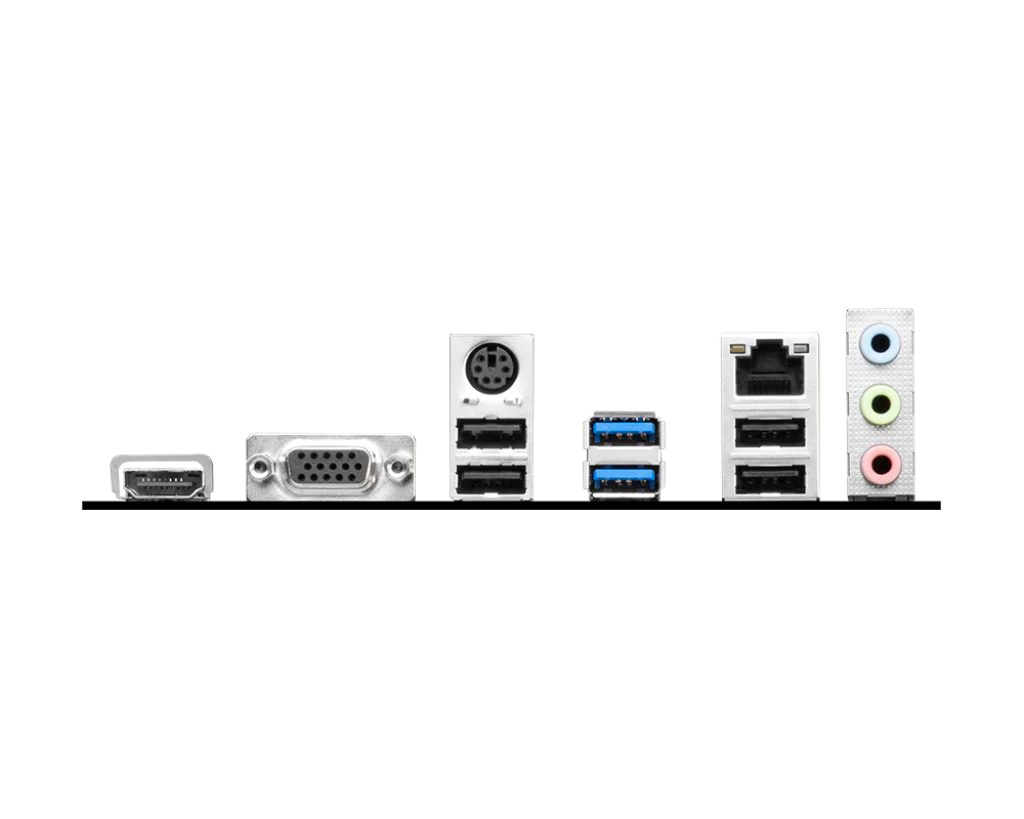

USB Ports	USB 3.2 Gen 1, USB 2.0
Networking	Gigabit LAN
Audio	7.1-Channel High-Definition Audio
Power Phases	6+1+1 Power Phase Design
Cooling	Extended heatsinks, fan headers
