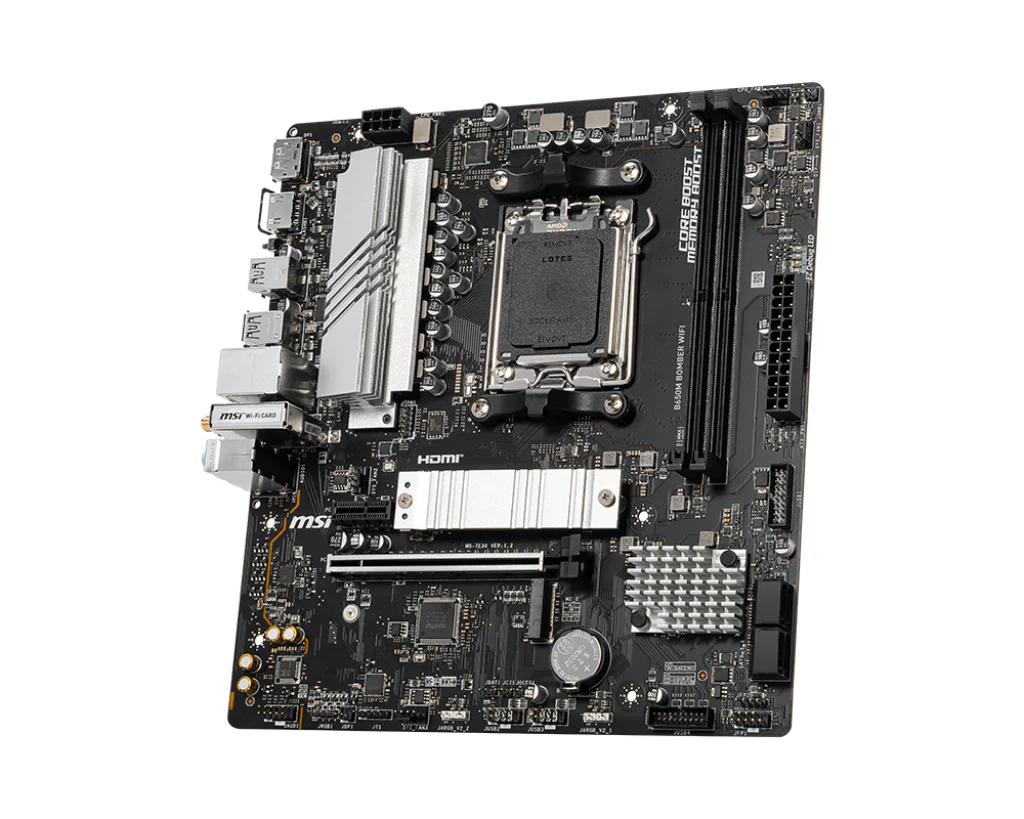

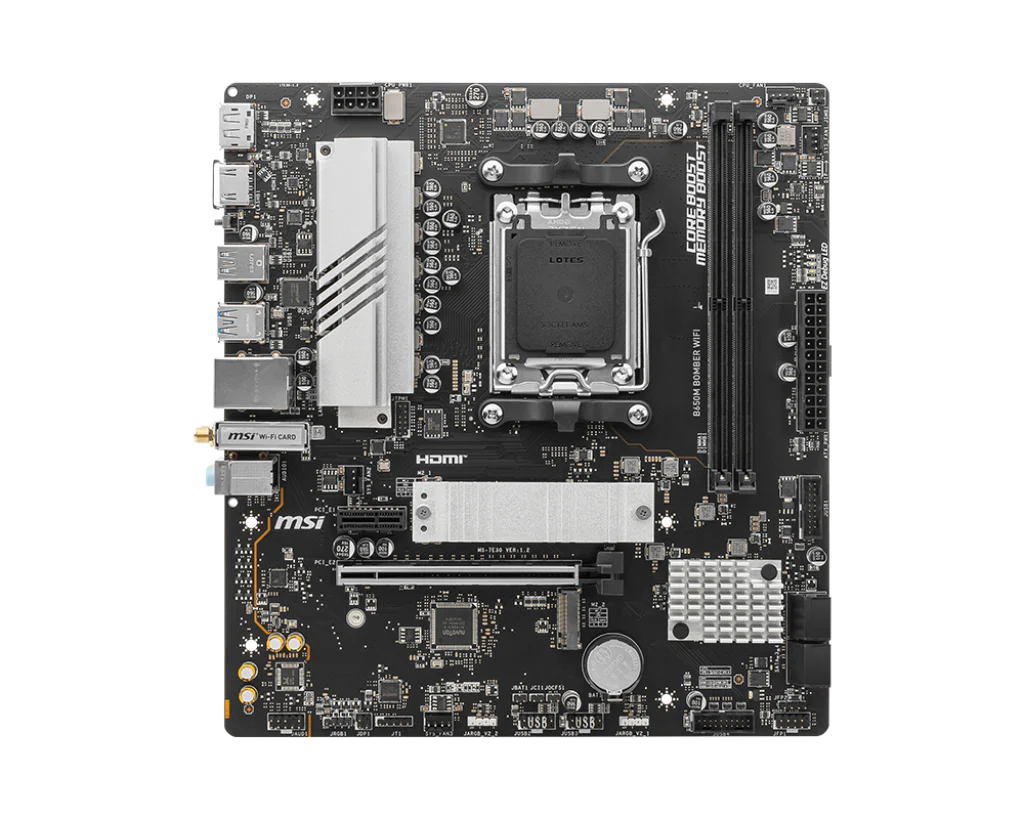

MSI AMD RYZEN SOCKET AM5 B650M Bomber Wifi PCle 4.0 DDR5 Motherboard

Micro-ATX AM5 motherboard built for stable DDR5 performance, fast PCIe 4.0 storage, and strong wireless/wired connectivity with WiFi 6E and 2.5G LAN.

---

Key Features

• Supports AMD Ryzen 9000, 8000, and 7000 Series
• DDR5 memory up to 128GB with EXPO support
• Dual PCIe 4.0 M.2 NVMe slots
• Built-in WiFi 6E and Bluetooth 5.3
• 2.5Gbps LAN for high-speed network performance

---

Technical Specifications

Chipset
AMD B650

CPU Support

• AMD Ryzen 9000 Series
• AMD Ryzen 8000 Series
• AMD Ryzen 7000 Series
• Socket AM5

Memory

• 2 × DDR5 DIMM slots
• Max capacity: 128GB
• Dual-channel support
• Non-ECC, unbuffered
• AMD EXPO support
• Speed up to 7800+ MT/s (OC)

Graphics Outputs

• 1 × HDMI 2.1 (up to 4K 60Hz)

• 1 × DisplayPort 1.4 (up to 4K 60Hz)
  Available only with CPUs that include integrated graphics

Expansion Slots

• 1 × PCIe x16 Gen 4 slot

• 1 × PCIe x1 Gen 3 slot

Storage

• 2 × M.2 PCIe 4.0 x4 (2280)
• 4 × SATA 6Gb/s
• RAID 0, 1, 10 support (SATA & NVMe)

Audio

• Realtek ALC897
• 7.1-channel HD audio

Networking

• Realtek 2.5Gb LAN
• WiFi 6E (with MU-MIMO)
• Bluetooth 5.3

USB Ports
Rear I/O

• 2 × USB 2.0
• 3 × USB 5Gbps Type-A
• 1 × USB 5Gbps Type-C

Front Panel

• 4 × USB 2.0
• 4 × USB 5Gbps Type-A

Internal Headers

• 1 × ATX 24-pin power
• 1 × 8-pin CPU power
• 1 × CPU fan
• 3 × system fan headers
• 2 × ARGB headers
• 1 × RGB header
• 1 × TPM header
• 1 × chassis intrusion
• Front audio
• USB headers

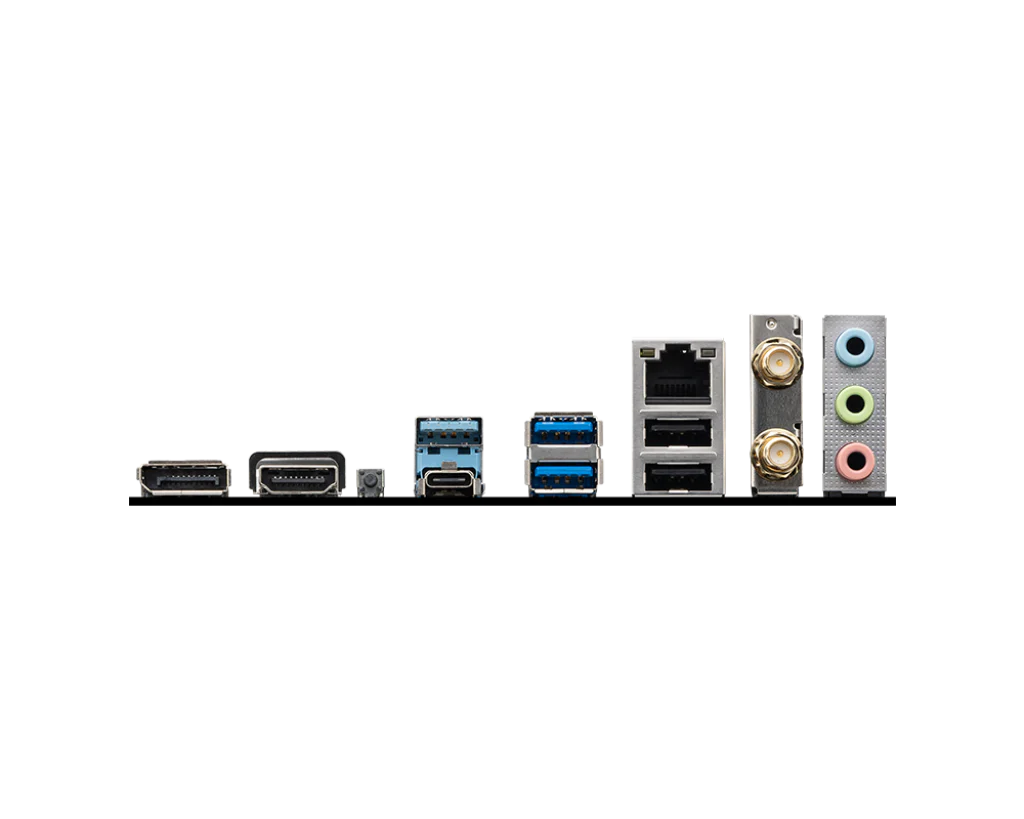

Back Panel I/O

• HDMI
• DisplayPort
• Flash BIOS button
• USB Type-A
• USB Type-C
• 2.5G LAN
• WiFi antenna connectors
• Audio jacks

LED Indicators

• EZ Debug LED (CPU / DRAM / VGA / BOOT)

Wireless Module

• Pre-installed in M.2 Key-E slot
• Supports 2.4GHz / 5GHz / 6GHz bands (OS dependent)

Form Factor
Micro-ATX
