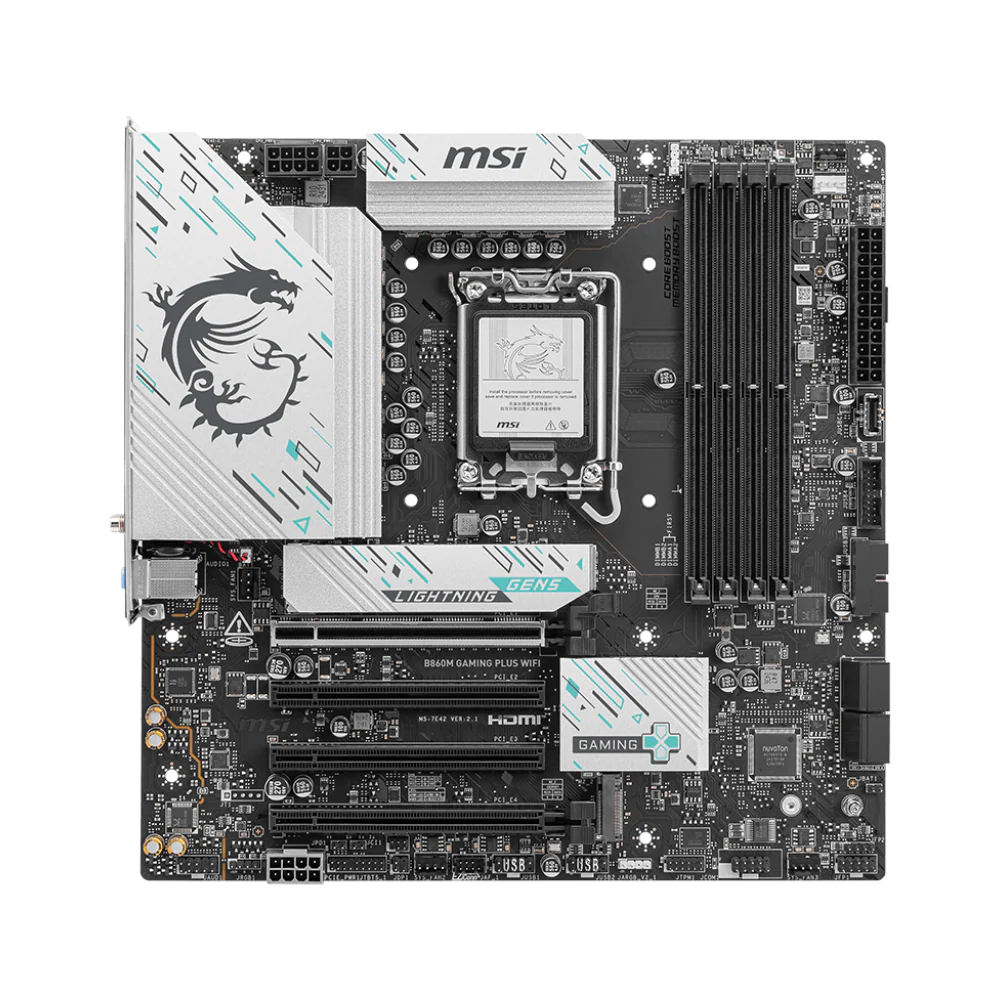

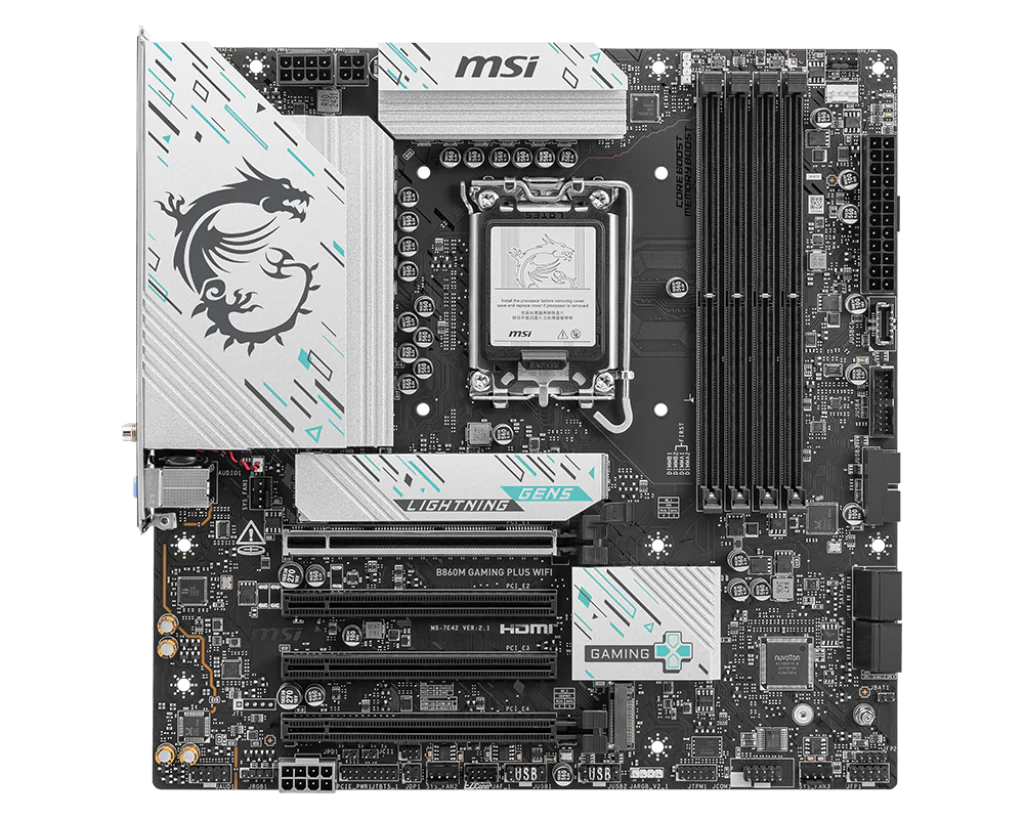

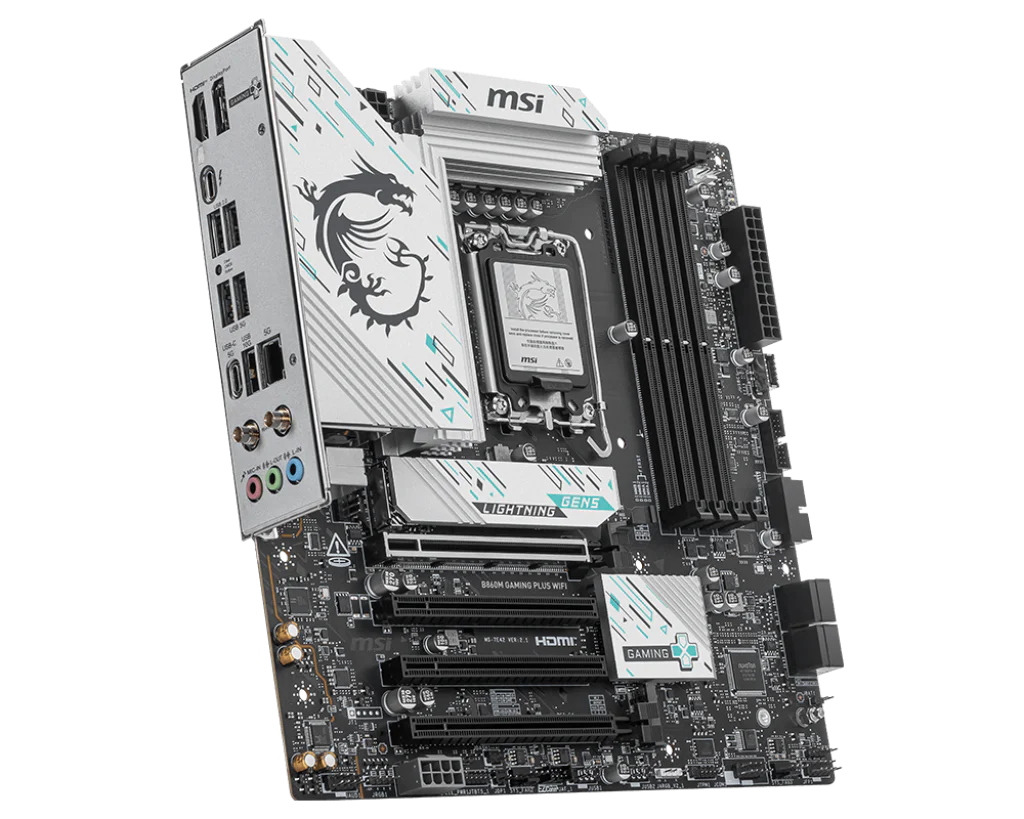

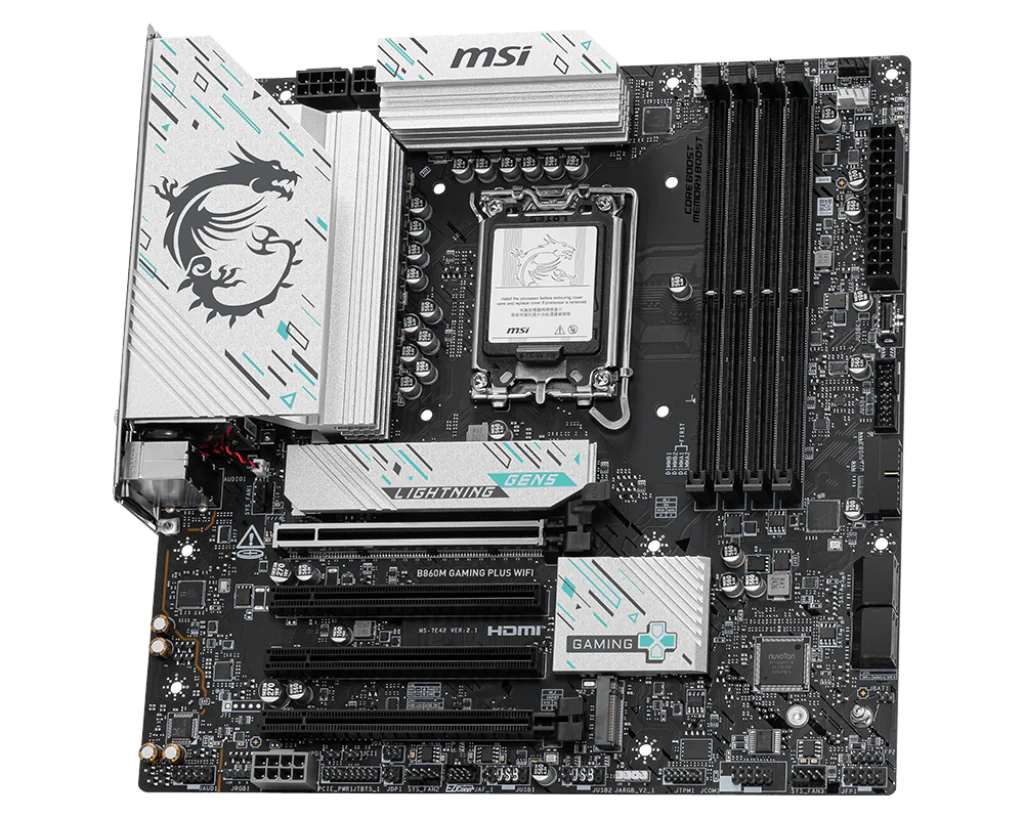

MSI B860M GAMING PLUS WIFI DDR5 Motherboard - Black

A high-performance Micro-ATX motherboard built with Intel’s B860 chipset and LGA 1851 socket.
It’s designed for Intel Core Ultra Series 2 processors, delivering next-gen connectivity like PCIe 5.0, Thunderbolt 4, Wi-Fi 7, and 5G LAN.
Optimized power delivery, advanced cooling solutions, and a wide range of I/O options make it ideal for gamers and content creators.

---

Key Features

• LGA 1851 socket with Intel B860 chipset for Intel Core Ultra Series 2 CPUs.
• DDR5 support up to 256 GB with speeds up to 8600+ MT/s.
• PCIe 5.0 x16 slot for high-performance GPUs.
• Three M.2 slots with PCIe 5.0 and PCIe 4.0 support.
• Killer BE1750x Wi-Fi 7 and Bluetooth 5.4 with low-latency networking.
• Killer E5000 5Gb LAN for ultra-fast wired connections.
• Thunderbolt 4 with 40Gbps data transfer, daisy-chaining, and 8K display support.
• Extended heatsinks and M.2 Shield Frozr II for cooling.
• EZ Debug LEDs, RGB/ARGB headers, and user-friendly assembly features.
• Micro-ATX form factor for compact, powerful builds.

---

Specifications

Category	Details
Chipset	Intel B860
CPU Support	Intel Core Ultra Series 2
Socket	LGA 1851
Form Factor	Micro-ATX
Memory Slots	4 × DDR5 UDIMM, up to 256 GB
Memory Speed	DDR5 8600+ (OC), 6400–4800 (JEDEC), Intel XMP 3.0
PCIe Slots	1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16, 2 × PCIe 4.0 x1
Storage	3 × M.2 (1 × PCIe 5.0, 2 × PCIe 4.0), 4 × SATA 6G
Networking	Killer E5000 5Gb LAN, Killer BE1750x Wi-Fi 7, Bluetooth 5.4
Audio	Realtek ALC897, 7.1-Channel HD Audio

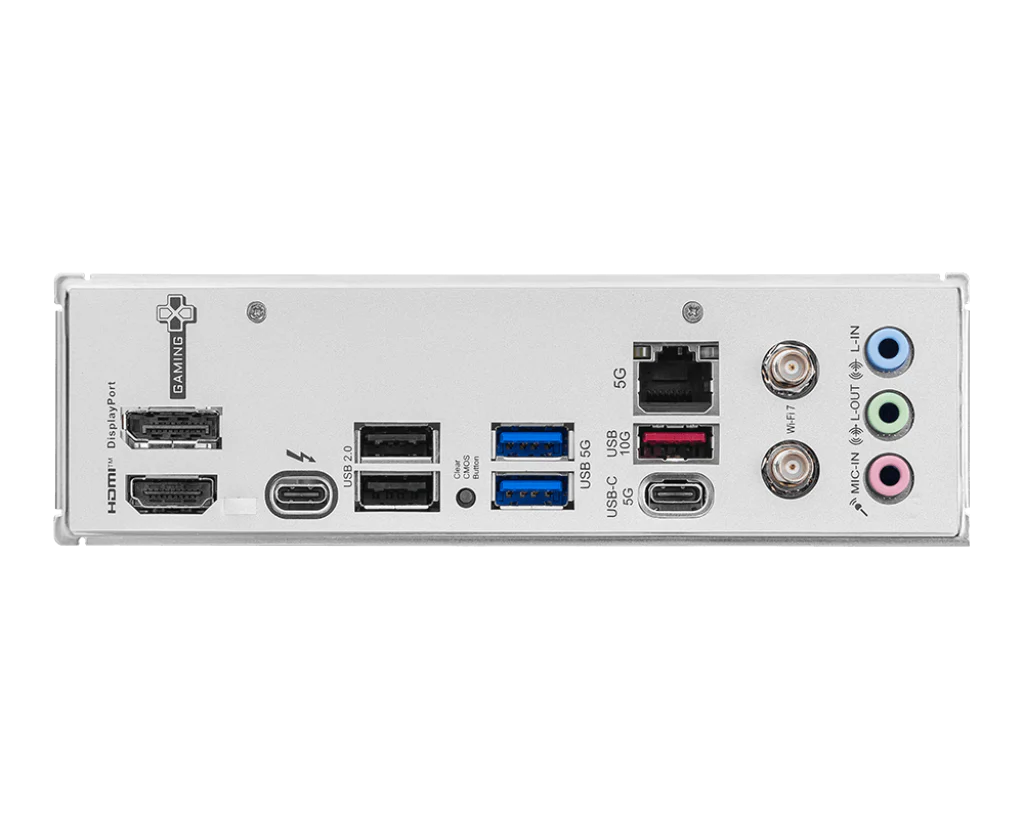

USB (Rear)	Thunderbolt 4, USB 5Gbps/10Gbps (Type-A, Type-C)
USB (Front)	Multiple USB 5Gbps/10Gbps ports, USB-C 10Gbps
Power Delivery	12 Duet Rail Power System, high-efficiency P-PAK design
Cooling	Extended heatsinks, M.2 Shield Frozr II
Lighting	2 × ARGB V2, 1 × RGB headers
Diagnostics	EZ Debug LEDs
