MSI GeForce RTX 5060 Ti 16G SHADOW 2X OC PLUS Gaming Graphics Card - Black

The MSI GeForce RTX 5060 Ti SHADOW 2X OC PLUS is a high-performance graphics card designed for modern gaming and creative workloads. It features NVIDIA GeForce RTX 5060 Ti GPU architecture, fast GDDR7 memory, and factory overclocking for stable and efficient performance in compact systems.

Key Features

• NVIDIA GeForce RTX 5060 Ti graphics processor
• Factory overclocked with Extreme Performance mode via MSI Center

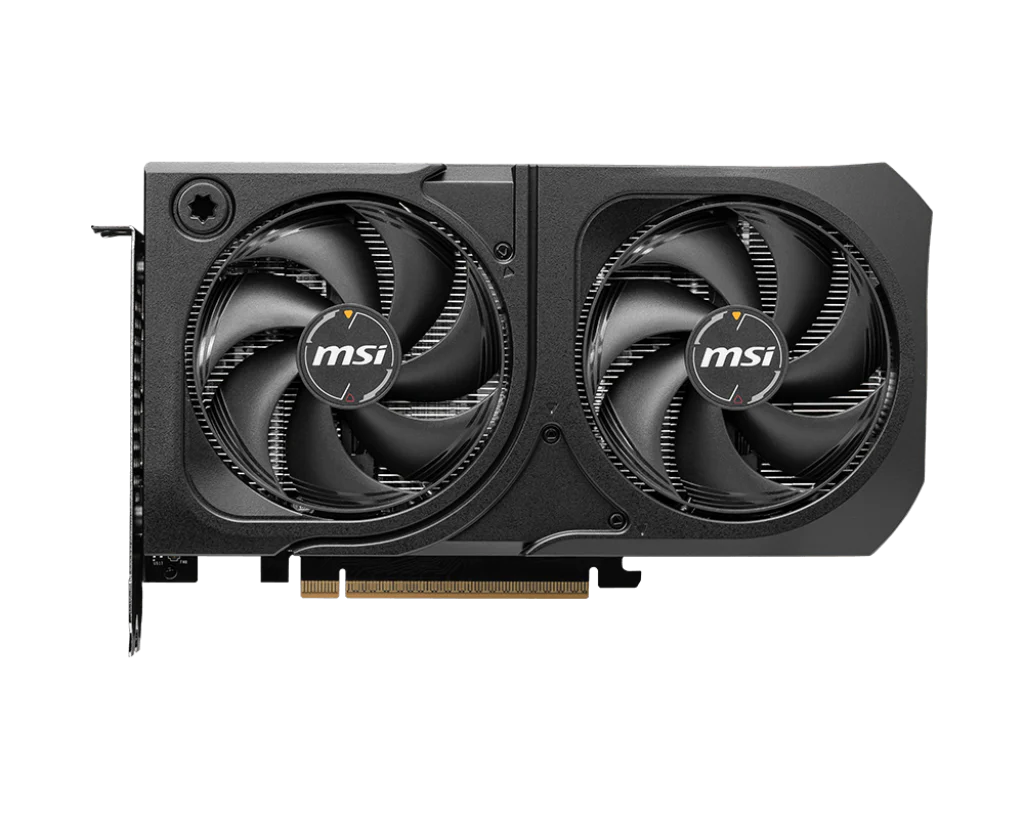

• Dual-fan SHADOW 2X cooling design
• 16GB GDDR7 high-speed memory
• Support for high refresh rate and high-resolution displays
• G-SYNC technology support for smooth gameplay

Technical Specs

• Marketing Name: GeForce RTX 5060 Ti 16G SHADOW 2X OC PLUS
• Model Name: G506T-16S2CP
• Graphics Processing Unit: NVIDIA GeForce RTX 5060 Ti
• Interface: PCI Express Gen 5 x16 (operates at x8)

Clock Speeds

• Extreme Performance: 2617 MHz (MSI Center)
• Boost Clock: 2602 MHz

Processing

• CUDA Cores: 4608 Units

Memory

• Memory Size: 16GB
• Memory Type: GDDR7
• Memory Speed: 28 Gbps
• Memory Bus: 128-bit

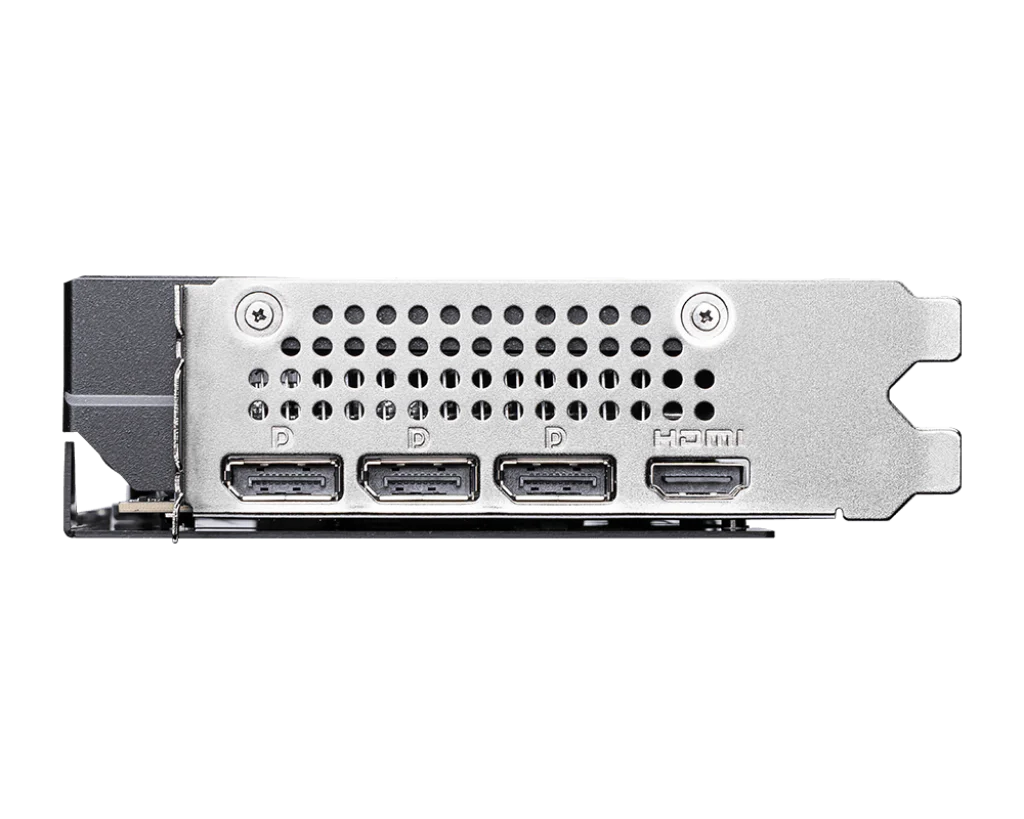

Display Output

• DisplayPort: 3 × DisplayPort v2.1b
• HDMI: 1 × HDMI 2.1b
• Maximum Digital Resolution: 7680 × 4320
• Maximum Displays: 4
• HDCP Support: Yes

Graphics Technologies

• DirectX Support: 12 Ultimate
• OpenGL Support: 4.6
• G-SYNC Technology: Yes

Power Requirements

• Power Consumption: 180 W

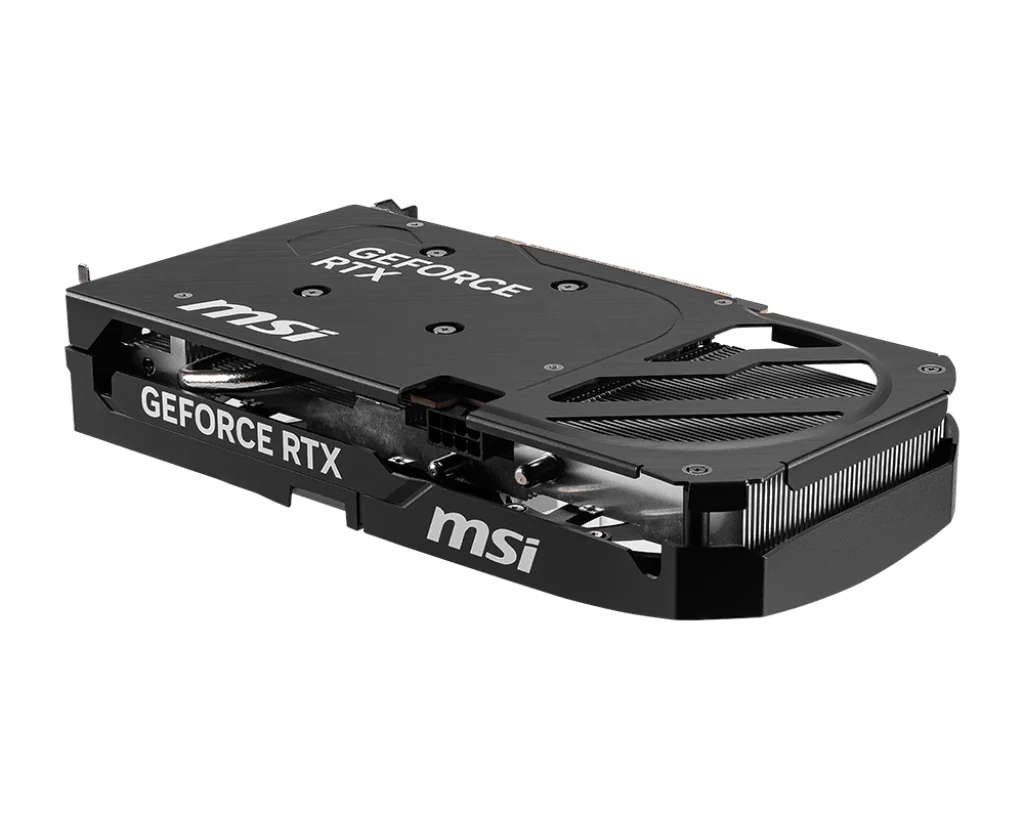

• Power Connector: 1 × 8-pin
• Recommended Power Supply: 600 W

Physical Specifications

• Card Dimensions: 226 × 126 × 41 mm
• Weight (Card): 578 g
• Weight (Package): 851 g

Color

• Black
