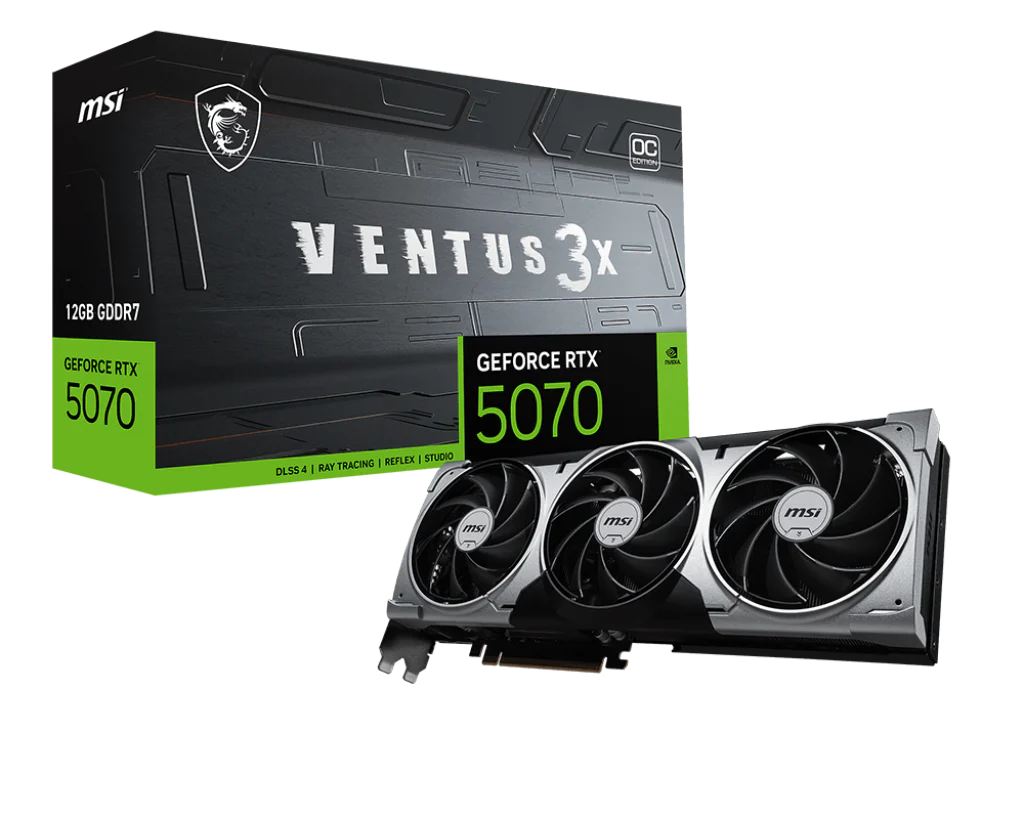

MSI GeForce RTX 5070 12GB GDDR7 Ventus 3X OC Graphics Card

The MSI GeForce RTX 5070 Ventus 3X OC is a high-performance graphics card built on NVIDIA’s latest Ada architecture. It features 12GB of next-generation GDDR7 memory, triple TORX Fan 4.0 cooling, and a factory overclock for enhanced gaming and content creation performance. With advanced ray tracing and DLSS support, this GPU is optimized for 4K gaming and heavy workloads.

---

Key Features

• NVIDIA Ada architecture with advanced AI and ray tracing support
• 12GB GDDR7 memory for ultra-fast bandwidth and smooth gameplay

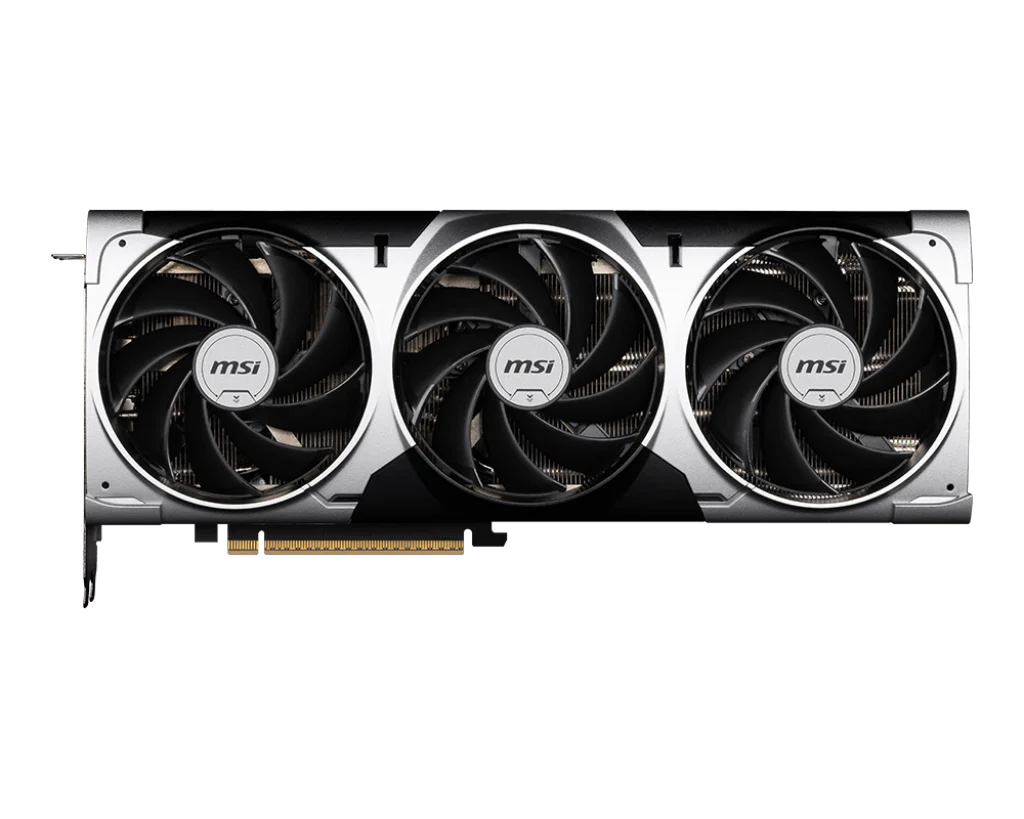

• Ventus 3X triple-fan cooling system for superior heat dissipation
• Factory overclock for increased performance out of the box
• PCIe 5.0 interface for next-generation platforms

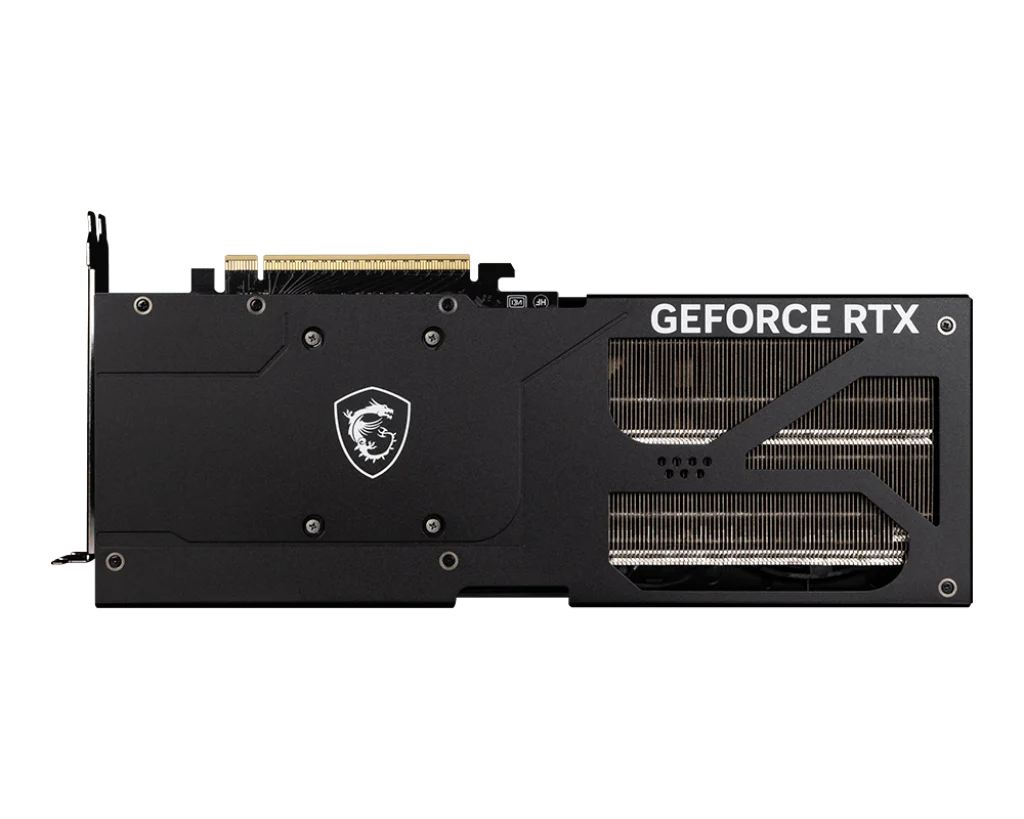

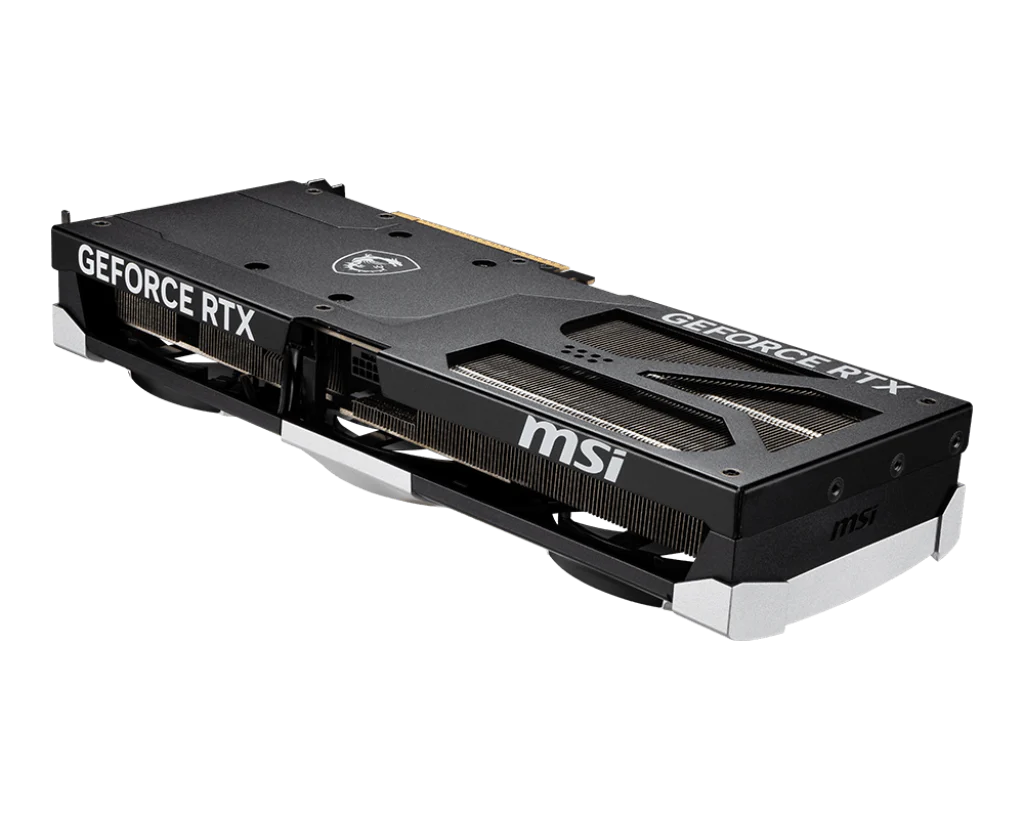

• Reinforced backplate for structural rigidity
• Support for up to 8K resolution displays
• MSI Afterburner software for tuning and monitoring

---

Specifications

Specification	Details
Model	MSI GeForce RTX 5070 Ventus 3X OC
GPU Architecture	NVIDIA Ada Lovelace
Video Memory	12GB GDDR7
Memory Bus	192-bit
Boost Clock	Factory Overclock (~2.5GHz, varies by BIOS)
CUDA Cores	TBD (~7,168 cores, based on design)
Interface	PCIe 5.0
Cooling	Ventus 3X triple-fan TORX Fan 4.0 design
Max Resolution	7680×4320 (8K)

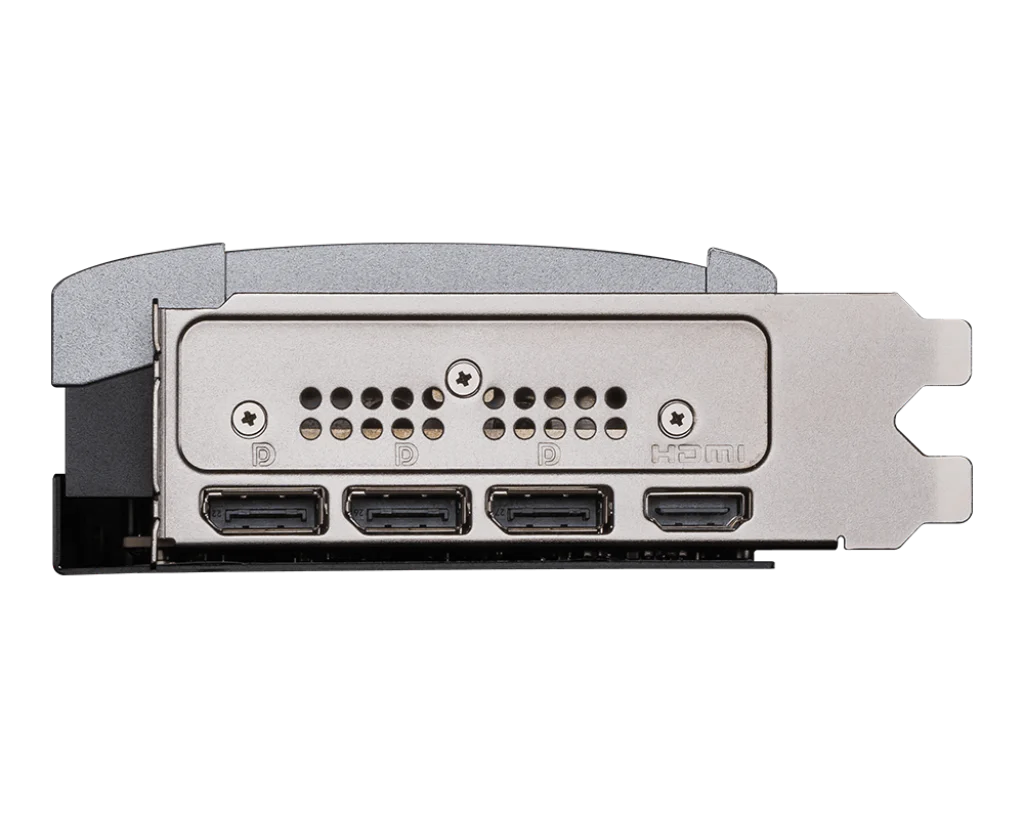

Display Outputs	3× DisplayPort 2.1, 1× HDMI 2.1a
Power Connector	1× 16-pin (12VHPWR)
Recommended PSU	650W or higher
Dimensions	Full-size triple-slot design
