MSI MPG A1000G UK PSU 1000W 80 Plus Gold certified Fully Modular PC Power Supply

The MSI MPG A1000GS is a premium 1000W power supply built for high-performance gaming PCs and next-generation GPUs.
With full ATX 3.1 and PCIe 5.1 readiness, it ensures efficient and stable power delivery for demanding hardware.
Its Cybenetic Gold and 80 PLUS Gold certifications guarantee up to 90% efficiency under typical loads.
A 135 mm fluid dynamic bearing fan provides silent and reliable cooling, while the fully modular design keeps cable management simple and clean.

---

Key Features

• 1000W power output with high efficiency up to 90%
• Certified 80 PLUS Gold and Cybenetic Gold for optimal performance
• ATX 3.1 and PCIe 5.1 ready for next-gen GPUs
• Fully modular design for clean builds

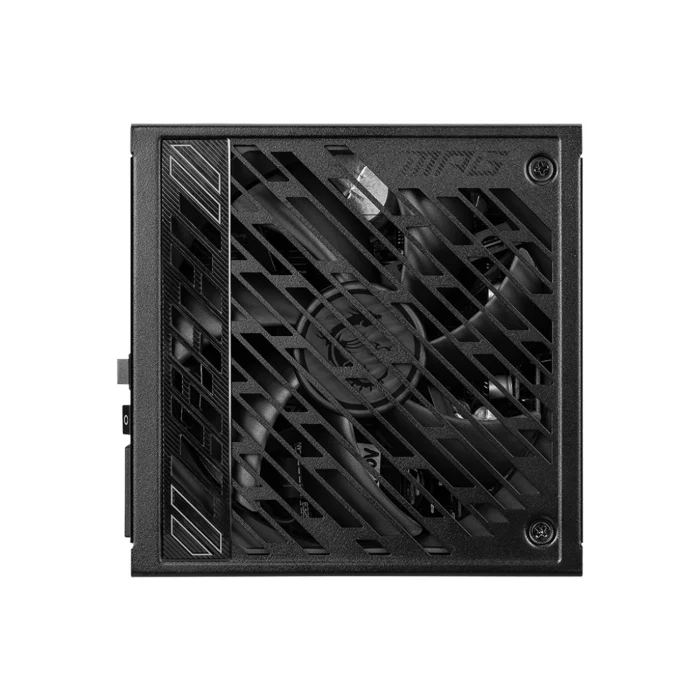

• 135 mm fluid dynamic bearing fan for silent cooling
• Active PFC ensures consistent power delivery
• Multi-protection system for safe and stable operation
• Compact 150 mm form factor fits most ATX cases
• Backed by 1-year warranty under manufacturer policy

---

Technical Details

• Model No: MSI MPG A1000GS 1000W Cybenetic Gold ATX 3.1 PCIe 5.1 Ready Power Supply
• Part No: 306-7ZPFY18-CE0
• Color: Black
• Efficiency Rating: 80 PLUS Gold (up to 90%)
• Modular: Yes (Full Modular)
• Fan Size: 135 mm
• Fan Bearing: Fluid Dynamic Bearing
• Dimensions (DxWxH): 150 × 150 × 86 mm
• PFC Type: Active PFC
• Input Voltage Range: 100–240V~
• Power Watt: 1000W
• Power Excursion: Up to 2350W (235% peak for 100μs)
• Input Frequency Range: 50–60 Hz
• Protection: OCP, OTP, OPP, SCP, OVP, UVP, SIP, NLO

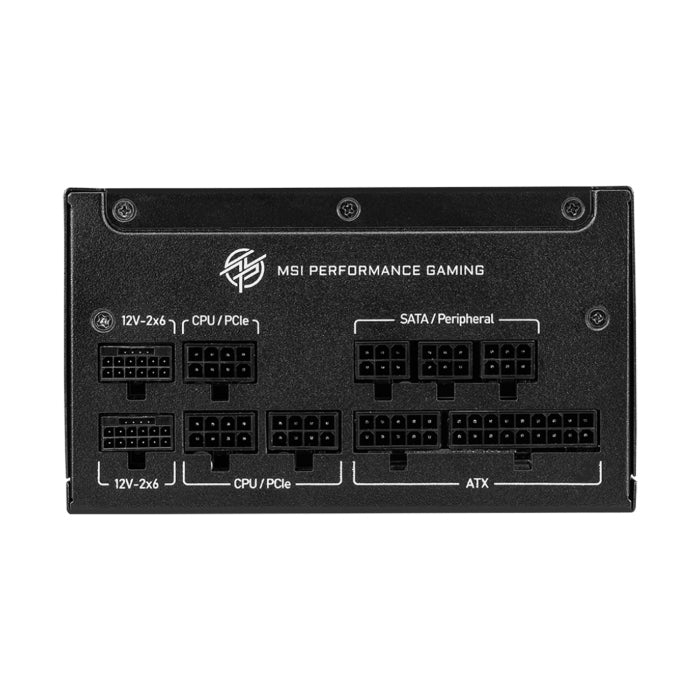

• ATX (24 pin): 1
• EPS (4+4 pin): 2
• PCI-E 5.1 (16 pin): 2 (600W)
• PCI-E (6+2 pin): 1
• SATA (15 pin): 8
• Peripheral (4 pin): 4
