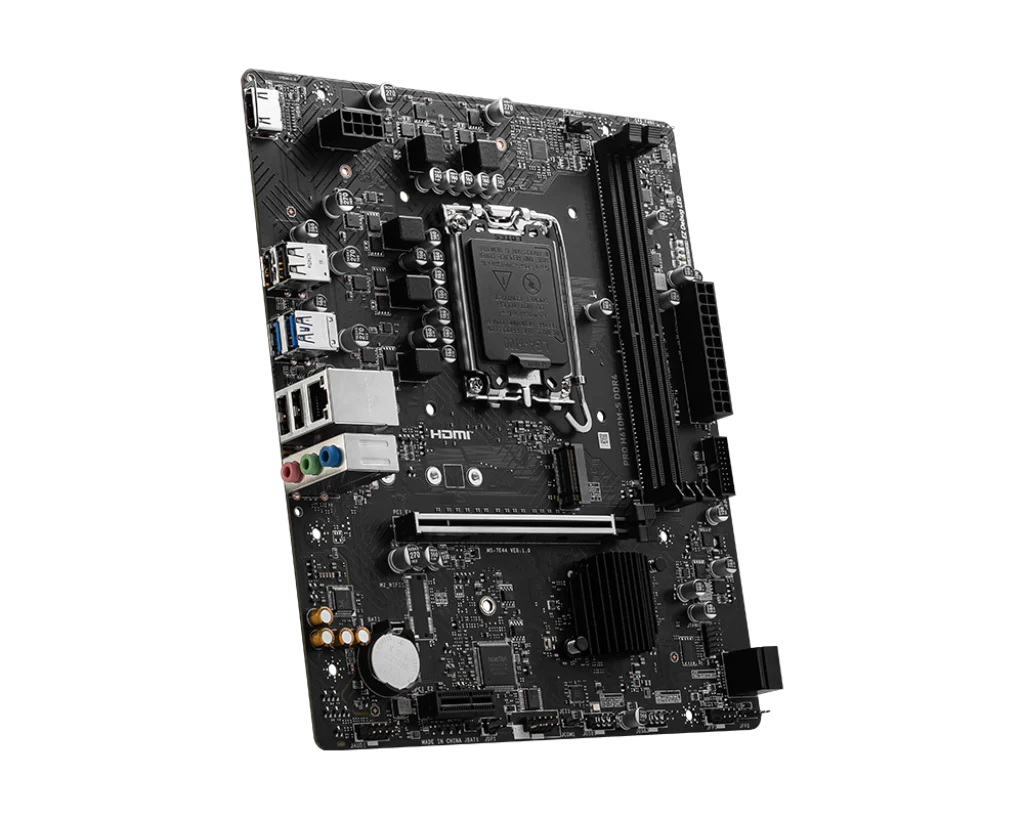

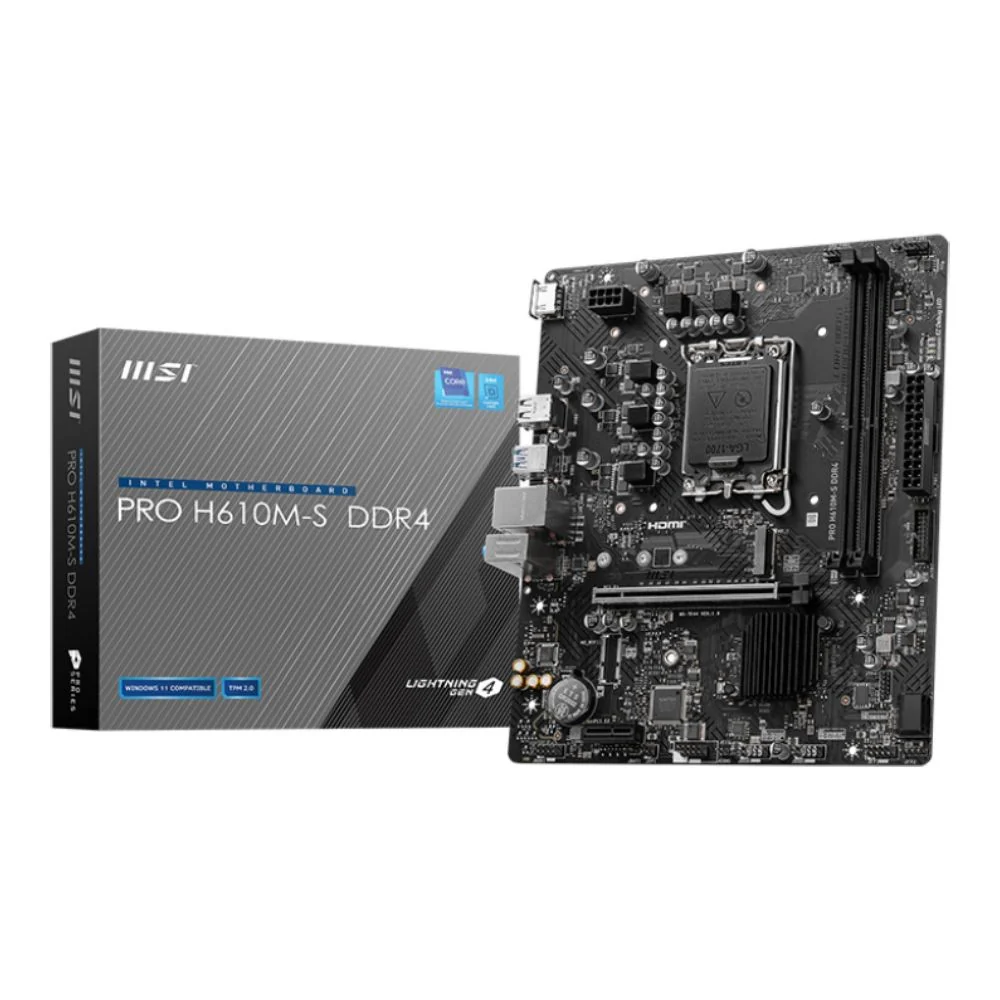

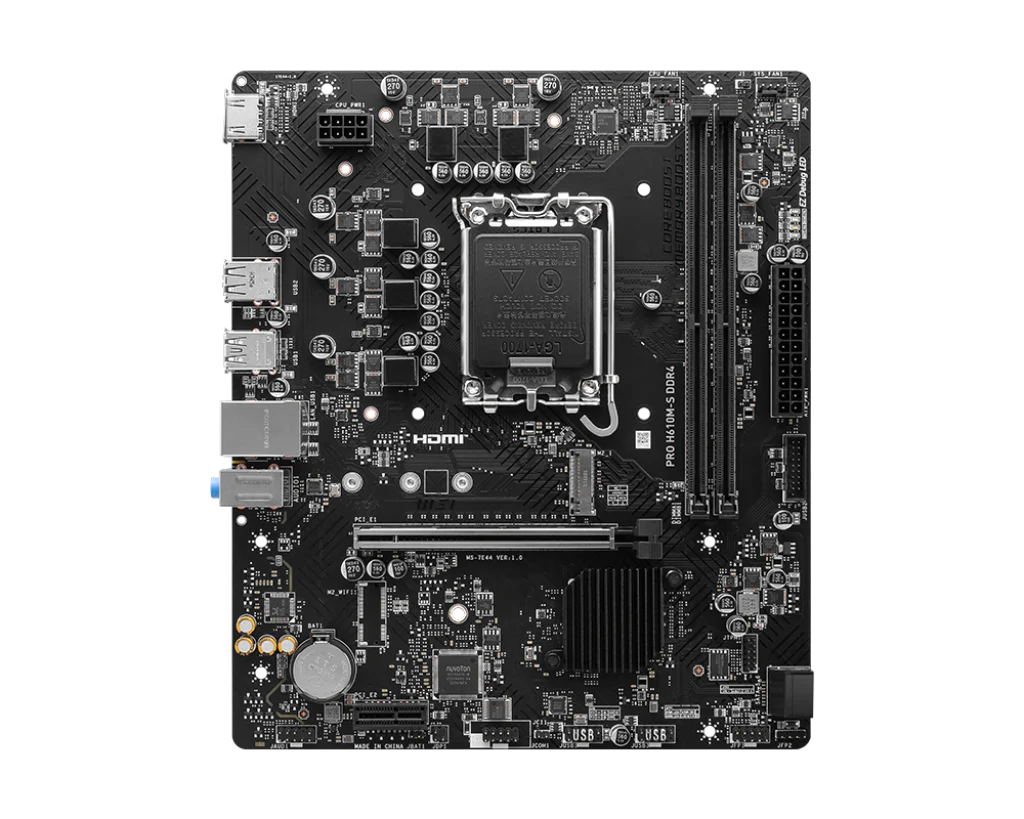

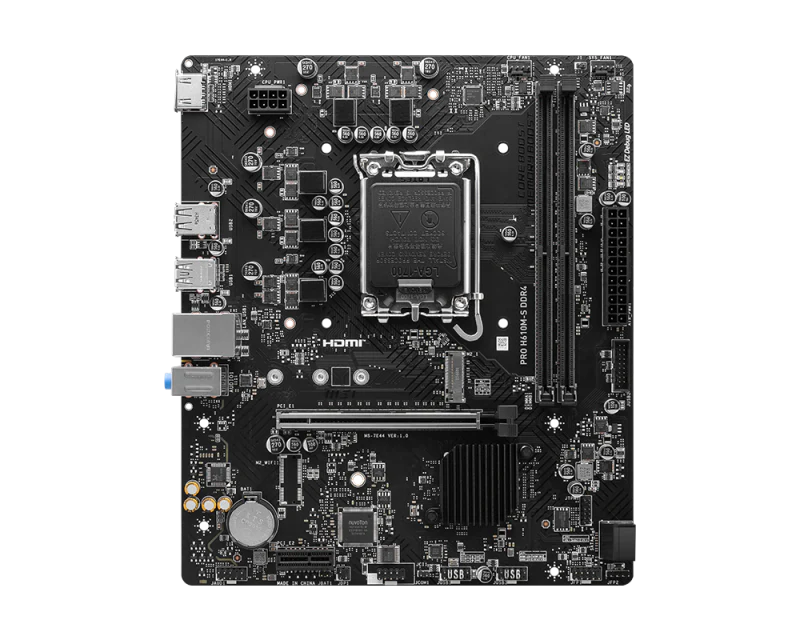

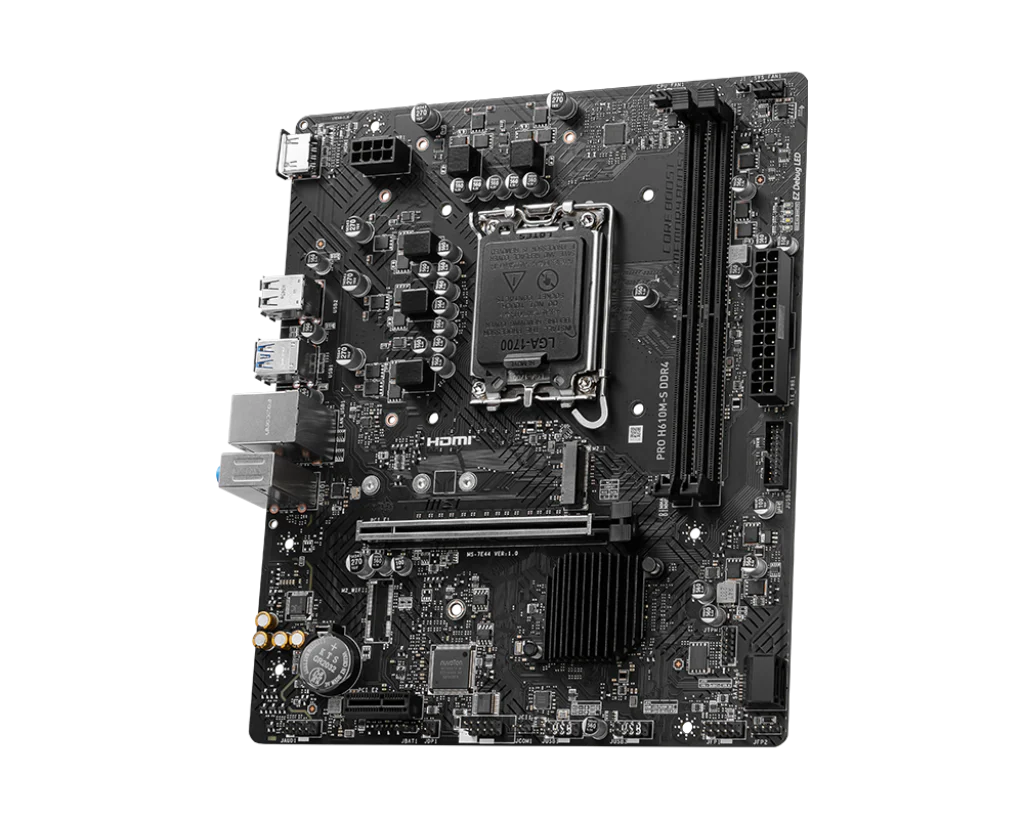

MSI PRO H610M-S DDR4, LGA1700 Motherboard
The MSI PRO H610M-S DDR4 LGA1700 Motherboard is designed to support modern Intel processors while delivering stable performance for everyday computing, office work, and gaming systems. Built on the Intel H610 chipset, the motherboard supports 12th, 13th, and 14th generation Intel Core processors, as well as Intel Pentium Gold and Celeron processors using the LGA1700 socket.
The motherboard features DDR4 memory support with dual-channel architecture, allowing installation of up to 64GB of system memory. With support for multiple memory speeds up to 3200 MHz, it provides stable performance for multitasking, productivity applications, and gaming.
For expansion, the board includes a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for additional expansion devices. Storage support includes one M.2 slot for NVMe solid state drives and two SATA ports for traditional storage drives, allowing flexible storage configurations.
The motherboard also integrates Realtek high-definition audio for immersive sound output and Realtek Gigabit network connectivity for stable internet connections.
With a compact Micro-ATX form factor, multiple connectivity options, and reliable performance features, the MSI PRO H610M-S DDR4 motherboard is suitable for entry-level gaming systems, office PCs, and general-purpose desktop builds.
Â
Â
Key Features
• Supports Intel Core 14th, 13th, and 12th generation processors
• LGA1700 socket for modern Intel CPUs
• DDR4 dual-channel memory support up to 64GB
• Memory speeds up to 3200 MHz
• PCIe 4.0 x16 slot for graphics cards
• M.2 slot supporting PCIe NVMe solid state drives
• Gigabit network connection for stable internet performance
• High-definition 7.1 channel audio
• Multiple USB ports including 5Gbps USB ports
• EZ Debug LEDs for system troubleshooting
Technical Specifications
General Information
| Specification | Details |
|---|---|
| Brand | MSI |
| Model | PRO H610M-S DDR4 |
| Chipset | Intel H610 |
| Socket | LGA1700 |
| Form Factor | Micro-ATX |
| PCB Dimensions | 200 × 236.16 mm |
Explanation
The Micro-ATX design allows installation in compact PC cases while still providing essential expansion features.
CPU Support
| Specification | Details |
|---|---|
| Supported Processors | Intel Core 14th / 13th / 12th Generation |
| Additional Support | Intel Pentium Gold / Celeron |
| Socket Type | LGA1700 |
Explanation
The motherboard supports a wide range of Intel processors designed for gaming, productivity, and general computing.
Memory Support
| Specification | Details |
|---|---|
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Capacity | 64GB |
| Memory Speeds | 1866 – 3200 MHz |
| Memory Mode | Dual Channel |
| Memory Type | Non-ECC, Unbuffered |
Explanation
Dual-channel memory improves data bandwidth and overall system performance.
Expansion Slots
| Specification | Details |
|---|---|
| PCIe Slot 1 | PCIe 4.0 x16 |
| PCIe Slot 2 | PCIe 3.0 x1 |
Explanation
The PCIe x16 slot is used for installing graphics cards, while the PCIe x1 slot supports additional expansion devices.
Graphics Support
| Specification | Details |
|---|---|
| Display Output | HDMI |
| HDMI Version | 1.4 |
| Maximum Resolution | 4K at 30Hz |
Explanation
Display output is available only when using processors with integrated graphics.
Storage Support
| Specification | Details |
|---|---|
| M.2 Slots | 1 |
| M.2 Interface | PCIe 3.0 x4 |
| Supported Sizes | 2242 / 2260 / 2280 |
| SATA Ports | 2 × SATA 6Gb/s |
Explanation
The M.2 slot supports high-speed solid state drives for faster system boot and application loading.
Networking
| Specification | Details |
|---|---|
| Network Controller | Realtek RTL8111H |
| Network Speed | Gigabit Ethernet |
Explanation
Gigabit network connectivity provides stable and reliable wired internet performance.
Audio
| Specification | Details |
|---|---|
| Audio Codec | Realtek ALC897 |
| Audio Channels | 7.1 Channel High Definition Audio |
Explanation
The integrated audio system provides clear sound for gaming, media playback, and communication.
USB Connectivity
| Specification | Details |
|---|---|
| Rear USB 2.0 | 4 Ports |
| Front USB 2.0 | 4 Ports |
| Rear USB 5Gbps | 2 Ports |
| Front USB 5Gbps | 2 Ports |
Explanation
Multiple USB ports allow connection of peripherals, storage devices, and accessories.
Internal Connectors
| Specification | Details |
|---|---|
| Main Power Connector | 1 × ATX Power |
| CPU Power Connector | 1 |
| CPU Fan Header | 1 |
| System Fan Header | 1 |
| Front Panel Connectors | 2 |
| Chassis Intrusion Header | 1 |
| Front Audio Header | 1 |
| COM Port Header | 1 |
| TPM Header | 1 |
Explanation
Internal connectors allow integration of system components, cooling fans, and security modules.

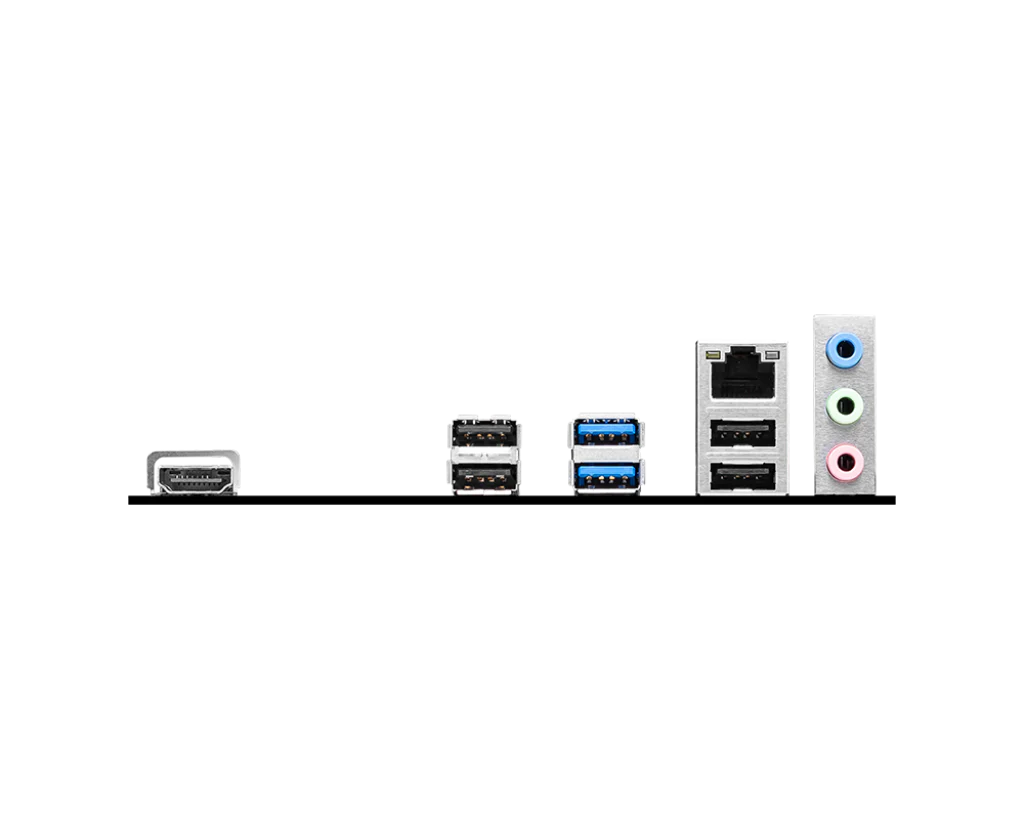

Rear Panel Ports
| Specification | Details |
|---|---|
| HDMI Port | 1 |
| USB 2.0 Ports | Multiple |
| USB 5Gbps Ports | Multiple |
| LAN Port | 1 |
| Audio Ports | Multiple |
Explanation
The rear panel provides essential connectivity for displays, peripherals, and network access.
Operating System Support
| Specification | Details |
|---|---|
| Supported Systems | Windows 11 64-bit |
| Windows 10 64-bit |
Explanation
The motherboard supports modern Windows operating systems for compatibility with current hardware and software.
User Experience
The MSI PRO H610M-S DDR4 motherboard offers stable performance and essential connectivity for entry-level gaming systems, office computers, and general desktop builds. Its support for modern Intel processors, DDR4 memory, and high-speed storage ensures smooth everyday computing performance.
The compact Micro-ATX design makes it suitable for smaller PC cases, while the available expansion slots and connectivity options allow users to build flexible and reliable PC systems.
Included Items
• MSI PRO H610M-S DDR4 Motherboard
• User manual
• I/O shield
• SATA cable
• Driver and utility documentation
• Protective packaging materials
