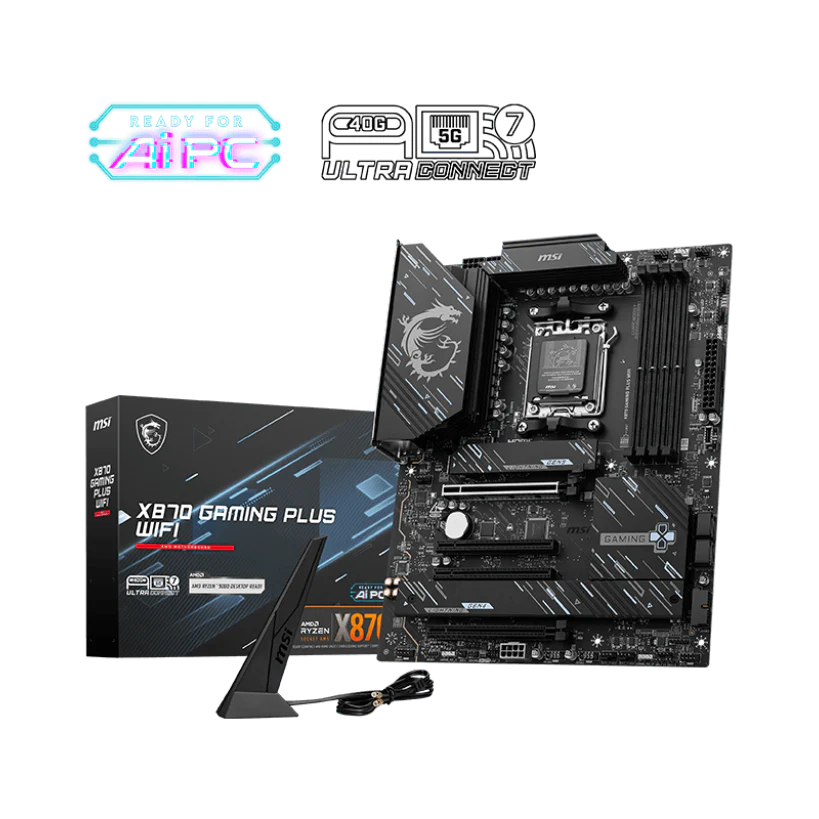

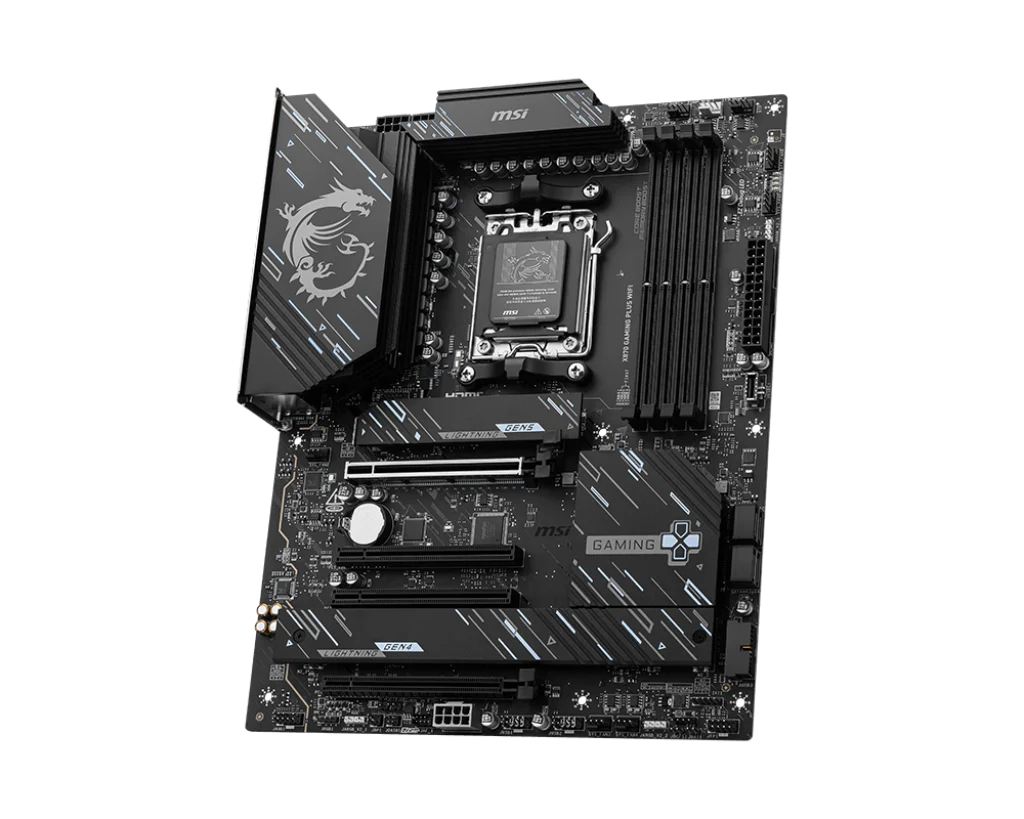

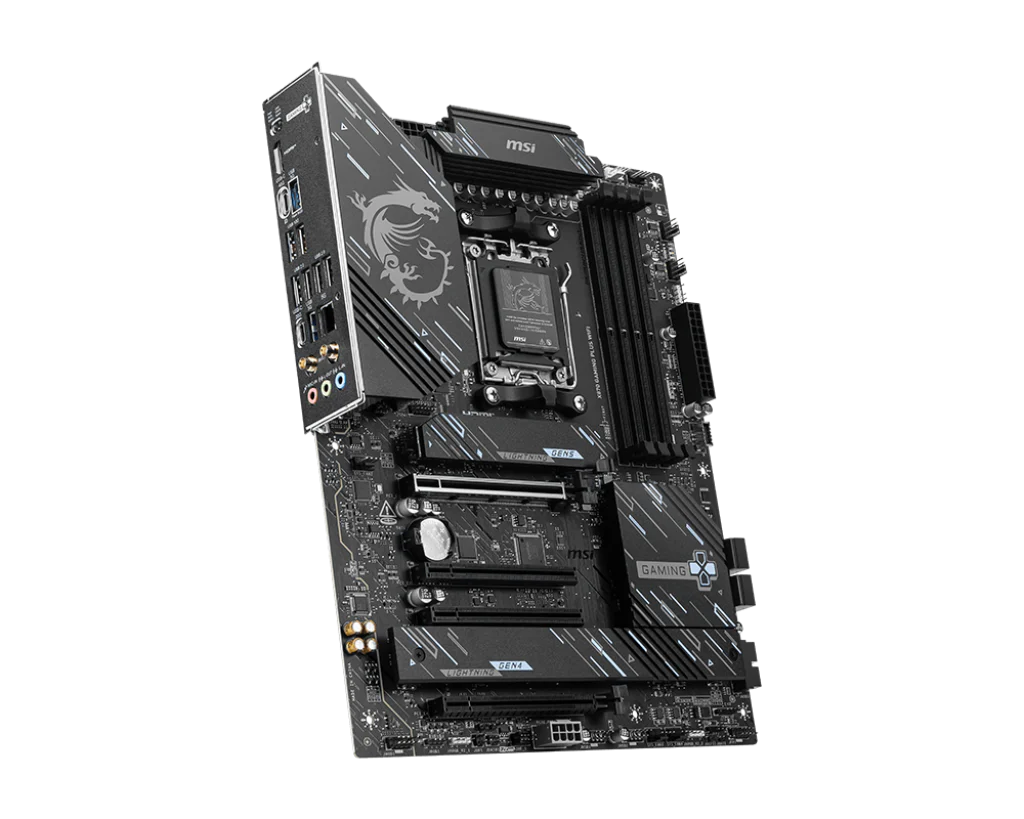

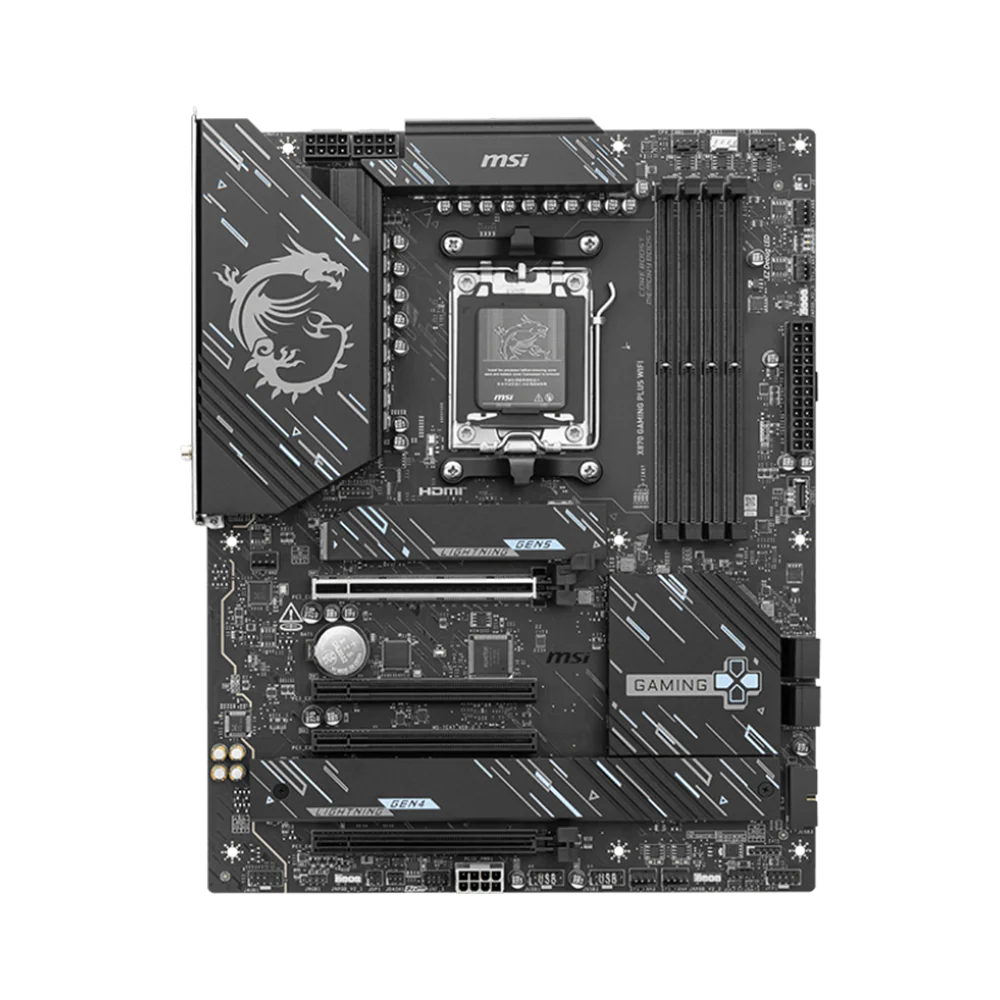

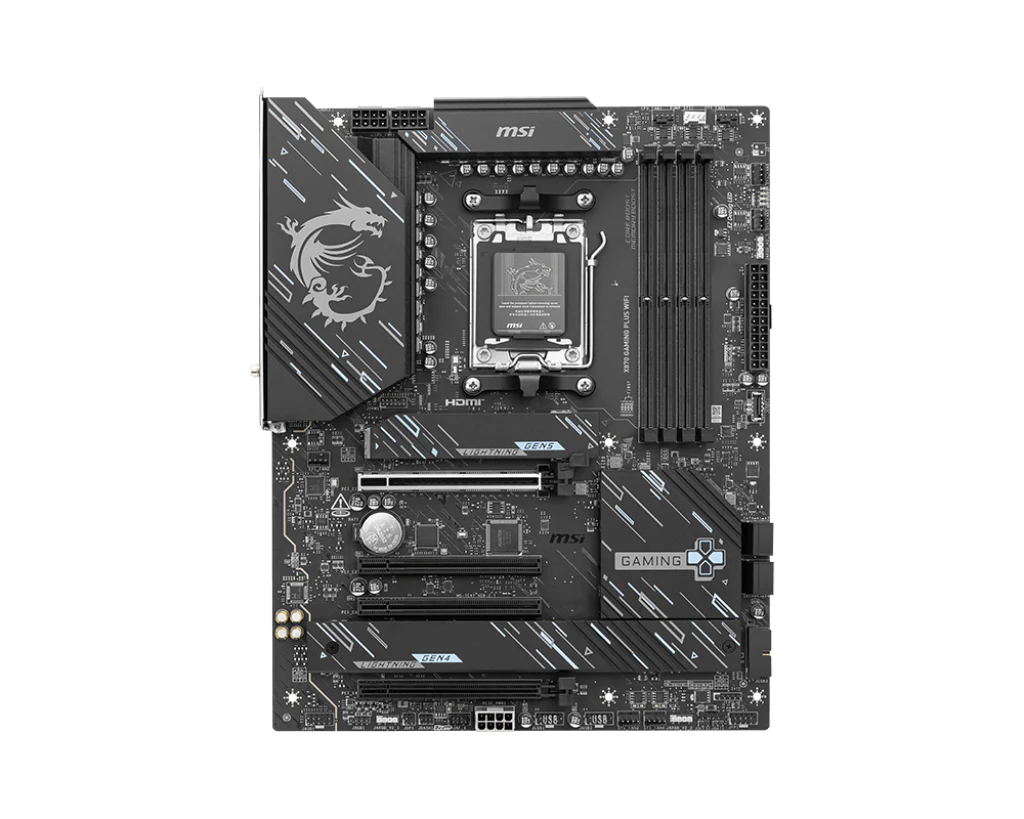

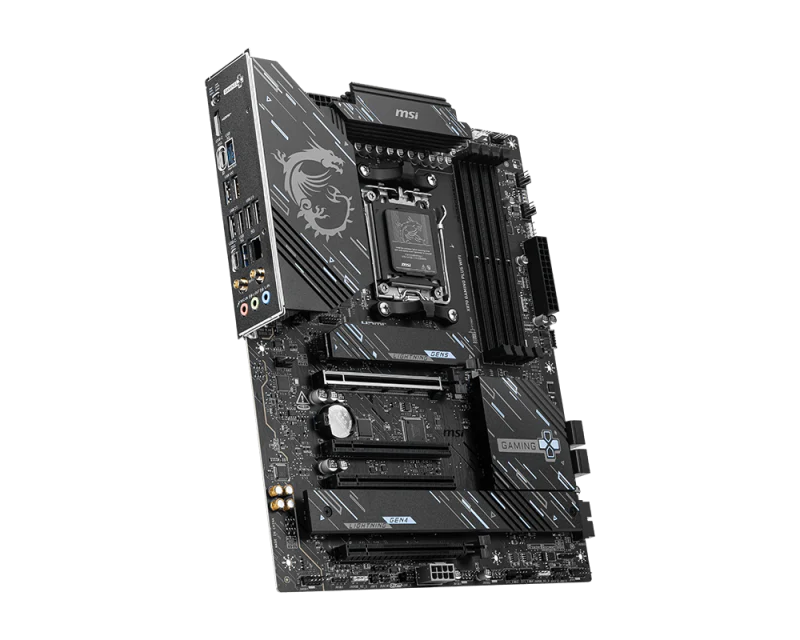

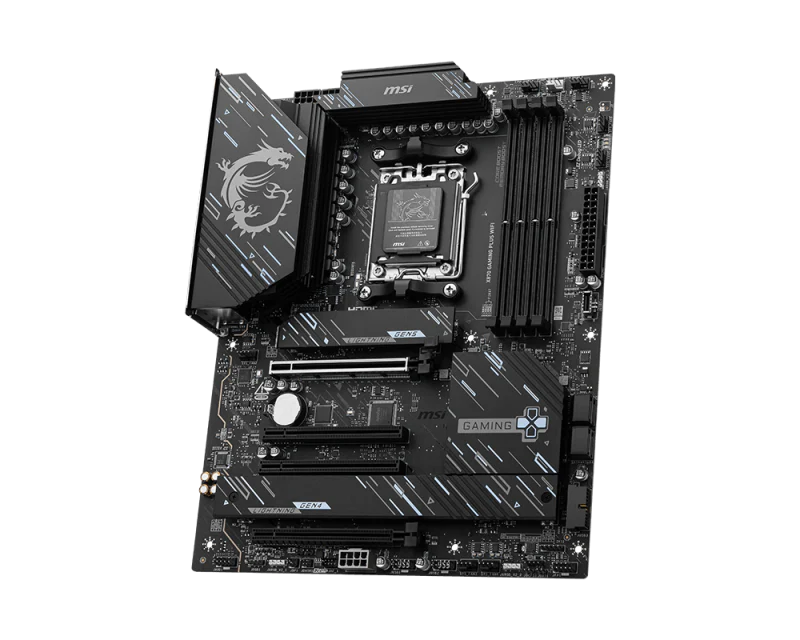

MSI X870 GAMING PLUS WIFI DDR5 Motherboard - Black
This high-end AMD X870 chipset motherboard is designed for enthusiasts and professional users.
It supports AMD Ryzen 9000, 8000, and 7000 series desktop processors on the AM5 socket, with advanced DDR5 memory support, PCIe 5.0, multiple high-speed storage slots, and integrated Wi-Fi 7 and Bluetooth 5.4.
It delivers top-tier connectivity, overclocking features, and modern I/O options for powerful gaming or workstation builds.
Key Features
- Socket AM5 with support for AMD Ryzen 9000, 8000, and 7000 series CPUs.
- DDR5 Memory up to 256 GB, with overclocking speeds up to 8200+ MT/s.
- PCIe 5.0 x16 slot for next-gen GPUs, with flexible compatibility across CPU series.
- Three M.2 slots with PCIe 5.0 and PCIe 4.0 support for ultra-fast storage.
- Wi-Fi 7 and Bluetooth 5.4 for high-speed wireless connectivity.
- 5G LAN with Realtek 8126VB chip for wired networking.
- Comprehensive USB options with USB 40Gbps Type-C, USB 20Gbps Type-C, and multiple USB-A ports.
- RAID 0/1/5 support for NVMe M.2 SSDs.
- Full RGB support with multiple addressable headers and RGB connectors.
- Premium audio with Realtek ALC897 7.1-channel HD audio.
Specifications
| Category | Details |
|---|---|
| Chipset | AMD X870 |
| CPU Support | AMD Ryzen 9000 / 8000 / 7000 Series |
| Socket | AM5 |
| Memory Slots | 4 × DDR5 UDIMM, up to 256 GB |
| Memory Speed | DDR5 8200+ (OC), 5600–4800 (JEDEC), AMD EXPO support |
| Memory Features | Dual-channel, Non-ECC, Un-buffered, CUDIMM (Clock Driver bypass mode) |
| Onboard Graphics | 1 × HDMI 2.1 (4K@60Hz), 1 × USB4 Type-C (DP 1.4, 4K@60Hz) |
| PCIe Slots | 1 × PCIe 5.0 x16 (CPU)1 × PCIe 4.0 x4 (Chipset)2 × PCIe 3.0 x1 (Chipset) |
| Audio | Realtek ALC897, 7.1-Channel HD Audio |
| Storage | 3 × M.2 slots (PCIe 5.0/4.0)4 × SATA 6G |
| RAID | RAID 0/1/5 for NVMe SSDs |

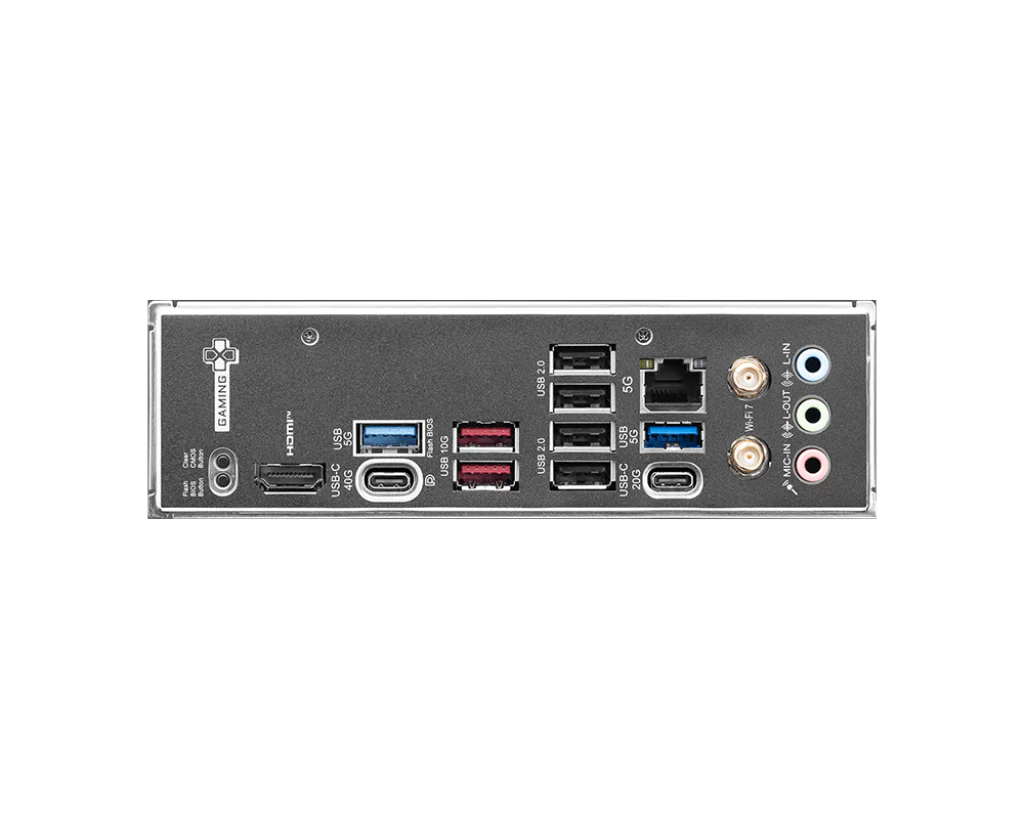

| USB Ports (Rear) | 4 × USB 2.0, 2 × USB 5Gbps Type-A, 2 × USB 10Gbps Type-A, 1 × USB 20Gbps Type-C, 1 × USB 40Gbps Type-C |
| USB Ports (Front) | 4 × USB 2.0, 2 × USB 5Gbps Type-A, 1 × USB 10Gbps Type-C |
| Networking | Realtek 8126VB 5G LAN, Wi-Fi 7, Bluetooth 5.4 |
| Fan Headers | 1 × CPU Fan, 1 × Pump/Combo Fan, 6 × System Fans |
| Power Connectors | 1 × 24-pin ATX, 2 × 8-pin CPU, 1 × 8-pin PCIe |
| RGB Headers | 3 × ARGB V2, 1 × RGB |
| Internal I/O | Front panel connectors, TPM header, chassis intrusion, EZ Debug LEDs |
| LED Indicators | 4 × EZ Debug LEDs |
