NZXT H5 Flow (2024) Compact Mid-Tower ATX Case - Black
The NZXT H5 Flow (2024) is a compact mid-tower case designed for strong airflow and easy PC building.
It features a perforated front panel for optimized cooling, dual-chamber layout for better cable management, and support for high-end GPUs and large cooling solutions.
Panels are tool-less for easy access, and the case includes two quiet 120 mm fans pre-installed.
Key Features
- Front mesh panel for maximum airflow and dust filtration.
- Dual-chamber interior for clean cable routing and component separation.
- Pre-installed Quiet Airflow 120 mm fans (front and rear).
- Perforated PSU shroud with support for bottom-mounted fans aimed at GPU cooling.
- Support for radiators up to 360 mm in the front and 240 mm/280 mm on top.

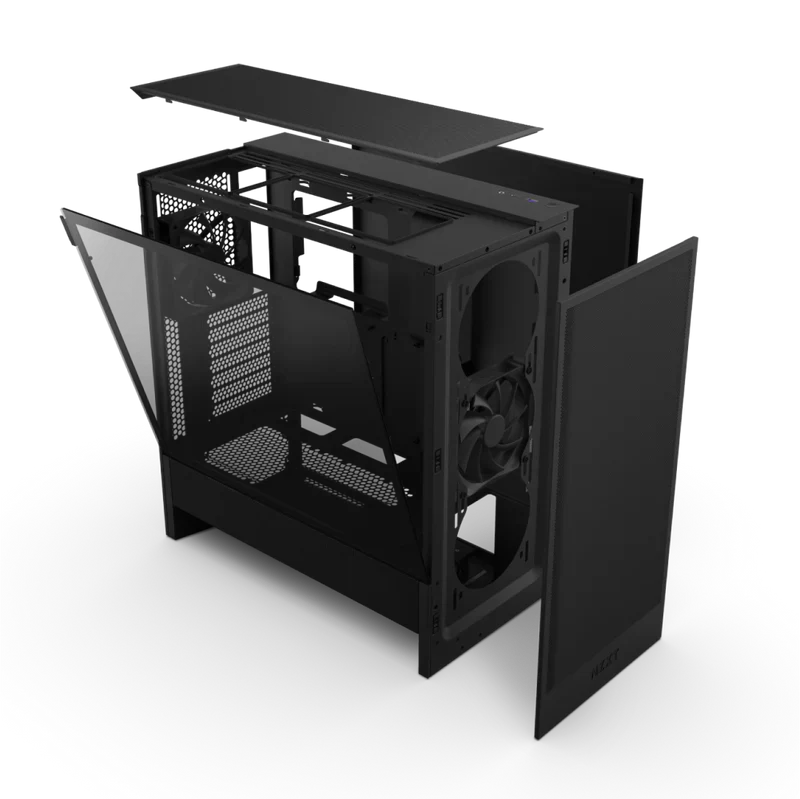

- Tool-less side, front, and top panel access.
- Full steel construction with tempered glass side panel.
- Multiple dust filters for front, top, and bottom.
- Wide motherboard compatibility including ATX, Micro-ATX, and Mini-ITX.
Specifications
| Category | Details |
|---|---|
| Dimensions (H × W × D) | 465 × 225 × 430 mm (18.3″ × 8.9″ × 16.9″) |
| Weight | 7.28 kg (16 lb) |
| Motherboard Support | ATX, Micro-ATX, Mini-ITX, E-ATX (up to 277 mm width) |
| CPU Cooler Height | Up to 170 mm |
| GPU Clearance | Up to 410 mm |
| PSU Length | Up to 200 mm |
| Drive Bays | 2 × 2.5″, 1 × 3.5″ |
| Expansion Slots | 7 PCI slots |
| Front I/O Ports | 1 × USB-A 3.2, 1 × USB-C 3.2 Gen 2, 1 × Headset Audio Jack |
| Fan Support | Front: 3 × 120 mm or 2 × 140 mmTop: 2 × 120 mm or 2 × 140 mmRear: 1 × 120 mmBottom: 2 × 120 mm |
| Radiator Support | Front: Up to 360 mmTop: Up to 240 mm or 280 mm (low-profile RAM required) |
| Dust Filters | Front, top, and bottom |
| Material | SGCC Steel, Tempered Glass |
