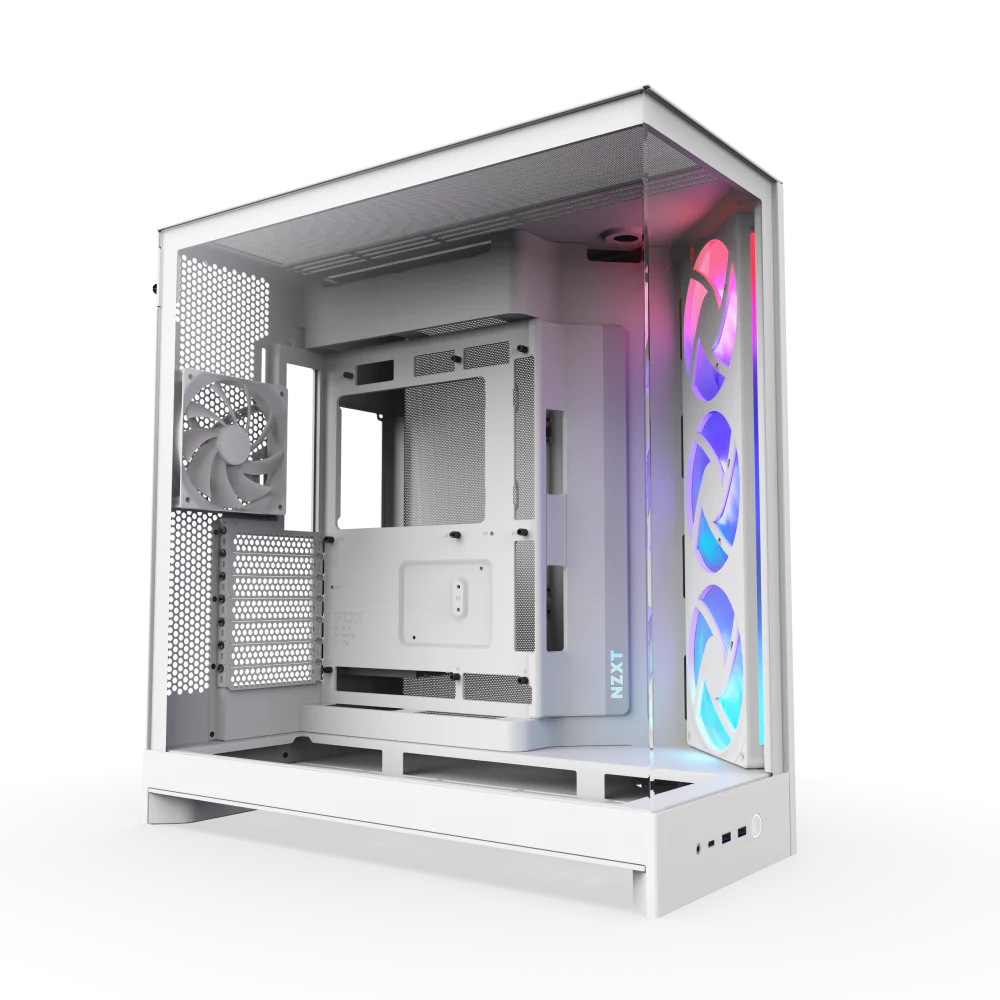

The NZXT H9 Flow RGB 2025 Dual Chamber Mid Tower Case With RGB Fans, White is designed for high-performance gaming systems and advanced PC builds that require strong airflow, spacious internal layout, and clean cable management. The case uses a dual-chamber design that separates heat-generating components from storage drives and the power supply, improving internal airflow and making system organization easier.
The NZXT H9 Flow RGB 2025 Dual Chamber Mid Tower Case With RGB Fans, White features a high-airflow structure with perforated mesh panels and angled front-side fans that direct cool air toward the main components. This airflow layout helps maintain stable temperatures during gaming sessions and heavy workloads.
The case includes RGB cooling fans pre-installed to provide strong airflow while enhancing the visual appearance of the system. The large interior supports multiple cooling configurations, including large radiators and multiple fan placements, allowing users to build advanced cooling systems for powerful processors and graphics cards.
The NZXT H9 Flow RGB 2025 Dual Chamber Mid Tower Case With RGB Fans also features wraparound tempered glass panels that provide a clear panoramic view of internal components. This design highlights RGB lighting and premium hardware while maintaining a clean and modern appearance.
With its spacious internal layout, strong cooling support, and modern aesthetic design, the case is suitable for gaming systems, custom PC builds, and high-performance workstations.
Key Features
• NZXT H9 Flow RGB 2025 Dual Chamber Mid Tower Case With RGB Fans supports high-performance PC builds
• Dual-chamber internal layout for improved airflow and cable management
• High-airflow mesh panels for efficient cooling
• Pre-installed RGB fans for airflow and visual customization
• Supports up to ten cooling fans in total
• Wraparound tempered glass panels for panoramic internal view
• Support for large radiators up to 420 mm
• Spacious interior supporting large graphics cards
• Advanced cable management channels and mounting points
• Compatible with rear-connection motherboards for cleaner builds
Technical Specifications
General Information
| Specification | Details |
|---|---|
| Brand | NZXT |
| Model | H9 Flow RGB |
| Product Type | Mid Tower PC Case |
| Internal Layout | Dual Chamber |
| Color | White |
Explanation
The dual-chamber layout separates core components from storage and power supply areas to improve airflow and cable organization.
Dimensions and Weight
| Specification | Details |
|---|---|
| Height | 506 mm |
| Width | 315 mm |
| Depth | 481 mm |
| Volume | 76.7 L |
| Weight | 12.6 kg |
Explanation
The spacious interior allows installation of large cooling systems, graphics cards, and modern hardware components.
Cooling Support
| Specification | Details |
|---|---|
| Maximum Fan Capacity | Up to 10 fans |
| Top Fan Support | 3 × 120 mm or 3 × 140 mm |
| Front-Right Fan Support | 3 × 120 mm or 3 × 140 mm |
| Bottom Fan Support | 3 × 120 mm or 3 × 140 mm |
| Rear Fan Support | 1 × 120 mm or 1 × 140 mm |
Explanation
Multiple fan mounting locations allow users to build strong airflow systems for improved cooling performance.
Radiator Support
| Specification | Details |
|---|---|
| Top Radiator | Up to 420 mm |
| Front-Right Radiator | Up to 420 mm |
| Rear Radiator | 120 mm |
| Bottom Radiator | Up to 360 mm |
Explanation
Large radiator support allows installation of advanced liquid cooling systems for powerful processors.
Graphics Card and Component Clearance
| Specification | Details |
|---|---|
| Maximum GPU Length | Up to 435 mm |
| CPU Cooler Clearance | Large tower coolers supported |
| Motherboard Support | Standard ATX platforms |
Explanation
The case provides enough space for large modern graphics cards used in high-end gaming systems.
Front I/O Connectivity
| Specification | Details |
|---|---|
| USB Type-C Port | 1 |
| USB Type-A Ports | 2 |
| Audio Jack | 3.5 mm combo |
Explanation
Front panel connectivity allows easy access to peripherals and audio devices.
Storage Support
| Specification | Details |
|---|---|
| Drive Bays | Multiple storage mounting positions |
Explanation
The case supports installation of solid-state drives and traditional storage drives depending on build configuration.
User Experience
The NZXT H9 Flow RGB 2025 Dual Chamber Mid Tower Case With RGB Fans provides a spacious internal structure that simplifies PC assembly and hardware installation. The dual-chamber design keeps cables organized and improves airflow around core components.
The optimized airflow layout combined with multiple fan and radiator mounting options allows users to build powerful cooling systems capable of handling modern high-performance hardware. The tempered glass panels showcase RGB lighting and internal components, making the case suitable for visually striking gaming builds.
Included Items
• NZXT H9 Flow RGB Mid Tower Case, White
• Pre-installed RGB cooling fans
• Case mounting hardware
• Cable management accessories
• User documentation
• Protective packaging materials
