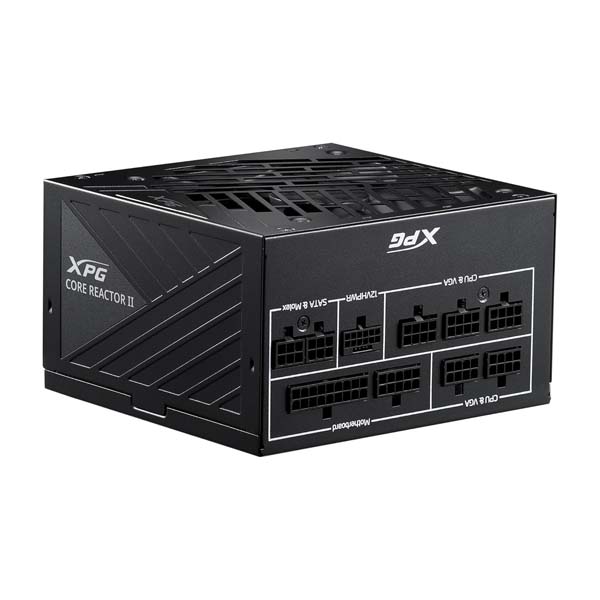

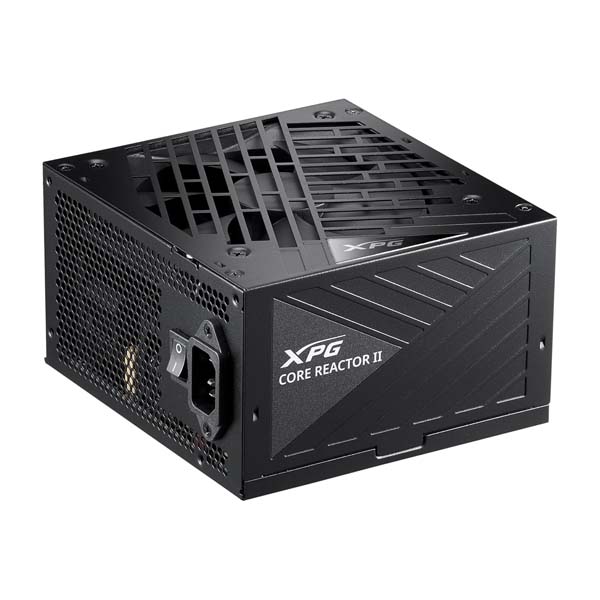

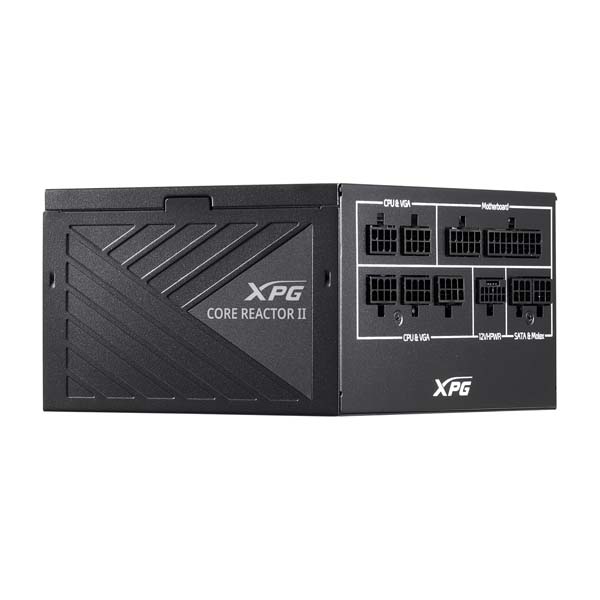

XPG Core Reactor II VE 850W ATx 3.1 80 Plus Gold Fully Modular Power Supply - Black

XPG Core Reactor II VE 850W delivers stable, efficient, and quiet power for advanced PC builds. It supports the latest ATX 3.1 standard, features a fully modular design, and includes premium Japanese capacitors for long-term reliability. Ideal for gaming systems, workstations, and power-hungry setups.

---

Key Features

• ATX 3.1 compliant with 12V-2x6 / 12VHPWR (600W) connector
• 80 Plus Gold certified efficiency (up to 91.4%)
• Fully modular cable design for easy cable management
• 120mm fluid dynamic bearing fan with intelligent speed control
• Japanese 105°C capacitors for improved durability
• Supports up to 235% power excursion for handling sudden power spikes
• Silent operation with extended fan lifespan
• Backed by a 10-year warranty

---

Technical Details

• Total Power Output: 850W
• Dimensions: 140 x 150 x 86 mm
• Fan: 120mm FDB, 2400 RPM
• MTBF: 100,000 hours at full load
• Input Voltage: 100–240V
• Input Current: 12A
• Input Frequency: 47Hz–63Hz
• Power Excursion: Up to 1997W (100μs burst)
• Operating Temp: Up to 50°C

DC Output:

• +5V / +3.3V: 22A
• +12V: 70.8A
• -12V: 0.3A
• +5Vsb: 3A

---

Connectivity

• ATX 24-pin: 1
• EPS 8-pin: 2
• PCIe 6+2 pin: 6
• SATA: 8
• Molex 4-pin: 4
• 12VHPWR (12+4) 600W: 1

---

Protections

• OCP, OVP, OPP, OTP, UVP, SCP, NLO, SIP

Certifications

• CE, CB, FCC, TUV, cTUVus, NOM, BSMI, UKCA, EAC, CCC, RCM

---

Included Items

• Core Reactor II 850W PSU – Black
• Modular Cables
• Power Cable
• User Manual
