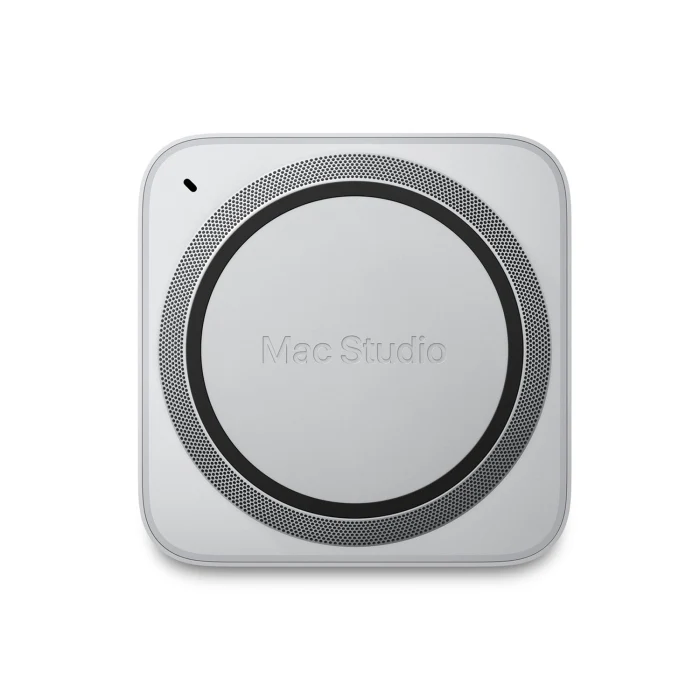

Apple Mac Studio M4 Max Chip 16-Core CPU 40-Core GPU 128GB RAM 1TB SSD - Silver

The Apple Mac Studio (M4 Max) delivers exceptional workstation performance in a compact desktop form. Powered by the Apple M4 Max chip with a 16-core CPU and 40-core GPU, it’s engineered for professionals handling 3D rendering, AI workflows, and high-end video production. With 128GB of unified memory and a 1TB SSD, it provides unmatched speed and multitasking capability. Supporting up to five displays and equipped with Thunderbolt 5 ports, Wi-Fi 6E, and 10Gb Ethernet, the Mac Studio is built to handle the most demanding creative environments with precision and reliability.

Key Features

• Apple M4 Max chip with 16-core CPU and 40-core GPU.
• 128GB unified memory and 1TB SSD for extreme performance.
• Supports up to five external displays (up to 8K).
• Thunderbolt 5 connectivity with up to 120Gb/s bandwidth.
• Built-in speaker and high-impedance 3.5mm headphone jack.
• Compact aluminum chassis with advanced cooling.
• Wi-Fi 6E, Bluetooth 5.3, and 10Gb Ethernet for fast connectivity.

Specifications

Category	Details
Model Number	Apple Mac Studio (M4 Max) – Silver
Part No	Z1CD0023T
Processor	Apple M4 Max chip
CPU	16-Core (10 Performance + 4 Efficiency Cores)
GPU	40-Core GPU with hardware-accelerated ray tracing
Neural Engine	16-Core
Memory Bandwidth	410GB/s
Media Engine	Hardware-Accelerated H.264, HEVC, ProRes, and ProRes RAW
Video Engines	Two Decode Engines, Two Encode Engines, Two ProRes Encode/Decode Engines, AV1 Decode
Memory	128GB Unified Memory
Storage	1TB SSD
Video Support	Up to 5 Displays Supported
Display Configurations	- 4× 6K @ 60Hz (Thunderbolt) + 1× 4K @ 144Hz (HDMI) - 2× 6K @ 60Hz (Thunderbolt) + 1× 8K @ 60Hz or 4K @ 240Hz (HDMI)
Audio	Built-in Speaker, 3.5mm Jack (High-Impedance Support), HDMI Multichannel Output

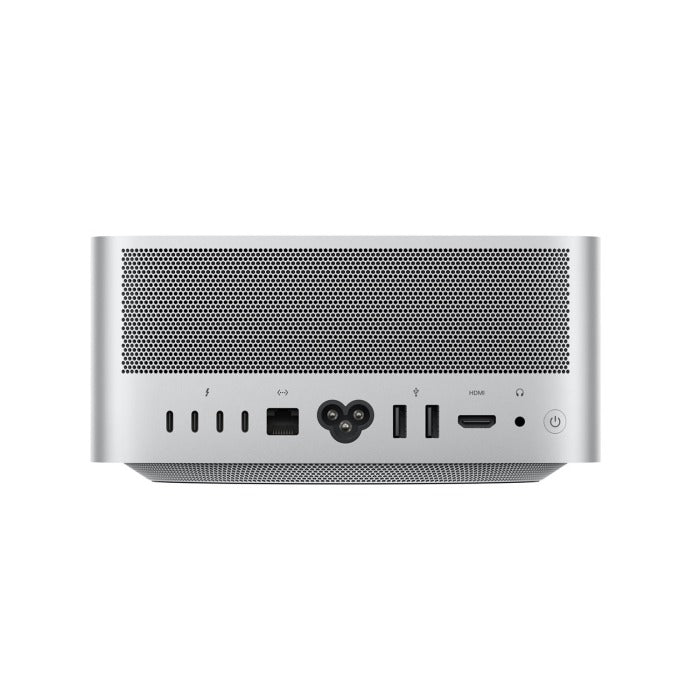

Rear Ports	4× Thunderbolt 5 (USB-C), 2× USB-A, HDMI 2.1, 10Gb Ethernet, 3.5mm Jack

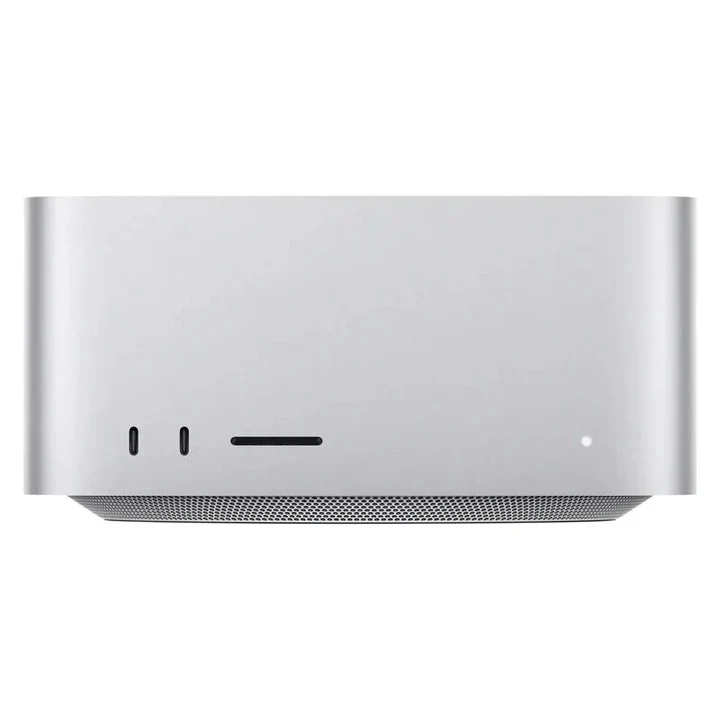

Front Ports (M4 Max)	2× USB-C (up to 10Gb/s), 1× SDXC (UHS-II)
Connectivity	Wi-Fi 6E (802.11ax), Bluetooth 5.3
Ethernet	10Gb Ethernet (Nbase-T: 1Gb / 2.5Gb / 5Gb / 10Gb RJ-45 Support)
Dimensions	Height: 9.5 cm • Width: 19.7 cm • Depth: 19.7 cm
Weight	2.74 kg (6.1 lbs)
In the Box	Mac Studio, Power Cord
