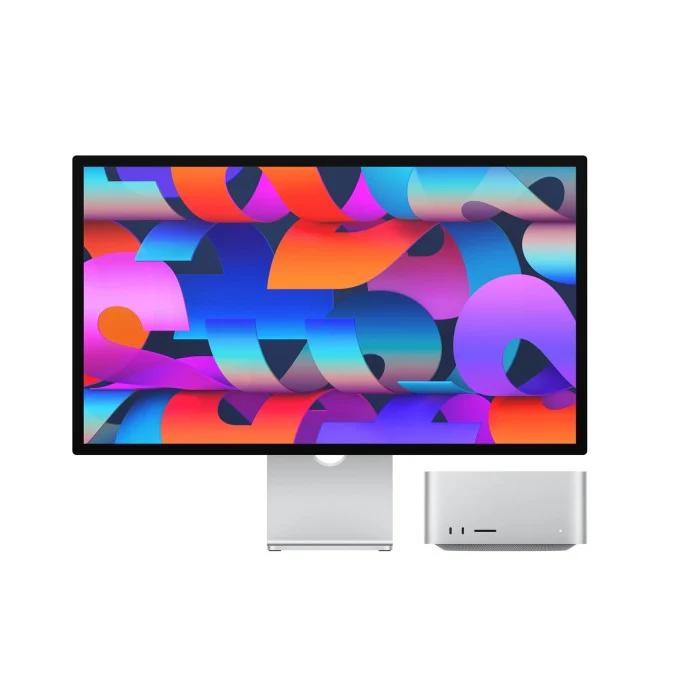

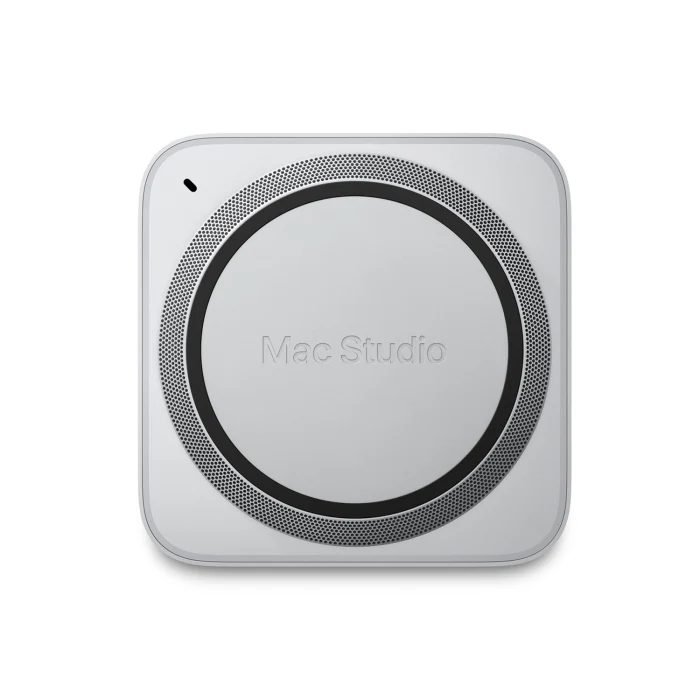

Apple Mac Studio M4 Max Chip 16-Core CPU 40-Core GPU 128GB RAM 2TB SSD - Silver

The Apple Mac Studio (M4 Max) delivers elite workstation-grade performance in a remarkably compact desktop. Powered by the Apple M4 Max chip with a 16-core CPU, 40-core GPU, and 16-core Neural Engine, it achieves extraordinary speed for 3D rendering, AI tasks, and advanced video production. With 128GB unified memory and a 2TB SSD, it ensures seamless multitasking and massive data throughput. Equipped with Thunderbolt 5, HDMI 2.1, Wi-Fi 6E, and 10Gb Ethernet, this Mac Studio is built for professionals who demand power, connectivity, and precision.

Key Features

• Apple M4 Max chip with 16-core CPU and 40-core GPU.
• 128GB unified memory and 2TB SSD for ultimate performance.
• Supports up to 5 external displays, including up to 8K.
• Thunderbolt 5 ports with up to 120Gb/s bandwidth.
• Built-in speaker and high-impedance headphone jack.
• Compact aluminum body with advanced thermal design.
• Wi-Fi 6E, Bluetooth 5.3, and 10Gb Ethernet for high-speed connectivity.

Specifications

Category	Details
Model Number	Apple Mac Studio (M4 Max)
Part No	Z1CD0023G
Processor	Apple M4 Max chip
CPU	16-Core (10 Performance + 6 Efficiency Cores)
GPU	40-Core GPU
Neural Engine	16-Core
Memory Bandwidth	546GB/s
Media Engine	Hardware-Accelerated H.264, HEVC, ProRes, ProRes RAW, and AV1 Decode
Video Engines	Two Decode Engines, Two Encode Engines, Two ProRes Encode/Decode Engines
Memory	128GB Unified Memory
Storage	2TB SSD
Video Support	Up to 5 Displays Supported
Display Configurations	- 4× 6K @ 60Hz (Thunderbolt) + 1× 4K @ 144Hz (HDMI) - 2× 6K @ 60Hz (Thunderbolt) + 1× 8K @ 60Hz or 4K @ 240Hz (HDMI)
Audio	Built-in Speaker, 3.5mm Jack (High-Impedance Support), HDMI Multichannel Output
Rear Ports	4× Thunderbolt 5 (USB-C), 2× USB-A, HDMI 2.1, 10Gb Ethernet, 3.5mm Jack
Front Ports	2× USB-C (up to 10Gb/s), 1× SDXC (UHS-II)
Connectivity	Wi-Fi 6E (802.11ax), Bluetooth 5.3
Ethernet	10Gb Ethernet (Nbase-T: 1Gb / 2.5Gb / 5Gb / 10Gb RJ-45 Support)
Dimensions	Height: 9.5 cm • Width: 19.7 cm • Depth: 19.7 cm
Weight	2.74 kg (6.1 lbs)
In the Box	Mac Studio, Power Cord



REFNX Z1CD0023G
