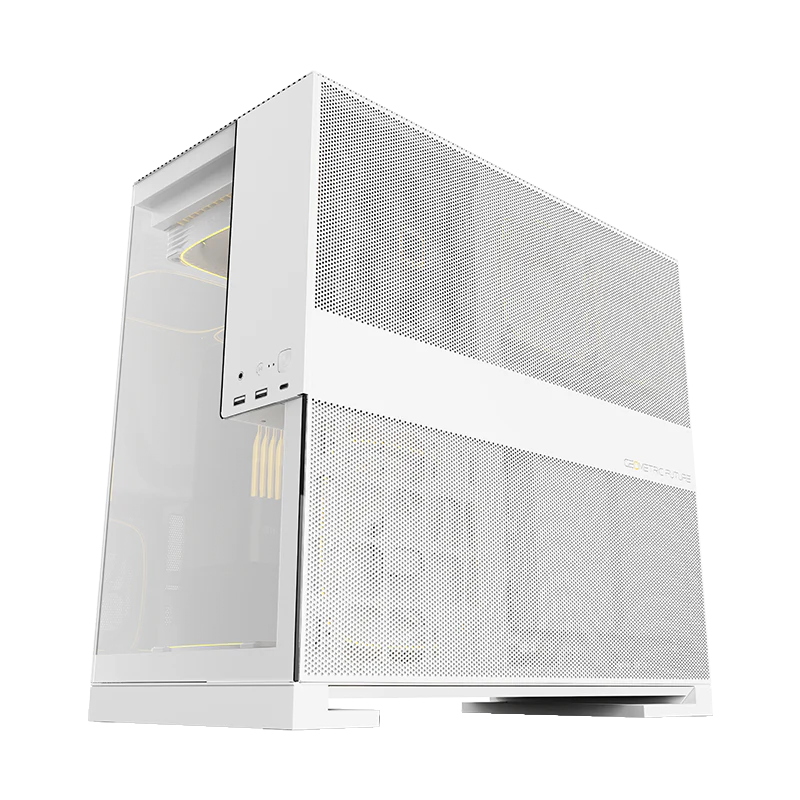

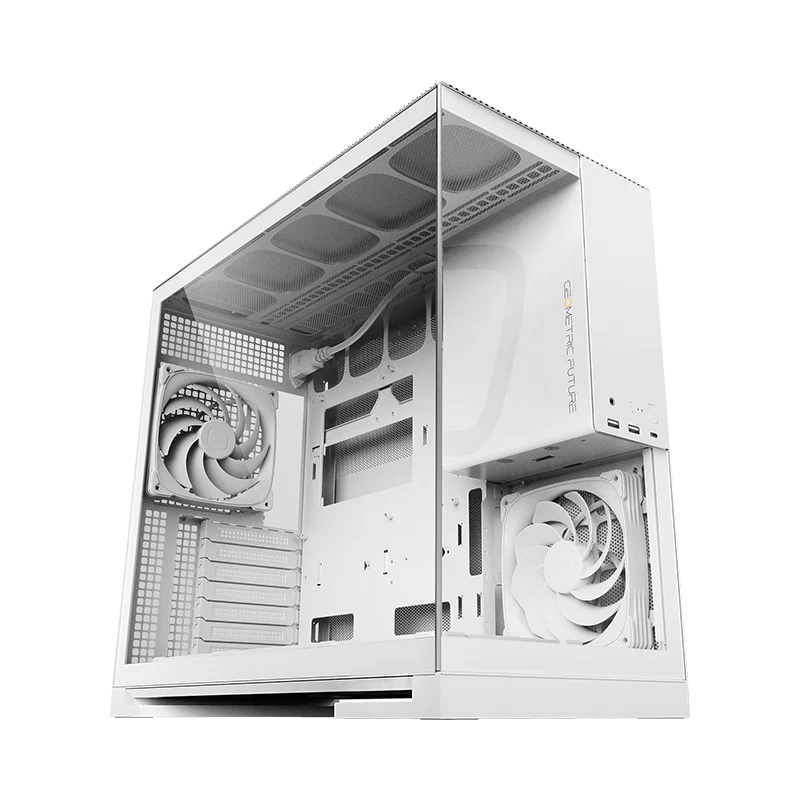

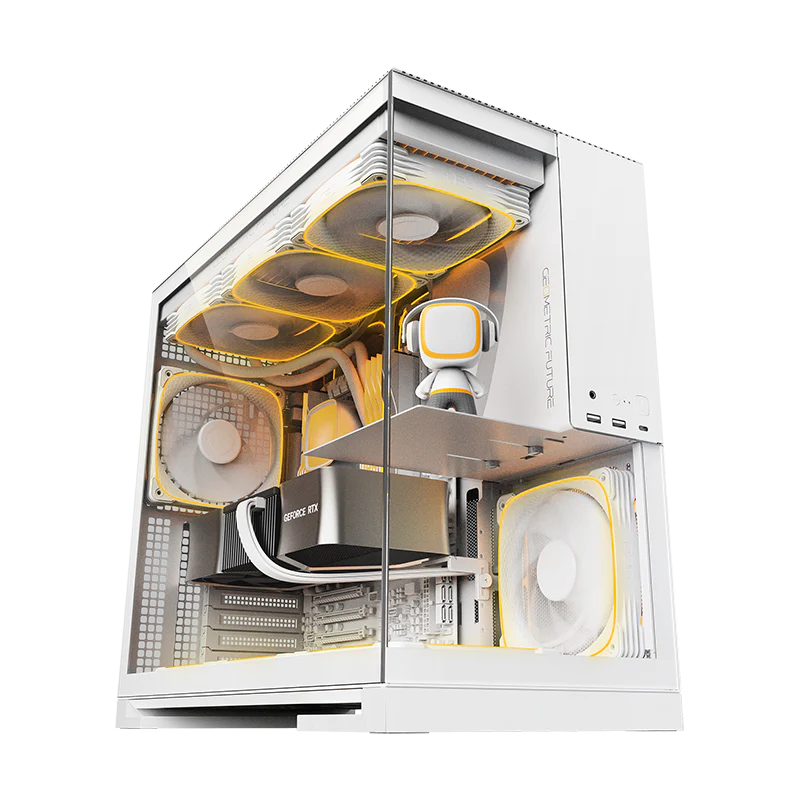

Geometric Future Model 5 Mid Tower Glass Case with 5 Fans - White

The Geometric Future Model 5 Mid Tower is a premium steel and tempered glass gaming case built for high-performance setups.
With five pre-installed fans, it offers excellent airflow and cooling efficiency for gaming PCs or professional workstations.
It supports E-ATX, ATX, M-ATX, and ITX motherboards, and accommodates large GPUs, high-end coolers, and full modular power supplies.
The design features a 4mm tempered glass side panel for clear component visibility and a modern front I/O panel with USB-C 20Gbps support.

---

Key Features

• 5 Pre-Installed Fans: Ensures strong airflow for stable thermal performance.
• Premium Build Quality: 0.8mm–1.2mm thick steel frame with 4mm tempered glass panel.
• Motherboard Compatibility: Supports E-ATX, ATX, M-ATX, and ITX.
• Advanced Cooling Options: Supports up to 10 fans and 420mm radiators for water cooling.
• Modern I/O Connectivity: Dual USB 3.0 ports, USB-C 20Gbps, and HD Audio combo jack.
• GPU Flexibility: Horizontal or vertical GPU mounting with lengths up to 460mm.
• Optimized Airflow Layout: Top, bottom, and rear fan support for efficient cooling.
• Compact but Spacious Design: Perfect balance of airflow, cable management, and hardware space.

---

Technical Details

• Case Type: Mid Tower (Medium Glass Tower)
• Material: Steel (0.8–1.2mm), Tempered Glass (4mm thick)

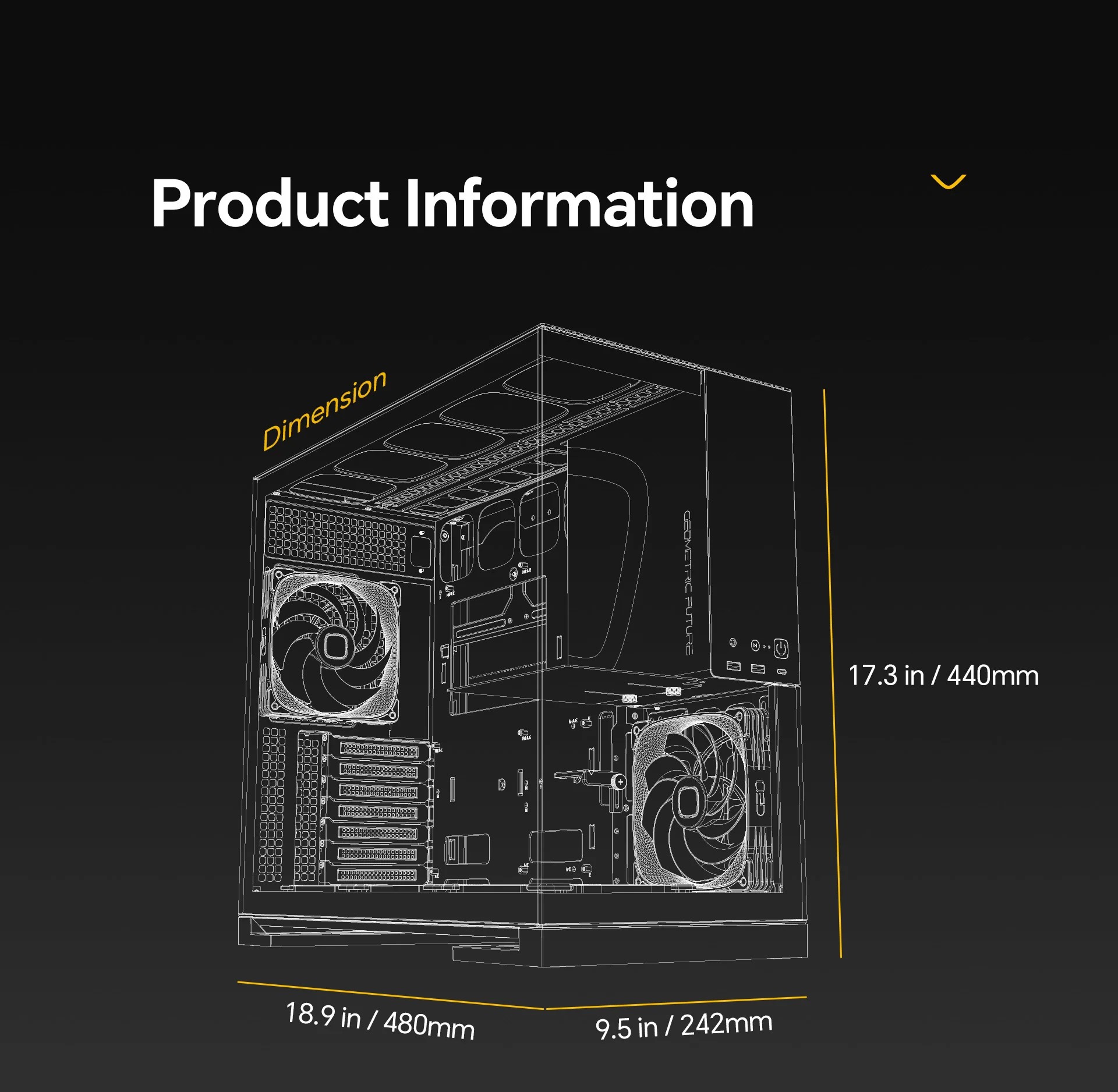

• Dimensions (DxWxH): 480 × 242 × 440 mm (18.9" × 9.5" × 17.3")
• Motherboard Support: E-ATX (12"x11"), ATX, M-ATX, ITX
• Drive Bays: Maximum 2×3.5" or 2×2.5"
• Power Supply Compatibility: ATX (Length <160mm, Full Modular recommended)
• Expansion Slots:
• Horizontal: PCI-E x7 (GPU Length <460mm, Width <180mm)
• Vertical: PCI-E x4 (GPU Length <460mm, Width <160mm, Thickness <110mm)
• Cooling Support:
• Top: 3×120mm / 3×140mm Fans, 360mm / 420mm Radiator
• Rear: 1×120mm / 1×140mm Fan, 120mm / 140mm Radiator
• Front Right: 1×120mm / 1×140mm / 1×160mm Fan
• Motherboard Back: 2×120mm Fans
• Bottom: 3×120mm / 3×140mm Fans, 360mm Radiator
• CPU Cooler Height Limit: <180mm
• I/O Ports:
  • 2× USB 3.0
  • 1× Type-C (20Gbps)
  • 1× HD Audio (CTIA Standard – Headset & Mic)

---

User Benefits

• Strong Cooling Out of the Box: Comes with 5 pre-installed fans for optimal heat management.
• Premium Aesthetic: Tempered glass panel provides a clean view of your RGB build.
• Full Compatibility: Supports large GPUs, multiple storage devices, and custom cooling.
• Modern Design: Minimalist yet functional for both gaming and professional setups.
• Easy Maintenance: Dust filters and modular panels allow for simple cleaning and upgrades.

---

Included Items

• Geometric Future Model 5 Mid Tower Case (Black/White)
• 5 Pre-Installed Cooling Fans
• Mounting Screws and Accessories
• Dust Filters
• Quick Installation Guide
