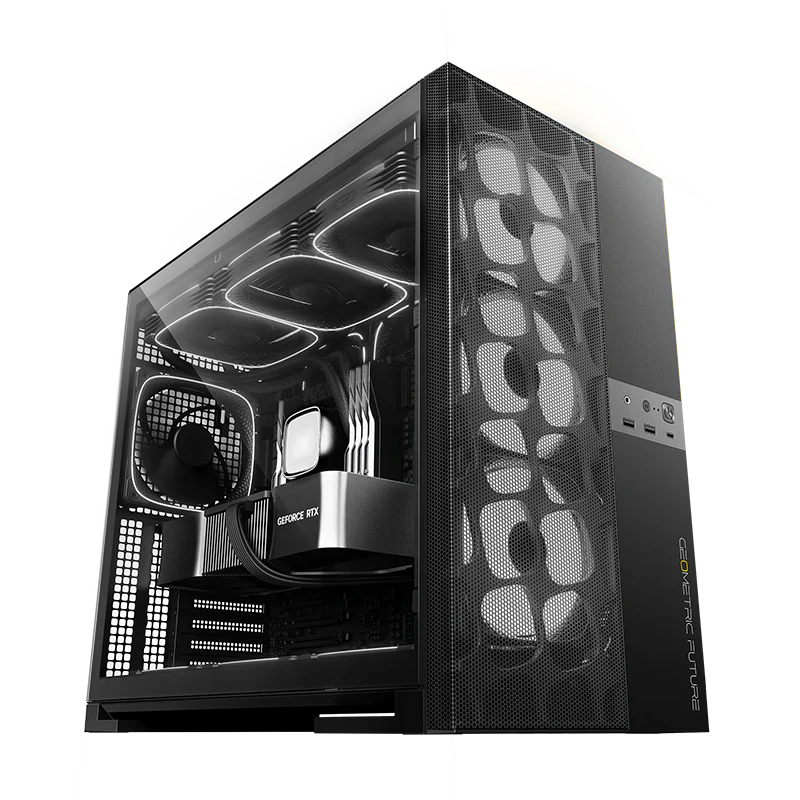

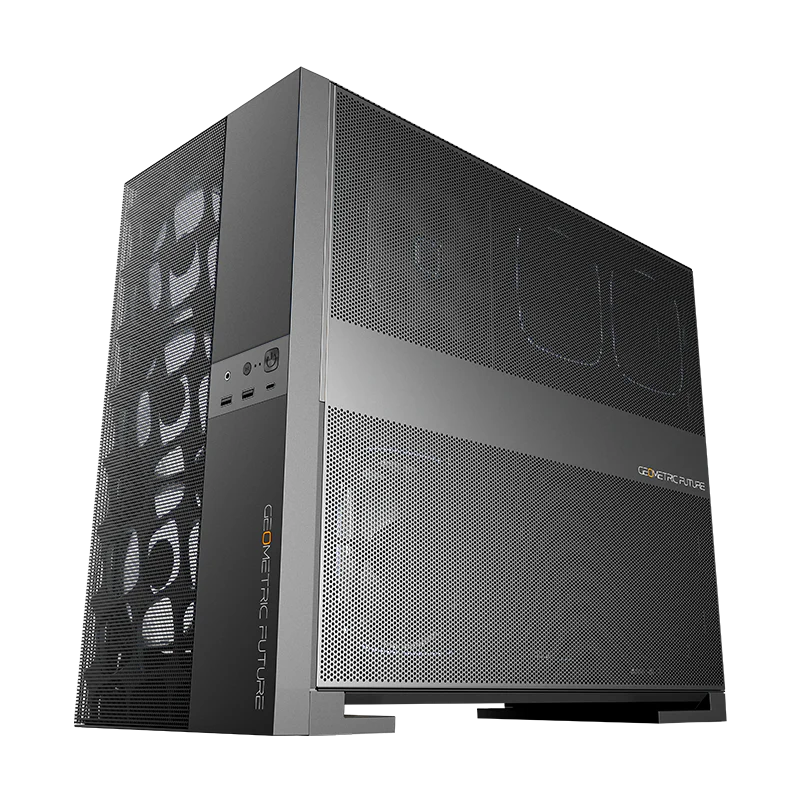

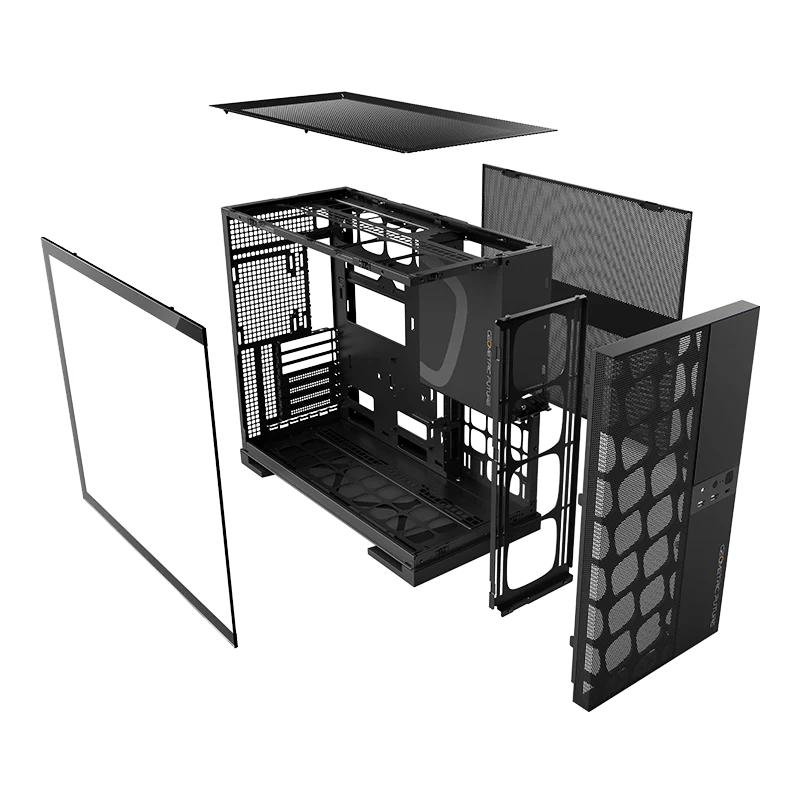

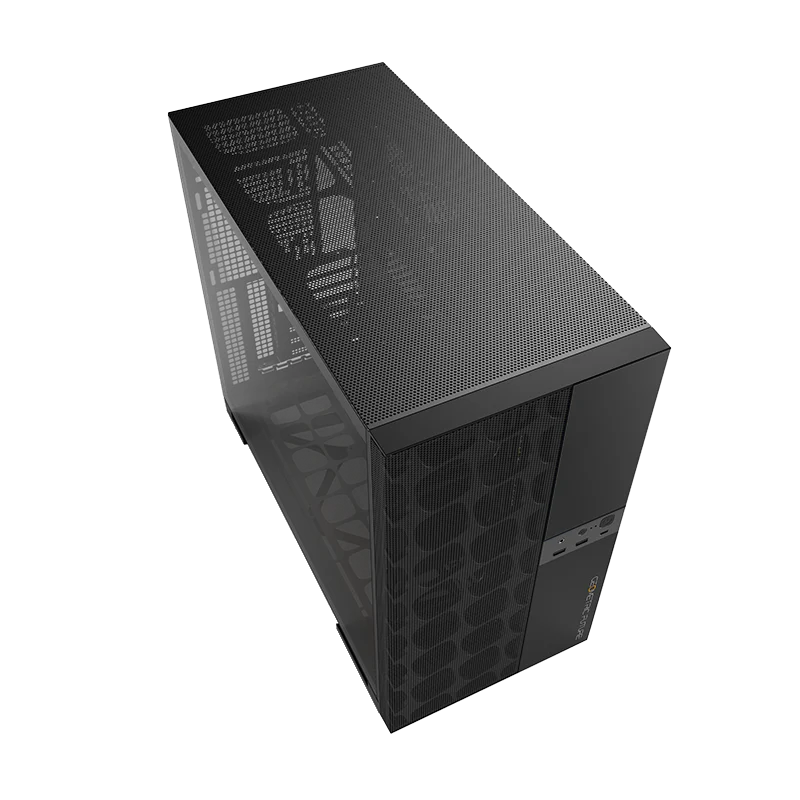

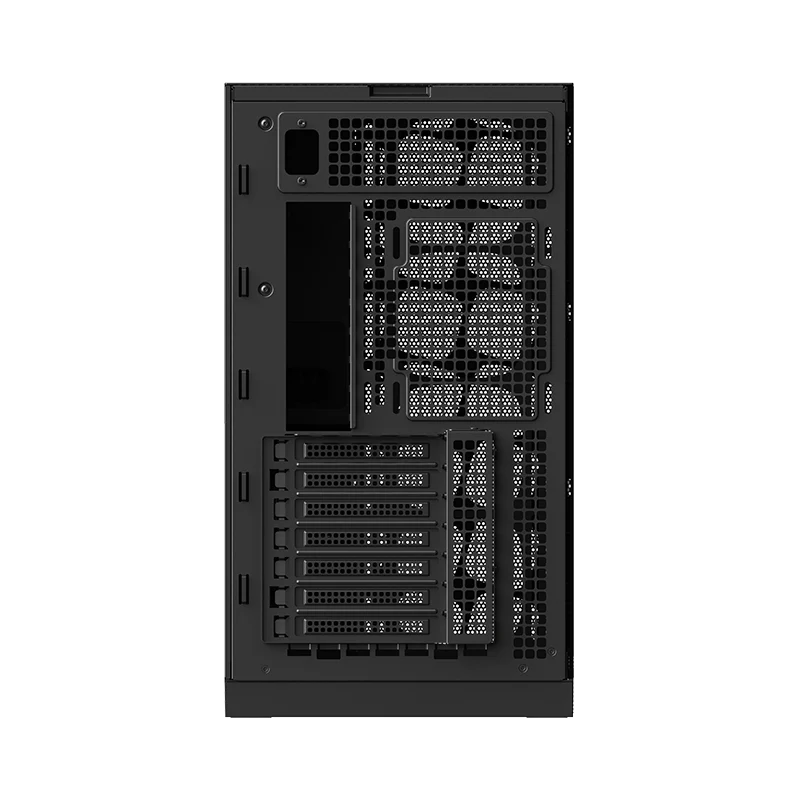

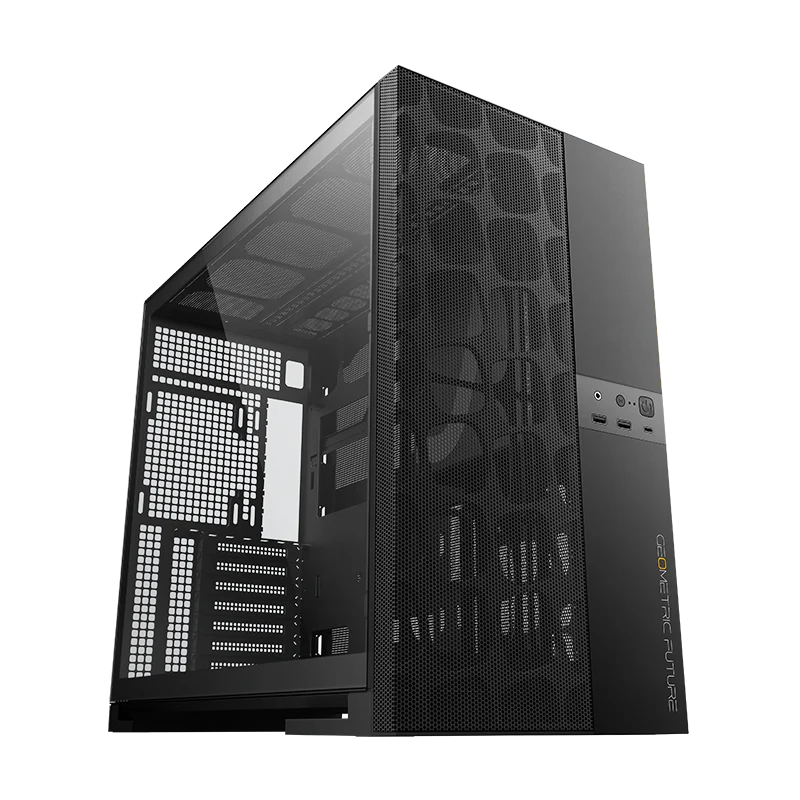

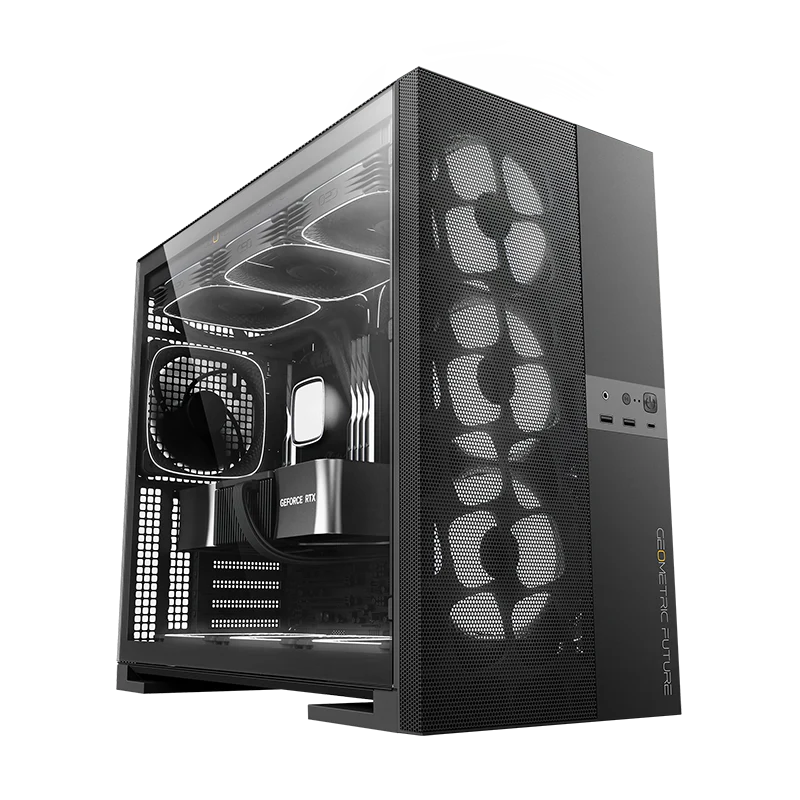

Geometric Future Model 5 Vent Mesh Mid Tower Case with 2503-140mm fan x5 - Black

The Geometric Future Model 5 Vent Mesh is a high-performance mid-tower case built for modern gaming systems and professional PC builds.
Featuring a steel mesh design, it delivers superior airflow, keeping components cool under heavy loads.
The case includes five 140mm pre-installed fans (Model 2503) for balanced cooling efficiency and quiet operation.
Constructed from eco-friendly steel and 4mm tempered glass, it combines durability with a premium look.
With full support for E-ATX motherboards, large GPUs, and multiple liquid cooling setups, this chassis is made for enthusiasts who demand both style and performance.

---

Key Features

• High Airflow Steel Mesh Design – Promotes superior ventilation for optimized cooling performance
• Five Pre-Installed 140mm Fans (Model 2503) – Provides quiet, efficient airflow from the start
• Durable Build – 0.8mm–1.2mm steel frame with 4mm tempered glass side panel
• Versatile Cooling Support – Multiple radiator and fan mounting locations up to 420mm
• Spacious Interior – Fits full-size GPUs (up to 430mm) and large CPU coolers (up to 180mm)
• Modern Front I/O – Includes USB-C 20Gbps, dual USB 3.0, and HD Audio (CTIA) combo
• Flexible GPU Mounting – Supports both horizontal and vertical GPU installation
• Cable Management Ready – Clean internal layout for professional cable routing

---

Technical Details

• Model: Geometric Future Model 5 Vent Mesh
• Case Type: Mid Tower
• Color: Black
• Material: Steel (0.8mm–1.2mm), Tempered Glass (4mm)
• Product Dimensions (DxWxH): 505 × 242 × 440 mm (19.9" × 9.5" × 17.3")
• Motherboard Support: E-ATX (12"×11"), ATX, M-ATX, ITX
• Drive Bays: Up to 2×3.5" or 2×2.5"
• Power Supply Support: PSII (ATX, length under 160mm recommended)
• Front I/O Ports:
  • 2× USB 3.0
  • 1× USB-C (20Gbps)
  • 1× HD Audio (CTIA headset/microphone combo)
• GPU Support:
• Horizontal: Length ≤ 430mm, Width ≤ 180mm
• Vertical: Length ≤ 430mm, Width ≤ 160mm, Thickness ≤ 110mm (2 bottom fans supported)
• CPU Cooler Clearance: Up to 180mm
• Cooling Support:
• Top: 3×120mm / 3×140mm fans or up to 420mm radiator
• Rear: 1×120mm / 1×140mm fan or 120/140mm radiator
• Right Front: 1×120/140/160mm fan
• Back of Motherboard: 2×120mm fans
• Bottom: 3×120mm / 3×140mm fans or 360mm radiator
• Front: 3×120mm or 2×140mm fans or 360mm radiator

---

User Benefits

• Maximum Airflow Efficiency: Pre-installed 140mm fans ensure excellent cooling right out of the box
• Flexible Build Options: Compatible with custom liquid cooling, air-cooled setups, or hybrid systems
• Full-Sized GPU Support: Easily accommodates high-end graphics cards up to 430mm
• Future-Ready Connectivity: Type-C 20Gbps for next-generation devices
• Modern Design: Steel mesh front and tempered glass side deliver a clean, industrial look

---

Included Items

• Geometric Future Model 5 Vent Mesh Mid Tower Case
• 5× 140mm Pre-Installed Fans (Model 2503)
• Mounting Screws and Accessories
• Tempered Glass Side Panel
• Dust Filters (magnetic top and bottom)
• Quick Installation Guide
