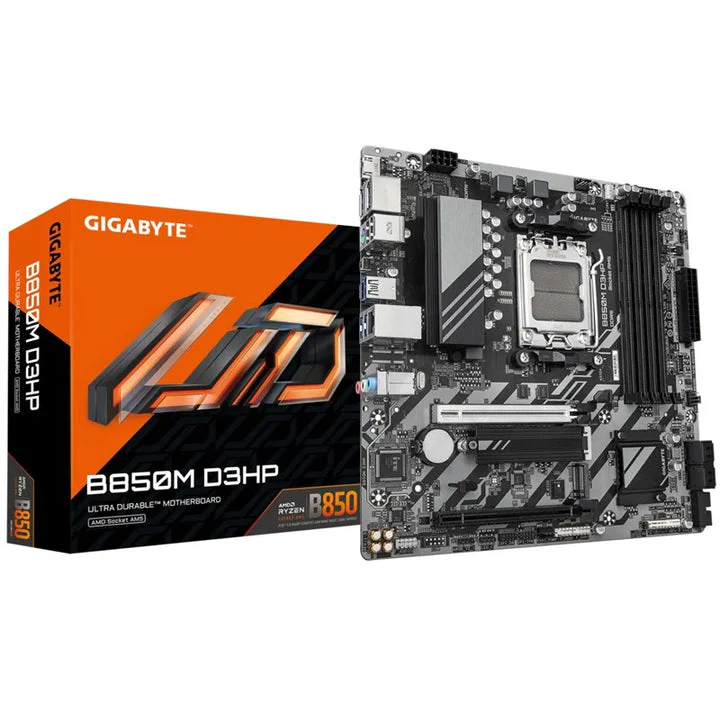

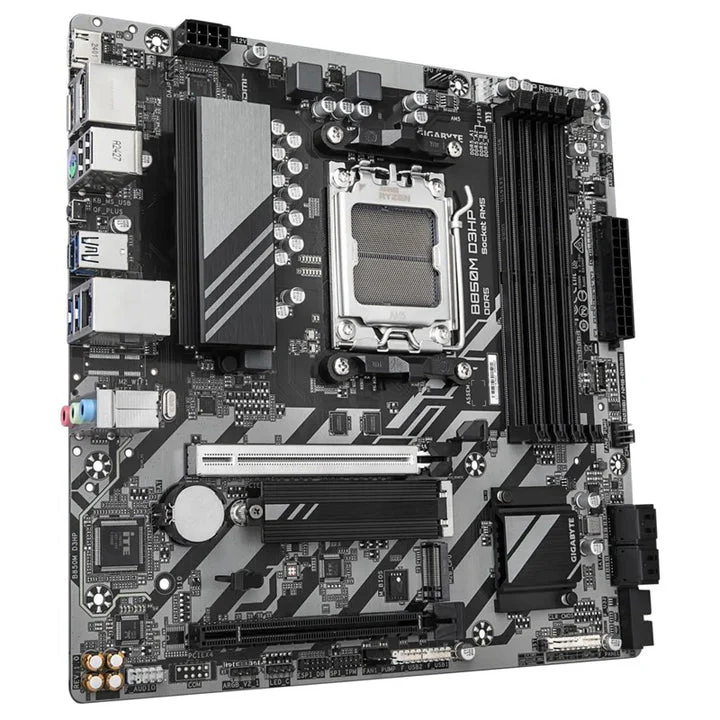

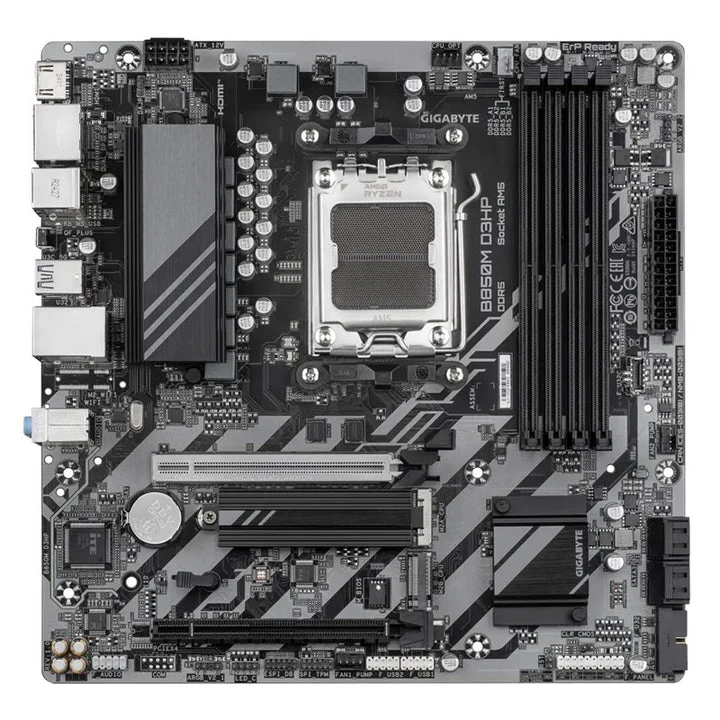

GIGABYTE B850M D3HP DDR5 Motherboard - Black

GIGABYTE B850M D3HP is built for AMD AM5 systems.
It targets compact builds with strong DDR5 and PCIe support.
The board suits gaming and daily use in a small form factor.

Technical Specifications

• Model GIGABYTE B850M D3HP
• Part number B850M D3HP
• Chipset AMD B850
• Form factor Micro-ATX 24.4 × 24.4 cm
• Socket AMD AM5

Processor Support

• AMD Ryzen 9000 Series
• AMD Ryzen 8000 Series
• AMD Ryzen 7000 Series

Memory

• 4 × DDR5 DIMM slots
• Maximum capacity 256GB
• Dual channel architecture
• Memory speeds up to 8200 MT/s overclock
• Supports AMD EXPO and XMP

Graphics Output

• Integrated AMD Radeon Graphics support
• 1 × HDMI 2.1 up to 4096 × 2160 at 60Hz
• 2 × DisplayPort 1.4 up to 3840 × 2160 at 144Hz
• Supports up to three displays

Networking

• Realtek Gigabit LAN 1Gb

Storage

• 1 × M.2 PCIe 5.0 from CPU
• 1 × M.2 PCIe 4.0 from CPU
• 4 × SATA 6Gb per second
• NVMe RAID 0 1 5 10
• SATA RAID 0 1 10

Expansion Slots

• 1 × PCIe x16 from CPU
• 1 × PCIe x16 PCIe 3.0 x4 from chipset

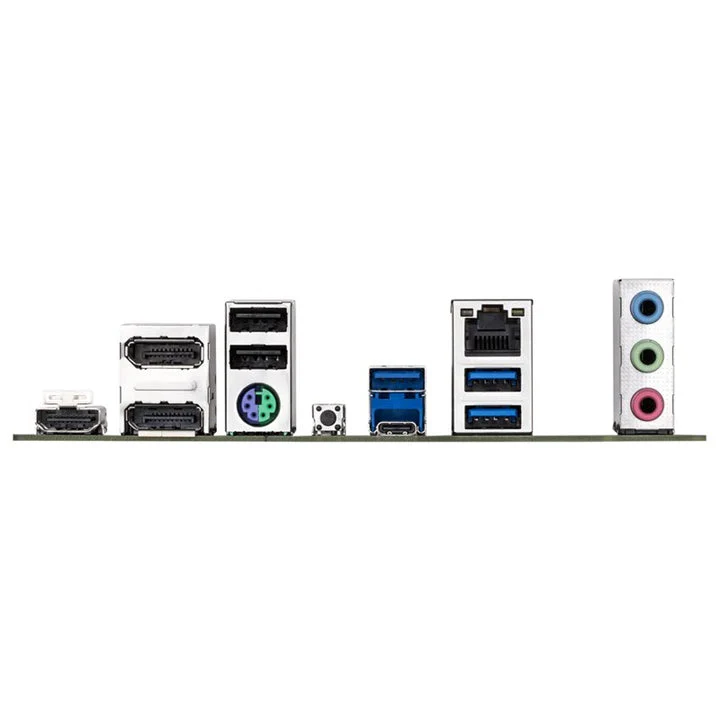

Back Panel I O

• HDMI
• 2 × DisplayPort
• PS 2 keyboard mouse port
• Q-Flash Plus button
• USB Type-C USB 3.2 Gen 1
• 3 × USB 3.2 Gen 1
• 2 × USB 2.0
• RJ-45 LAN
• Audio jacks

Internal Connectors

• 24-pin ATX power
• 8-pin CPU power
• CPU fan header
• CPU pump header
• System fan header
• System pump header
• 2 × ARGB Gen2 headers
• 1 × RGB header
• USB Type-C Gen 1 header
• USB 3.2 Gen 1 header
• USB 2.0 headers
• 2 × M.2 connectors
• 4 × SATA connectors
• Front panel headers
• Reset jumper
• Clear CMOS jumper

Audio

• Realtek High Definition Audio
• Supports up to 7.1 channels

Key Features

• AM5 platform support
• DDR5 memory with wide speed range
• PCIe 5.0 support for graphics
• Dual M.2 NVMe storage
• Micro-ATX layout for compact builds

User Benefits

You build a small AMD system with modern parts.
You run fast DDR5 memory.
You install next-gen graphics cards.
You keep build size compact.
You update BIOS easily with Q-Flash Plus.

Compatibility

• Micro-ATX PC cases
• DDR5 memory kits
• PCIe graphics cards
• NVMe and SATA drives
• Windows 11

Included Items

• GIGABYTE B850M D3HP motherboard
• SATA cables
• User documentation

Warranty

• 1 year manufacturer warranty
