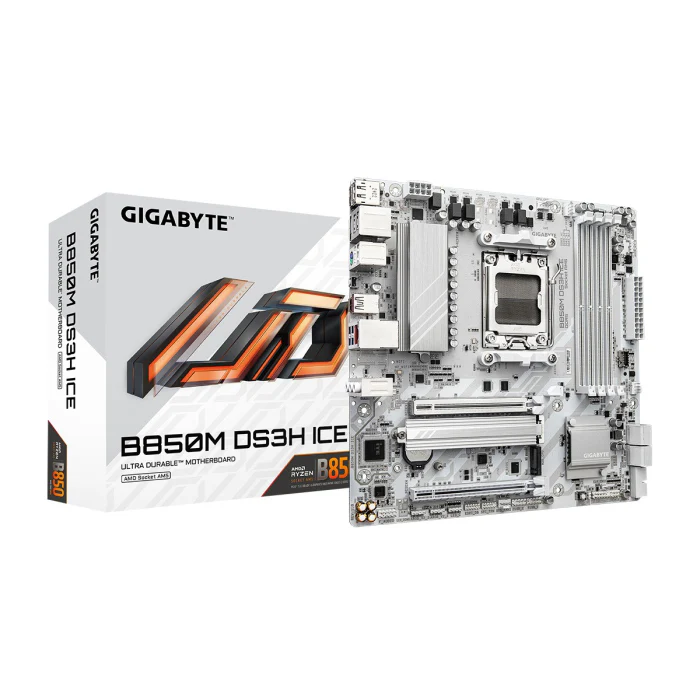

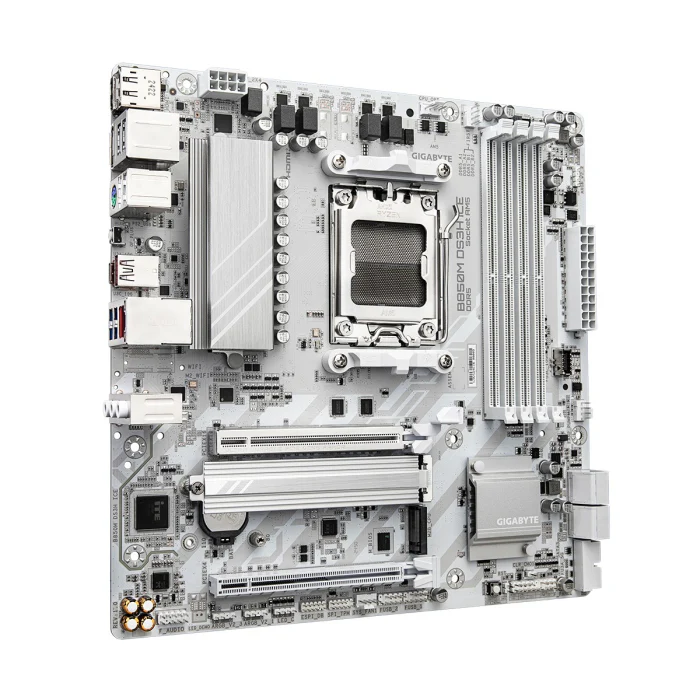

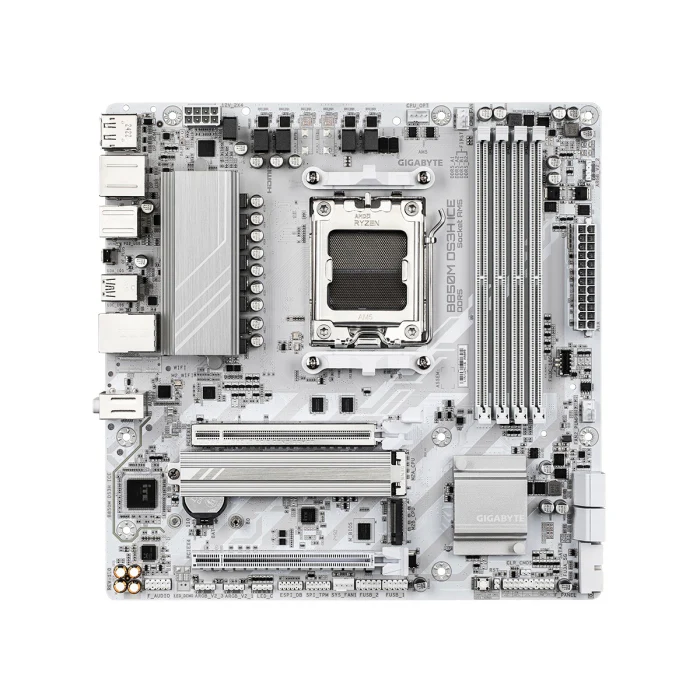

GIGABYTE B850M DS3H ICE DDR5 Motherboard - White

GIGABYTE B850M DS3H ICE is built for AMD AM5 platforms.
It targets compact builds with strong memory and storage support.
The white ICE design fits clean gaming and workstation setups.

Technical Specifications

• Model GIGABYTE B850M DS3H ICE
• Part number B850M DS3H ICE
• Chipset AMD B850
• Form factor Micro-ATX 24.4 × 24.4 cm
• Socket AMD AM5

Processor Support

• AMD Ryzen 9000 Series
• AMD Ryzen 8000 Series
• AMD Ryzen 7000 Series

Memory

• 4 × DDR5 DIMM slots
• Maximum capacity 256GB
• Dual channel architecture
• Memory speeds up to 8200 MT/s overclock
• Supports AMD EXPO and XMP

Graphics Output

• Integrated AMD Radeon Graphics support
• 1 × HDMI 2.1 up to 4096 × 2160 at 60Hz
• 2 × DisplayPort 1.4 up to 3840 × 2160 at 144Hz
• Supports up to three displays

Networking

• Realtek 2.5Gb Ethernet LAN

Storage

• 1 × M.2 PCIe 5.0 from CPU
• 1 × M.2 PCIe 4.0 from CPU
• 4 × SATA 6Gb per second
• NVMe RAID 0 1 5 10
• SATA RAID 0 1 10

Expansion Slots

• 1 × PCIe x16 from CPU
• 1 × PCIe x16 PCIe 3.0 x4 from chipset

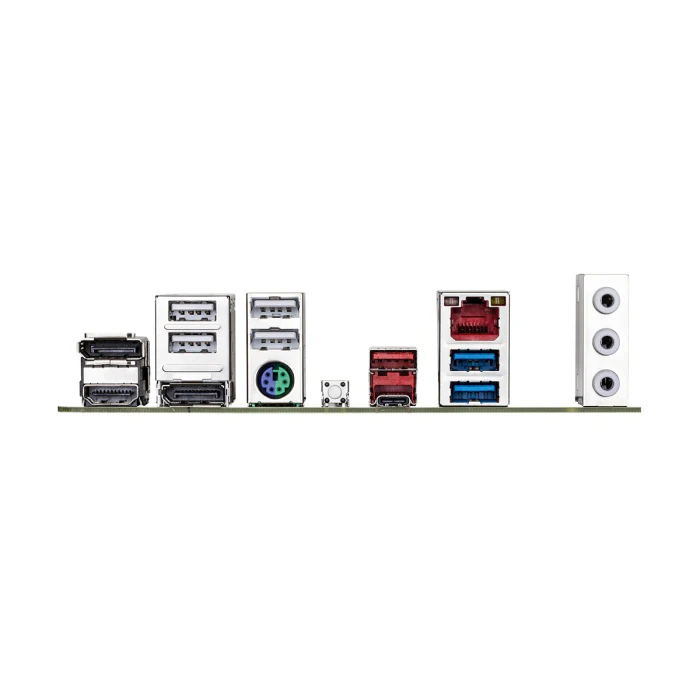

Back Panel I O

• HDMI
• 2 × DisplayPort
• Q-Flash Plus button
• PS 2 keyboard mouse port
• USB 3.2 Gen 2 Type-A
• USB Type-C USB 3.2 Gen 2
• 2 × USB 3.2 Gen 1
• 4 × USB 2.0
• RJ-45 LAN
• Audio jacks

Internal Connectors

• 24-pin ATX power
• 8-pin CPU power
• CPU fan and pump headers
• System fan and pump headers
• 3 × ARGB Gen2 headers
• 1 × RGB header
• USB Type-C Gen 2 header
• USB 3.2 Gen 1 header
• USB 2.0 headers
• M.2 and SATA headers
• Reset button
• Clear CMOS jumper

Audio

• Realtek High Definition Audio
• Supports up to 7.1 channels

Key Features

• AM5 support for latest Ryzen processors
• DDR5 memory with wide speed range
• PCIe 5.0 support for graphics
• Dual M.2 NVMe storage support
• Compact Micro-ATX layout

User Benefits

You build a compact AMD system.
You run fast DDR5 memory.
You connect next-gen storage.
You keep clean white aesthetics.
You update BIOS easily with Q-Flash Plus.

Compatibility

• Micro-ATX PC cases
• DDR5 memory kits
• PCIe graphics cards
• NVMe and SATA drives
• Windows 11

Included Items

• GIGABYTE B850M DS3H ICE motherboard
• SATA cables
• User documentation

Warranty

• 1 year manufacturer warranty
