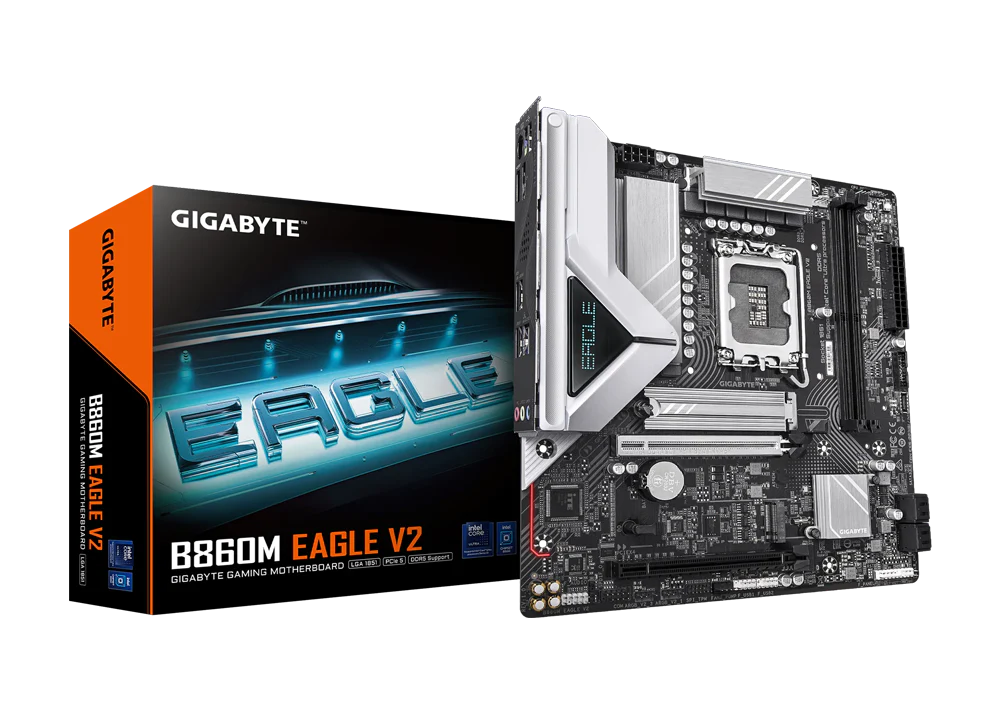

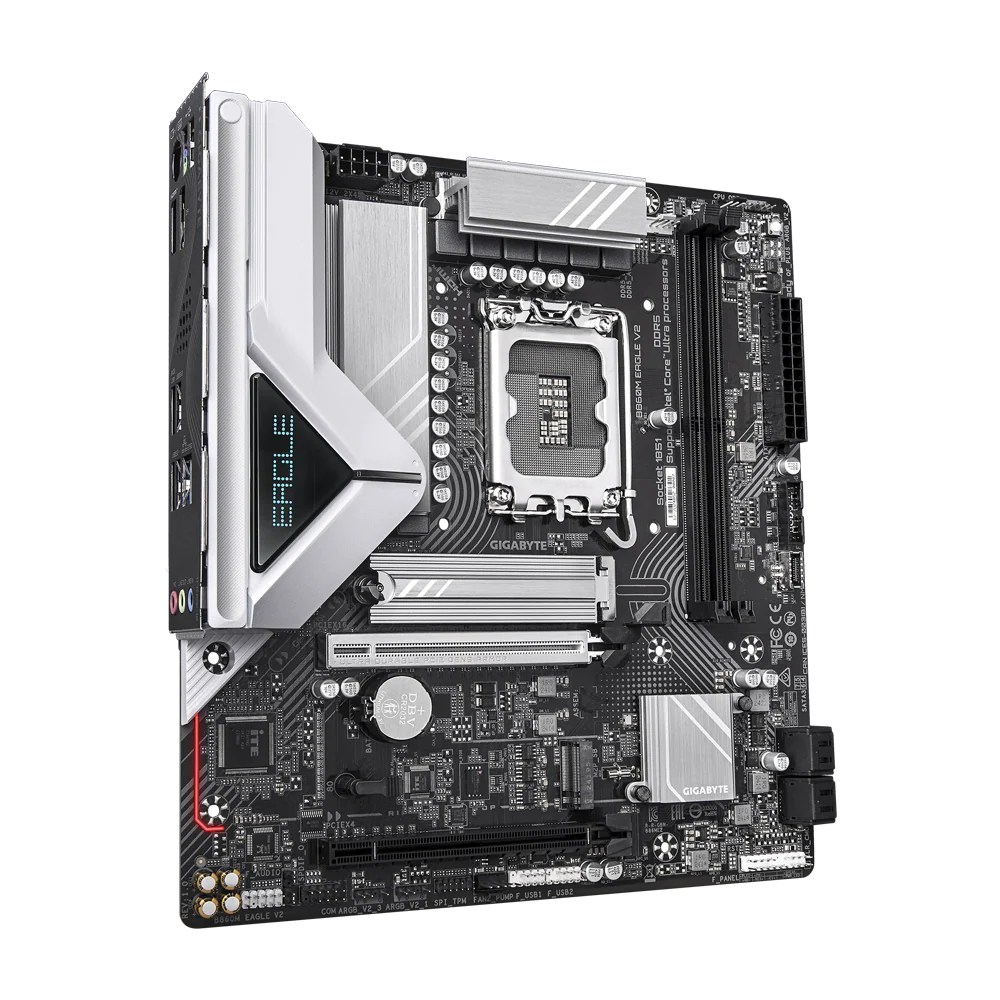

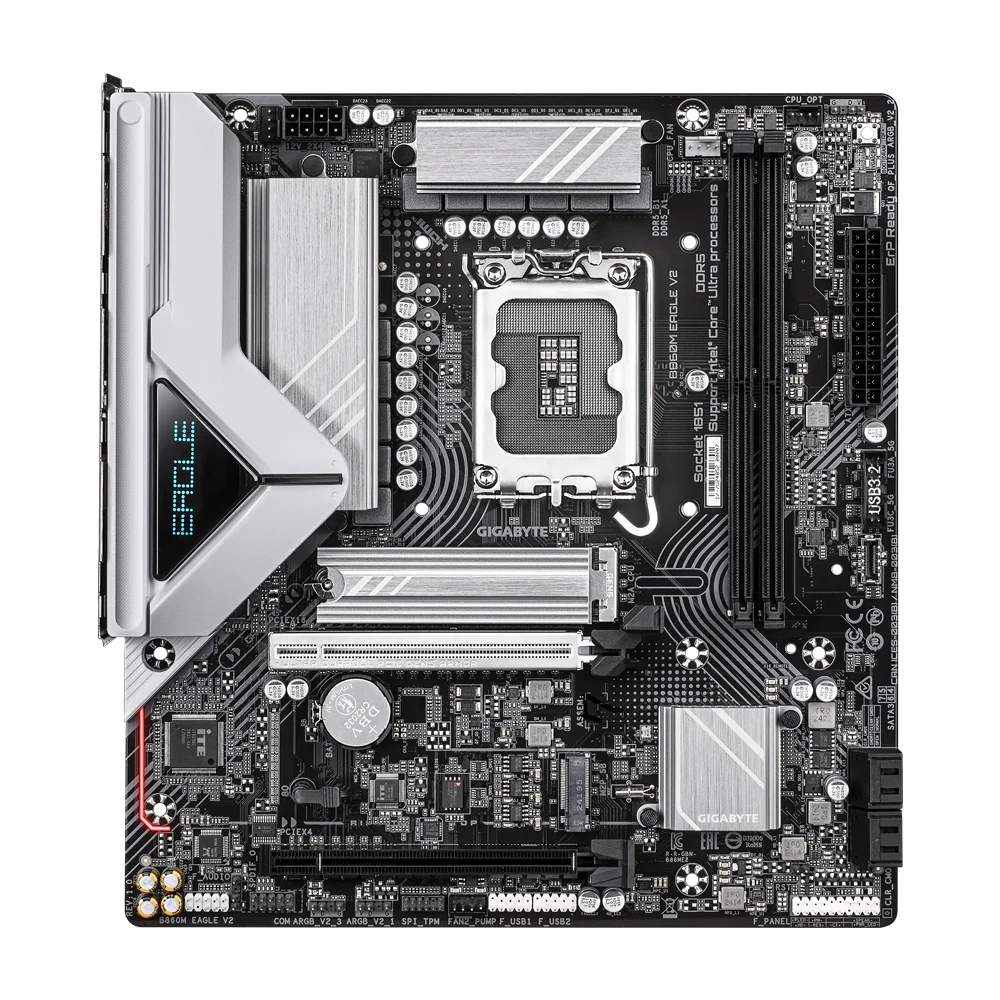

GIGABYTE B860M EAGLE V2 DDR5 Gaming Motherboard - Black

GIGABYTE B860M EAGLE V2 motherboard runs on Intel B860 chipset with LGA1851 processor socket.
The board supports Intel Core Ultra series processors.
DDR5 memory support allows dual channel configuration with high frequency modules.
PCIe 5.0 slot supports modern graphics cards or NVMe storage devices.
Two M.2 connectors support high speed SSD storage installation.
Digital VRM power design supports stable CPU operation.
Integrated thermal armor and heatsinks support board temperature control.
2.5Gb Ethernet supports wired network connectivity.
BIOS tools and software utilities support system setup and monitoring.

Key Features

• Intel B860 chipset motherboard
• LGA1851 processor socket support
• DDR5 dual channel memory support
• PCIe 5.0 graphics slot support
• Dual M.2 storage slots
• Digital VRM power design
• Thermal armor cooling structure
• 2.5Gb Ethernet network support
• HDMI and DisplayPort outputs
• Micro ATX motherboard format

Detailed Technical Specification

• Model
  B860M EAGLE V2

• CPU support
  Intel Core Ultra processors series

• Chipset
  Intel B860 Express chipset

• Memory
  Two DDR5 DIMM slots
  Maximum 128GB memory capacity
  DDR5 frequency up to 9066 MT s OC
  XMP memory profile support
  ECC and non ECC memory support

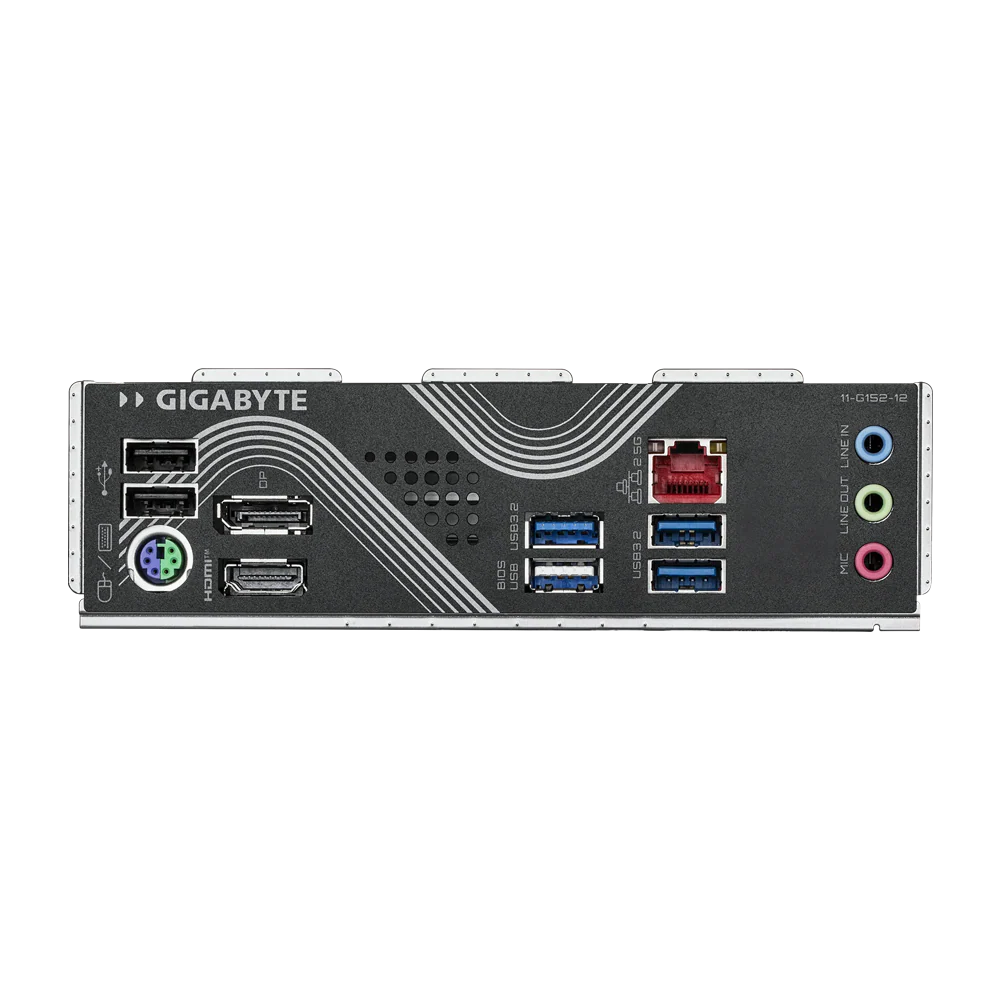

• Graphics output
  One HDMI port up to 4096×2160 at 60Hz
  One DisplayPort up to 3840×2160 at 144Hz

• Expansion slots
  One PCIe 5.0 x16 slot
  One PCIe 4.0 x16 slot operating at x4

• Storage
  One PCIe 5.0 M.2 slot
  One PCIe 4.0 M.2 slot
  Four SATA 6Gbps connectors
  RAID storage support

• Networking
  Realtek 2.5Gb Ethernet LAN

• Audio
  Realtek high definition audio codec
  Multi channel audio support
  S PDIF output support

• USB connectivity
  USB Type C internal connector
  Multiple USB 3.2 Gen1 ports
  USB 2.0 ports available

• Cooling headers
  CPU fan header
  Water cooling pump header
  System fan headers

• RGB support
  Three addressable RGB Gen2 headers

• BIOS
  AMI UEFI BIOS firmware
  Q Flash and Q Flash Plus update support

• Operating system support
  Windows 11 64 bit
  Windows 10 64 bit

• Form factor
  Micro ATX motherboard size
