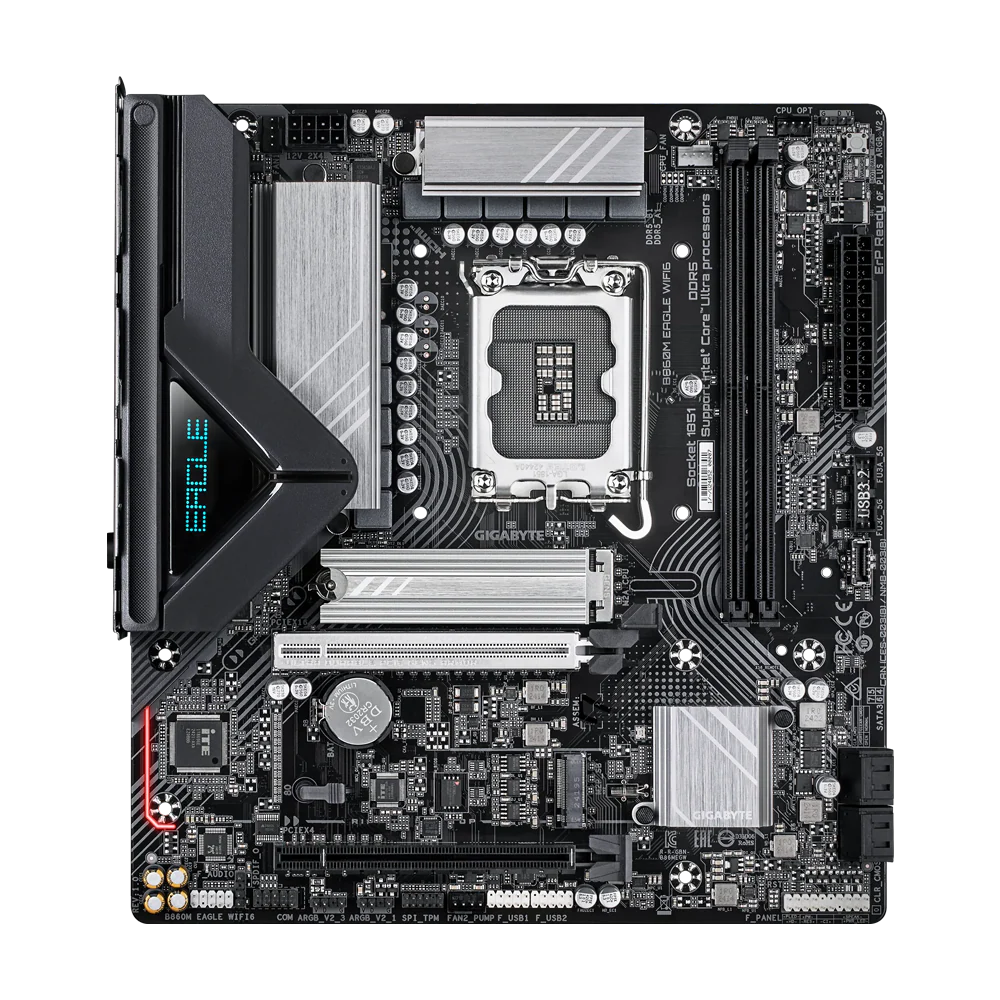

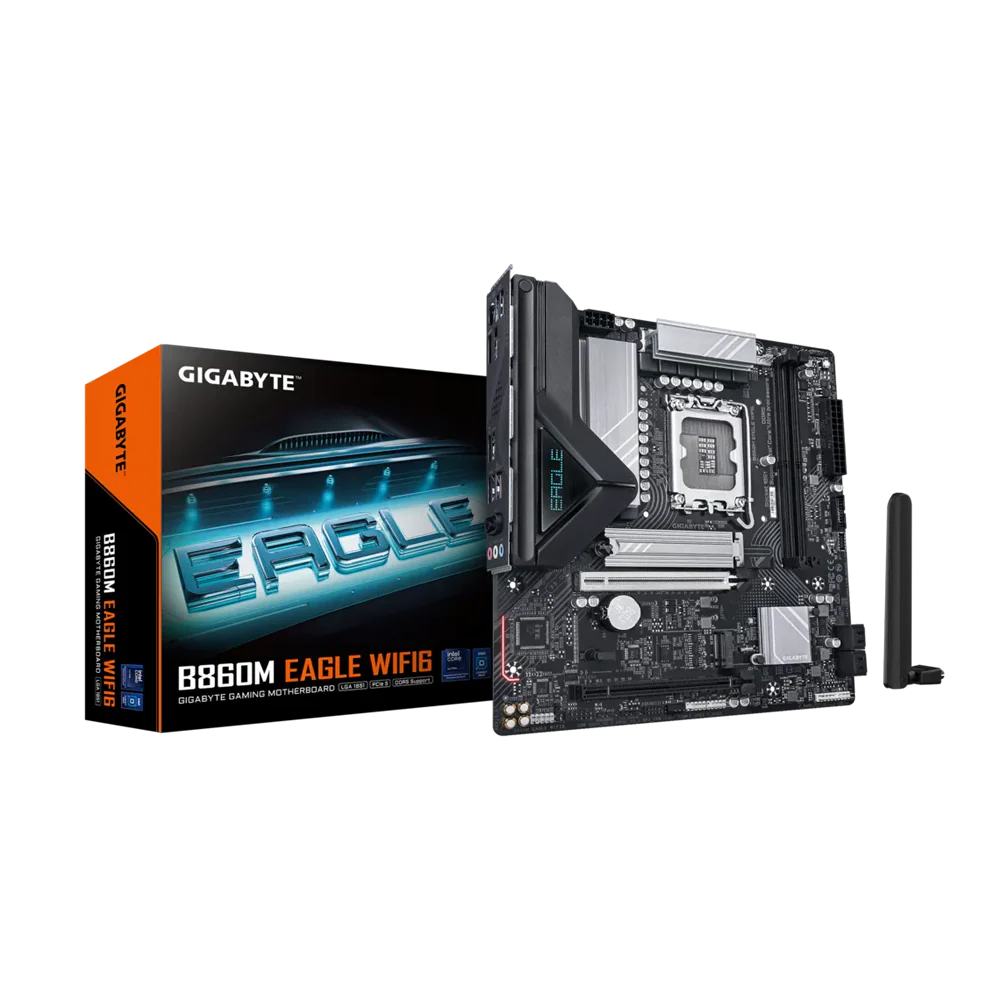

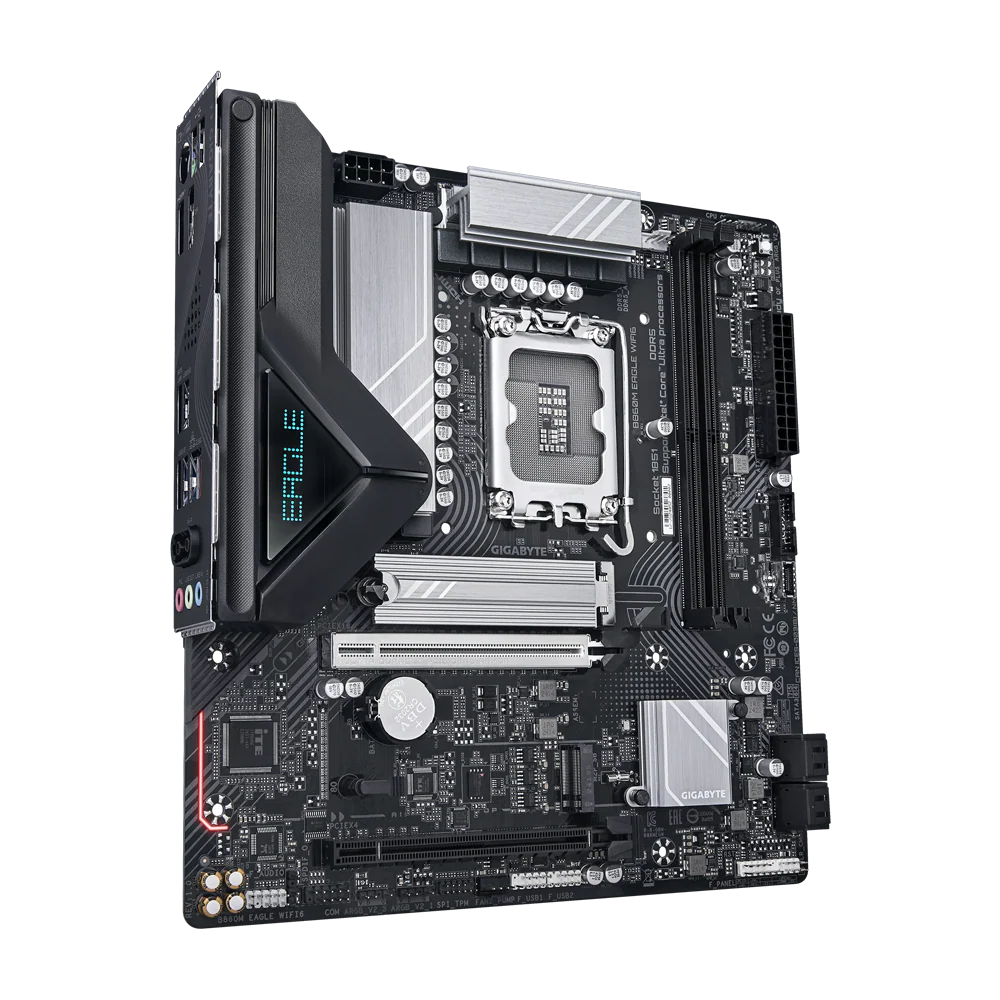

GIGABYTE B860M EAGLE WIFl 6 V2 DDR5 Gaming Motherboard - Black

GIGABYTE B860M EAGLE WIFI 6 V2 uses the LGA1851 socket with the Intel B860 chipset to support Intel Core Ultra Series 2 processors.
The Micro ATX design supports compact PC builds while keeping essential expansion options.
DDR5 memory capacity reaches up to 128GB with high speed profiles through XMP support.
The PCIe 5.0 x16 slot supports modern graphics cards with faster data transfer bandwidth.
Two M.2 slots support NVMe storage including one PCIe 5.0 interface.
WiFi 6 and 2.5Gb LAN provide stable wired and wireless networking.
HDMI and DisplayPort outputs support 4K display depending on the processor.
Metal thermal design helps maintain stable operating temperatures.
BIOS interface supports straightforward system configuration.
This motherboard supports gaming systems, productivity builds, and daily desktop use.

Key Features

• Support for Intel Core Ultra Series 2 processors
• Micro ATX motherboard design
• DDR5 memory support up to 128GB
• PCIe 5.0 graphics card slot
• Dual NVMe M.2 storage slots
• 2.5Gb LAN and WiFi 6 networking
• HDMI and DisplayPort video outputs
• Metal thermal cooling design
• RGB Fusion lighting support

Detailed Technical Specification

• CPU socket and processor support
  LGA1851 socket supports Intel Core Ultra Series 2 processors

• Chipset
  Intel B860 Express chipset

• Memory support
  Two DDR5 DIMM slots up to 128GB dual channel with XMP and high speed OC support

• Graphics output
  HDMI up to 4096×2160 at 60Hz
  DisplayPort up to 3840×2160 at 144Hz depending on processor

• Storage support
  One PCIe 5.0 x4 M.2 slot
  One PCIe 4.0 x4 M.2 slot
  Four SATA 6Gb ports

• Expansion slots
  One PCIe 5.0 x16 graphics slot
  One PCIe 4.0 x16 slot operating at x4

• Networking
  Realtek 2.5Gb Ethernet LAN
  WiFi 6 dual band with Bluetooth 5.3

• Audio
  Realtek high definition audio up to 7.1 channel with S PDIF support

• Rear USB ports
  Three USB 3.2 Gen1 ports
  Three USB 2.0 ports

• Internal USB headers
  USB C Gen1 header
  Additional USB 3.2 and USB 2.0 headers

• Cooling design
  VRM metal heatsinks with fan and liquid cooling header support

• Power connectors
  One 24 pin motherboard connector
  One 8 pin CPU power connector

• BIOS features
  UEFI BIOS with Q Flash and Q Flash Plus support

• Additional features
  RGB Fusion lighting control
  Gigabyte Control Center software support

• Operating system support
  Windows 10 and Windows 11

• Form factor
  Micro ATX size 24.4 by 22.5 cm
