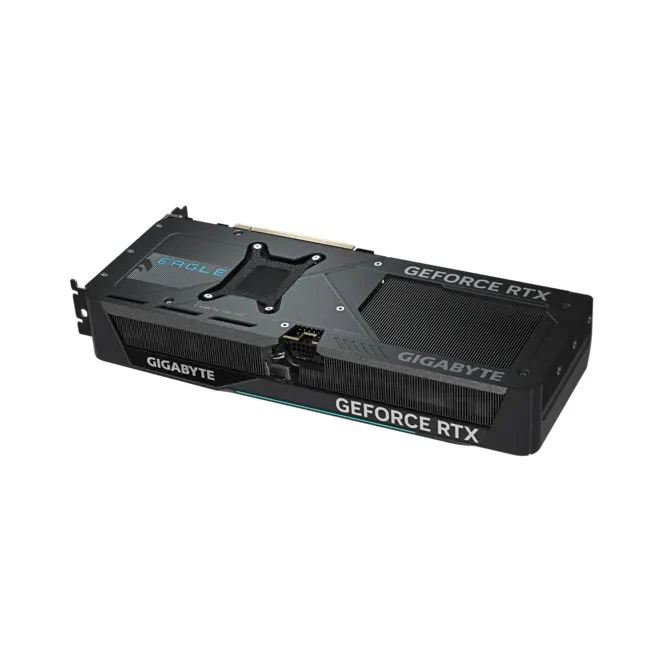

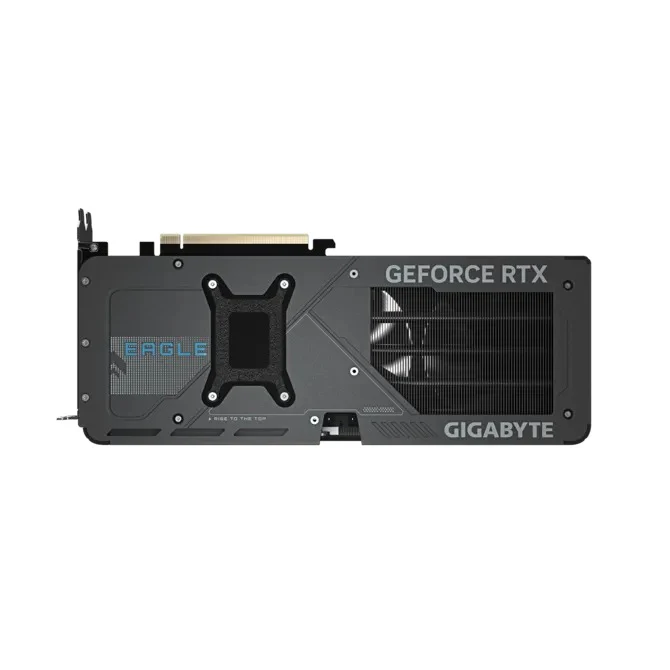

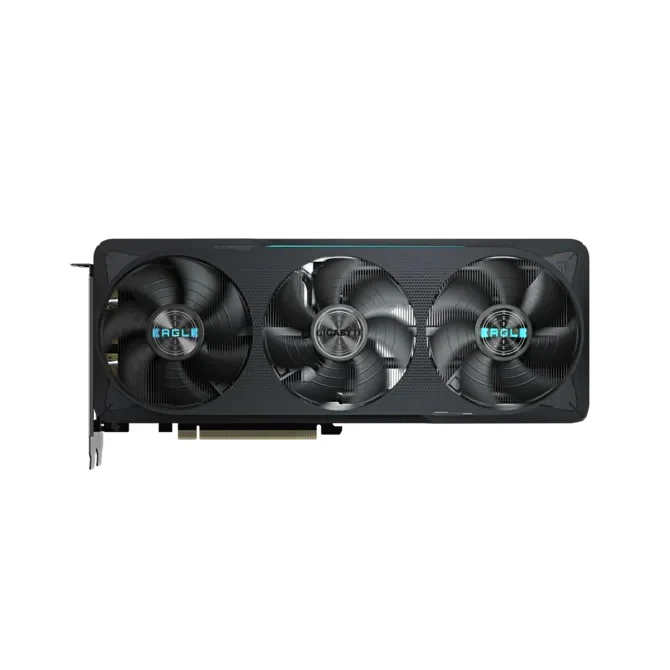

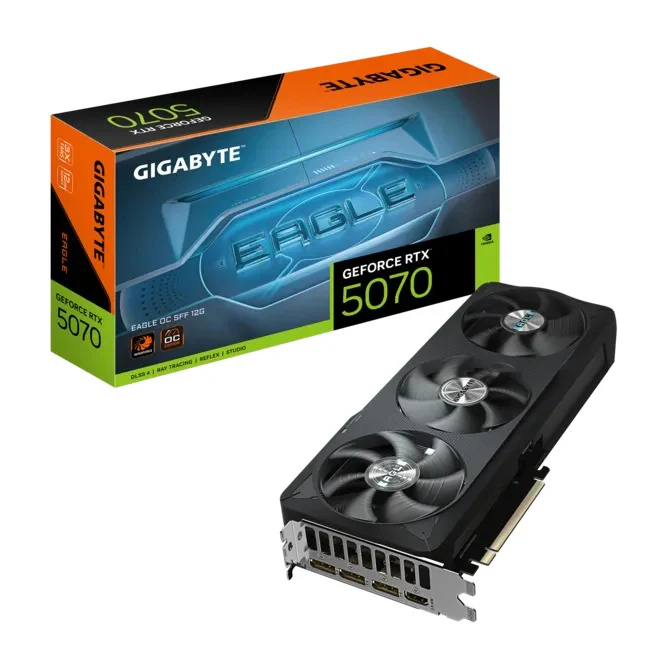

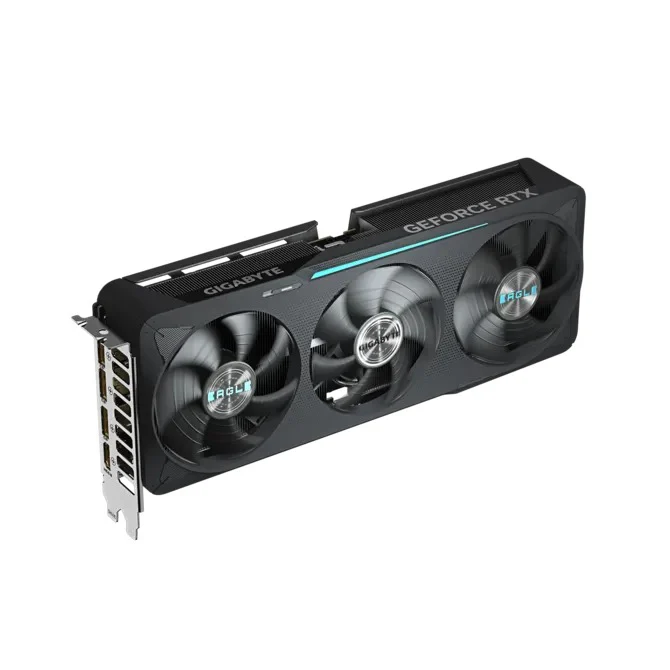

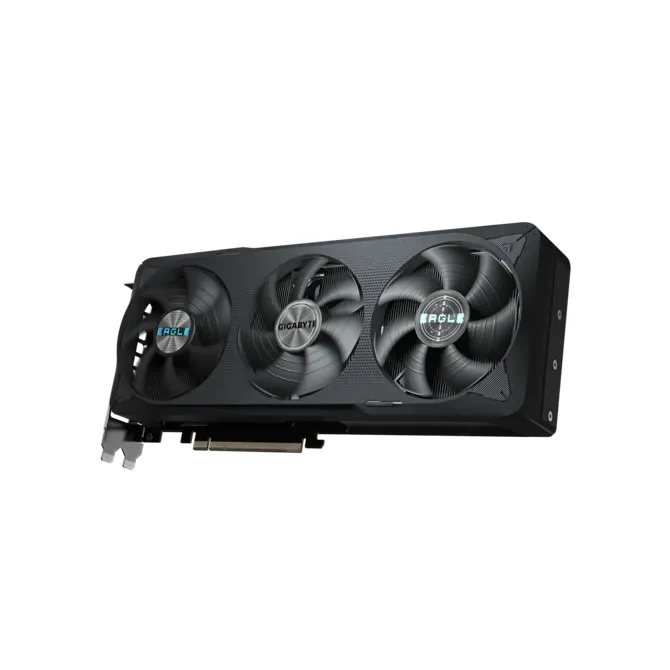

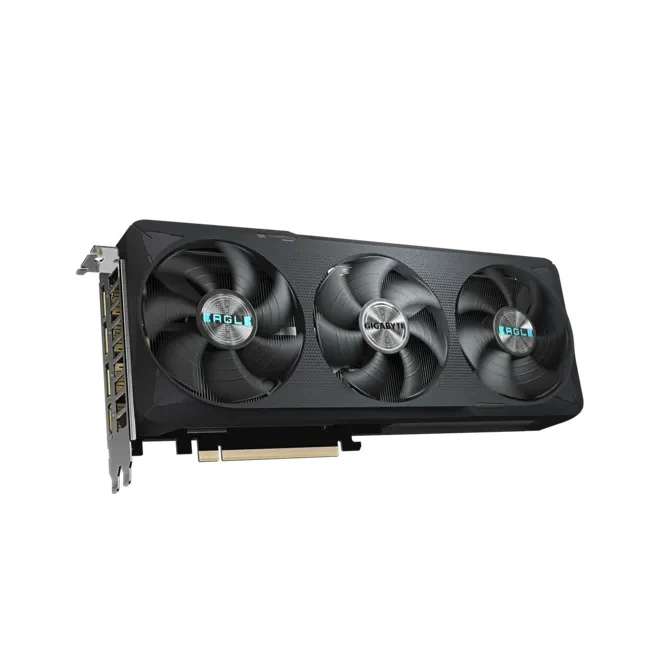

Gigabyte GeForce RTX 5070 Eagle OC SFF 12GB GDDR7 3X Gaming Graphics Card - Black
The Gigabyte GeForce RTXâ„¢ 5070 Eagle OC SFF delivers next-generation gaming performance in a compact SFF-ready design.
Factory overclocked.
Triple-fan WINDFORCE cooling.
PCIe 5.0 ready.
Built for gamers who want high FPS in a smaller footprint.
Key Features
NVIDIA Blackwell Architecture
- Powered by GeForce RTXâ„¢ 5070.
- DLSS 4 support.
- Advanced ray tracing.
- AI-powered rendering.
Optimized for modern AAA gaming and creative workloads.
12GB GDDR7 Memory
- 12GB GDDR7.
- 28 Gbps memory speed.
- 192-bit memory interface.
- Smooth 1440p performance.
Balanced memory configuration for competitive gaming.
WINDFORCE Cooling System
- Triple Hawk fans.
- Optimized airflow design.
- Server-grade thermal conductive gel.
- Reinforced structure for durability.
Maintains stable temperatures during extended gaming sessions.
SFF-Ready Compact Design
- Compact dimensions: 290 × 120 × 50 mm.
- 2.5-slot form factor.
- Compatible with Small Form Factor builds.
Ideal for compact performance-focused systems.
Advanced Display & Connectivity
- PCIe 5.0 interface.
- 3 × DisplayPort 2.1b.
- 1 × HDMI 2.1b.
- Up to 4 displays.
- Maximum resolution: 7680 × 4320 (8K).
Ready for high refresh rate gaming displays.
Technical Specifications
| Feature | Specification |
|---|---|
| Graphics Processing | GeForce RTXâ„¢ 5070 |
| Core Clock | 2587 MHz (Ref: 2512 MHz) |
| CUDA Cores | 6144 |
| Memory Size | 12GB |
| Memory Type | GDDR7 |
| Memory Speed | 28 Gbps |
| Memory Bus | 192-bit |
| Card Bus | PCI-E 5.0 |
| Max Resolution | 7680 × 4320 |
| Multi-View | 4 Displays |
| Outputs | 3 × DisplayPort 2.1b, 1 × HDMI 2.1b |
| DirectX | 12 |
| OpenGL | 4.6 |
| Recommended PSU | 750W |
| Power Connector | 1 × 16-pin |
| Card Size | 290 × 120 × 50 mm |
| PCB Form | ATX |
Included in the Box
- Quick guide
- 12V-2x6 to 2x PCIe 8-pin adapter
