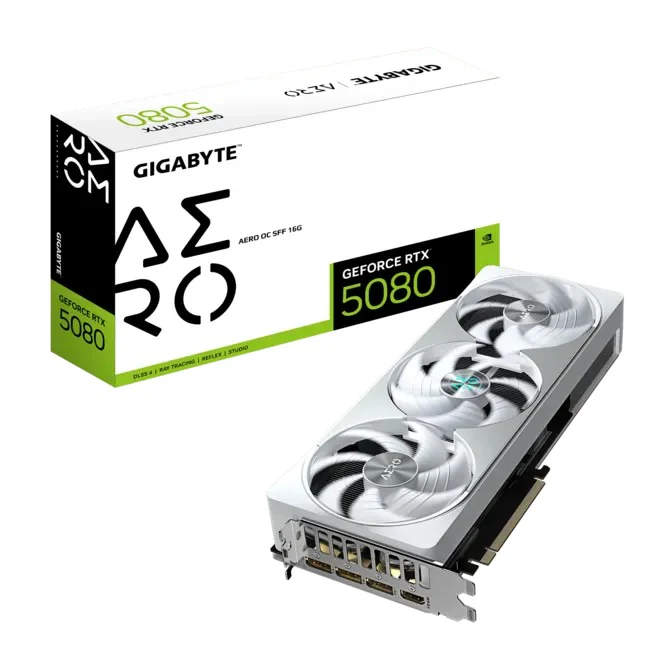

Gigabyte GeForce RTX 5080 AERO OC SFF 16GB Gaming Graphics Card
Gigabyte RTX 5080 AERO OC SFF graphics card targets high-performance gaming, advanced rendering, and professional visual workloads.
It uses NVIDIA Blackwell architecture with 16GB GDDR7 memory and factory overclocking for stable frame rates and fast processing in modern titles and creative applications.
PCIe 5.0 interface supports next-generation platforms with higher bandwidth and faster data transfer.
Optimized cooling and compact SFF-friendly design help maintain thermal stability while fitting modern compact builds.
Key Features
- NVIDIA GeForce RTX 5080 GPU
- 16GB GDDR7 high-speed memory
- Factory overclocked core clock
- PCIe 5.0 interface support
- Compact SFF-ready design
- Multi-display output support
- 4K high refresh gaming support
- 8K resolution capability
Technical Specifications
| Component | Specification |
|---|---|
| GPU | GeForce RTX 5080 |
| Core Clock | 2730 MHz (Reference 2617 MHz) |
| CUDA Cores | 10752 |
| Memory Size | 16GB |
| Memory Type | GDDR7 |
| Memory Speed | 30 Gbps |
| Memory Bus | 256-bit |
| Interface | PCI-Express 5.0 |
| Maximum Resolution | 7680 × 4320 |
| Multi Display | Up to 4 displays |
| Outputs | 3× DisplayPort 2.1b, 1× HDMI 2.1b |
| Recommended PSU | 850W |
| Power Connector | 16-Pin ×1 |
| Card Dimensions | 304 × 126 × 50 mm |
| PCB Form | ATX |
| DirectX Support | DirectX 12 |
| OpenGL Support | OpenGL 4.6 |
What’s in the Box
- Graphics card
- VGA manual
- Warranty notice
- 12V-2x6 to 3× PCIe 8-pin adapter
- VGA holder
- VGA holder manual
