GIGABYTE X870 AORUS ELITE WIFI7 ICE 1.1 DDR5 Motherboard - White

GIGABYTE X870 AORUS ELITE WIFI7 ICE is built for AMD AM5 systems.
You get strong power delivery fast memory and wide connectivity.
The white ICE design fits clean builds and high end setups.

Technical Specifications

• Model GIGABYTE X870 AORUS ELITE WIFI7 ICE
• Part number X870 A ELITE WF7 ICE
• Chipset AMD X870
• Form factor ATX 30.5 × 24.4 cm
• Socket AMD AM5

Processor Support

• AMD Ryzen 9000 Series
• AMD Ryzen 8000 Series
• AMD Ryzen 7000 Series

Memory

• 4 × DDR5 DIMM slots
• Max capacity 256GB
• Dual channel architecture
• Memory speed up to 8200 MT/s overclock
• AMD EXPO and XMP support

Graphics Output

• Integrated AMD Radeon Graphics support
• 2 × USB4 Type C with DisplayPort up to 3840 × 2160 at 240Hz
• 1 × HDMI 2.1 up to 4096 × 2160 at 60Hz
• 1 × front HDMI up to 1920 × 1080 at 30Hz
• Up to four displays at the same time

Networking

• Realtek 2.5Gb LAN
• WiFi 7 with 2.4 5 6 GHz bands
• Bluetooth 5.4

Storage

• 1 × M.2 PCIe 5.0 from CPU
• 2 × M.2 PCIe 5.0 from CPU for Ryzen 9000 and 7000
• 1 × M.2 PCIe 4.0 from chipset
• 4 × SATA 6Gb per second
• NVMe RAID 0 1 5 10
• SATA RAID 0 1 10

Expansion Slots

• 1 × PCIe x16 from CPU
• 1 × PCIe x16 PCIe 4.0 x4
• 1 × PCIe x16 PCIe 3.0 x2

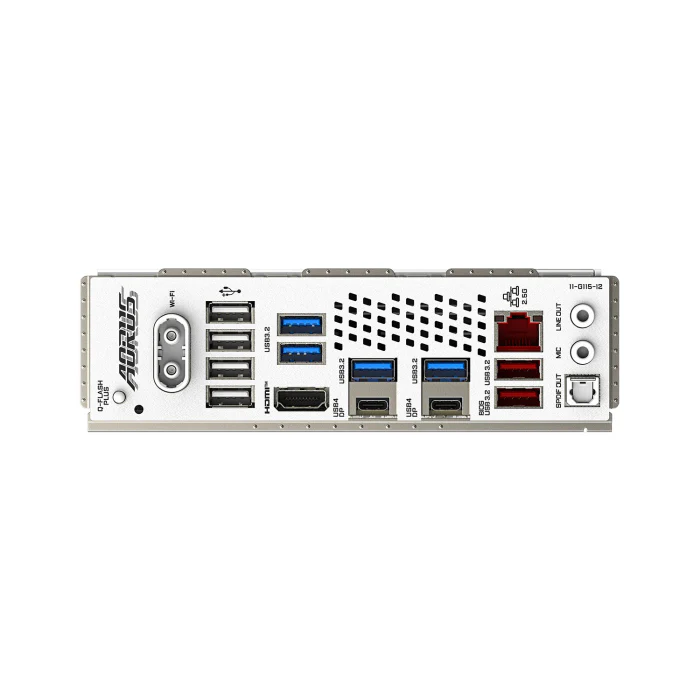

Back Panel I O

• Q Flash Plus button
• HDMI
• 2 × USB4 Type C
• 2 × USB 3.2 Gen 2 Type A
• 4 × USB 3.2 Gen 1
• 4 × USB 2.0
• RJ 45 LAN
• Optical S PDIF out
• Audio jacks

Internal Connectors

• 24 pin ATX power
• Dual 8 pin CPU power
• CPU fan and pump headers
• System fan and pump headers
• ARGB and RGB headers
• USB Type C Gen 2x2 header
• USB 3.2 Gen 1 header
• USB 2.0 headers
• M.2 and SATA headers
• Power and reset buttons
• Clear CMOS jumper
• Temperature sensor headers

Audio

• Realtek ALC1220 audio codec
• Up to 7.1 channel output
• S PDIF out support

Key Features

• AM5 platform for new Ryzen CPUs
• DDR5 memory with high speed range
• PCIe 5.0 for GPU and NVMe
• WiFi 7 and 2.5Gb LAN
• USB4 ports for data and display

User Benefits

You build a white themed high end PC.
You run fast DDR5 memory.
You connect next generation storage and graphics.
You get stable wired and wireless networking.
You update BIOS without CPU using Q Flash Plus.

Compatibility

• ATX PC cases
• DDR5 memory kits
• PCIe graphics cards
• NVMe and SATA drives
• Windows 11

Included Items

• GIGABYTE X870 AORUS ELITE WIFI7 ICE motherboard
• WiFi antenna
• SATA cables
• User documentation
