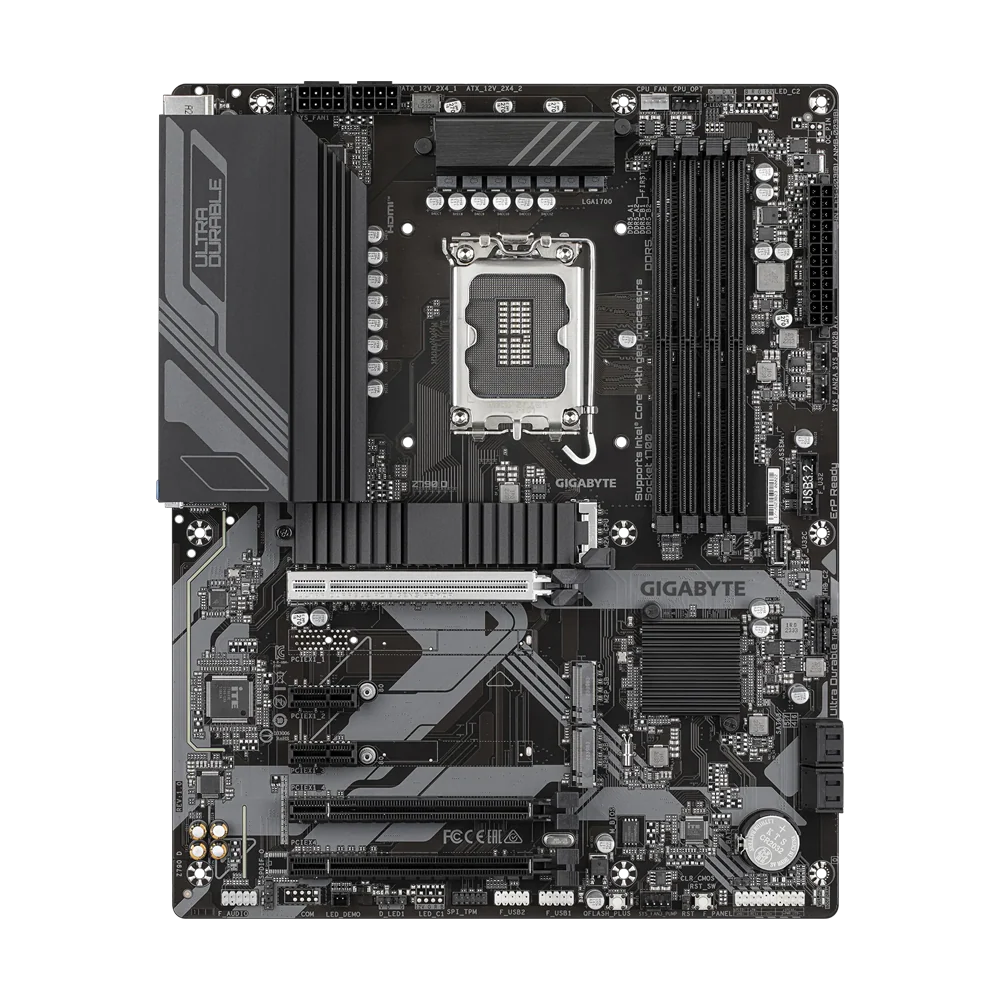

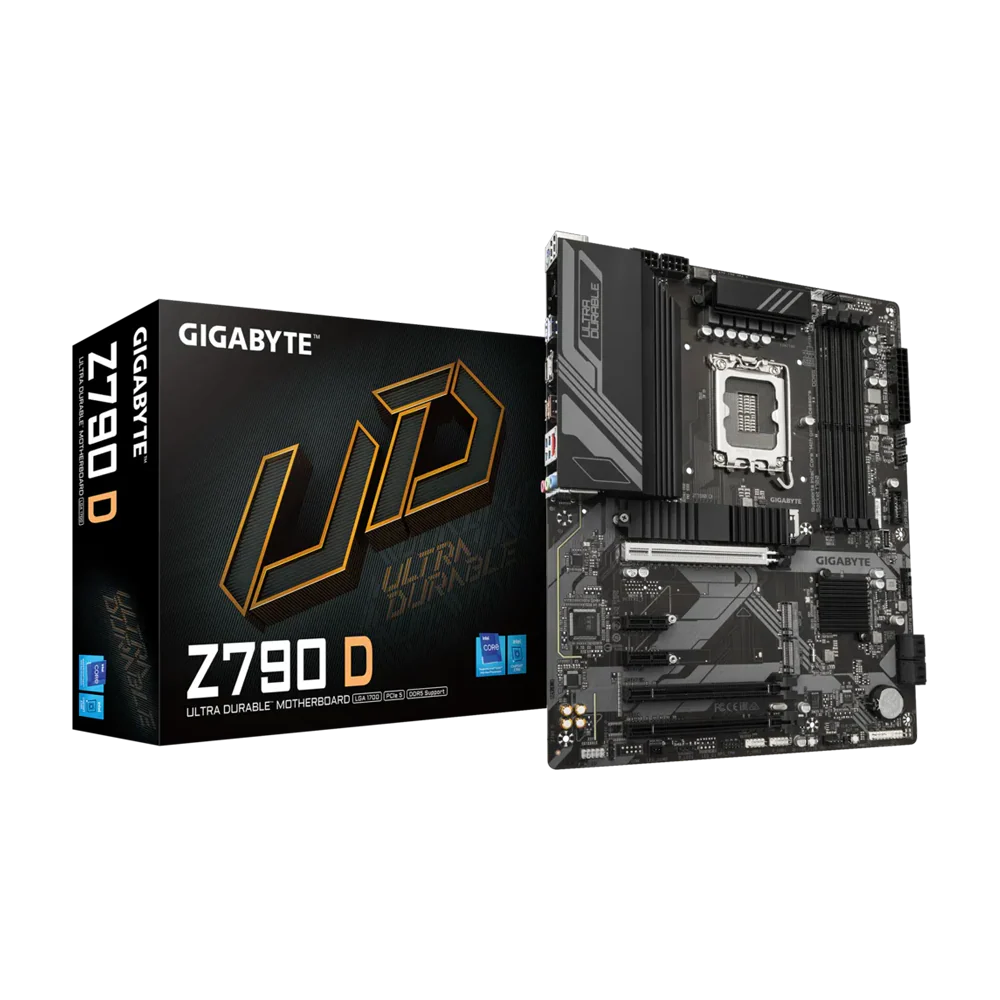

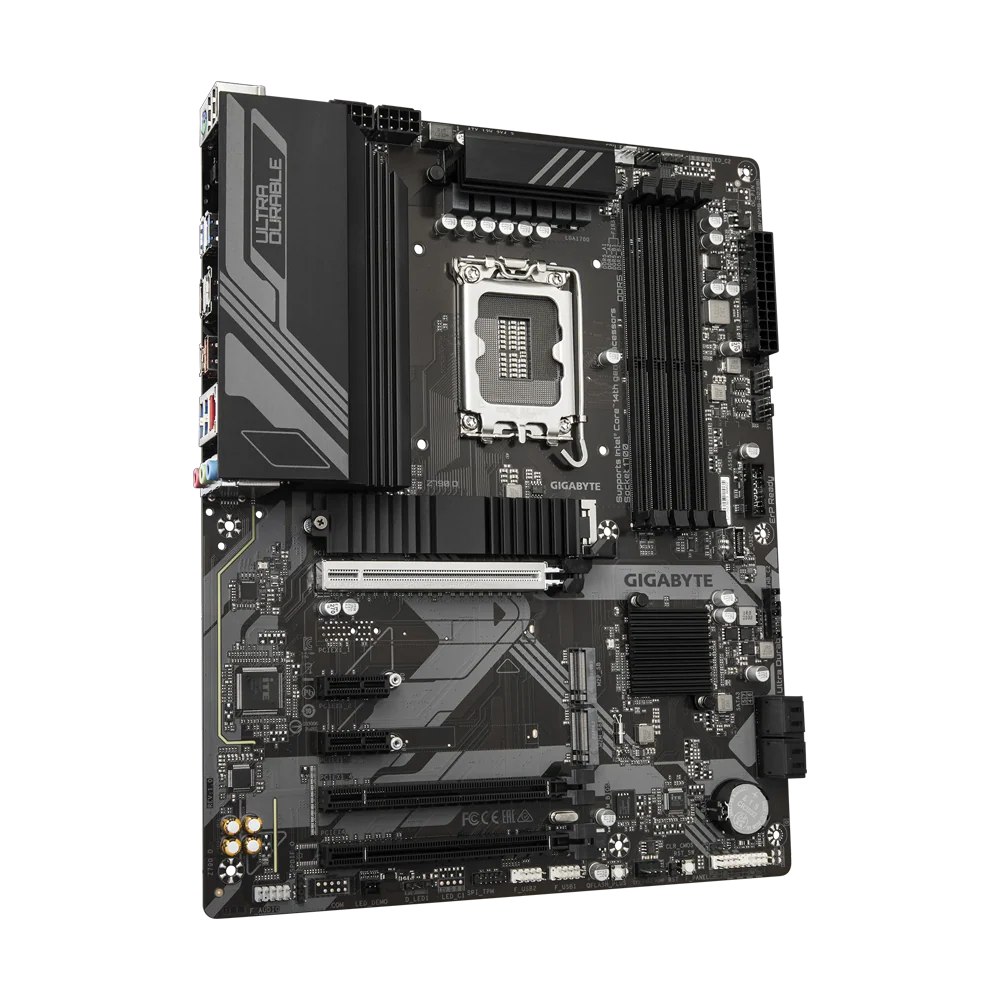

GIGABYTE Intel Z790 D Ultra Durable 1.2 DDR5 Motherboard

GIGABYTE Z790 D 1.2 DDR5 motherboard uses the LGA1700 socket with the Intel Z790 chipset for Intel Core 12th, 13th, and 14th generation processors.
The ATX form factor supports full size desktop builds with multiple expansion options.
DDR5 memory support reaches up to 256GB with XMP profiles for higher memory speed tuning.
PCIe 5.0 x16 slot supports modern graphics cards with higher bandwidth.
Three PCIe 4.0 M.2 slots support NVMe SSD storage with fast data transfer.
2.5Gb Ethernet supports stable wired network connectivity for gaming and productivity tasks.
Rear USB Type C supports high speed peripheral connectivity.
Thermal heatsinks help maintain stable VRM and SSD temperatures.
BIOS Flash support allows firmware updates without full system installation.
This motherboard supports gaming systems, workstation builds, and general desktop use.

Key Features

• Support for Intel Core 12th 13th 14th generation processors
• ATX motherboard design
• DDR5 memory support up to 256GB
• PCIe 5.0 graphics card slot
• Three PCIe 4.0 M.2 NVMe slots
• 2.5Gb Ethernet wired networking
• USB Type C rear connectivity
• VRM and M.2 thermal heatsink design
• BIOS update support without CPU installation

Detailed Technical Specification

• CPU support
  LGA1700 socket supports Intel Core 12th 13th 14th Gen Pentium Gold and Celeron processors

• Chipset
  Intel Z790 Express chipset

• Memory support
  Four DDR5 DIMM slots up to 256GB dual channel with XMP memory profile support

• Graphics output
  HDMI supports up to 4096×2160 at 60Hz
  DisplayPort supports up to 4096×2304 at 60Hz depending on processor

• Expansion slots
  One PCIe 5.0 x16 slot for graphics card
  One PCIe 4.0 x16 slot operating at x4
  One PCIe 3.0 x16 slot operating at x1
  Two PCIe 3.0 x1 expansion slots

• Storage support
  Three PCIe 4.0 M.2 slots for NVMe SSD
  Four SATA 6Gb ports with RAID support

• Networking
  Realtek 2.5Gb Ethernet LAN controller

• Audio
  Realtek high definition audio codec supporting up to 7.1 channel output

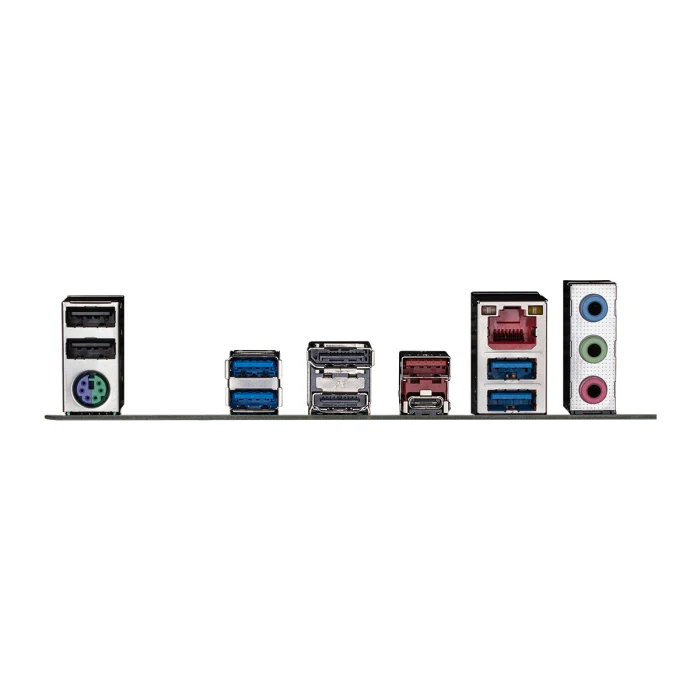

• USB connectivity
  Rear USB Type C 3.2 Gen2 port
  Multiple USB 3.2 Gen1 and USB 2.0 ports
  Internal USB Type C header support

• Cooling support
  MOSFET heatsink design
  Smart Fan 6 fan control with multiple temperature sensors

• Power connectors
  24 pin motherboard connector
  Dual 8 pin CPU power connectors

• BIOS features
  UEFI BIOS with Q Flash Plus firmware update support

• Operating system support
  Windows 10 64 bit and Windows 11 64 bit

• Form factor
  ATX motherboard size 30.5cm by 24.4cm
