GIGABYTE Z890 UD WIFI6E 1.0 DDR5 Motherboard - Black

The GIGABYTE Z890 UD WIFI6E DDR5 motherboard is designed for Intel Core Ultra processors using the LGA1851 socket, delivering stable performance and modern connectivity.
It supports high-speed DDR5 memory with automated tuning technologies that improve system stability and responsiveness.
Fast networking is provided through WiFi 6E and 2.5Gb Ethernet, along with PCIe 5.0 and multiple M.2 storage interfaces for next-generation components.
Advanced thermal design and robust power delivery help maintain consistent performance during demanding workloads and gaming sessions.

Key Features

• Intel Z890 chipset
• LGA1851 socket for Intel Core Ultra processors
• High-speed DDR5 memory support
• WiFi 6E and Bluetooth 5.3 connectivity
• 2.5Gb Ethernet networking
• PCIe 5.0 graphics card slot
• Triple M.2 storage support
• USB4 Type-C high-speed port
• Advanced thermal cooling design
• RGB lighting support

Detailed Technical Specifications

• Model
  GIGABYTE Z890 UD WIFI6E DDR5

• Chipset
  Intel Z890 Express

• CPU Support
  LGA1851 socket
  Supports Intel Core Ultra processors

• Memory
  4 DDR5 DIMM slots
  Up to 256GB capacity
  Dual-channel architecture
  Supports XMP, ECC, and non-ECC memory
  Speeds up to 9200 MT/s with overclocking

• Integrated Graphics Support
  USB4 Type-C port with video output up to 4K
  DisplayPort output up to 4K depending on CPU

• Networking
  Realtek 2.5Gb Ethernet
  WiFi 6E tri-band 2.4GHz, 5GHz, 6GHz
  Bluetooth 5.3

• Expansion Slots
  1 × PCIe 5.0 x16 slot
  2 × PCIe 4.0 x16 slots operating at x4
  1 × PCIe x1 slot

• Storage
  1 × M.2 PCIe 5.0 slot
  2 × M.2 PCIe 4.0 slots
  4 × SATA ports
  RAID support for NVMe and SATA storage

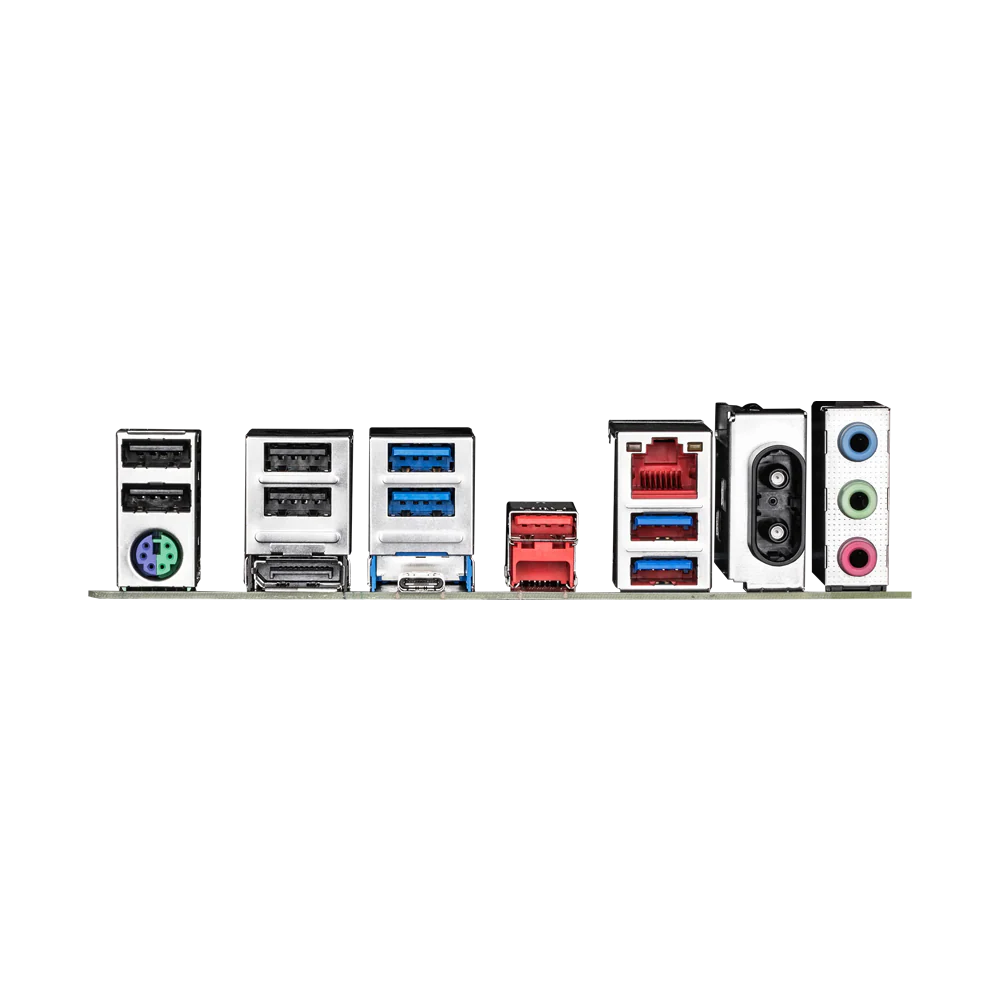

• USB Connectivity
  Rear USB4 Type-C port
  Internal USB-C header
  USB 3.2 Gen2 Type-A port
  Multiple USB 3.2 Gen1 and USB 2.0 ports

• Audio
  Realtek High Definition Audio
  Multi-channel audio support

• Internal Connectors
  CPU and chassis fan headers
  Liquid cooling pump headers
  RGB and ARGB lighting headers
  Thunderbolt expansion support

• Thermal Design
  Metal VRM heatsinks
  Dedicated M.2 cooling

• BIOS
  UEFI BIOS interface
  Q-Flash and Q-Flash Plus support
  Smart Backup capability

• Software Support
  GIGABYTE Control Center
  RGB lighting management
  Network management utilities

• Operating System Support
  Windows 11 64-bit

• Form Factor
  ATX
  Dimensions 30.5 × 24.4 cm
